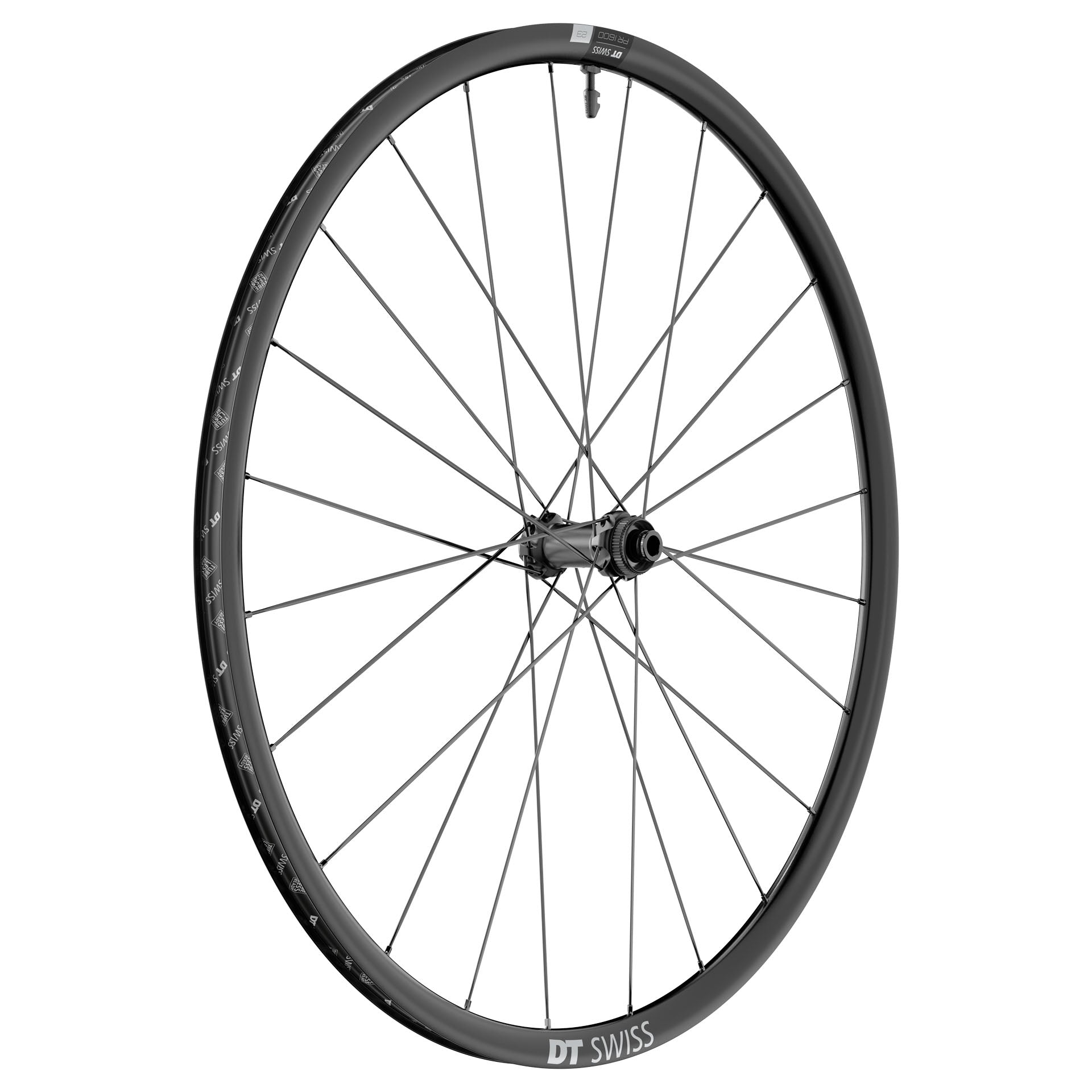

DT SWISS PR 1600 SPLINE 23 DIC Tubeless Ready Front Wheel (Center Lock)

Designed for cyclists who favour hilly routes and long climbs, the DT SWISS PR 1600 SPLINE 23 combines lightness, precision and reliability. Its low-profile... Read more
Regular price 251,90 €
Regular price Sale price 251,90 €
View full details

Description

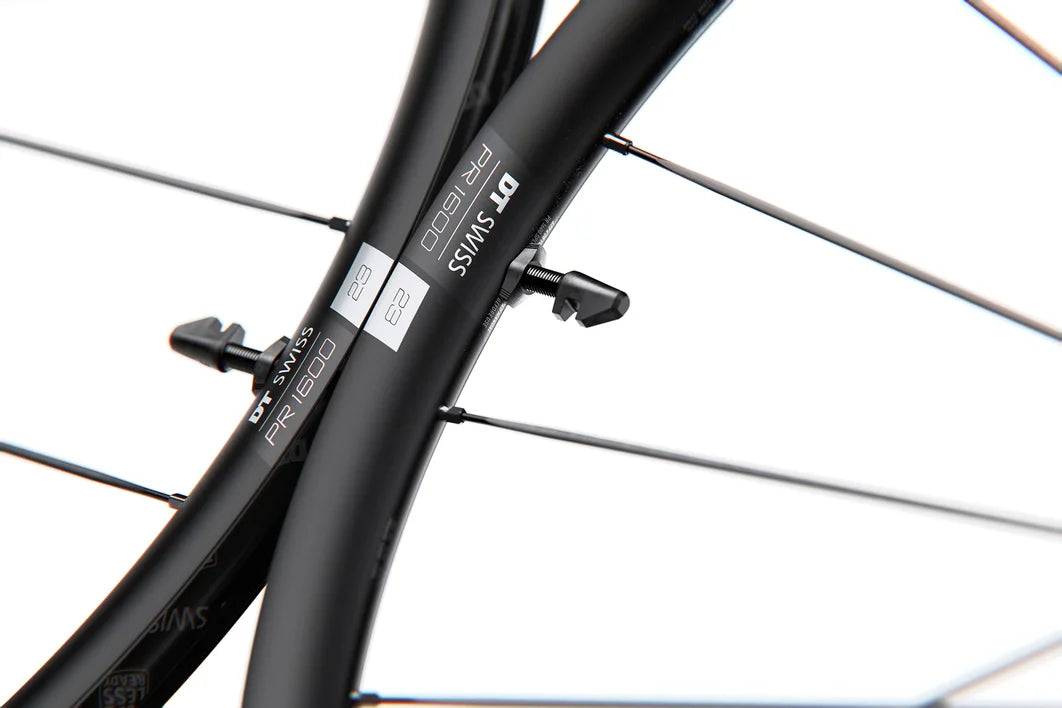

Designed for cyclists who favour hilly routes and long climbs, the DT SWISS PR 1600 SPLINE 23 combines lightness, precision and reliability. Its low-profile aluminium rim of 23 mm promotes acceleration and reduces inertia during changes of pace. With its 20 mm internal width, it offers excellent support for modern tyres, improving both comfort and stability in technical sections.

At the heart of the wheel sits the renowned DT Swiss 350 hub, known for its robustness and smooth operation. Paired with DT aero comp® wide straightpull spokes, it guarantees an optimal balance between lateral stiffness, efficiency and durability. This design maintains precise steering while minimising energy losses during accelerations or changes of support.

Compatible with Tubeless Ready, this front wheel features a Hooked / Crotchet Tubeless TC interface allowing riding at lower pressures for improved comfort and grip. Its careful construction and premium components make it an ideal solution for cyclists looking for a high-performing, reliable and versatile wheel for modern road riding.

Manufacturer Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Installation Manual

Ref: 16023268229500

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: 739 g
Max Load: 120 kg
ASTM Classification: 1
E-Bikes Recommended: No
Manufacturer Reference: WPR1600AIDXSA21338

┘RIM
Material: aluminium, sleeved joint
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 23mm
Internal Width: 20mm
External Width: 24mm

┘HUB
Model: 350
Axle System: 12mm Thru axle
Spacing: 100mm
Disc Mount: Center Lock

┘SPOKES AND NIPPLES
Spokes: DT aero comp wide straightpull
Lacing Pattern: Two-cross (1:1)
Nipples: DT Pro Lock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from the full DT Swiss expertise;

┘INCLUDED
Rim tape: 23mm tubeless roll
Valve: Black alu TL valve 18-25 mm / Valve protection sticker

Informations prix

*Recommended retail price from supplier in June 2026
