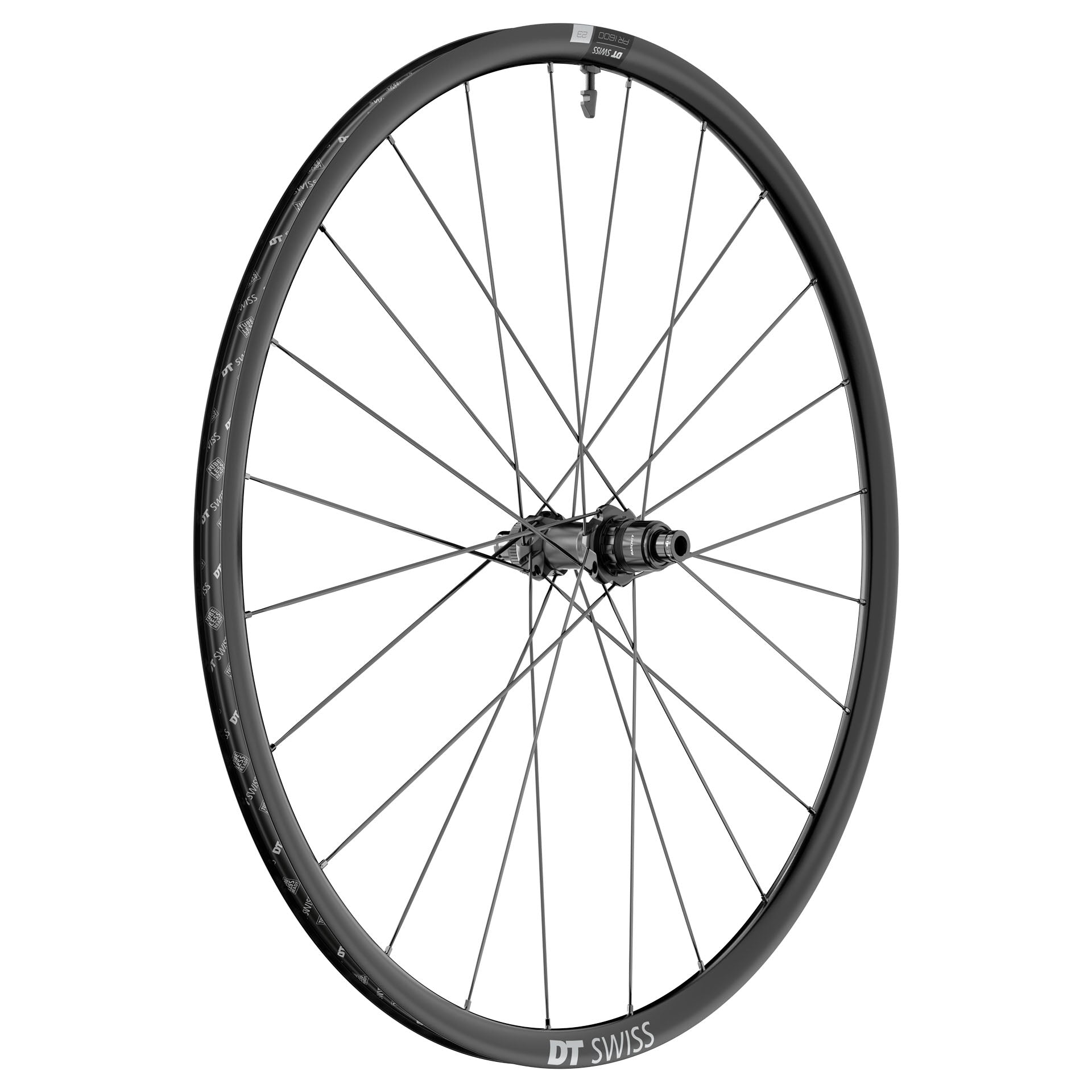

DT SWISS PR 1600 SPLINE 23 DIC Tubeless Ready Rear Wheel (Center Lock)

Designed to offer an excellent balance between efficiency, reliability and light weight, the rear DT SWISS PR 1600 SPLINE 23 stands out with its... Read more
Regular price 367,90 €
Regular price Sale price 367,90 €
View full details

Description

Designed to offer an excellent balance between efficiency, reliability and light weight, the rear DT SWISS PR 1600 SPLINE 23 stands out with its aluminium rim of 23 mm height. Its low-profile design favours climbing and acceleration while maintaining excellent control on fast descents. The internal width of 20 mm ensures optimal tyre retention, improving stability and confidence in committed corners.

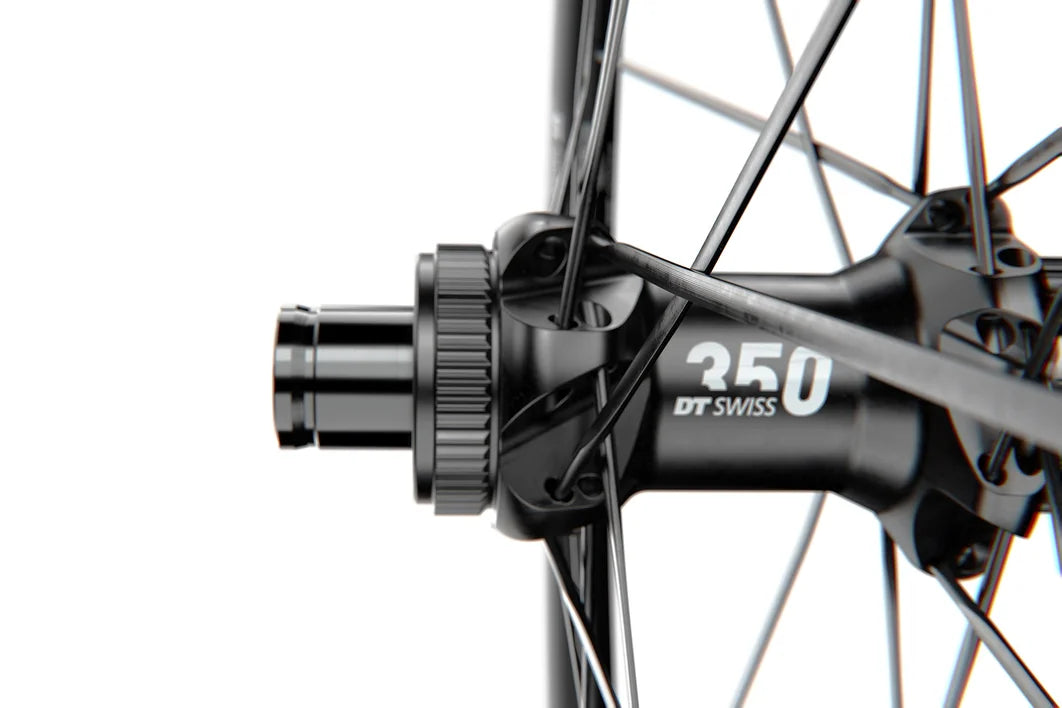

This wheel features the renowned DT Swiss 350 hub equipped with the Ratchet System 36 SL, a technology enabling rapid drivetrain engagement for sharper and more efficient acceleration. The DT aero comp® wide straightpull spokes complete the package, delivering an excellent balance of aerodynamics, stiffness and longevity, for a wheel capable of handling the miles without faltering.

Compatible with Shimano Road 11-speed or SRAM XDR drivetrains depending on the version chosen, this wheel also benefits from a Tubeless Ready design. Its high level of finish and proven components make it a benchmark for cyclists seeking a high-performance rear wheel for sportive rides, long climbs and intensive training.

Manufacturer Manual + Rim/Tyre Compatibility & Pressures Chart

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 16023269179772

Informations techniques

┘GENERAL
Category: Road
Manufacturer Weight: 826 g in XDR and 824 g in Shimano HG
Max Load: 120 kg
ASTM Classification: 1
Recommended E-Bikes: No
Manufacturer Reference in XDR: WPR1600NID1SA21340

┘RIM
Material: aluminium, sleeve joint
Tyre interface: Hooked/Hooked tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 23mm
Internal width: 20mm
External width: 24mm

┘HUB
Model: 350
Axle system: 12mm Thru axle
Spacing: 142mm
Disc attachment: Center Lock
Freehub Body: Shimano HG or XDR
Freehub: Ratchet System 36 SL

┘SPOKES AND NIPPLES
Spokes: DT aero comp wide straightpull
Spoke pattern: Two-cross (1:1)
Nipples: DT Pro Lock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: The SPLINE concept by DT Swiss combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;

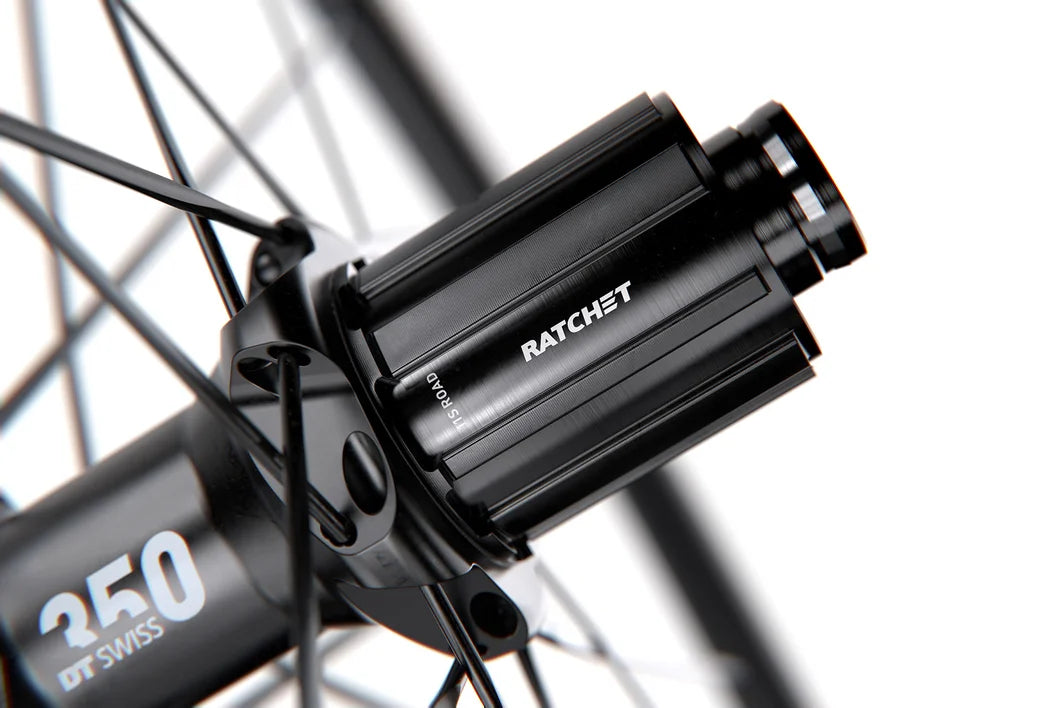

► RATCHET: DT Swiss's Ratchet freehub technology ensures fast and precise engagement thanks to its high-precision ratchet ring system. It guarantees efficient power transmission, high reliability and minimal maintenance;
► ARTISANAL KNOW-HOW: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 23mm tubeless roll
Valve: Black alu TL valve 18-25 mm / Valve protection sticker

Informations prix

*Recommended retail price from supplier in June 2026
