DT SWISS

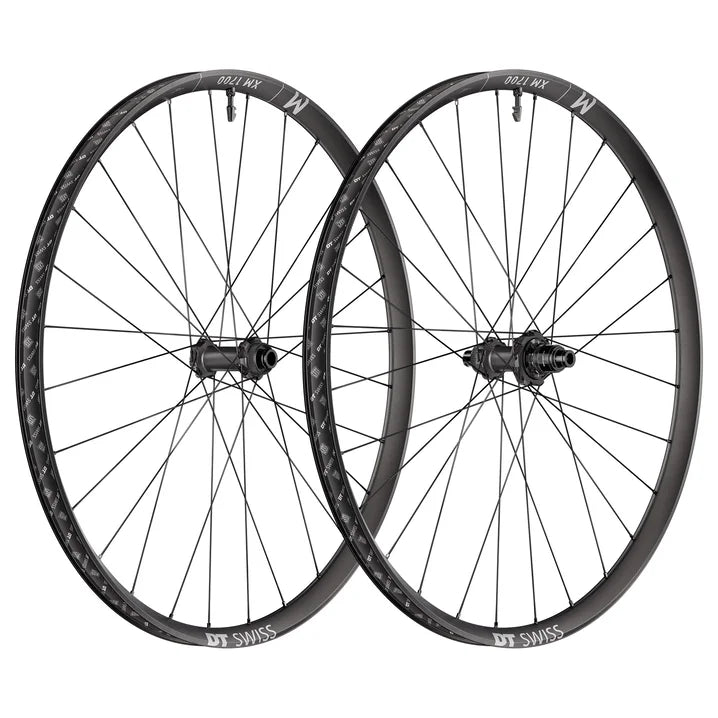

DT SWISS XM 1700 SPLINE 30 mm 29" 15x110/12x148mm Boost 2026 Wheelset

Designed for All Mountain riding, the DT SWISS XM 1700 SPLINE wheelset combines light weight, stiffness and reliability to tackle the most demanding terrain... Read more
Regular price 649,90 €
Regular price 669,80 € Sale price 649,90 €
View full details

Description

Designed for All Mountain riding, the DT SWISS XM 1700 SPLINE wheelset combines light weight, stiffness and reliability to tackle the most demanding terrain with confidence. The welded aluminium rims offer an excellent balance between robustness and efficiency, whilst the Tubeless Ready design improves grip, comfort and puncture resistance.

Developed for riders seeking precision and versatility, these wheels feature an internal width of 30 mm, perfectly suited to modern tyres designed for trail and mountain riding. The asymmetric rim design promotes even distribution of spoke tension, contributing to improved stability and increased overall durability.

Equipped with DT Swiss 350 hubs featuring Ratchet DEG 72 technology, this wheelset delivers instant power transfer thanks to its 72 points of engagement. Combined with DT Swiss DF technology, which limits the kick-back effect by releasing chain tension in the freehub, it ensures smoother and more natural behaviour on descents. The DT Competition Race Straightpull spoke pattern enhances lateral stiffness while preserving comfort and control on technical sections.

Compatible with modern mountain bike riding, the XM 1700 SPLINE is also approved for E-Bikes up to 250 W and 32 km/h. Its Center Lock interface simplifies rotor fitting and its Boost format ensures excellent handling precision.

Ref: 16031447613820

Technical information

Use: All Mountain / Trail
Rim material: 29" Aluminium
Construction: Welded rim
Tubeless compatibility: Hooked / Crotchet Tubeless TC
Internal width: 30 mm
External width: 35 mm
Rim height: 21 mm
Valve type: Presta

Hubs: DT Swiss 350
Freehub technology: Ratchet DEG 72 with DF 0°/10°/20° technology
Number of engagement points: 72
Axle: 12x148mm and 15x110mm
Disc mount: Center Lock
Spokes: DT Competition® Race Straightpull
Lacing: Three-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu
Available freehub bodies:
SRAM XD (specific for SRAM 12-speed cassette)
Shimano Micro Spline (specific for Shimano 12-speed cassette)

Weight: 1027 g rear (in microspline) and 859 g front
Maximum system weight: 130 kg
ASTM certification: ASTM 4
E-Bike compatibility: Yes (max. 250 W / 32 km/h)
Included accessories:
32 mm tubeless rim tape
MTB tubeless valve 18-25 mm
IS 6-bolt adapter
