ENVE ADVENTURE 1/5" Fork 49-55 mm Offset

Designed with internal light and charger routing, the ENVE ADVENTURE 1/5" fork features a clean design concealing formidable efficiency. Drawn up in ENVE's workshops... Read more
649,90 €
649,90 €
View full details

Description

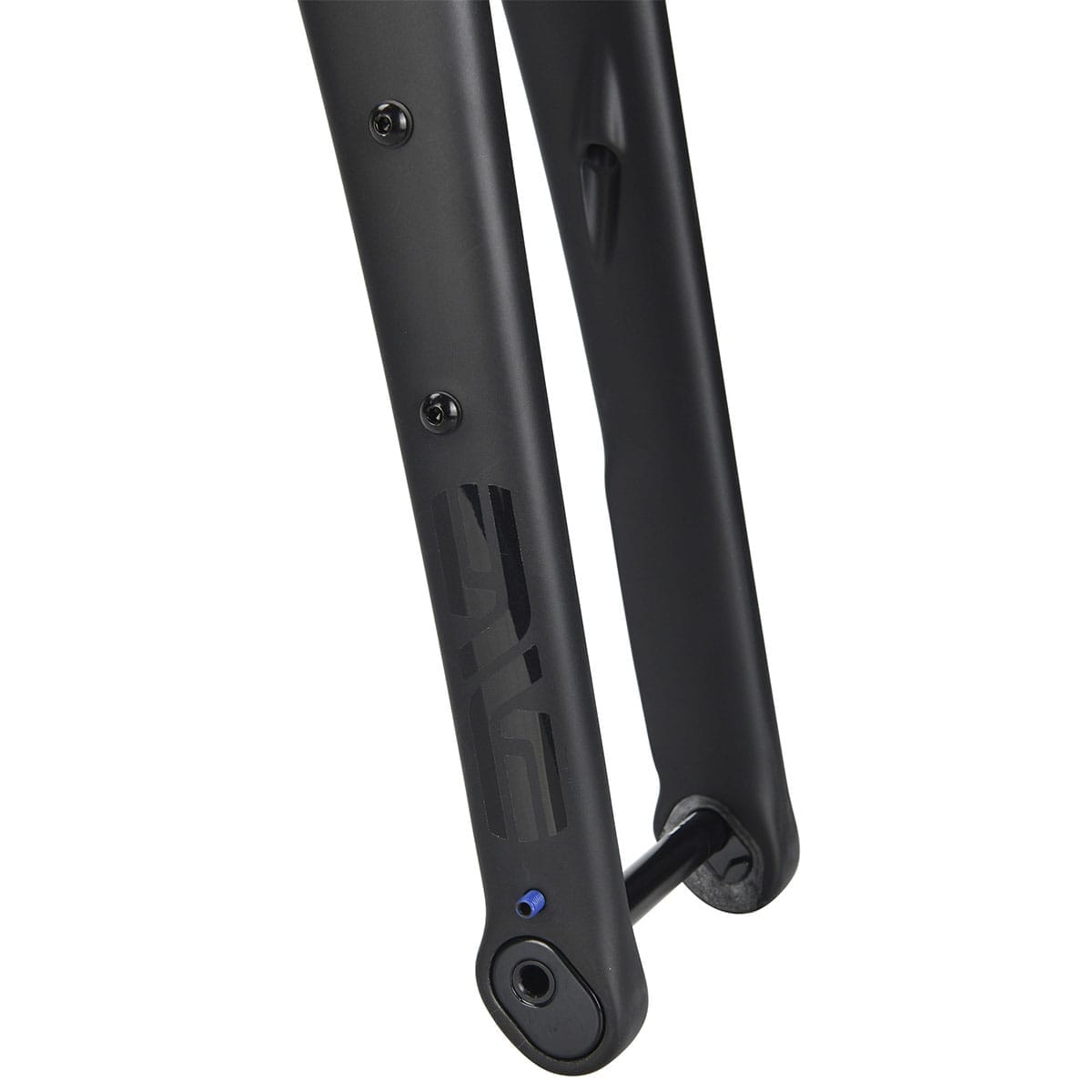

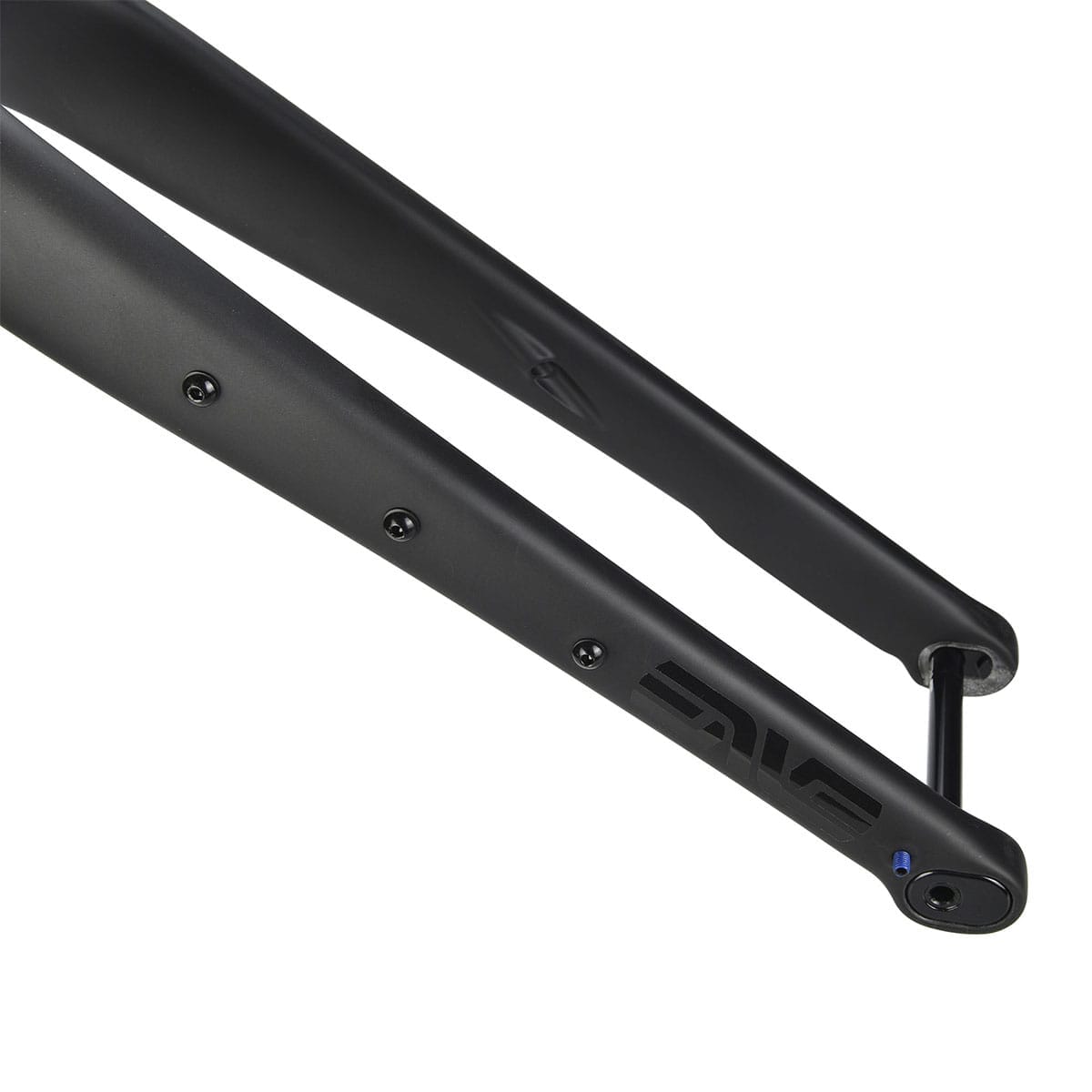

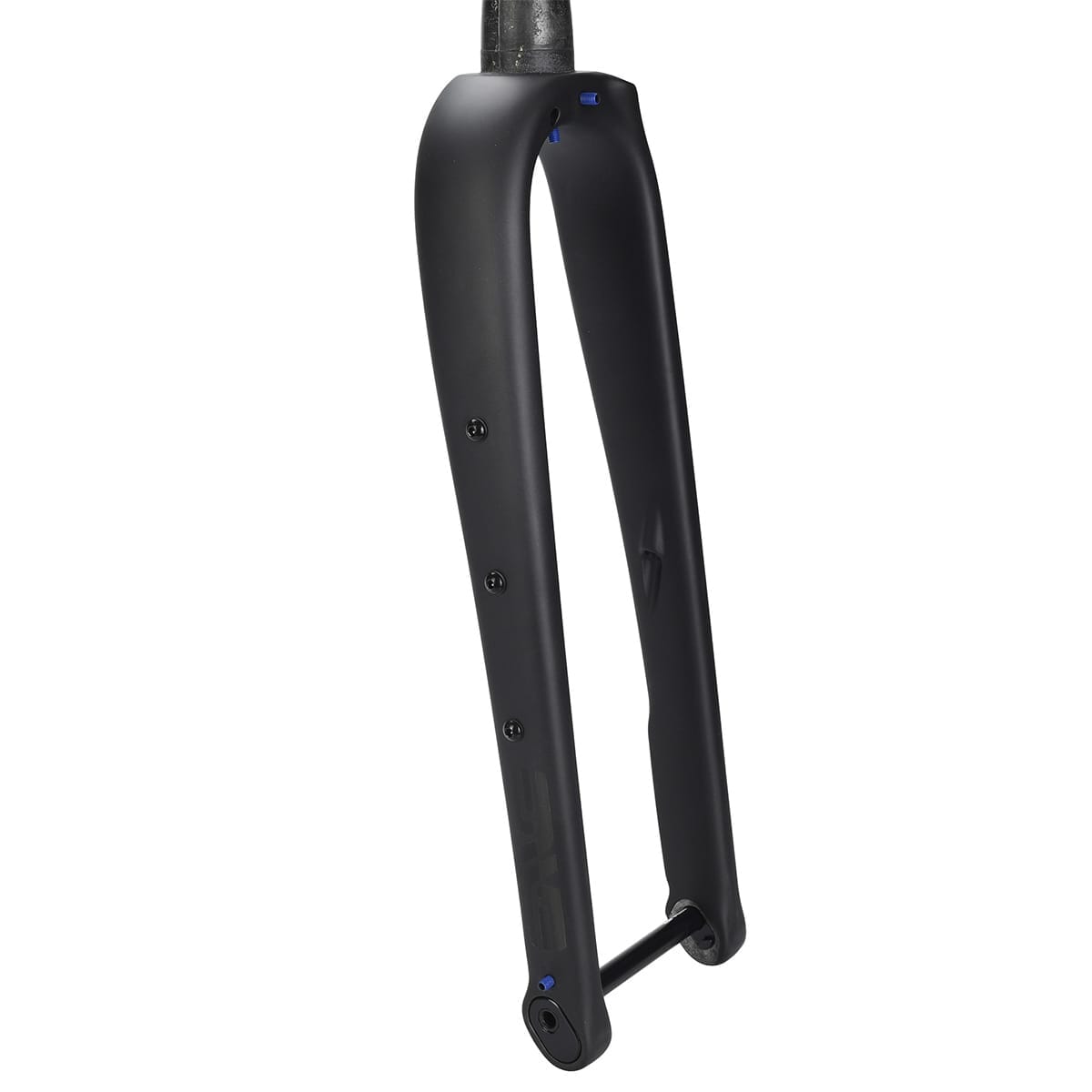

Designed with internal light and charger routing, the ENVE ADVENTURE 1/5" fork features a clean design concealing formidable efficiency. Drawn up in ENVE's workshops in Ogden, Utah, it benefits from all of ENVE's carbon expertise to be as reliable as it is high-performing. This fork offers a design specifically suited to Bikepacking.

At 575 g on the scales, the ENVE G-Series makes no compromise between lightness, reliability and stiffness. Far from neglecting safety, this weight is achieved thanks to the Removable Bladders technology used by the American brand to eliminate carbon irregularities inside the fork and thus avoid unnecessary excess material.

Ref: 9254626296157

Points forts

Pack of three accessory mounts

Mounts for mudguards and racks

Removable and reversible dropout chips for adjusting:

offset (rake)

axle-to-crown height

Internal routing for dynamo (lighting and electronics power supply)

Axle compatibility: 12 x 100 mm

Compatible disc sizes: 160 mm and 180 mm

Informations techniques

► Product reference
SKU: 200-2010-001


► Offset position 49 mm
○ Material: Carbon
○ Accessory mounts: Yes (M5 screws)
○ Weight: 575 g
○ Steerer tube length: 350 mm
○ Tapered steerer: 1"1/8 → 1"1/2
○ Offset (rake): 49 mm
○ Crown race seat: 398 mm
○ Brake type: Disc
○ Brake mount: Flat Mount
○ Low rack capacity: 18 kg (40 lbs)
○ Front rack capacity: 10 kg (22 lbs)
○ 3-pack mounts capacity: 6 kg per side (2 kg x 3 screws)
○ Axle compatibility: 12 x 100 mm
○ Compatible rotors: 160 mm / 180 mm
○ Maximum tyre clearance: 29" x 2.1" (700 x 53) / 27.5" x 2.4"

► Offset position 55.5 mm
○ Material: Carbon
○ Accessory mounts: Yes (M5 screws)
○ Weight: 575 g
○ Steerer tube length: 350 mm
○ Tapered steerer: 1"1/8 → 1"1/2
○ Offset (rake): 55.5 mm
○ Crown race seat: 406 mm
○ Brake type: Disc
○ Brake mount: Flat Mount
○ Low rack capacity: 18 kg (40 lbs)
○ Front rack capacity: 10 kg (22 lbs)
○ 3-pack mounts capacity: 6 kg per side (2 kg x 3 screws)
○ Axle compatibility: 12 x 100 mm
○ Compatible rotors: 160 mm / 180 mm
○ Maximum tyre clearance: 29" x 2.3" (700 x 58) / 27.5" x 2.6"

► Torque settings
○ Steerer tube: 5.5 Nm
○ Axle: 8 Nm
○ Brake screws: as per brake manufacturer
○ Accessory screws: 2 Nm

▲ Important note
The steerer tube is not compatible with star nuts

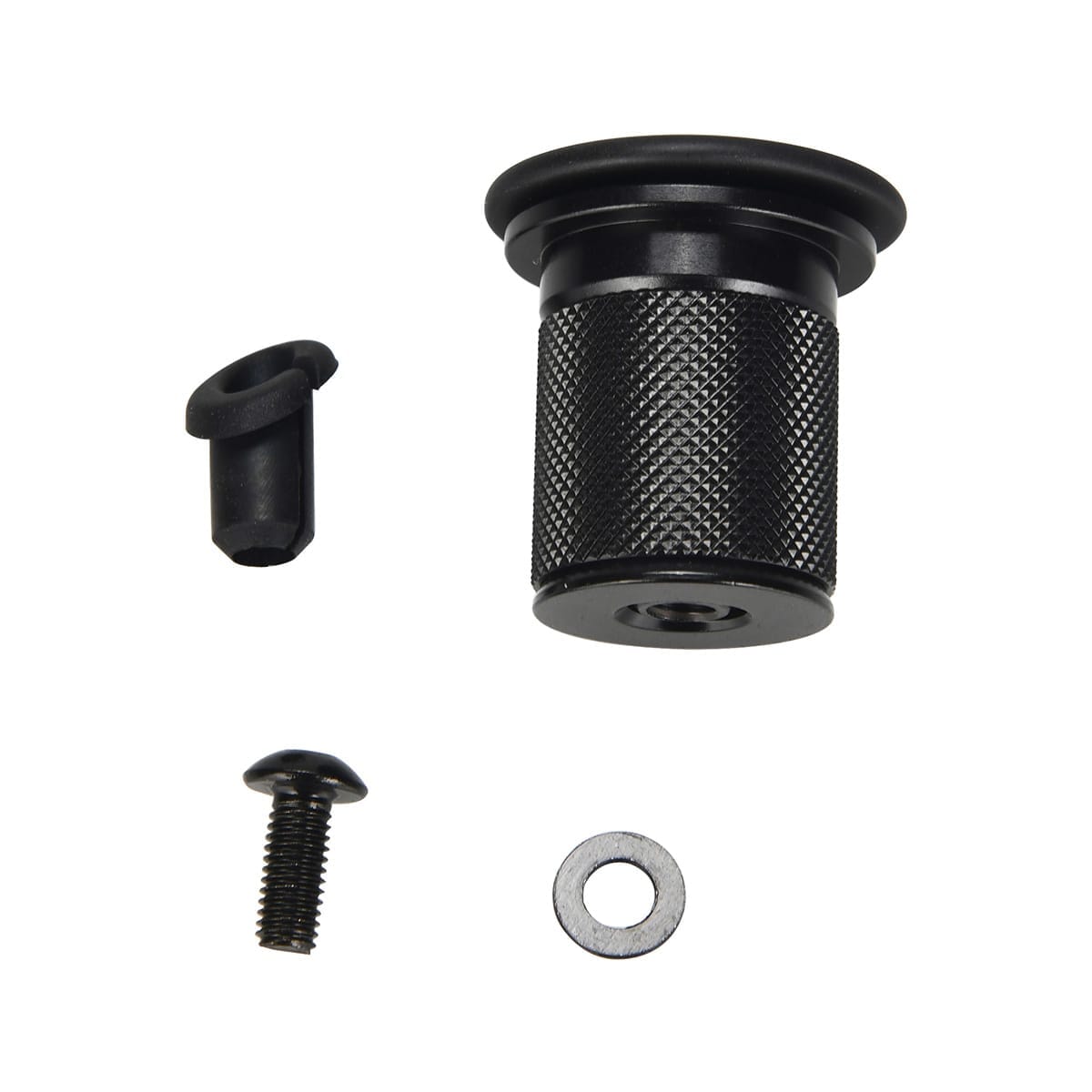

→ Use an expander (compression plug) only.
;

Informations prix

*Supplier recommended retail price in February 2024
