FAVERO ELECTRONICS

FAVERO ASSIOMA PRO RS-1 Power Meter Pedals

Réf. fabricant : 773-20-01
Visit pedal Power Meter FAVERO ASSIOMA PRO RS-1 stands out for its exceptional lightness: only 123.5 g per pedalmaking it the lightest road bike on... Read more
Regular price 435,60 €
Regular price Sale price 435,60 €
View full details

Description

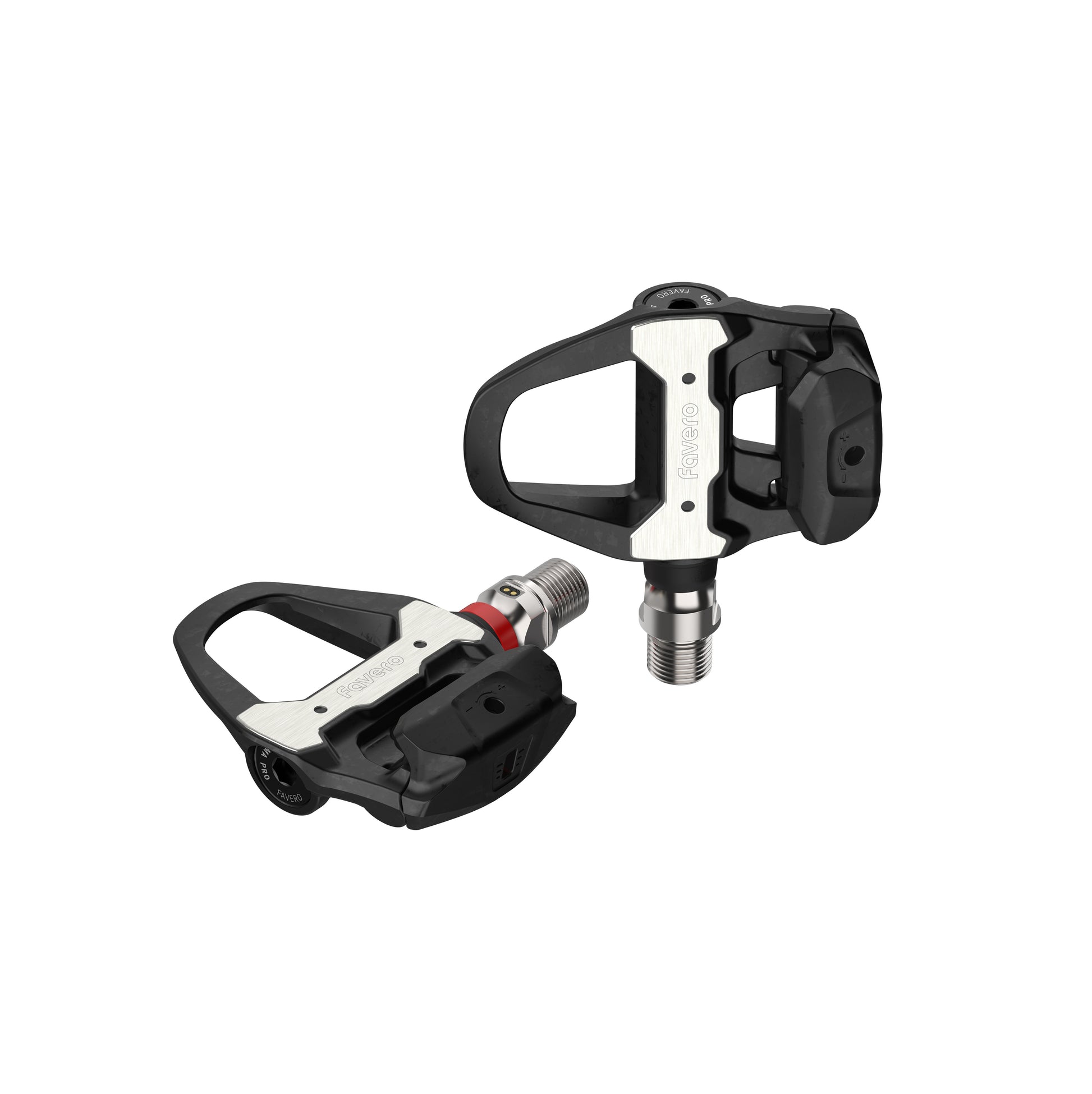

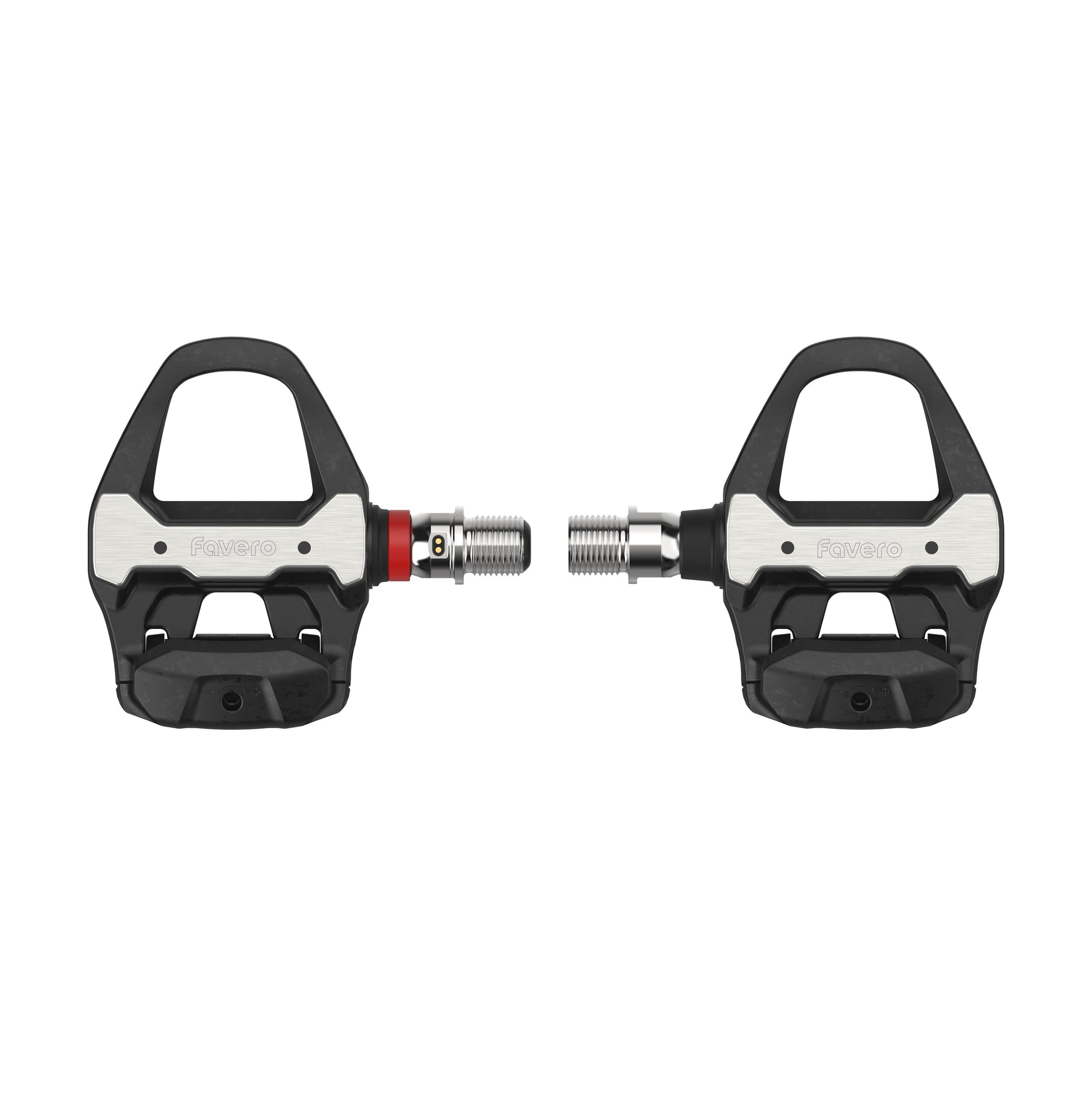

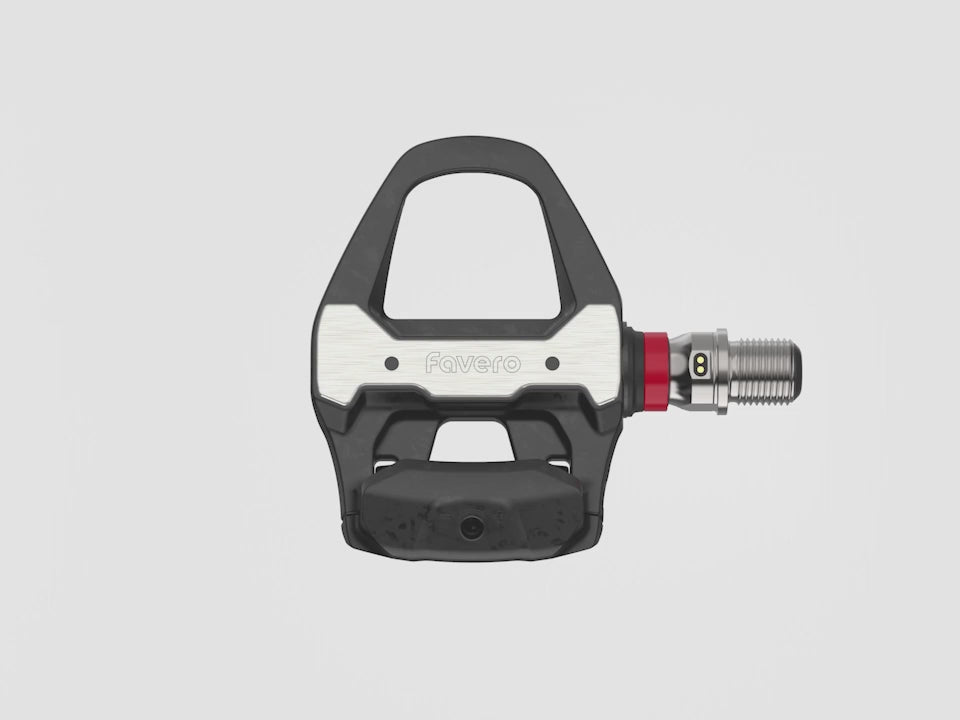

Visit pedal Power Meter FAVERO ASSIOMA PRO RS-1 stands out for its exceptional lightness: only 123.5 g per pedalmaking it the lightest road bike on the market. Compatible with Shimano® SPD-SL® cleats, it offers an impressive autonomy of over 60 hours, guaranteeing long rides without data interruption.

Its architecture is based on a totally sealed power axle, housing the electronic components and battery. This design, independent of the pedal body, ensures increased resistance to wear, as well as remarkable ease of maintenance, ideal for demanding cyclists looking for reliability and durability.

The design of the Assioma PRO RS-1 is optimized for performance: a reduced Q factor of +53 mm and a stack height of 10.5 mm enable better power transmission and more efficient pedaling. This ergonomic design helps you achieve your training goals with greater precision and comfort.

Thanks to IAV Power System technology, the pedal offers ±1% measurement accuracy, with data enriched by advanced metrics. Its modularity also means it can be upgraded from a Road to an MTB pedal body while retaining the same sensor. A top-of-the-range, accurate and upgradeable solution.

Ref: 15284008255868

Informations techniques

MAIN INFORMATION :
- Left pedal with Power Meter
- Right pedal without Power Meter
- 100% compatible with Shimano® SPD-SL® shims
- The lightest pedal with Power Meter - only 123.5 g per side
- Accuracy of ±1% even with oval Chainrings
- Rechargeable battery - over 60 hours per charge
- Advanced metrics (including PCO - Platform Center Offset)
- Carbon-fiber-reinforced techno-polymer pedal body
- Low stack height (10.5 mm)
- Low standard Q-factor (+53 mm)
- Modular design - interchangeable pedal bodies (Road/MTB)
- Made in Italy

TECHNICAL DATA
- SPD-SL® Road Power Meter integrated into left pedal
- Weight of left pedal with Power Meter: 123.5 g
- Right pedal weight without Power Meter: 122.5 g
- Cadence sensor: internal, integrated
- Gyroscope: internal, integrated
- Power calculation system: IAV (Instantaneous Angular Velocity-based)
- Cycling Dynamics: yes

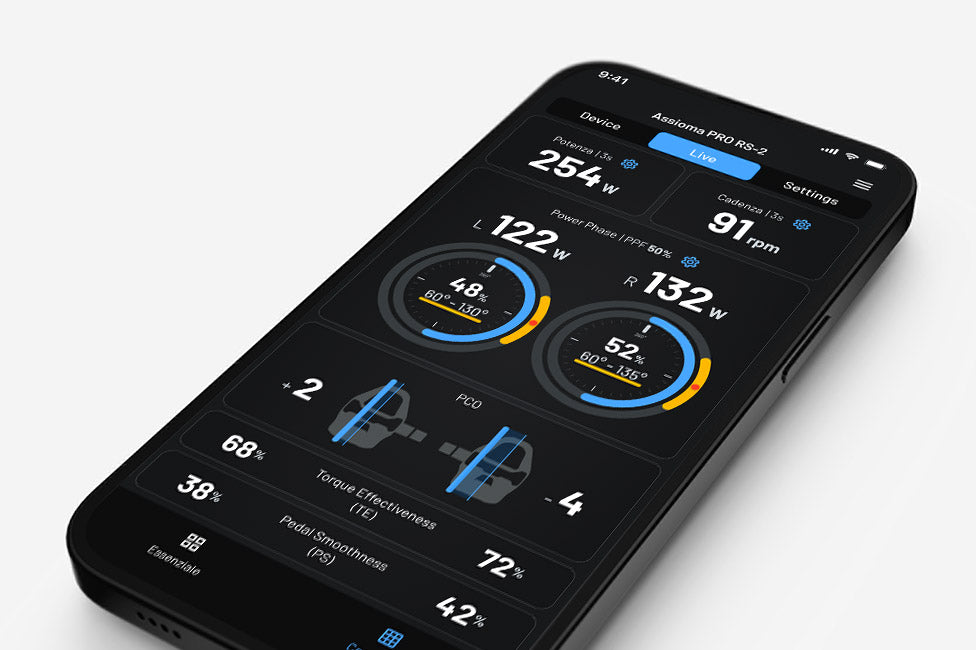

- Data available via ANT+ or Favero Assioma app:
- Power
- Cadence
- PCO (Platform Center Offset)
- TE (Torque efficiency)
- PP (Power phase)
- PS (Pedaling smoothness)
- RP (Sitting/dancing position) not on the Favero Assioma app
- Data available via Bluetooth :
- Power
- Cadence
- Oval Chainring compatible: yes
- Battery: lithium, rechargeable
- Battery life: at least 60 hours
- Radio communication: ANT+, Bluetooth
- Power measurement accuracy: ± 1%.
- Temperature compensation: yes
- Waterproof rating: IP67
- Q-factor: +53mm
- Stack height pedal: 10.5 mm
- Shims compatible :
- Shims supplied (art. 773-20-64)
- Shimano® Shims SM-SH10, SM-SH11 or SM-SH12 (not supplied)
- Bike type: Road
- Warranty : 2 years

PACKAGE CONTENTS
- Power Meter on left pedal only
- 1 Y-shaped charging cable
- 1 Magnetic connector
- Shimano®-compatible SPD-SL® shims
- Kit of 4 washers
- Lubrication kit
- Warranty and safety manual
- Welcome brochure

Informations prix

Recommended retail price June 2025
