AMBIT HAXN HOITA Medium Flat Pedals Black Matt - Limited Edition

AMBIT HAXN HOITA Flat Pedals - Limited Edition set a new benchmark in precision and robustness for enduro and slopestyle mountain biking. Manufactured in... Read more
229,90 €
229,90 €
View full details

Description

AMBIT HAXN HOITA Flat Pedals - Limited Edition set a new benchmark in precision and robustness for enduro and slopestyle mountain biking. Manufactured in Oberammergau on state-of-the-art 5-axis CNC machines, they benefit from ultra-precise machining to guarantee reliability and durability. Entirely designed and produced in Bavaria, they embody the highest standards of craftsmanship.

Developed and validated through intensive testing in the workshop, in the field and in racing conditions, AMBIT HAXN HOITA - Limited Edition flat pedals meet the most demanding requirements. The patented rotation brake system allows fine-tuning of rotation resistance for optimum control, while AMBIT® pimples ensure maximum grip, customizable according to riding style.

The design also incorporates a simplified maintenance system with service screws, enabling rapid disassembly of the axle. The felt seal provides effective protection against moisture and dirt, prolonging service life. Finally, the geometry with 1° inclination enhances ergonomics, power transmission and comfort on the most demanding rides.

Ref: 15843805331836

Informations techniques

Type : Flat pedals
Sizes available: M / L
Dimensions
Medium: 113 mm x 114 inside and 106 mm x 100 mm outside
Width: 123 mm x 124 inside and 116 mm x 110 mm outside
Q-Factor: 57mm

Practices: Gravity, enduro, slopestyle
Body material: Aluminium AL7075
Shaft: 42CrMo4 steel
1 IGUS ring 12x15 mm
2 industrial bearings
Seals: 3 mm felt ring, INA 3x12
Adjustment: Adjustable with Allen key
10 interchangeable Ambit® pins (5mm high)
Overall height: 18 mm (axle, without pins), 14 mm (outside, without pins)
Weight: 385 g (pair without pins, size M), 416 g (pair without pins, size L)

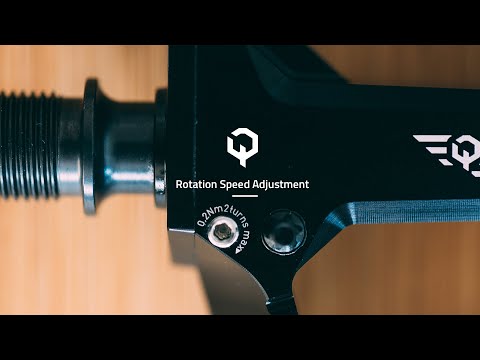

Rotation system: Adjustable rotation brake (patent pending)
Body angle: 1° ergonomic tilt
Maintenance: Service Screw system (quick axle removal)
;
