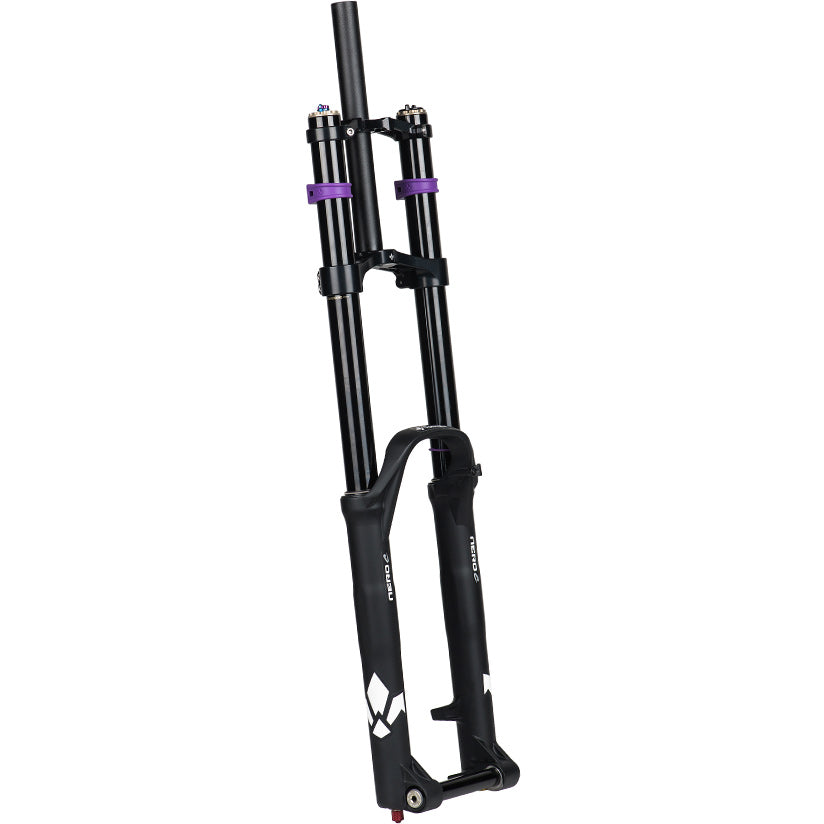

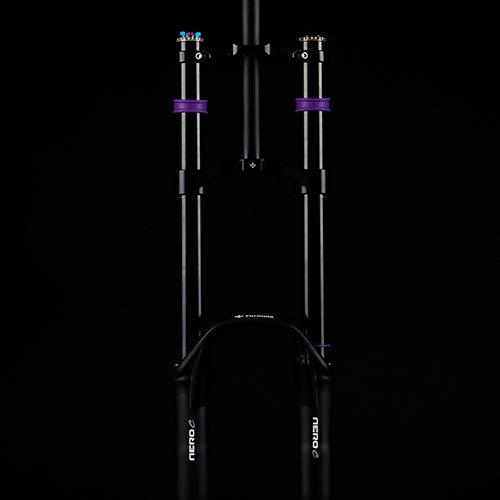

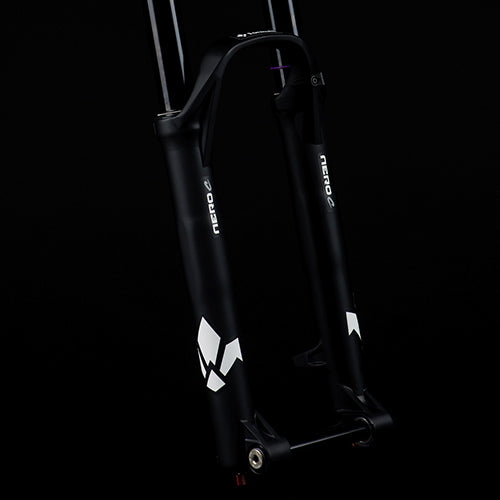

FORMULA NERO C Coil 27.5" Axle 20x110mm Boost Fork Black

TheFORMULA NERO C Coil fork has been designed for riders looking for the unique feel of a coil spring and the reliability of a... Read more
999,90 €
999,90 €
View full details

Description

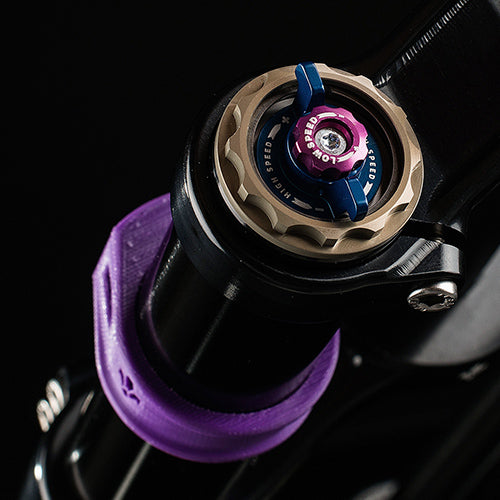

TheFORMULA NERO C Coil fork has been designed for riders looking for the unique feel of a coil spring and the reliability of a "fit-and-forget" fork. Ideal for bike park enthusiasts and committed downhillers, it offers smooth, consistent and predictable operation, even after days of run after run. The Nero C uses the same hydraulics as the Nero R, with independent high- and low-speed compression and rebound settings, for perfect adaptability to any terrain.

In place of the 3Air air system, the Nero C uses an internal coil spring combined with quick and easy tool-free preload adjustment. Three spring hardnesses are available - Soft, Medium and Firm - to adapt the fork to the rider's weight and style. This mechanical choice offers unrivalled sensitivity to small shocks and total consistency, with no need for air maintenance.

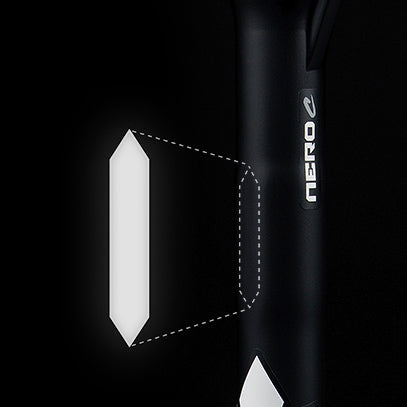

Formula's signature Hexagon design strikes the right balance between stiffness and flexibility. This architecture reduces the frame's natural flex, offering precise steering without sacrificing comfort. The result: a fork that's stable, responsive and forgiving, even in the roughest sections.

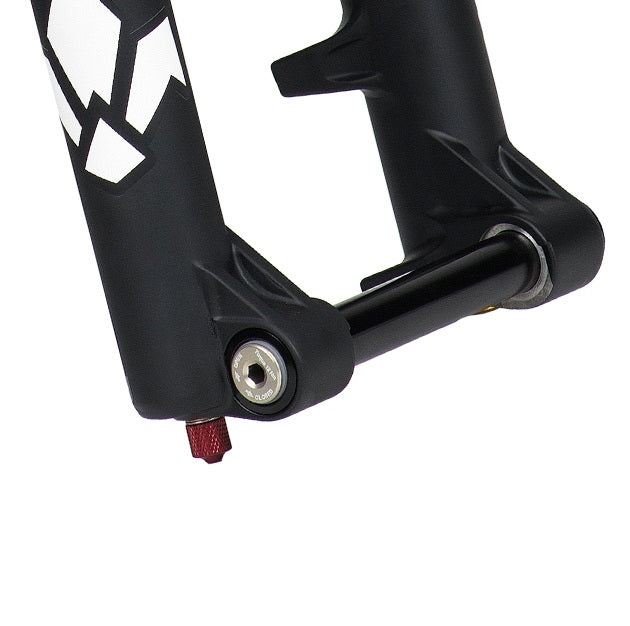

For maximum strength, the Nero C features the Firm system, a 20 mm through-axle with an innovative locking knob. This device simplifies wheel changes while guaranteeing optimum rigidity and safety.

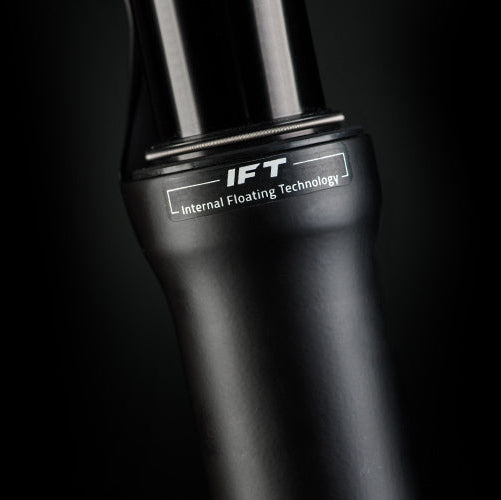

Finally, Internal Floating Technology (IFT) reduces internal friction by allowing the cartridges to move independently of the frame. The Nero C Coil is the embodiment of stress-free downhill riding: simple, high-performance and incredibly smooth.

User manual

Ref: 15581037232508

Informations techniques

Use: Downhill (DH) / Bike Park
Spring type: Coil - three hardnesses available: Soft (not included), Medium (included in fork for weights 65-75kg), Firm (not included)

Standard wheelbase: 200 mm
Weight (manufacturer): 2,850 g
Available colors: Matte black / Matte ultraviolet
Axle-to-Crown: 580 mm ± 5 mm (for 200 mm travel)
Offset (Rake): 50 mm or 56 mm
Maximum rotor size: 220 mm
Pivot: 1 1/8" straight or 1.5" tapered (optional)
Tee: Hollow forged aluminum, matte black finish
Plungers: Ø 35 mm, aluminium 7075, black hard anodizing
Sleeves: from Hexagon design, for an ideal balance between rigidity and flexibility
Axle: 20 mm BOOST with FIRM Locking System (locking by counter-wheel, quick changeover and maximum rigidity)
Manufacture: Made in Italy
10-year brand warranty (parts and service)

For 27.5" wheels (max 2.5" wide)
All sizes larger than 2.35 inches wide must be
be checked with the fork fully compressed

Adjustments and suspension
Damping: Drop-in cartridge with Internal Floating Technology (IFT) to reduce internal friction
Bounce: 21 clicks
Low-speed compression (LSC): 12 clicks
High-speed compression (HSC): 20 clicks

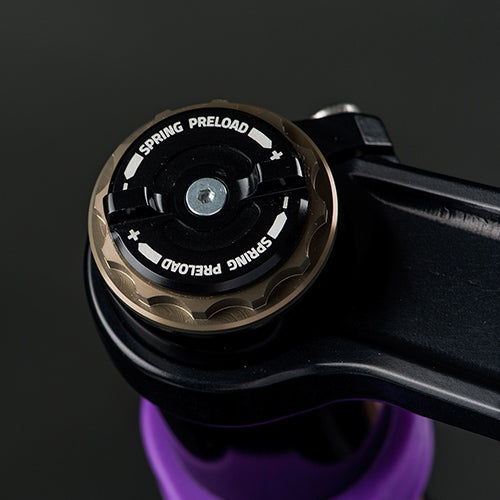

Spring preload: tool-free external adjustment

Highlights :
Coil feel: smooth, consistent and predictable behaviour
Minimal maintenance: "set and forget", ideal for intensive days in the bike park
Hexagon design: controlled rigidity and optimum comfort
IFT Technology: reduced friction, greater sensitivity under load
FIRM System: maximum safety and easy wheel removal
;
