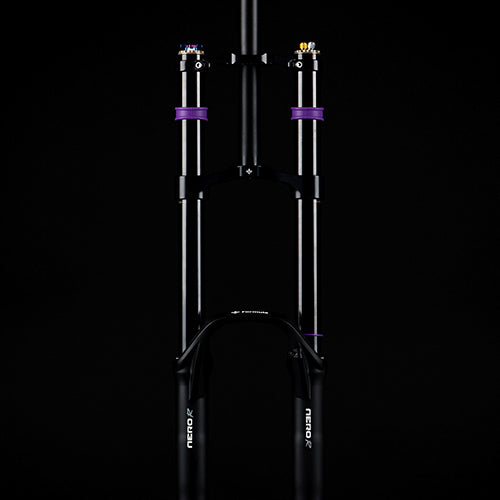

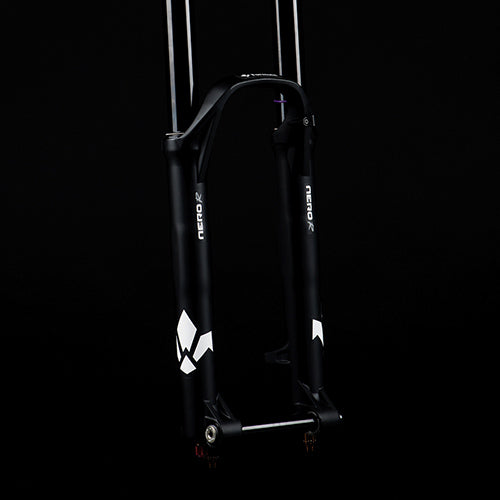

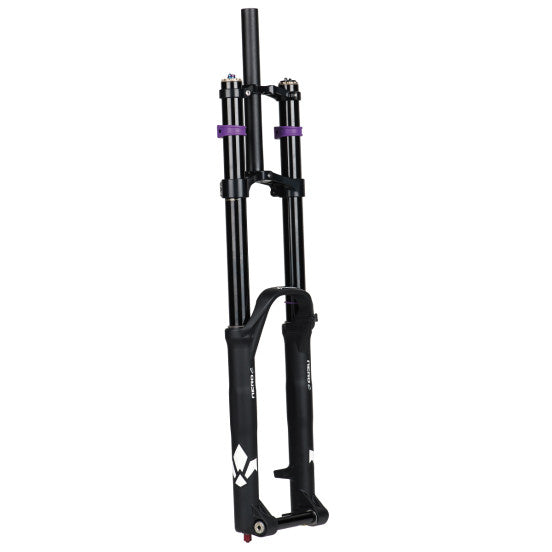

FORMULA NERO R 27.5" 20x110mm Boost Axle Fork Black

Every downhill rider searches for the perfect suspension — one that adapts to every terrain and every speed. While that perfection may not exist,... Read more
Regular price 1.399,90 €
Regular price Sale price 1.399,90 €
View full details

Description

Every downhill rider searches for the perfect suspension — one that adapts to every terrain and every speed. While that perfection may not exist, the FORMULA Nero R comes close, thanks to a design conceived to deliver instant adaptability. The fruit of Formula's expertise, this fork combines performance, precision and personalisation, allowing every rider to find the ideal set-up in a matter of seconds.

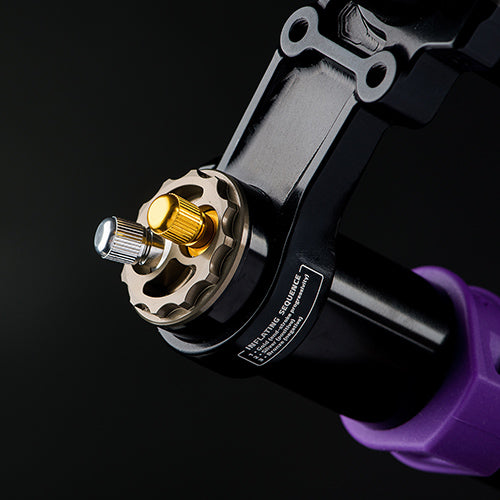

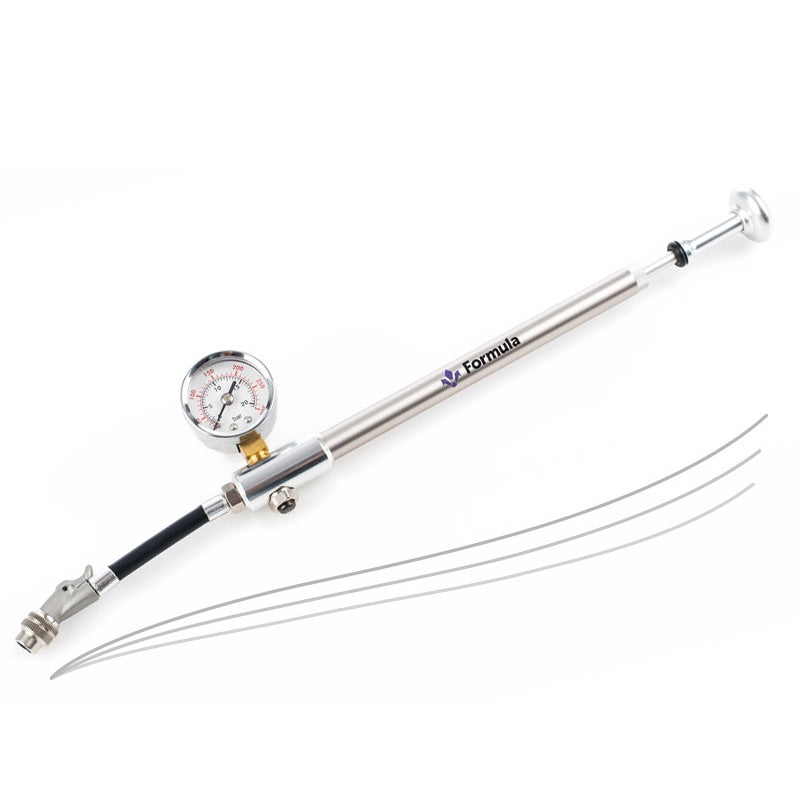

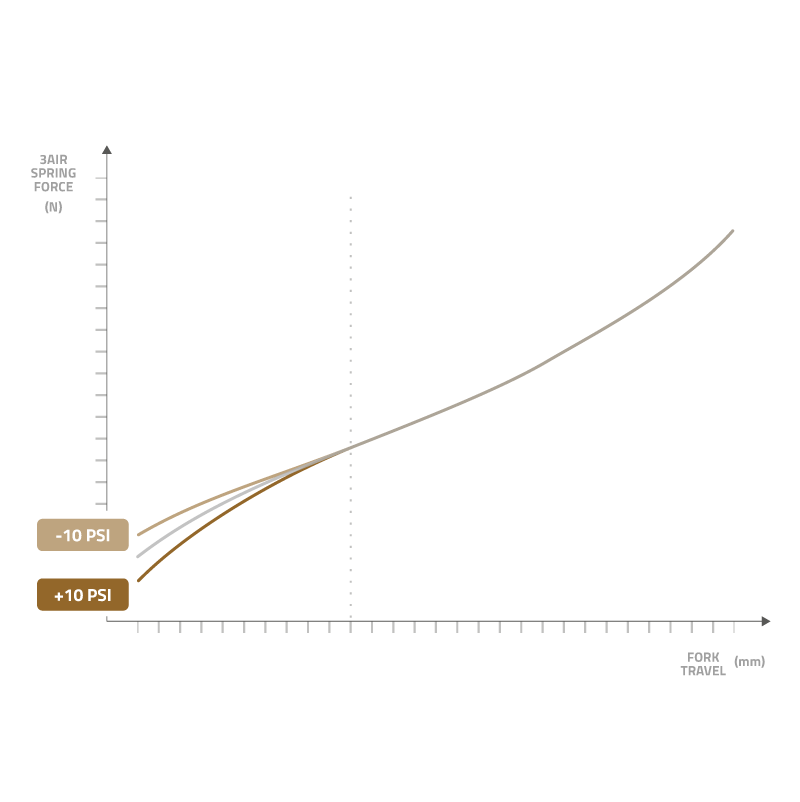

At the heart of the Nero R lies the 3Air system, a unique technology comprising three independent air chambers: Bronze (negative), Silver (positive) and Gold (end-stroke progressivity). This system allows you to sculpt the spring curve to perfection, offering outstanding sensitivity on small impacts and firm support on big hits. Everything adjusts without tools, simply using a high-pressure pump, for a quick adjustment directly on the trail.

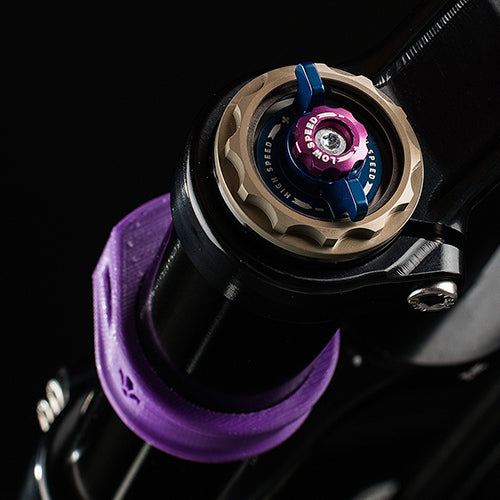

On the hydraulic side, the Nero R integrates a sealed cartridge with independent high and low-speed compression and rebound adjustments. This architecture ensures a smooth, stable and controlled response, even on the most demanding descents.

The structure of the fork is built around the Hexagon design, Formula's signature, guaranteeing a perfect balance between stiffness and flexibility. This design reduces rider fatigue while delivering surgical precision in corners and under braking.

Finally, the Nero R benefits from the FIRM system, a 20 mm thru-axle with counter-knob locking, combined with IFT (Internal Floating Technology) to reduce internal friction. The result: a downhill fork that is responsive, customisable and incredibly smooth, ready to tackle any terrain, from bike parks to the most extreme slopes.

User Manual

Neopros Manual

Ref: 15581037330812

Informations techniques

Usage: Downhill (DH) / Bike Park
Spring type: 3Air System – three independent air chambers (Bronze, Silver, Gold)

Standard travel: 200 mm
Weight (manufacturer): 2,620 g
Available colours: Matt Black / Matt Ultraviolet
Axle-to-Crown: 580 mm ± 5 mm (for 200 mm travel)
Offset (Rake): 50 mm or 56 mm
Maximum rotor size: 220 mm
Steerer: 1 1/8" straight or tapered 1.5" (optional)

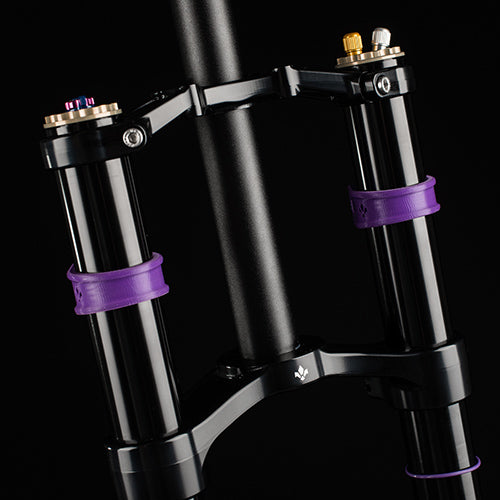

Crown: Hollow forged aluminium, matt black finish
Stanchions: Ø 35 mm, 7075 aluminium, hard black anodising
Lowers: derived from Hexagon design, for an ideal balance between stiffness and flexibility
Axle: 20 mm BOOST with FIRM Locking System (counter-nut locking, quick release and maximum stiffness)
Manufacturing: Made in Italy
10-year brand warranty (parts and service)

For 27.5" wheels (max 2.5" wide)
All sizes larger than 2.35 inches wide must be checked with the fork fully compressed

Settings and suspension
Damping: Drop-In cartridge with Internal Floating Technology (IFT) to reduce internal friction
Rebound: 21 clicks
Low-speed compression (LSC): 12 clicks
High-speed compression (HSC): 20 clicks
Air settings:

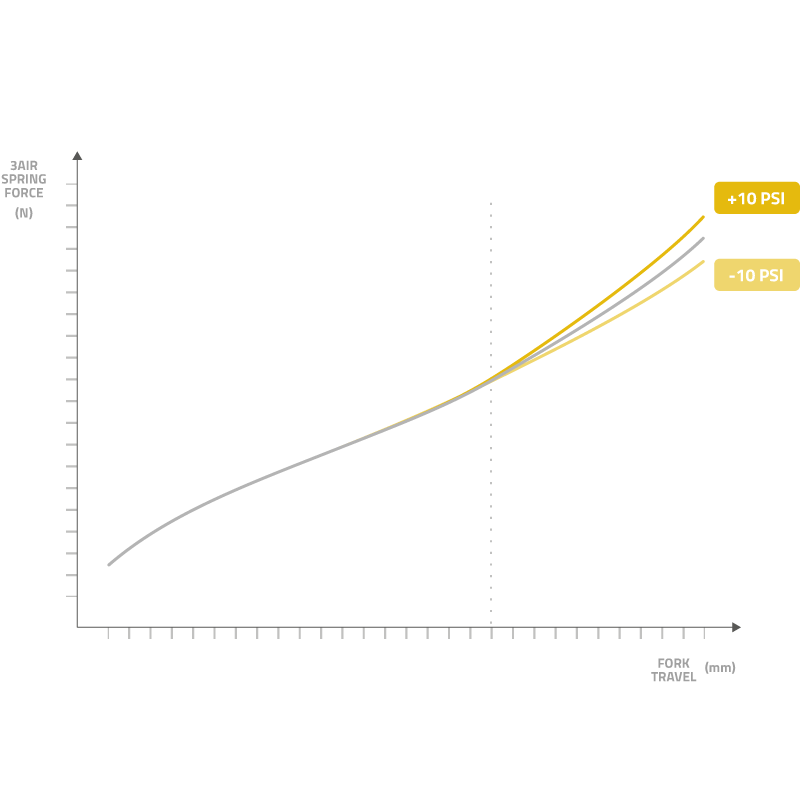

Gold → End-stroke progressivity

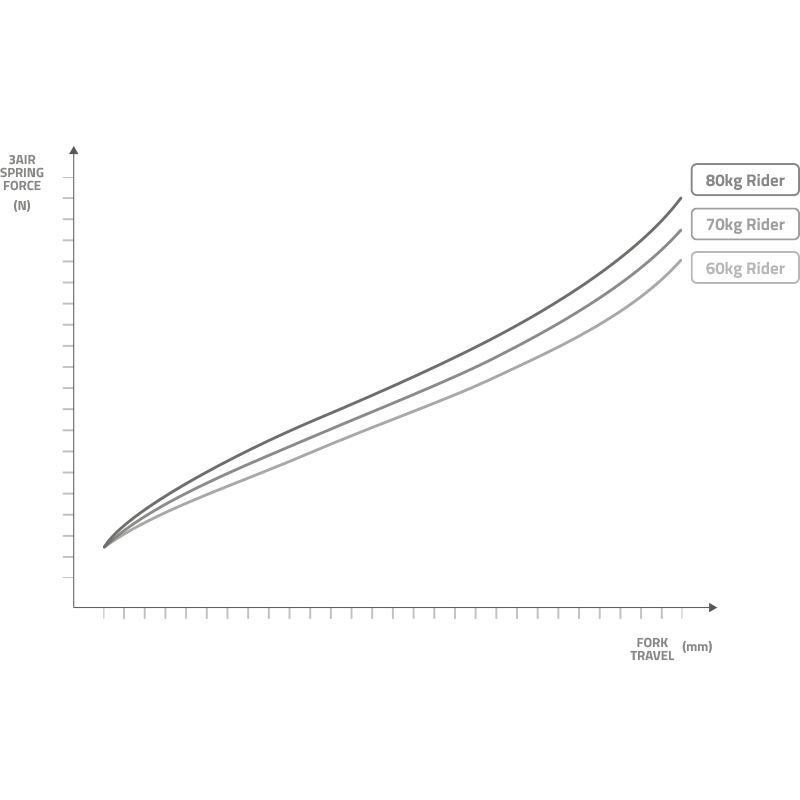

Silver → Main air chamber (positive)

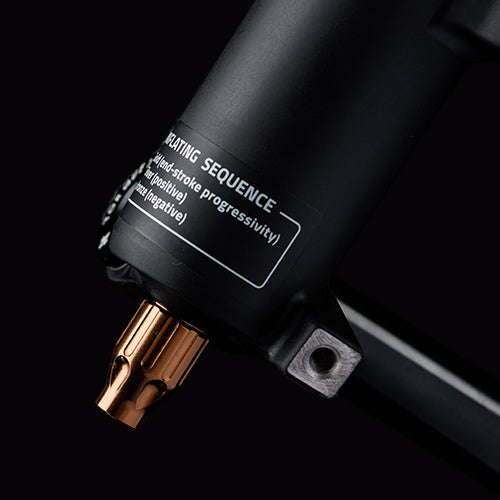

Bronze → Negative chamber (sensitivity)
Internal accessories: Neopos included, for progressive and smooth mid-stroke support

Key features:
3Air System: ultra-precise, tool-free adjustment of the spring curve
High-performance sealed cartridge: unmatched stability and sensitivity
Hexagon Design: controlled stiffness, comfort and handling precision
IFT Technology: smooth cartridge movement for minimal friction
FIRM System: quick wheel removal and enhanced security
