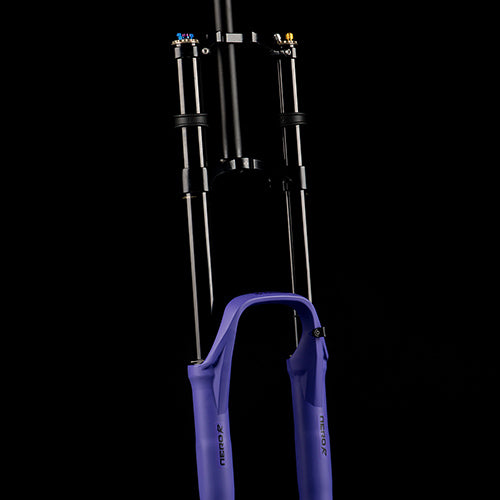

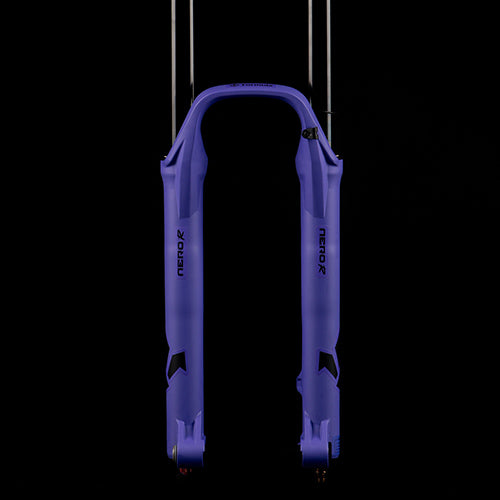

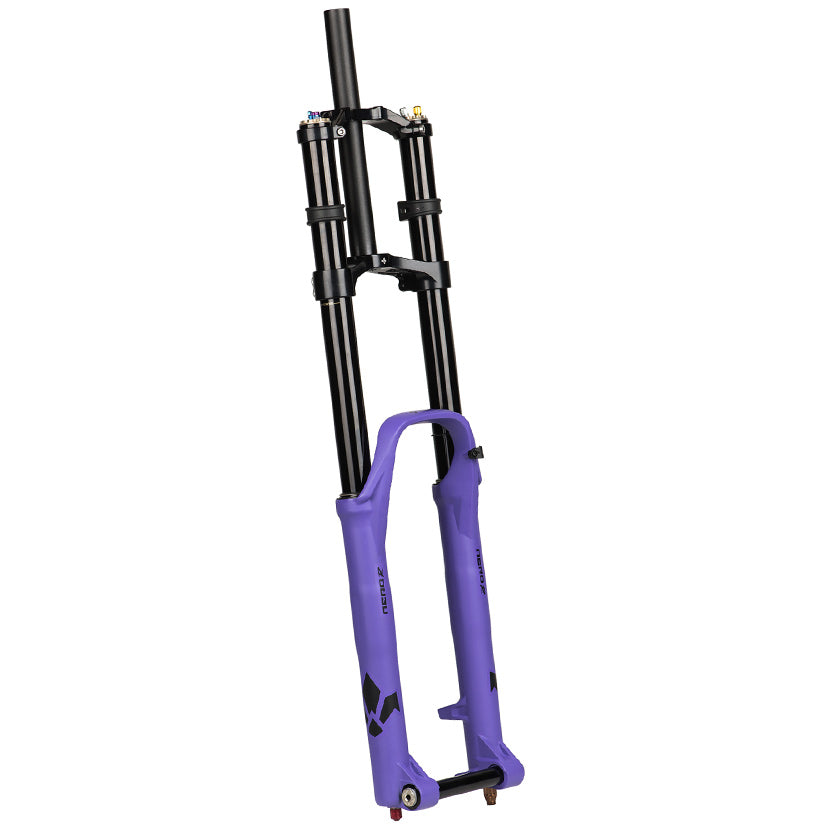

FORMULA NERO R 29" Fork 20x110mm Boost Axle Ultraviolet

Every downhill rider seeks the perfect suspension — one that adapts to all terrain and all speeds. While perfection may not exist, the FORMULA... Read more
1.499,90 €
1.499,90 €
View full details

Description

Every downhill rider seeks the perfect suspension — one that adapts to all terrain and all speeds. While perfection may not exist, the FORMULA Nero R comes close, thanks to a design conceived to deliver instant adaptability. The product of Formula's expertise, this fork combines performance, precision and personalisation, allowing every rider to find the ideal setup in seconds.

At the heart of the Nero R lies the 3Air system, a unique technology comprising three independent air chambers: Bronze (negative), Silver (positive) and Gold (end-stroke progressiveness). This system allows you to sculpt the spring curve to perfection, offering outstanding sensitivity on small impacts and firm support on big hits. Everything can be adjusted without tools, using only a high-pressure pump, for quick tuning directly on the trail.

On the hydraulic side, the Nero R features a sealed cartridge with independent high and low-speed compression and rebound adjustments. This architecture ensures a smooth, stable and controlled response, even on the most demanding descents.

The fork's structure is built around the Hexagon design, Formula's signature, guaranteeing a perfect balance between stiffness and flexibility. This design reduces rider fatigue while offering surgical precision in corners and under braking.

Finally, the Nero R benefits from the FIRM system, a 20 mm thru-axle with counter-nut locking, combined with IFT (Internal Floating Technology) to reduce internal friction. The result: a downhill fork that is responsive, customisable and incredibly smooth, ready to tackle any terrain, from bike parks to the most extreme slopes.

User Manual

Neopros Manual

Ref: 15581037986172

Informations techniques

Usage: Downhill (DH) / Bike Park
Spring type: 3Air System – three independent air chambers (Bronze, Silver, Gold)

Standard travel: 200 mm
Weight (manufacturer): 2,620 g
Available colours: Matt Black / Matt Ultraviolet
Axle-to-Crown: 593 mm ± 5 mm (for 200 mm travel)
Offset (Rake): 50 mm or 56 mm
Maximum rotor size: 220 mm
Steerer: 1 1/8" straight or tapered 1.5" (optional)
Crown: Hollow forged aluminium, matt black finish
Stanchions: Ø 35 mm, 7075 aluminium, black hard anodising
Lowers: derived from the Hexagon design, for an ideal balance between stiffness and flexibility
Axle: 20 mm BOOST with FIRM Locking System (counter-nut locking, quick release and maximum stiffness)
Manufacturing: Made in Italy
10-year brand warranty (parts and service)

For 29" wheels (max 2.5" wide)
All sizes wider than 2.35 inches must
be checked with the fork fully compressed

Settings and suspension
Damping: Drop-In Cartridge with Internal Floating Technology (IFT) to reduce internal friction
Rebound: 21 clicks
Low-speed compression (LSC): 12 clicks
High-speed compression (HSC): 20 clicks
Air settings:
Gold → End-stroke progressivity
Silver → Main air chamber (positive)
Bronze → Negative chamber (sensitivity)
Internal accessories: Neopos included, for progressive and smooth mid-stroke support

Key features:
3Air System: ultra-precise, tool-free adjustment of the spring curve
High-performance sealed cartridge: unmatched stability and sensitivity
Hexagon Design: controlled stiffness, comfort and steering precision
IFT Technology: smooth cartridge movement for minimal friction
FIRM System: quick wheel removal and enhanced security
;
