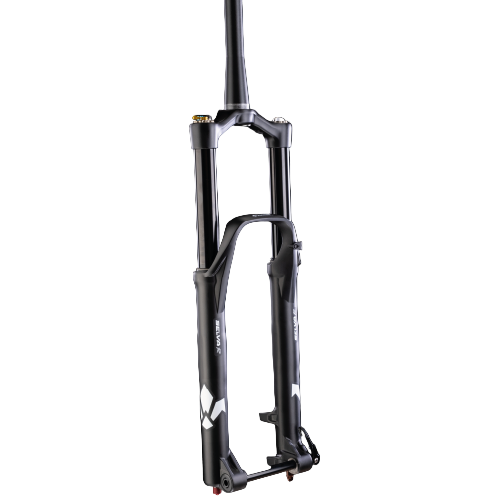

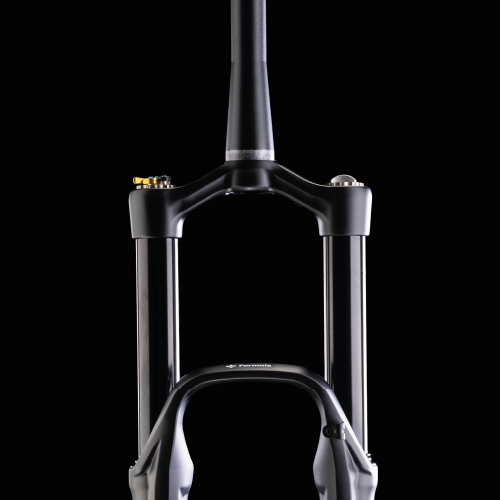

FORMULA SELVA R 27.5" Axle 15x110mm Boost Fork Black

The FORMULA SELVA R fork embodies customization excellence for high-end Enduro and All Mountain mountain bike forks. Thanks to 2Air technology, you can adjust... Read more
1.199,90 €
1.199,90 €
View full details

Description

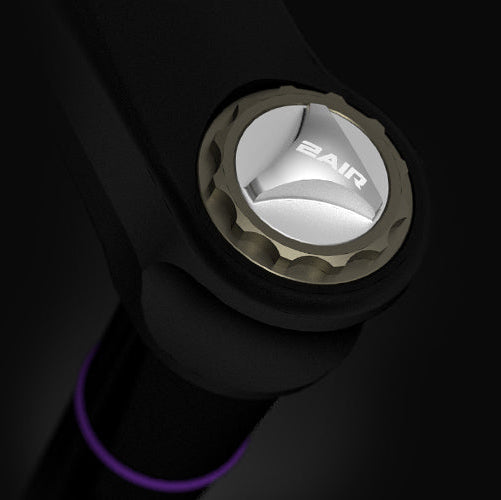

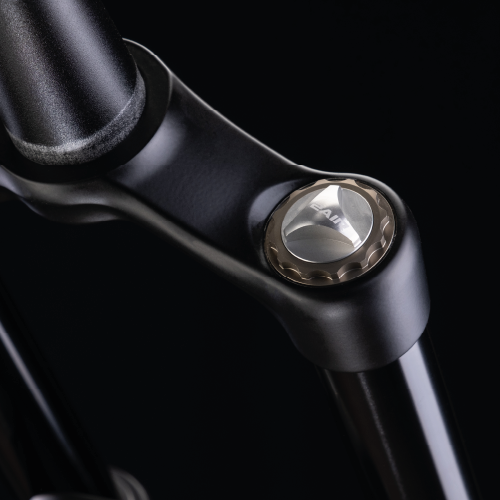

The FORMULA SELVA R fork embodies customization excellence for high-end Enduro and All Mountain mountain bike forks. Thanks to 2Air technology, you can adjust the positive (Silver) and negative (Bronze) air chambers separately, enabling extremely precise adjustment between support and sensitivity. The result: a suspension perfectly adapted to your weight, style and terrain.

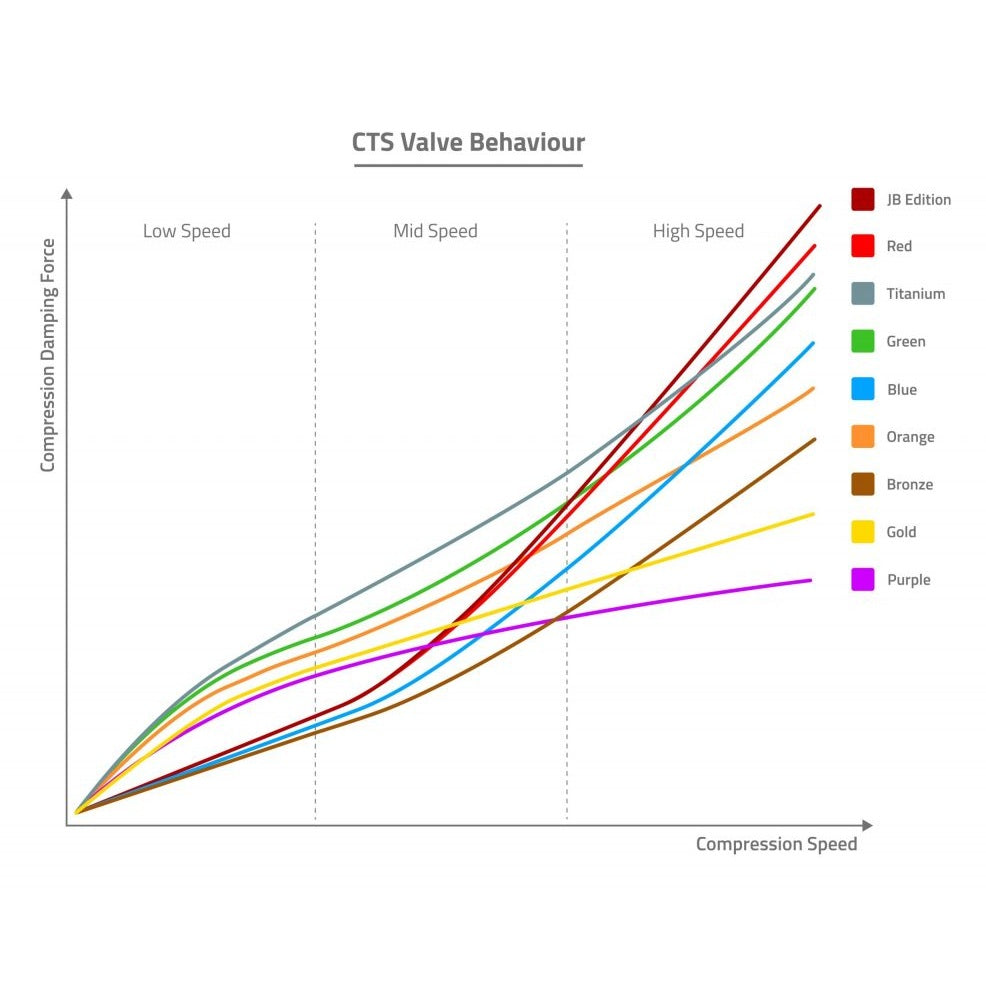

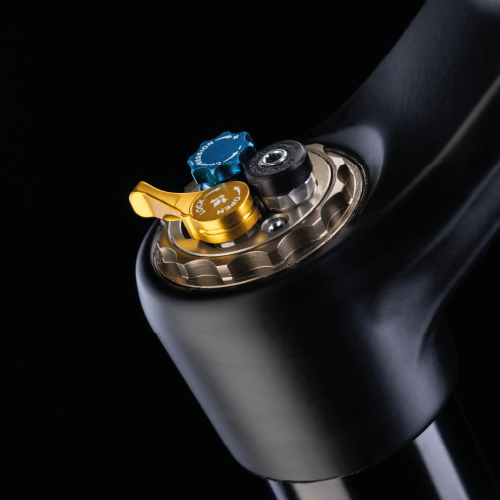

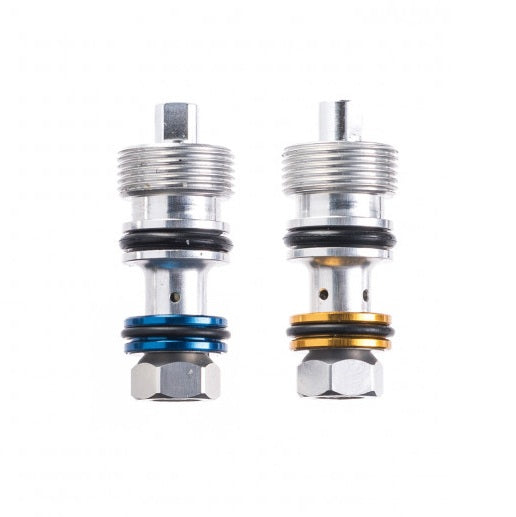

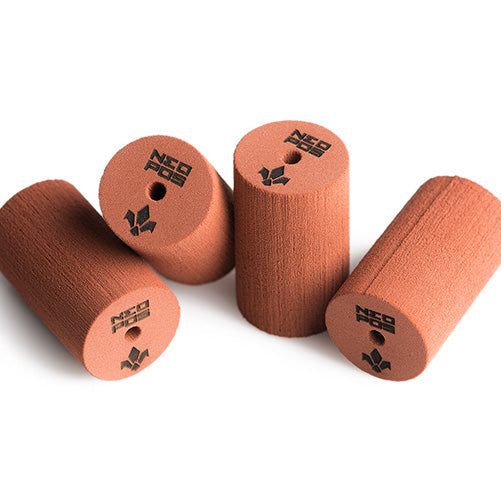

CTS Technology (Compression Tuning System) offers almost infinite tuning potential. Supplied with two CTS valves (Gold installed and Blue optional), it allows you to adjust compression in a matter of moments to suit your riding style. With Neopos (included), a spongy insert that replaces conventional tokens, progressiveness is constant and comfort unequalled, with no sudden stop effect.

Designed for performance, the Selva R incorporates Hexagon Design, an architecture that perfectly balances rigidity and flexibility, guaranteeing precision, safety and control, even in the most demanding conditions.

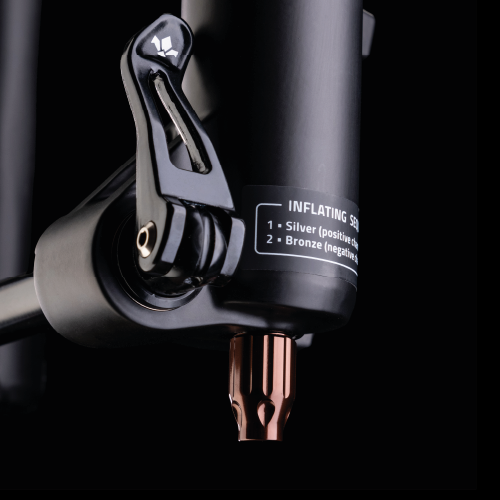

Innovations such as theILS (Integrated Locking System) and IFT (Internal Floating Technology) ensure smooth running and uncompromising reliability. The Selva R is more than just a fork: it's a tailor-made riding experience.

User manual

2Air manual

Neopros manual

CTS manual

Ref: 15581051027836

Informations techniques

Clearance :
Standard: 140 to 160 mm (internally adjustable)
Optional: 120 to 130 mm
Extended version: 170 to 180 mm (internally adjustable)

Geometry :
Tee pin (160 mm): 550 mm ± 5 mm
Tee pin (180 mm): 570 mm ± 5 mm
Rake: 37 mm or 46 mm
Brake disc max. 220 mm
1 1/8" - 1.5" Tapered Pivot

Anodized finish
Matte black tee
Material: Hollow forged aluminum
Matte black or matte ultraviolet sheaths

Dropout: 15x110mm QR BOOST (standard) / 20QR BOOST (optional)

Axis: ILS (Integrated Locking System)

Divers :
Diameter: Ø 35 mm
Material: Aluminium 7075
Finish: Black hard anodizing

Settings :
Bounce: 21 clicks
Compression: Low and high speed - 12 clicks
Blocking: To the tee
RCC (Remote Cartridge Control): Optional

For 27.5" wheels (max 2.5" wide)
All sizes larger than 2.35 inches wide must be
be checked with the fork fully compressed

Weight (manufacturer): 1940g
Manufacture: Made in Italy
10-year brand warranty (parts and service)

Usage: Enduro / All-Mountain
Air technology: 2Air System - independent positive (Silver) and negative (Bronze) chambers
Damping: CTS (Compression Tuning System) - interchangeable valves (Gold & Blue included)
Air spring: Neopos-compatible (1 included) for smooth, progressive support
Option: RCC (Remote Cartridge Control) - handlebar-mounted compression adjustment (13 positions)
Design: Hexagon Design - optimized rigidity, maximum precision

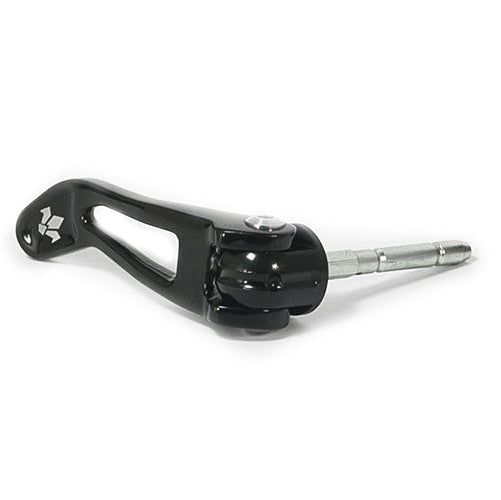

Axle system: ILS (Integrated Locking System) - removable lever for 15 mm axle

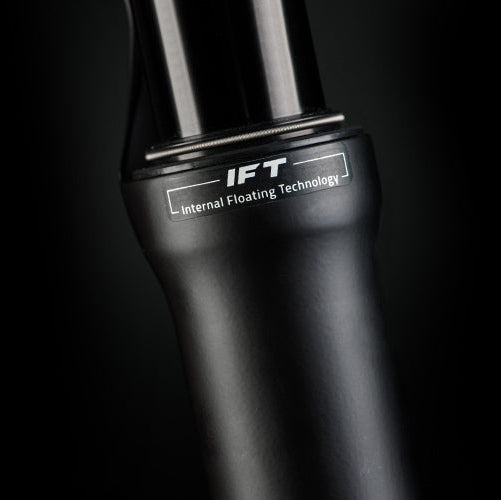

Internal technology: IFT (Internal Floating Technology) - reduced friction and improved sensitivity
;
