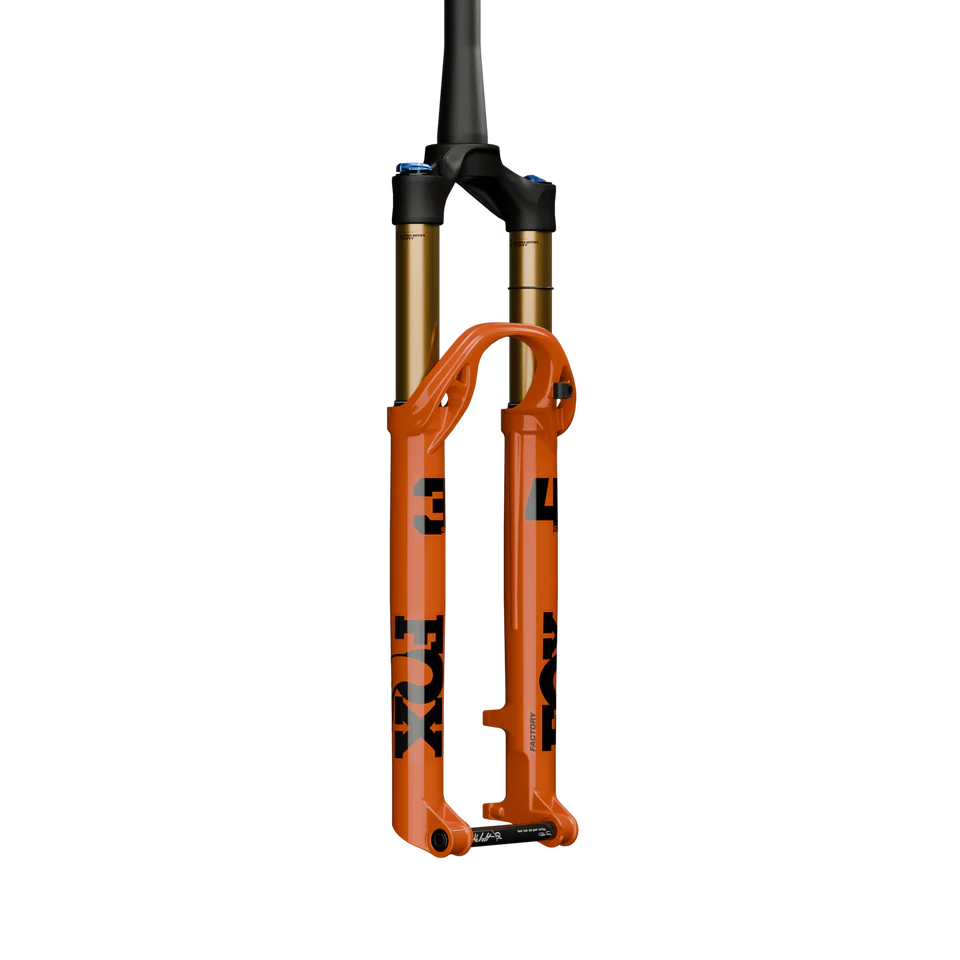

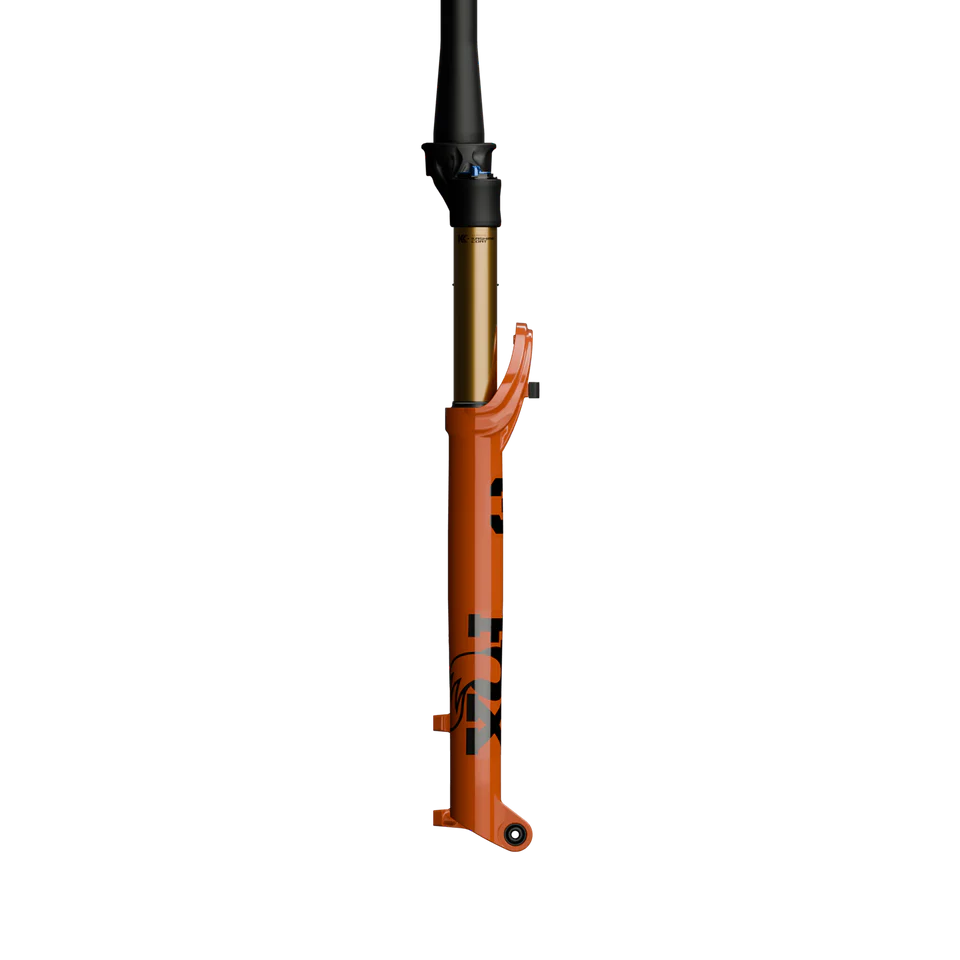

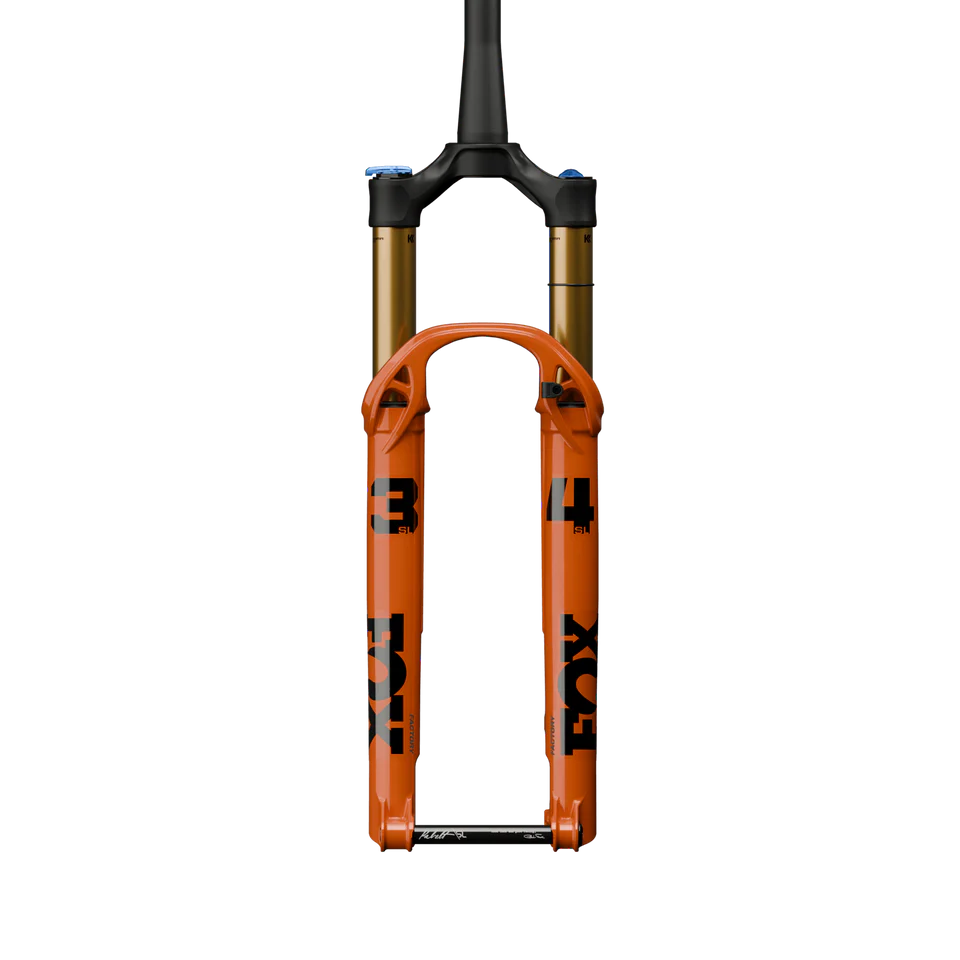

FOX 34 SL FACTORY 29" Grip SL Fork Orange 2026
Couldn't load pickup availability







Description
The fork FOX RACING SHOX 34 FLOAT SL 29" FACTORY Grip SL fork redefines modern XC standards. Designed for technical World Cup courses and the most demanding Downcountryit features 120m of travel in a rigid, ultra-light 34 frame - a first in this category.

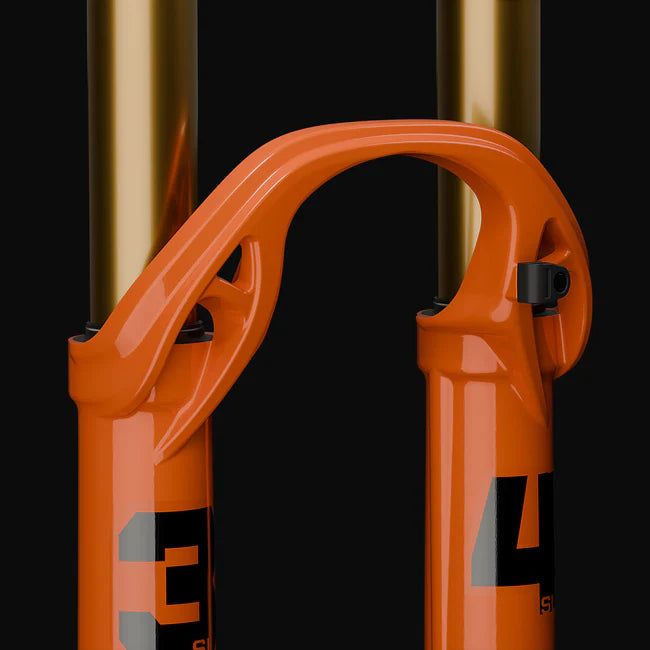

Its new SL" architecture optimized by generative design, increases the torsional rigidity of 17 % compared to the 34 Step-Cast. Strategic cut-outs in the arch reduce weight while maintaining exceptional strength, even under the most extreme conditions. Sound through axle Kabolt SL through axle saves a further 12 grams compared to the standard Kabolt axle.

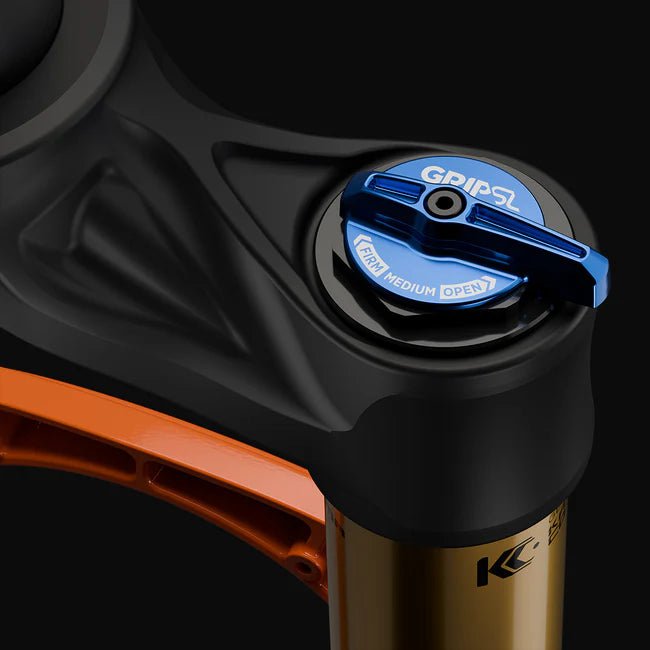

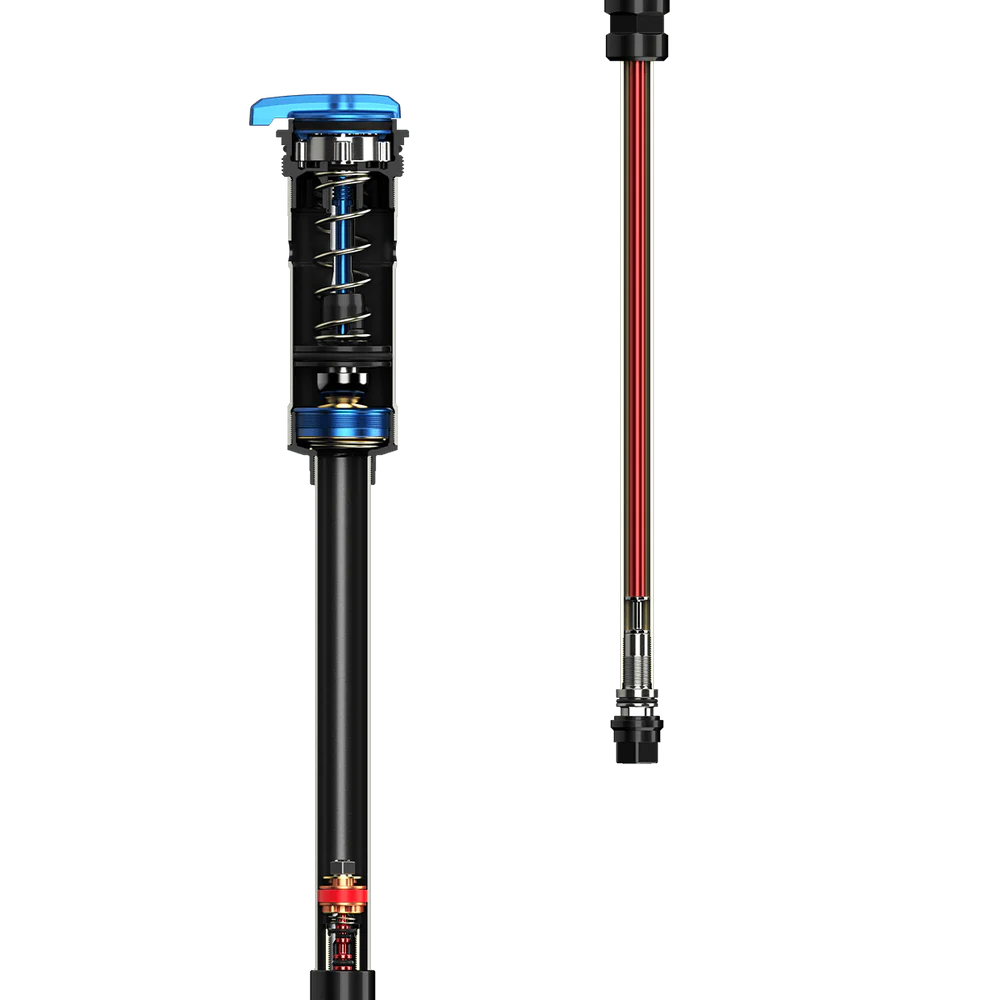

Equipped with new GRIP SL damping systemdamping system, specially designed for short travel, this fork offers an unrivalled riding feel. It provides excellent shock absorption while optimizing pedaling efficiency, even in locked mode, thanks to a smooth, controlled release force. The adjustment system Grip SL adjustment system with three positions (open, medium, closed) allows precise adjustment to suit different track conditions.

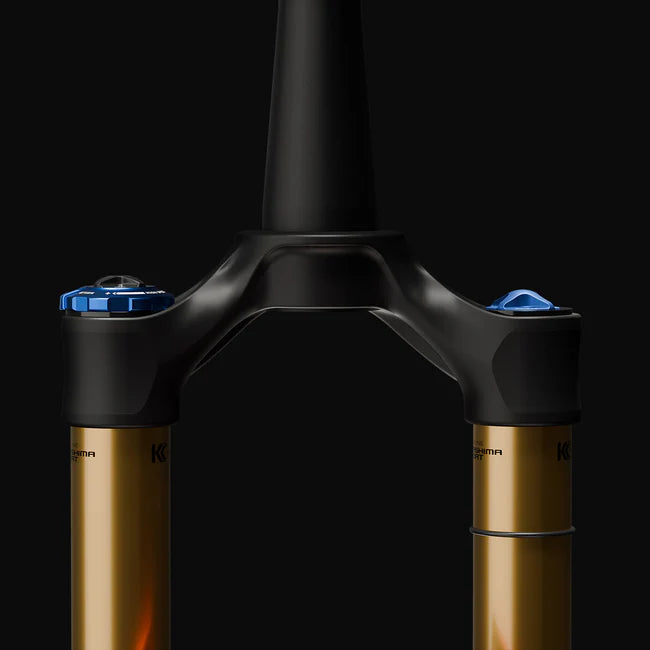

Finally, the upper 7000 series aluminum precision-machined aluminum top tube with enlarged internal bores saves weight without compromising performance. A fork built for the podium.
Ref: 15190580986236
Caractéristiques
Spring : 3 positions open/platform/closed ;
17-click trigger wheel ; : 17-click trigger wheel ;
7000 alu upper tee; : 7000 alu upper tee;
Axle 15x110 mm Kabolt SL Boost (Black) ; : Axle 15x110 mm Kabolt SL Boost (Black) ;
Plunger : 34 mm with Kashima treatment / 29" fork;
Bypass channels on outer tubes ; : Bypass channels on outer tubes ;
Tapered swivel 1''1/8-1.5'' ; : Tapered swivel 1''1/8-1.5'' ;
Pivot length : 244mm ;
Axle/tee height : 534mm (120mm) ;
Postmount brake attachment 180mm (max 203mm) ; : Postmount brake attachment 180mm (max 203mm) ;
Offset : 44mm ;
Includes : star, 3 tokens, hose guide ;
Weight (manufacturer) : 1503g (in 130mm) ;
