DT SWISS

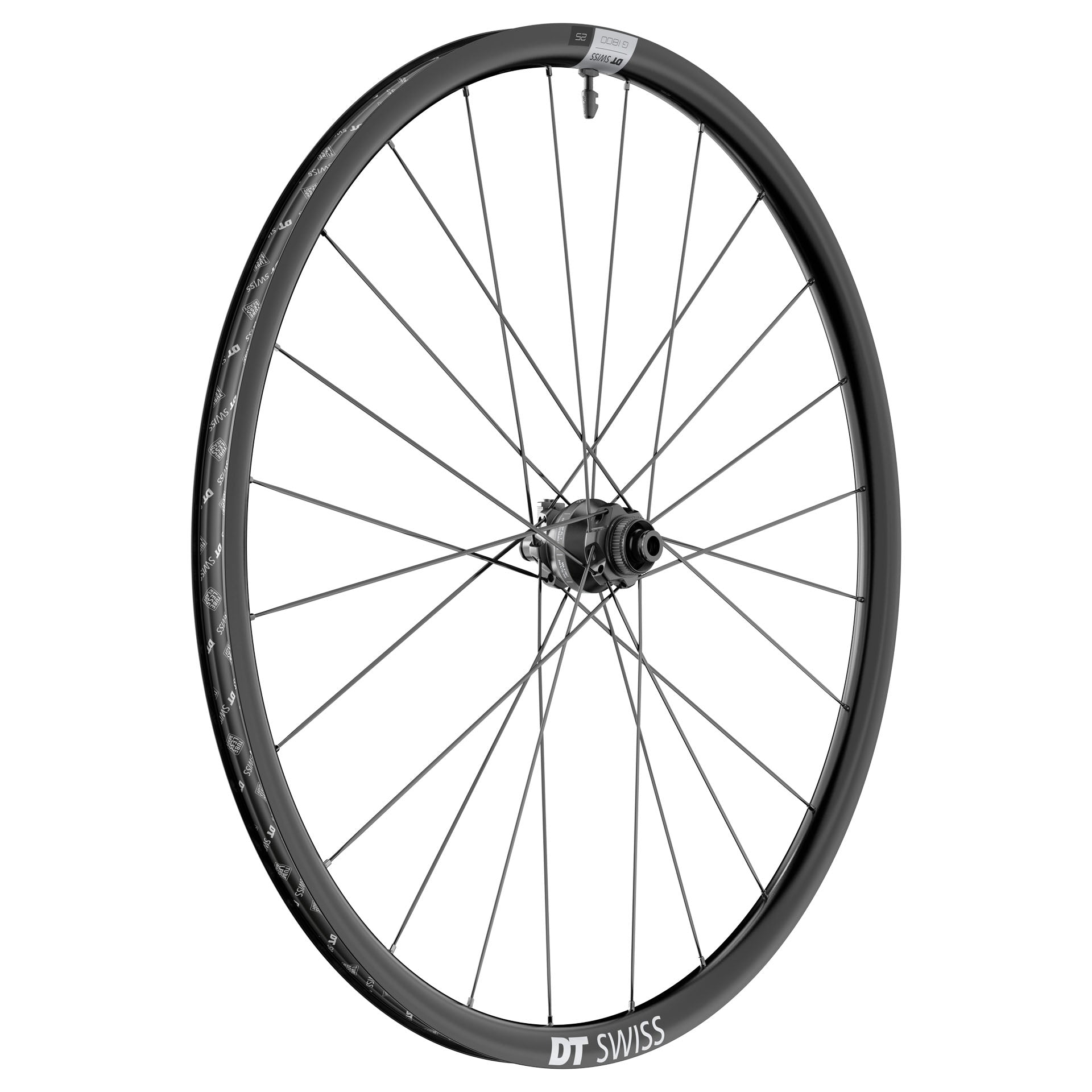

DT SWISS G 1800 SPLINE 25 Tubeless Ready (Center Lock) Dynamo Front Wheel

Réf. fabricant : W0G1800AIDXSA27425
The DT SWISS G 1800 SPLINE 25 DISC Front Wheel is ideal for exploring new horizons off tarmac. Carefully crafted, it combines robustness and... Read more
239,90 €
239,90 €
View full details

Description

The DT SWISS G 1800 SPLINE 25 DISC Front Wheel is ideal for exploring new horizons off tarmac. Carefully crafted, it combines robustness and reliability to accompany your Gravel adventures. This version comes with a dynamo hub for seamless lighting integration.

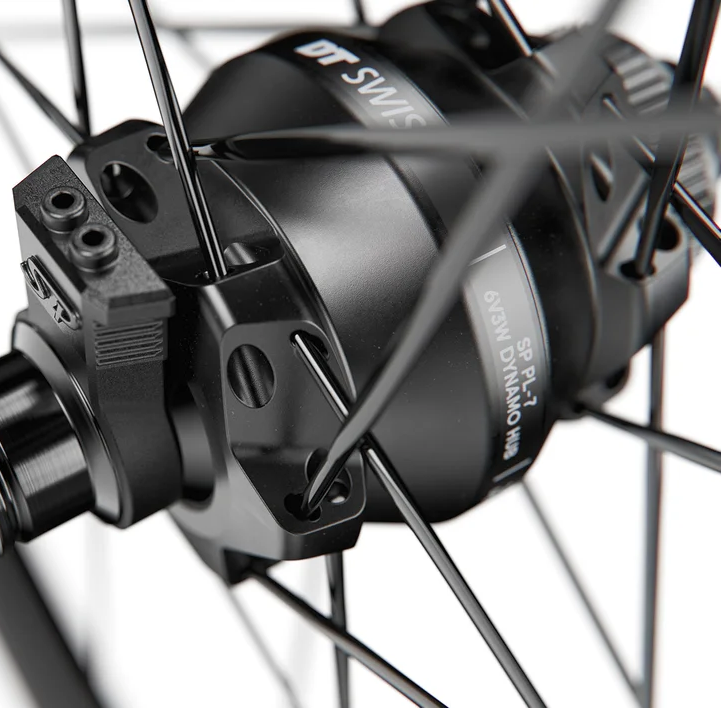

Its wide aluminium rim ensures comfort and versatility, offering excellent compatibility with high-volume tyres. DT SWISS collaborated with Shutter Precision, a market leader in dynamo hub technology, seamlessly integrating their SP PL-7 generator into a custom hub shell. At 15 km/h, delivering a standard output of 6 volts/3 watts (6V3W), 4.2 watts of your pedalling power are used to power the lights.

Thanks to its durable construction, this wheel allows you to tackle every ride without constraints. Whether for a multi-day tour or a quick off-road outing, it will accompany you with reliability and performance. Pack your bags, leave the tarmac behind and head off with confidence towards new adventures.

Manufacturer's Manual + Rim/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 15049563046268

Informations techniques

┘GENERAL
Category: Gravel
Manufacturer Weight: 1098 g
Max Load: 130 kg
ASTM Classification: 2
E-Bikes Recommended: Yes (max. 32km/h or max. 250W)
Manufacturer Reference: W0G1800AIDXSA21293

┘RIM
Material: Aluminium
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 25mm
Internal Width: 24mm
External Width: 28mm

┘HUBS
Axle System: 12mm Thru axle
Spacing: 100mm
Disc Attachment: Center Lock
Hub Type: Dynamo SP PL-7, compliant with German road regulations (StVZO), power output 6V3W

┘SPOKES AND NIPPLES
Left spokes: DT aero comp® wide straightp
Right spokes: DT aero comp® wide straightp
Lacing Type: Two-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► GRAVEL RANGE: The DT Swiss G range is specially designed for gravel, combining robustness, lightness and comfort. With rims optimised for wide tyres and tubeless compatibility, it guarantees grip and performance on varied terrain;
► SPLINE: The DT Swiss SPLINE concept combines robust hubs and optimised straight spokes;
► ARTISAN KNOW-HOW: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 27mm tubeless roll
Valve: Black alu TL valve 18-25mm
;

Informations prix

*Supplier recommended retail price in February 2025
