ENVE

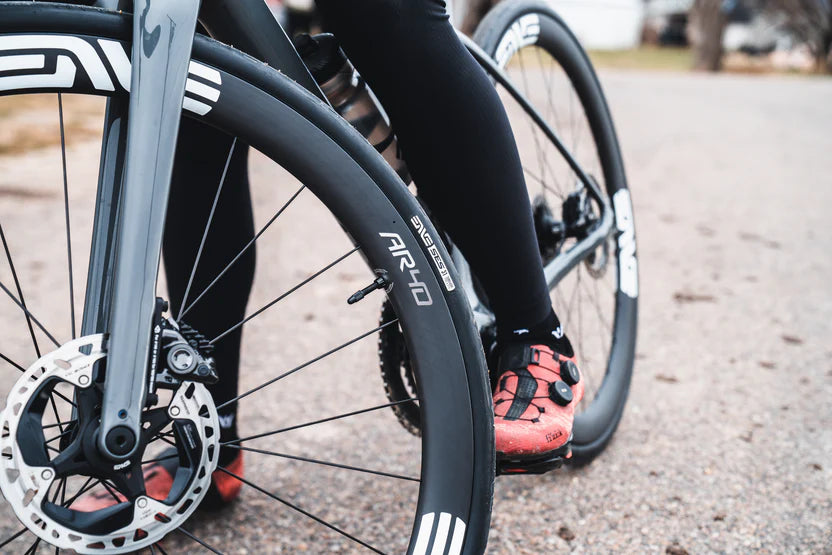

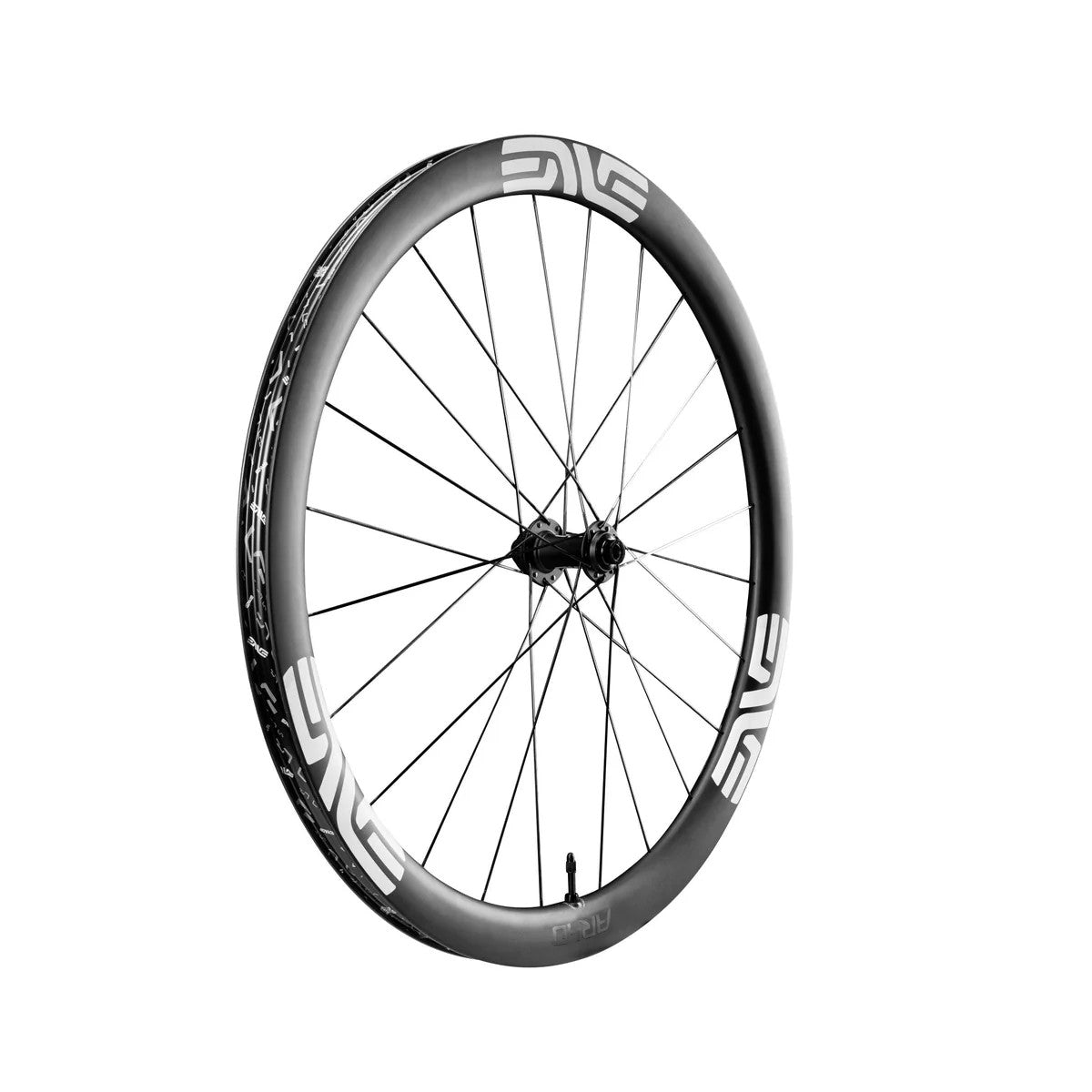

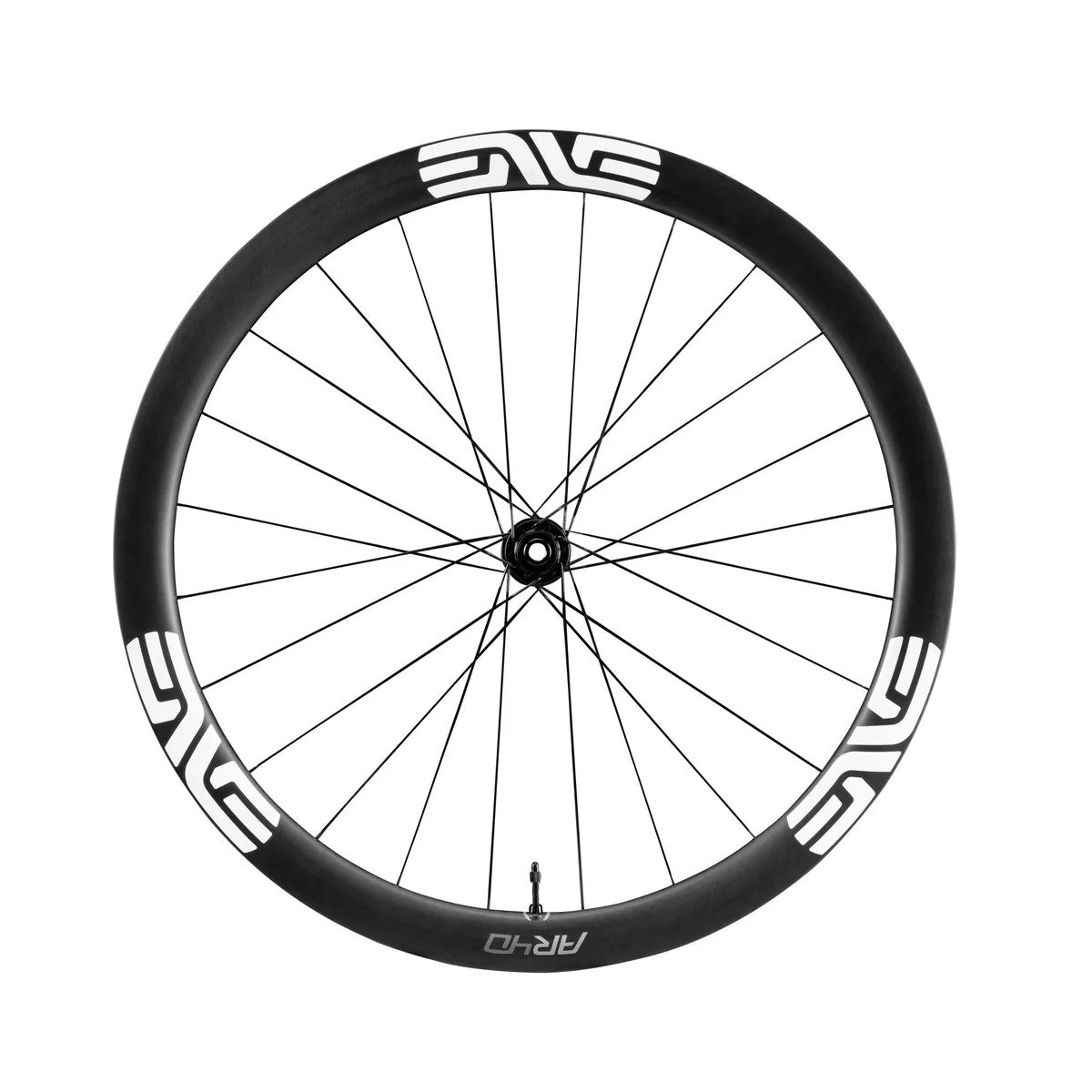

Front wheel ENVE AR40 Tubeless Ready (Center Lock)

Réf. fabricant : 100-3324-001
The ENVE AR40 front wheel joins the Foundation range with a design focused on versatility and performance. Its 40mm-high carbon rim and 25mm internal... Read more
Regular price 744,90 €
Regular price Sale price 744,90 €
View full details

Description

The ENVE AR40 front wheel joins the Foundation range with a design focused on versatility and performance. Its 40mm-high carbon rim and 25mm internal width offer an excellent balance between aerodynamic efficiency, stability and comfort, both on the road and on rough surfaces.

Aerodynamics are at the heart of the ENVE AR40's development. Wind-tunnel tested in the Mercedes-Benz Formula One tunnel, it benefits from a realistic approach with tests in real-life conditions and at different speeds. This method guarantees optimum efficiency and reassuring handling, even in crosswinds.

Designed for tubeless use, it features a HOOKLESS profile optimized for tires over 28 mm. This choice results in reduced rolling resistance, improved comfort and a significantly reduced risk of punctures. Pressure can be adjusted to maximize grip and performance.

The rim features WIDE HOOKLESS BEAD technology, designed to better dissipate impacts and protect against bumps and potholes. Molded spoke holes, the result of a patented process, reinforce the structure while reducing weight and maintenance.

Finally, the INNERDRIVE™ hub architecture reduces stress on the axle, prolongs bearing life and guarantees smooth, precise, high-performance transmission over the long term.

Ref: 15861334901116

Informations techniques

Hookless unidirectional carbon rim;
White stickers ;
Diameter: 700c ;
Made in the USA;
Weight (manufacturer): 425g per rim;
Height: 40mm ;
Internal width: 25mm ;
Hook width: 3.6mm ;
Number of holes: 24 ;
Effective Rim Diameter (ERD): 579mm ;
Min/max tire width: 27-50mm
Max. pressure at 27mm: 80psi/5.5bar ;
Type: Tubeless Ready
Recommended tubeless rim width: 29mm.
Valve length: 61mm

ENVE INNERDRIVE ™ hub
6061 cold-forged and machined alloy
Centerlock disc brake (locking ring not included)
Axis 12x100mm
High-quality stainless steel bearings
Longer bearing life
Reduced axle stress = less bearing drag and longer bearing life
Retention of disc components
Perfect Preload - automatic preload adjustment
Low maintenance and easy servicing

Sapim CX-Ray J-Blend spokes
Alpina Nylock spoke head

Weight (manufacturer): 690g

Informations prix

*Supplier suggested retail price in January 2026
