Front wheel MAVIC COSMIC SLR 45 DISC Tubeless Ready (Center Lock) 2025

The MAVIC COSMIC SLR 45 DISC front wheel offers exceptional performance thanks to its lightweight, 45mm-high carbon rims. This wheel optimizes aerodynamics and stiffness,... Read more
Regular price 900,00 €
Regular price Sale price 900,00 €
View full details

Description

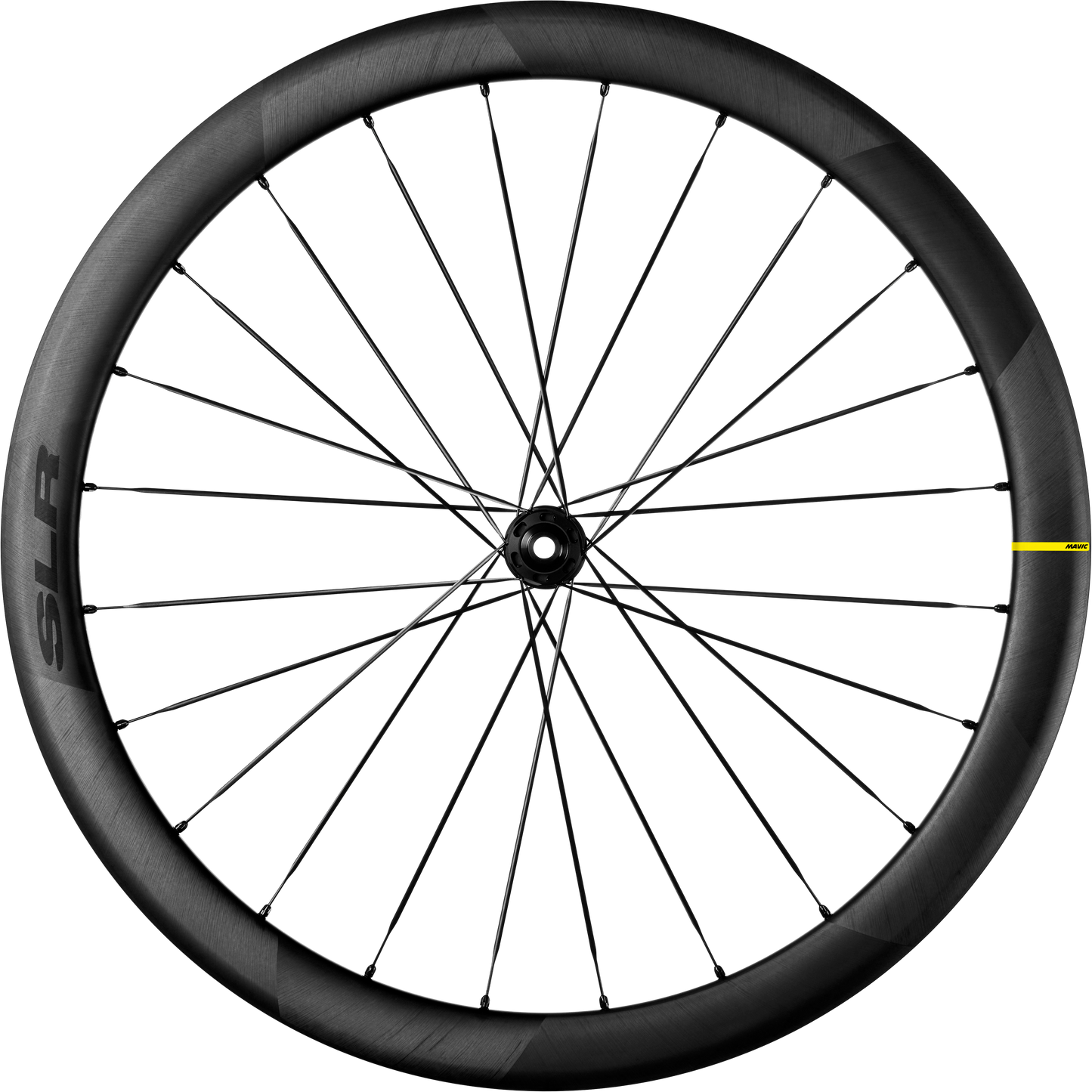

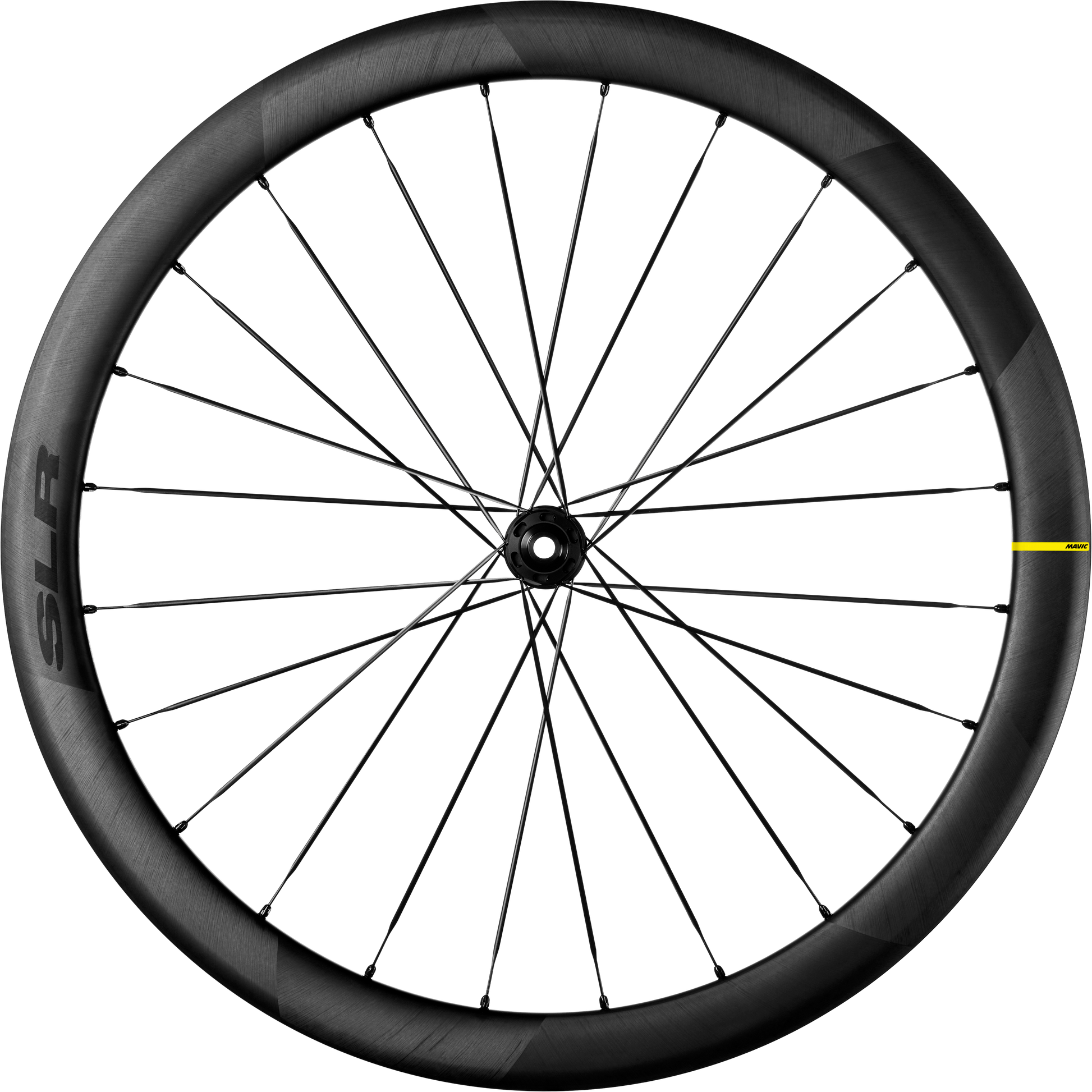

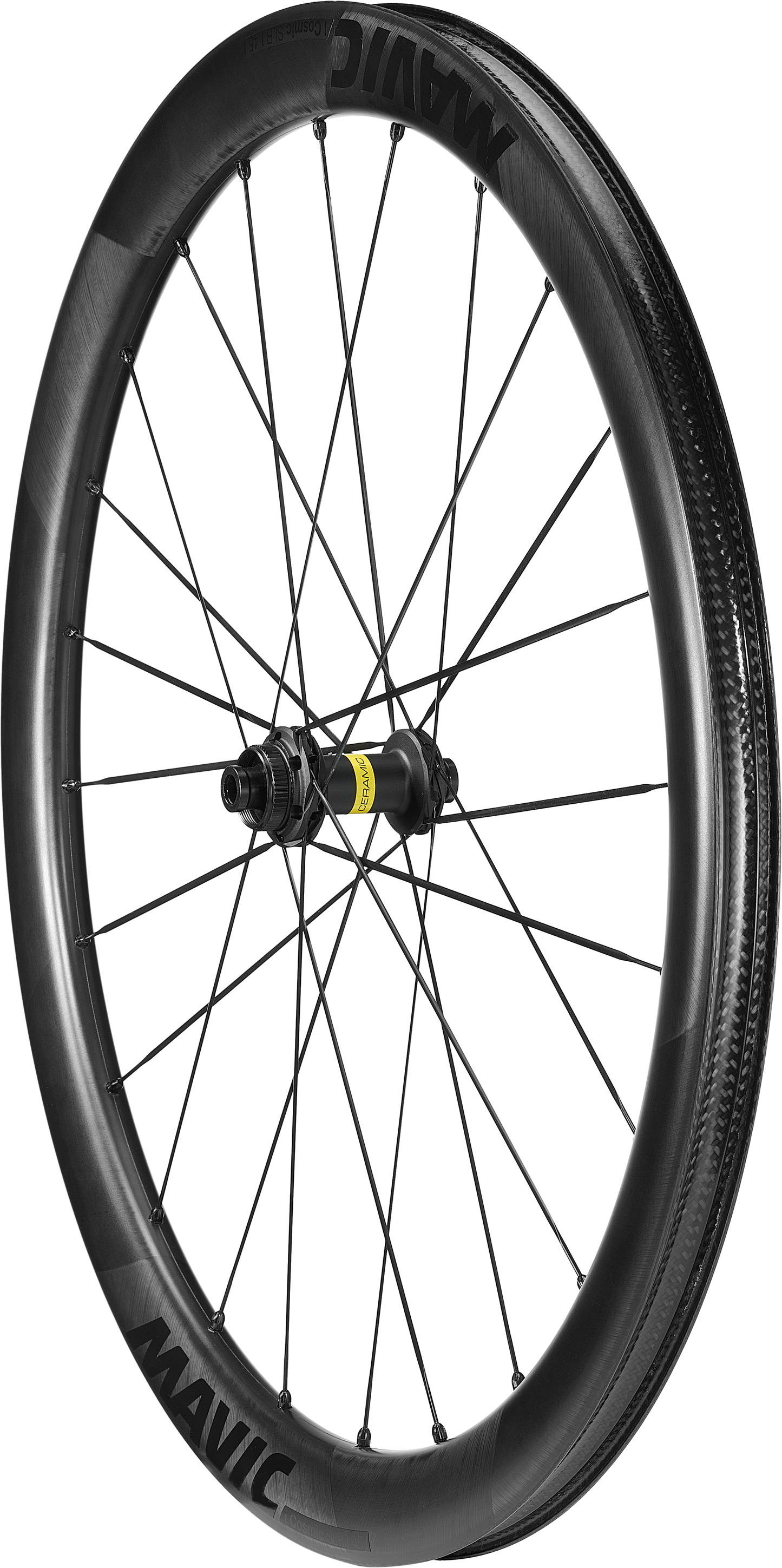

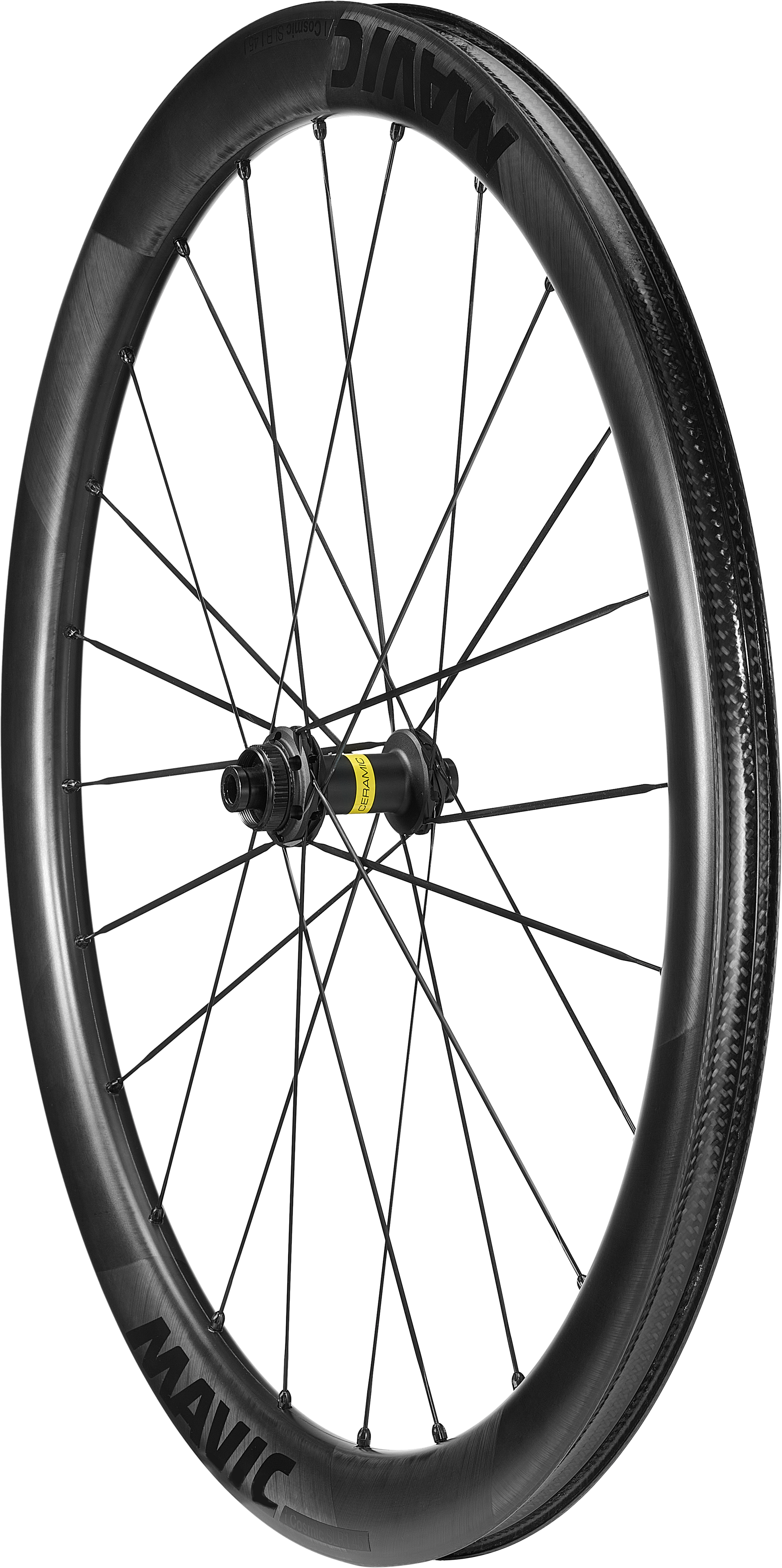

The MAVIC COSMIC SLR 45 DISC front wheel offers exceptional performance thanks to its lightweight, 45mm-high carbon rims. This wheel optimizes aerodynamics and stiffness, enabling rapid acceleration and increased stability at high speeds.

The NACA profile, 45mm high and 32mm wide, is specially designed for disc brakes, while the superimposed Adaptative Lay Up layers save 70g in weight, also eliminating the need for a rim tape. The Fore Carbon technology guarantees enhanced stiffness of the upper bridge, optimizing power transfer.

With the Infinity hub platformfeaturing ceramic bearings, this wheel guarantees exceptional responsiveness, fluidity and longevity.

The UST Tubeless system and their new internal width of 23mm, simplify the installation of tubeless tires, offering greater comfort and handling while reducing friction and the risk of punctures.

Manufacturer's manual + Rim/tire compatibility chart

Manual MAVIC Road Axle Adapters

Manual MAVIC UST Tubeless

Ref: 15464267153788

Informations techniques

┘GENERAL
Front weight: 675 g
ASTM: category 2: roads and paths with jumps less than 15 cm high
Maximum load: 120 Kg (including bike weight)
Lifetime warranty and Crash Replacement (after registration)

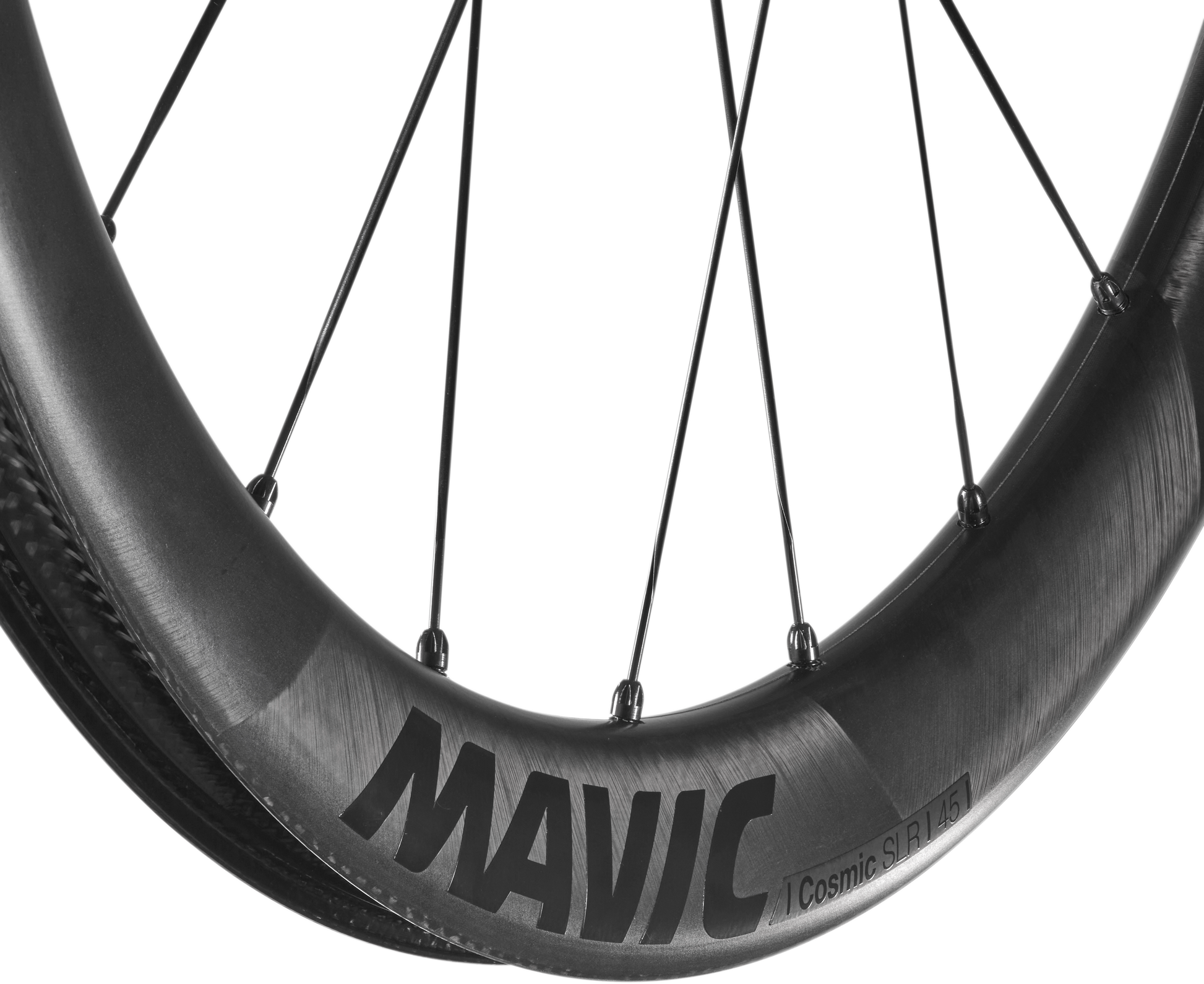

┘JANTE
Material: 100% carbon fiber with Adaptative Lay Up outer layer
Height: 45 mm
External width: 32 mm
Internal width: 23 mm
Drilling: Fore Carbon tubeless technology without rim tape (24 holes)
Radius hole reinforcements
ETRTO size: 622x23
Tire compatibility: UST Tubeless Ready
Minimum tire size: width 28mm - max. pressure 5.5Bar/80PSI
Maximum tire size: width 64mm - max. pressure 3.25Bar/47PSI
Brakes: disc

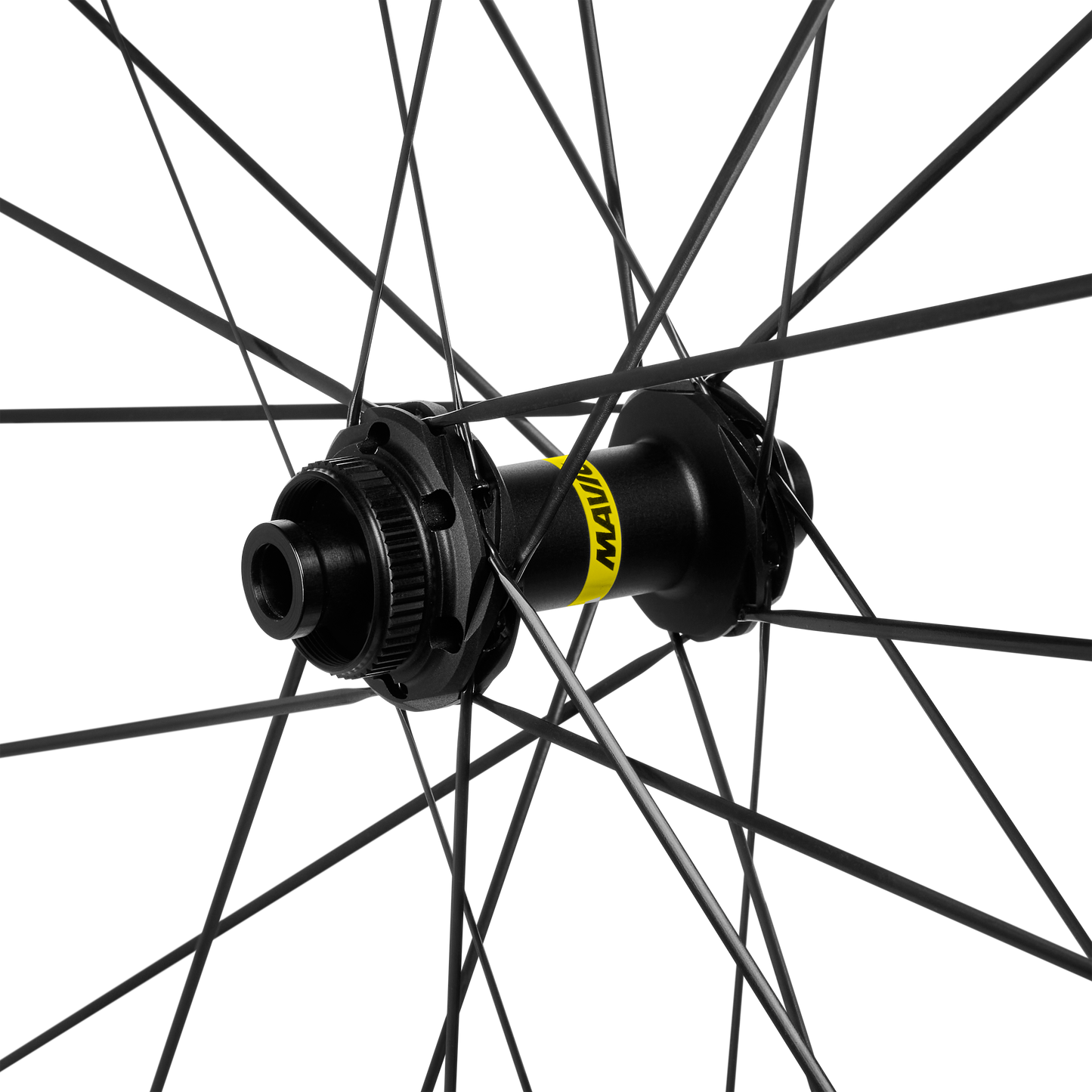

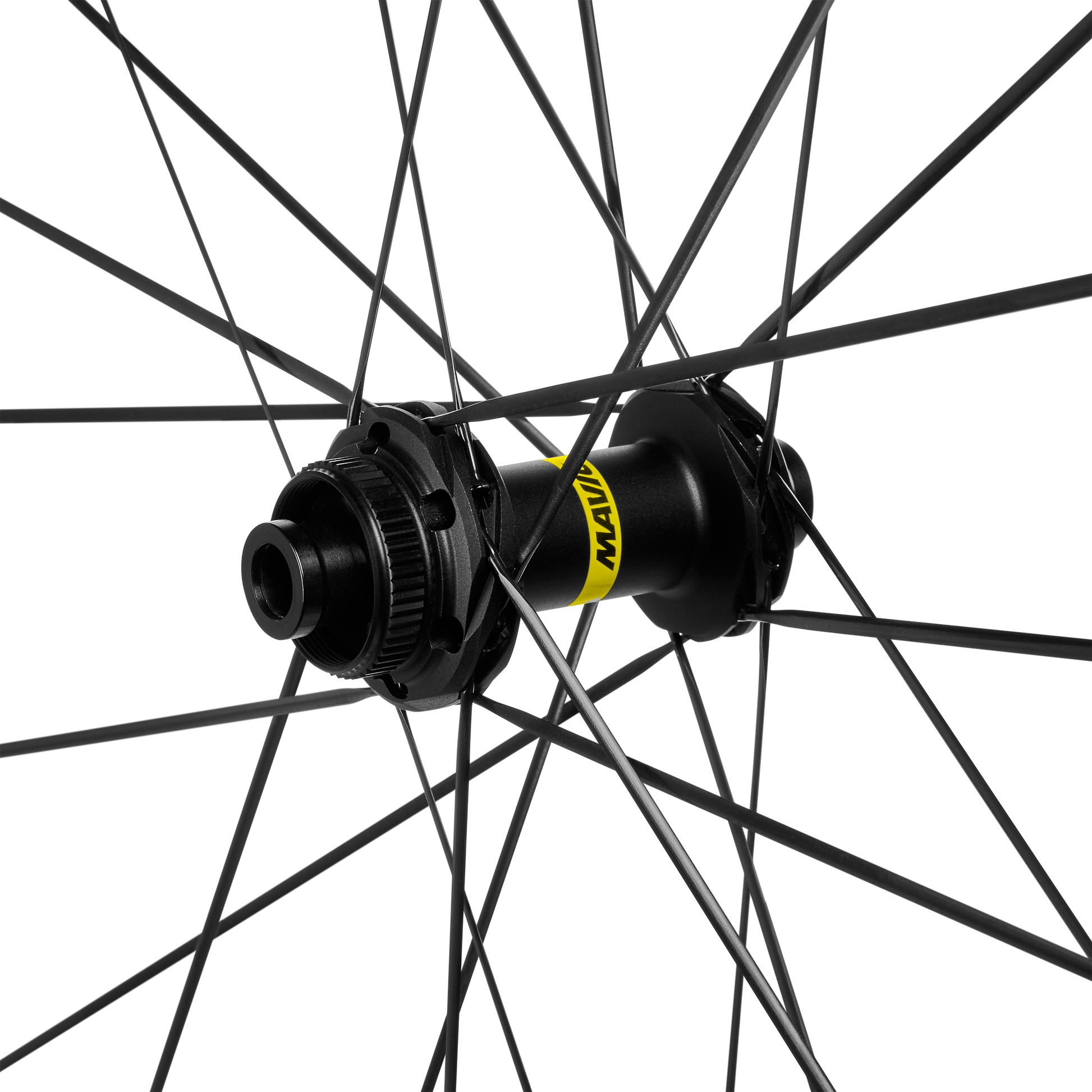

┘MOYEU
Body material: aluminium
Body design: INFINITY
Disc standard: Center Lock® only
Axle material: aluminum
Axle size: front 12x100 - Convertible to quick release with adapters (not supplied)
Bearing technology : Mavic Ceramic.

┘RAYONS
Material: steel
Shape: straight, extra-flat, swaged, anti-rotation
Nuts: brass, black
Screws: M6
Shelving: crossed by 2

┘KEY TECHNOLOGIES
►ADAPTIVE LAY UP: Strategically positioned carbon layer with local reinforcement at spoke holes. Strong at some points, light everywhere else ;
► FORE CARBON: The Fore system uses metal inserts to connect the spokes to the rim, eliminating the need for a rim base ;
► INFINITY: Infinity hubs ensure even spoke tension, offering stability, fluidity and durability, without contact or parasitic noise, for simplified maintenance ;
► Mavic Ceramic BEARINGS: premium material bearings for premium performance ;
► UST SYSTEM: UST technology offers tubeless rolling, reducing resistance, improving comfort and grip, while lightening the rim by 20g ;

┘INCLUSIVE
User guide
UST valve not mounted on wheel
Multifunction adjustment wrench + M6 spoke wrench with rear wheel

┘COMPATIBLE REFERENCES
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)

Informations prix

Supplier suggested retail price in September 2025
