FSA 386EVO crankset Press Fit

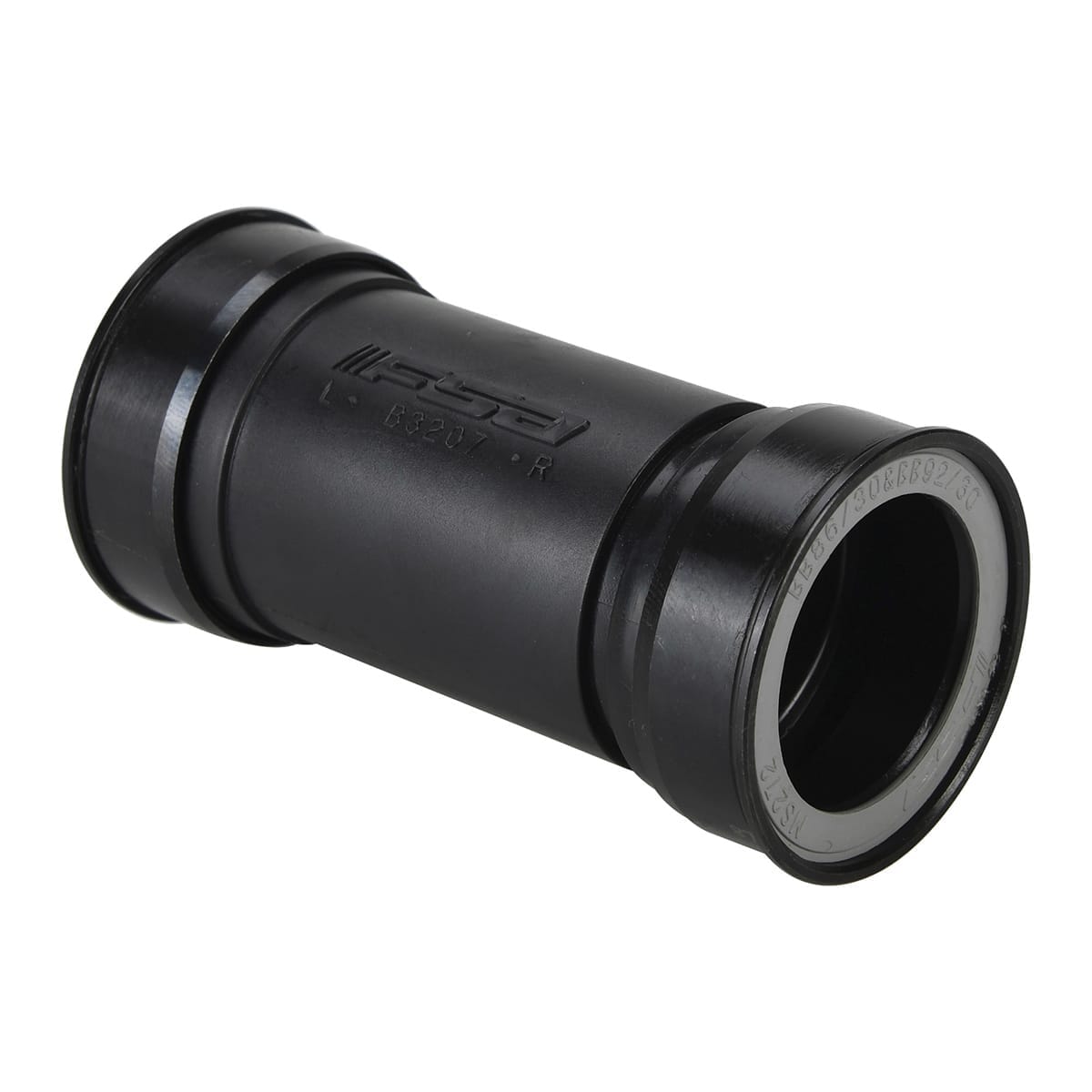

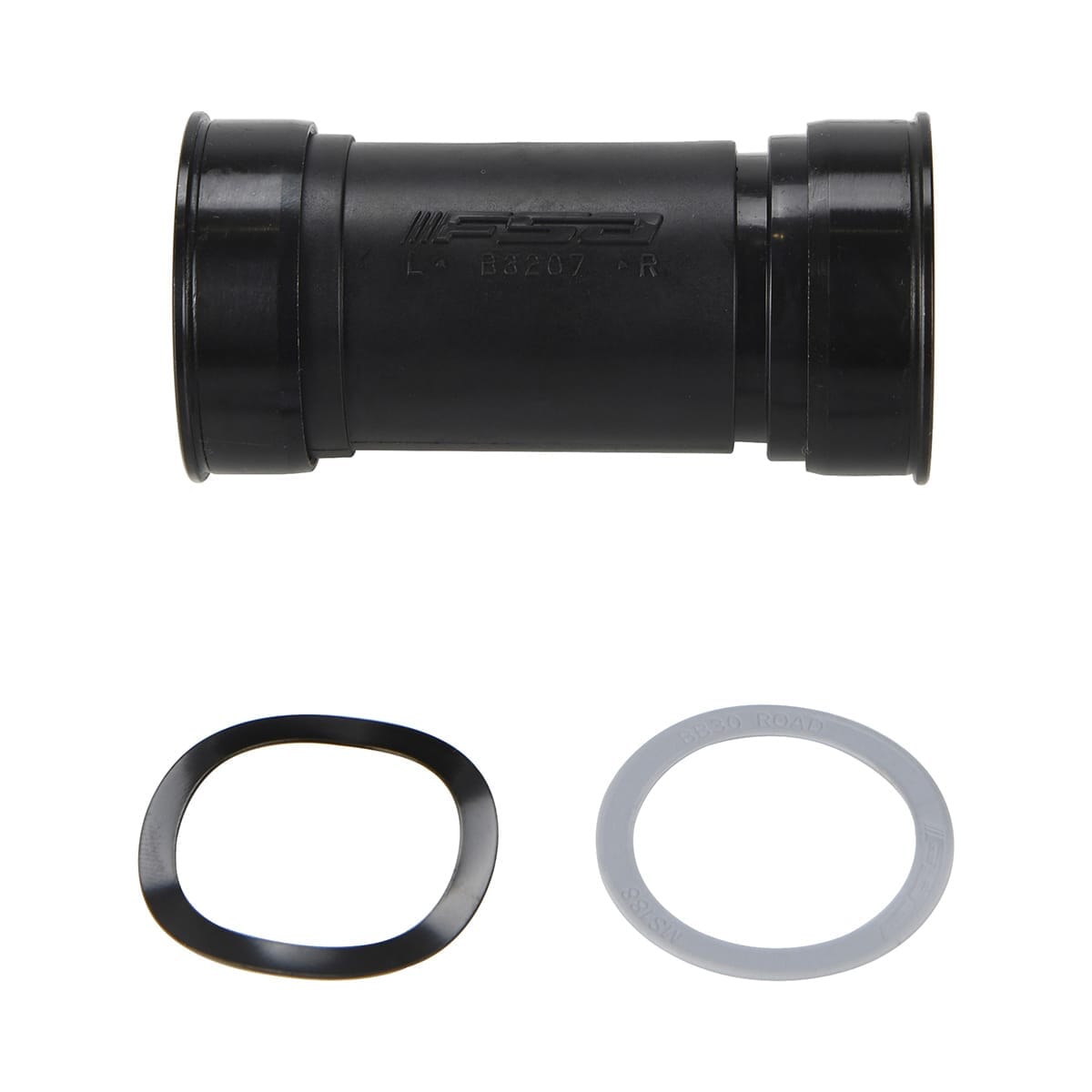

Visit bottom bracket FSA 386EVO PressFit bottom bracket is designed for aluminum or carbon frames with PressFit 86 cages with a 41 mm insertion diameter. It will give you better performance, with sealed chromoly ball bearings.

The cups are made of anodized aluminum, very sturdy and also very light. This model is only compatible with FSA cranksets featuring the 386EVO axle, such as the K-Force or SLK.

A - Diameter (mm)	B - Width (mm)	Assembly	Standard
34,8	68	screw-on	BSC / BSA
34,8	73	screw-in	BSC / BSA
34,8	83	screw-in	BSC / BSA
34,8	100	screw-in	BSC / BSA
27	95,5	insert	BB 96 (Trek)
41	92	insert	PF 92
42	68	insert	BB 30
42	73	insert	BB 30
46	68	insert	PF 30
46	73	insert	PF 30

Ref: 7970319859878
