DEDA

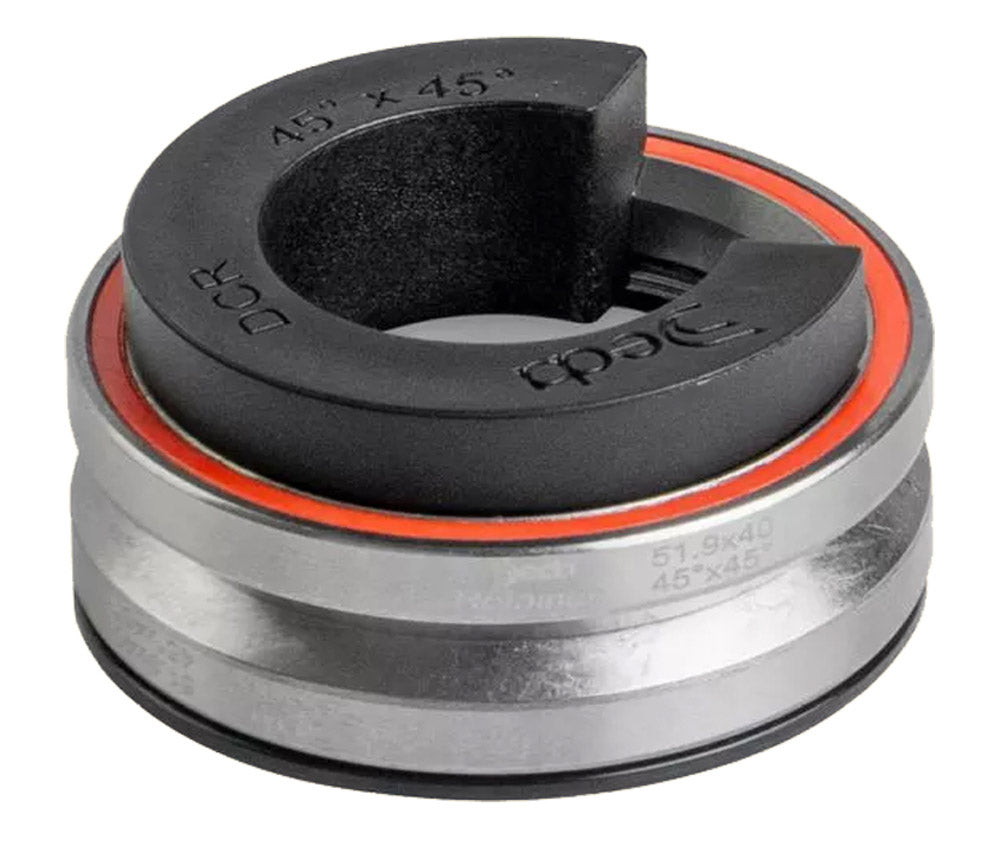

Headset DEDA DCR 1.1/8" - 1.1/2" IS46/52

The DEDA headset headset is designed to work with the DCR (Deda Internal Cable Routing) system and is compatible with the Vinci stem. It... Read more

Recommanded price: 71,00 €

Regular price 49,90 €
Regular price Sale price 49,90 €
View full details

Description

The DEDA headset headset is designed to work with the DCR (Deda Internal Cable Routing) system and is compatible with the Vinci stem.

It allows complete cable integration. The DCR system works with a standard tapered fork steerer tube (1-1/8"- 1-1/2"), but requires a 52 mm (1.5") top steerer bearing.

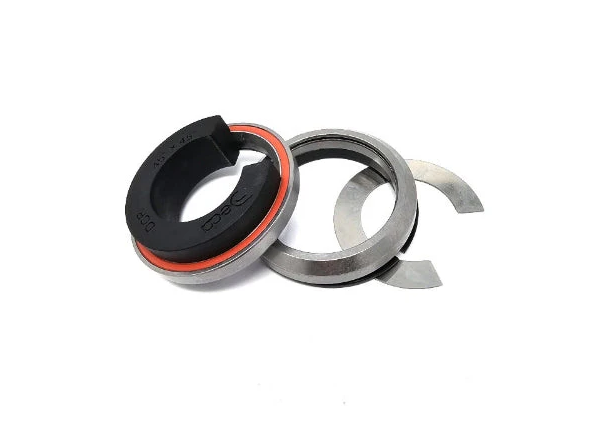

The special design of the compression ring leaves room for the cables to adapt to the space between the fork and the headset bearings.

Ref: 7967907053734

Points forts

Allows complete integration of cables.

Caractéristiques

Headset Diameter : Tapered 1"1/8 - 1.5".

Type : Integrated

Informations techniques

Integrated headset 1.5" - 1.5" ;
Angular contact bearings in chromed steel;
Head tube: 56 mm ;
Contact angle: 45° x 45° ;
For 1.5" and 1 1/8" tapered fork steerer tube;
Height: 9.6 mm.

Informations prix

Recommended retail price February 2024
