WOLFTOOTH

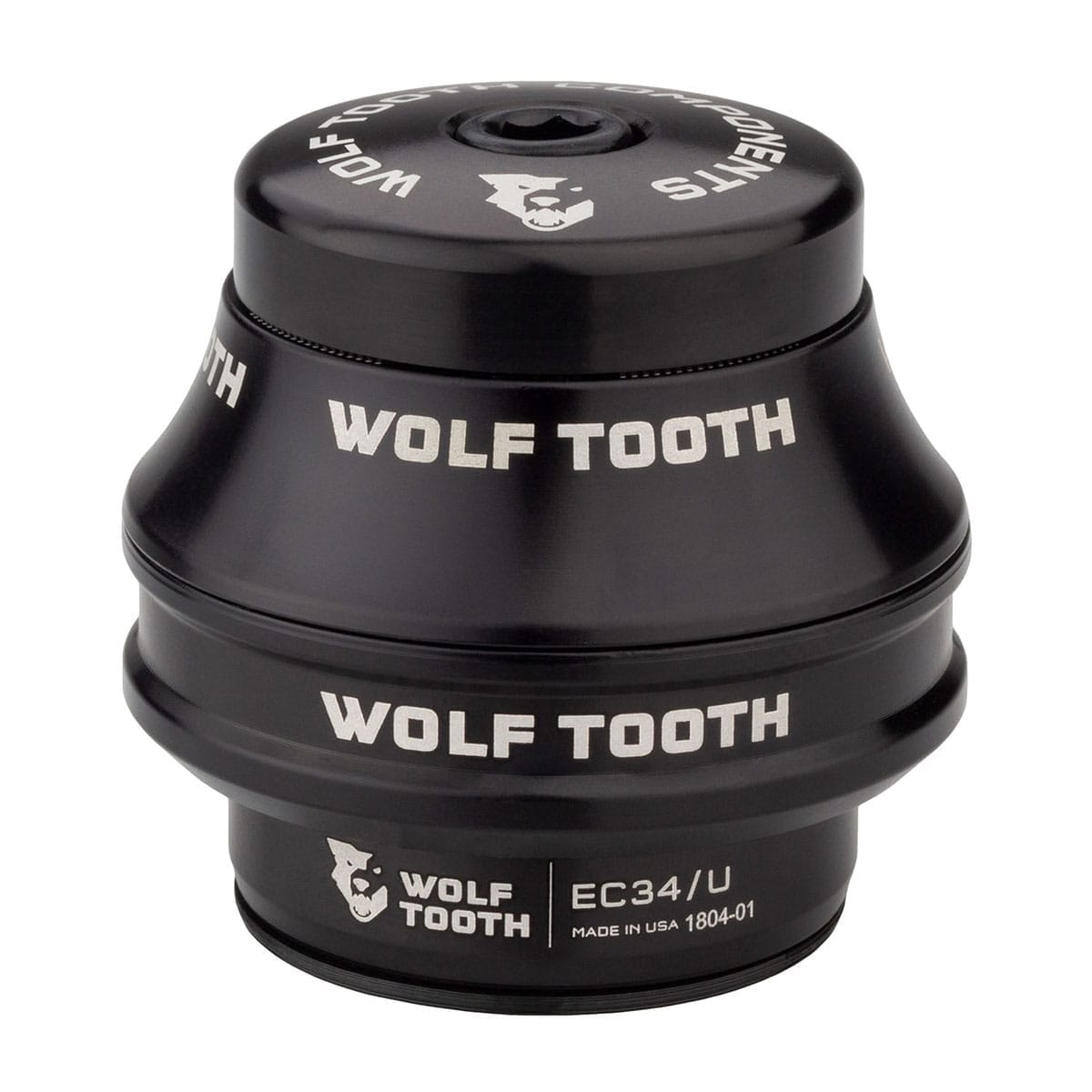

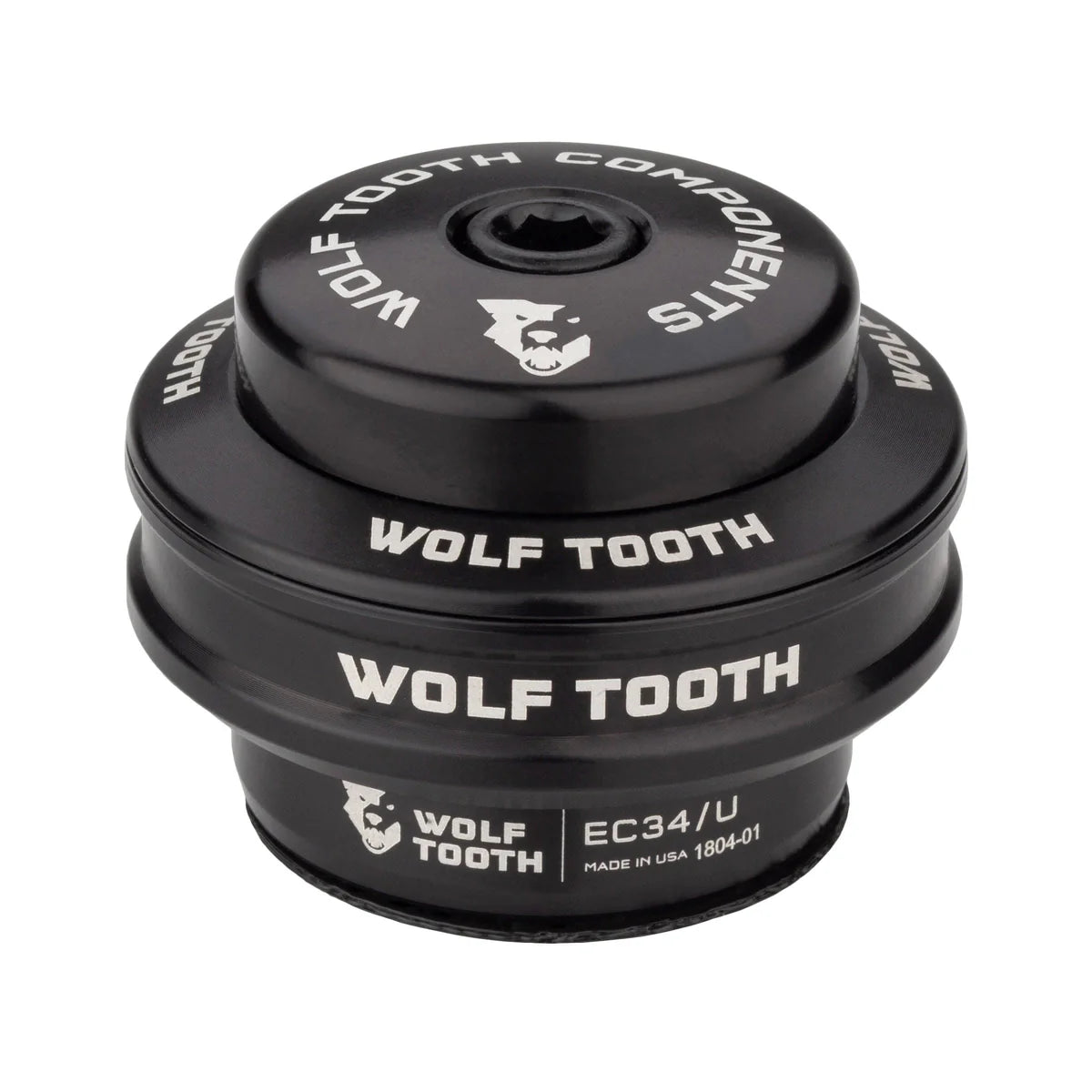

Upper Cup for External Headset WOLF TOOTH PREMIUM 1"1/8 EC34 Stack 16 mm Black

Réf. fabricant : EC34U-5MM-BLK
Designed for frames equipped with an external headset, the upper cup WOLF TOOTH PREMIUM EC34 combines premium manufacturing with excellent protection against the elements.... Read more
79,99 €
79,99 €
View full details

Description

Designed for frames equipped with an external headset, the upper cup WOLF TOOTH PREMIUM EC34 combines premium manufacturing with excellent protection against the elements. Machined in the USA from 6061 aluminium of aeronautical quality, it offers an excellent balance between lightness, stiffness and durability.

This EC34/28.6 version with 16 mm Stack integrates an Enduro stainless sealed bearing benefiting from a lifetime warranty. Its triple sealing system, comprising an O-ring around the steerer and a specific upper seal, effectively limits water and dust ingress to extend the life of the headset.

Supplied with an ultra-lightweight cover integrating a spacer, an aluminium bolt and a star nut, this cup is intended for 1"1/8 aluminium or steel steerer tubes. For a carbon steerer, a compression expander is required.

Ref: 9259154145629

Informations techniques

Type: Upper cup for external headset
Position: Upper (Upper)
S.H.I.S. Standard: EC34/28.6
Height (Stack): 16 mm (5 mm top cap)
Compatible with fork steerer: 1"1/8 (28.6 mm)
Compatible with head tube: 34 mm inner diameter
Construction: CNC machined 6061 aluminium, aerospace quality
Bearing: Sealed stainless steel Enduro bearing (Stainless Steel Sealed Bearing)
Sealing:
Triple protection against ingress
O-ring around the steerer
Specific moulded upper seal protecting the bearing
Top cap: Ultra-lightweight with integrated spacer
Cap bolt: Aluminium
Star nut: Included (for steel or aluminium steerers only)
Carbon steerer: Compression expander required (not included)
Bearing angle: 36° x 45°
Top cap bolt torque: 2 to 3 Nm
Colour: Available in several anodised finishes
Manufacturing: Made in USA
Warranty: Lifetime warranty on the Enduro stainless steel bearing
Sold individually (upper cup only)
;

Informations prix

*Supplier recommended retail price in February 2024
