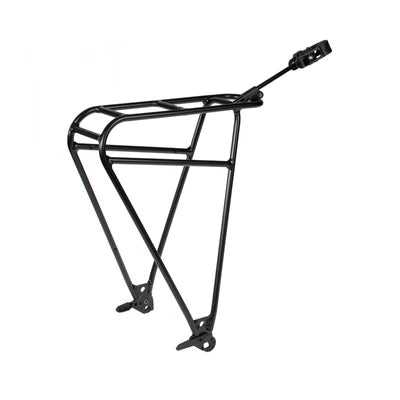

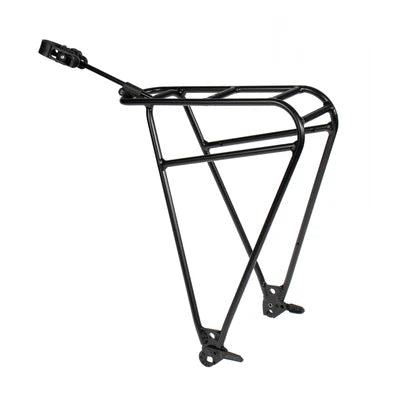

Luggage rack ORTLIEB QUICK RACK L Black

Réf. fabricant : F78110
The ORTLIEB QUICK RACK is a versatile bike rack designed to transform a racing, gravel or mountain bike into a utility bike in an... Read more
99,99 €
99,99 €
View full details

Description

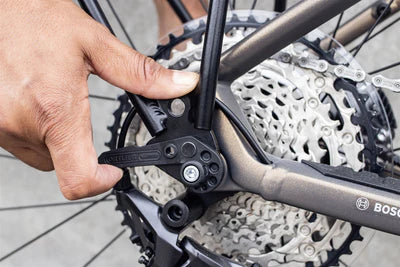

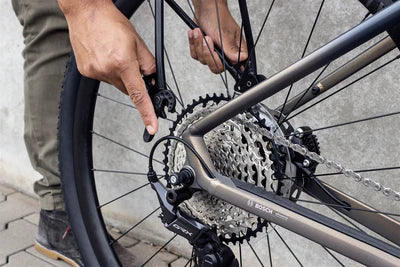

The ORTLIEB QUICK RACK is a versatile bike rack designed to transform a racing, gravel or mountain bike into a utility bike in an instant. Thanks to its quick-fit system, it can be assembled in just 15 seconds and disassembled in 5 seconds, offering great flexibility between sporty outings and daily commutes.

Made from lightweight aluminum with 10 mm-diameter uprights, this rack supports a payload of up to 20 kg and offers two levels of suspension as well as an integrated platform for simultaneous attachment of side panniers and basket.

Compatible with all ORTLIEB mounting systems, it can be adapted to almost any bike thanks to its multiple mounting options.

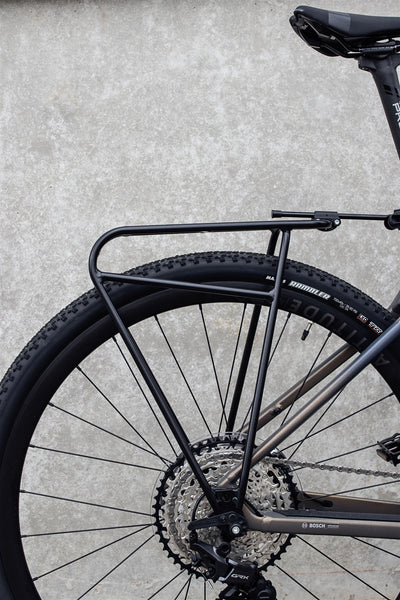

The Quick-Rack L offers all the advantages of the Quick-Rack, but is primarily designed for axle mounting on trekking and gravel bikes with tires up to 50 mm wide.

Technical details.

Ref: 15536857481596

Informations techniques

Height: 41 cm
Width: 20 cm
Depth: 41 cm
Material: Aluminium
Tire size: up to 29" × 3.0" (direct mount) or 28" × 50 mm (thru axle)
Payload: 20 kg, weight: 605 g
Tube diameter 10 mm
Allows direct attachment of all bags with QL1/2.1/2.2/3.1 system

Carbon stem or carbon frame compatible, except when mounted on chainstays
Compatible with full-suspension bikes (check the travel when stationary to avoid collisions)

Contents:
1x luggage rack with mounting hardware
1x extra-long mounting bracket (300 mm)
1x mounting bracket for optional tail light

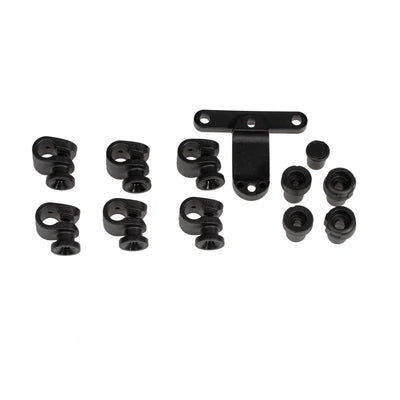

1x set of mounting brackets and knobs QL3/QL3.1
;
