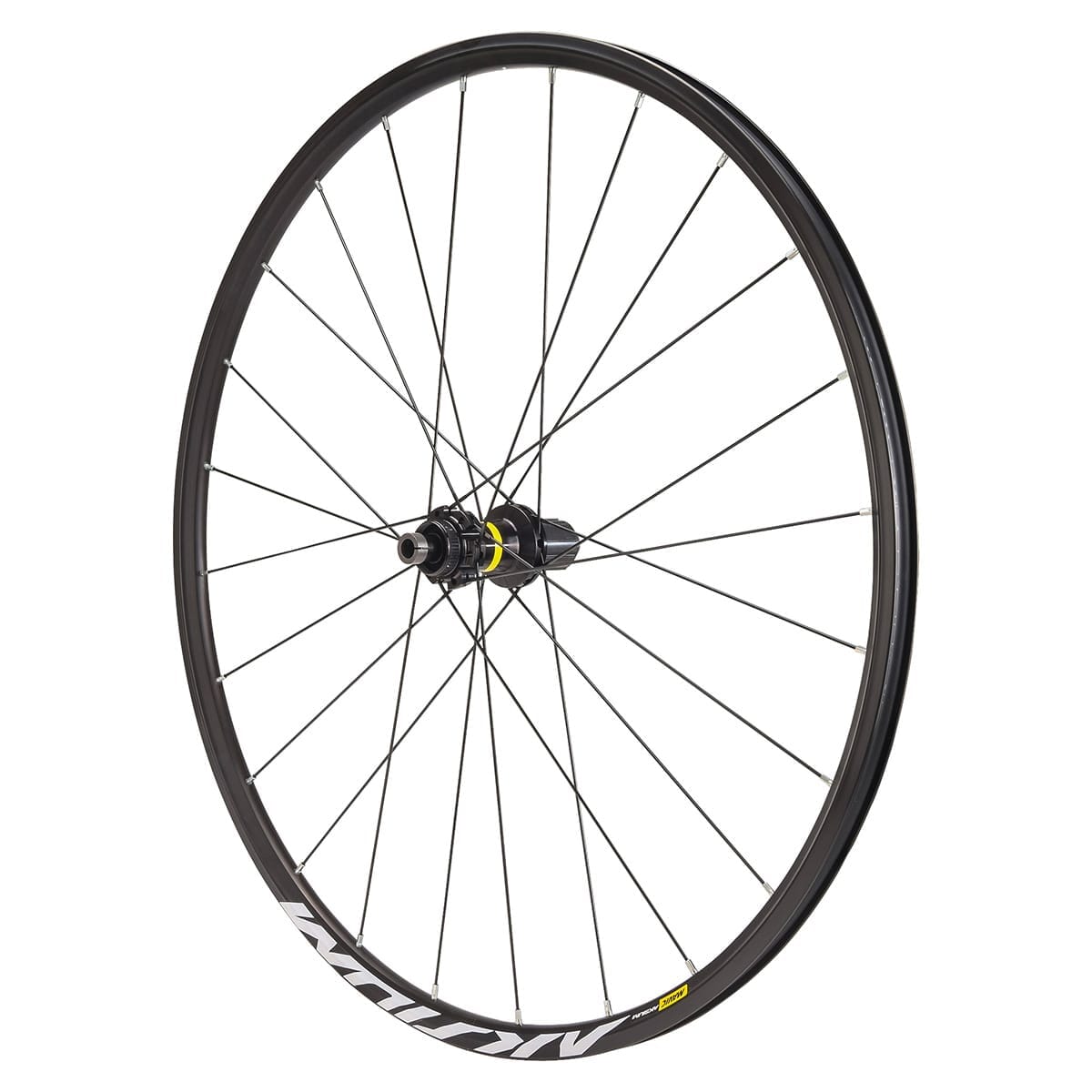

MAVIC AKSIUM DISC Rear Wheel with Tyres (Centre Lock)

The MAVIC AKSIUM DISC Rear Wheel is ideal for everyday use on Road, combining durability, performance and accessibility for cyclists seeking reliability. Designed specifically... Read more
149,90 €
149,90 €
View full details

Description

The MAVIC AKSIUM DISC Rear Wheel is ideal for everyday use on Road, combining durability, performance and accessibility for cyclists seeking reliability.

Designed specifically for disc brakes, it incorporates 24 straight-pull spokes, increasing rigidity and strength for optimal power transfer. Its aluminium rim with an internal width of 17 mm allows tyres up to 32 mm to be fitted, offering comfort and versatility on demanding roads.

It incorporates the Instant Drive 360 system, designed for immediate engagement, minimising inertia for instant power transmission. This patented mechanism has proven its reliability on over 100,000 wheels produced, tested in extreme conditions (mud, snow, sand, cold). Furthermore, it requires little maintenance, achievable in a few seconds and without tools.

Its disc-optimised hub features high-precision QRM bearings, guaranteeing low friction and increased durability. Designed for quick installation, it is compatible with Centre Lock brakes, ensuring effective and safe braking.

With its robust construction and balance between lightness and reliability, the MAVIC Aksium Disc is an excellent option for cyclists seeking consistent everyday performance.

Manufacturer Manual + Rim/Tyre Compatibility Chart

MAVIC Road Axle Adapters Manual

MAVIC UST Tubeless Manual

Ref: 7967902564518

Technical information

┘GENERAL
Manufacturer Reference: R2317155
Weight: 1035 g
ASTM: category 2 (road and paths with jumps under 15 cm in height)
Maximum load: 120 kg (including bike weight)

┘RIM
Material: S6000 Aluminium
Height: 21 mm
Joint: pinned
Internal width: 17 mm
Drilling: traditional (24 holes)
ETRTO size: 622x17
Tyre compatibility: Tubetype
Minimum tyre size: width 23mm - max. pressure 8Bar/115PSI
Maximum tyre size: width 62mm - max. pressure 5Bar/72PSI

┘HUBS

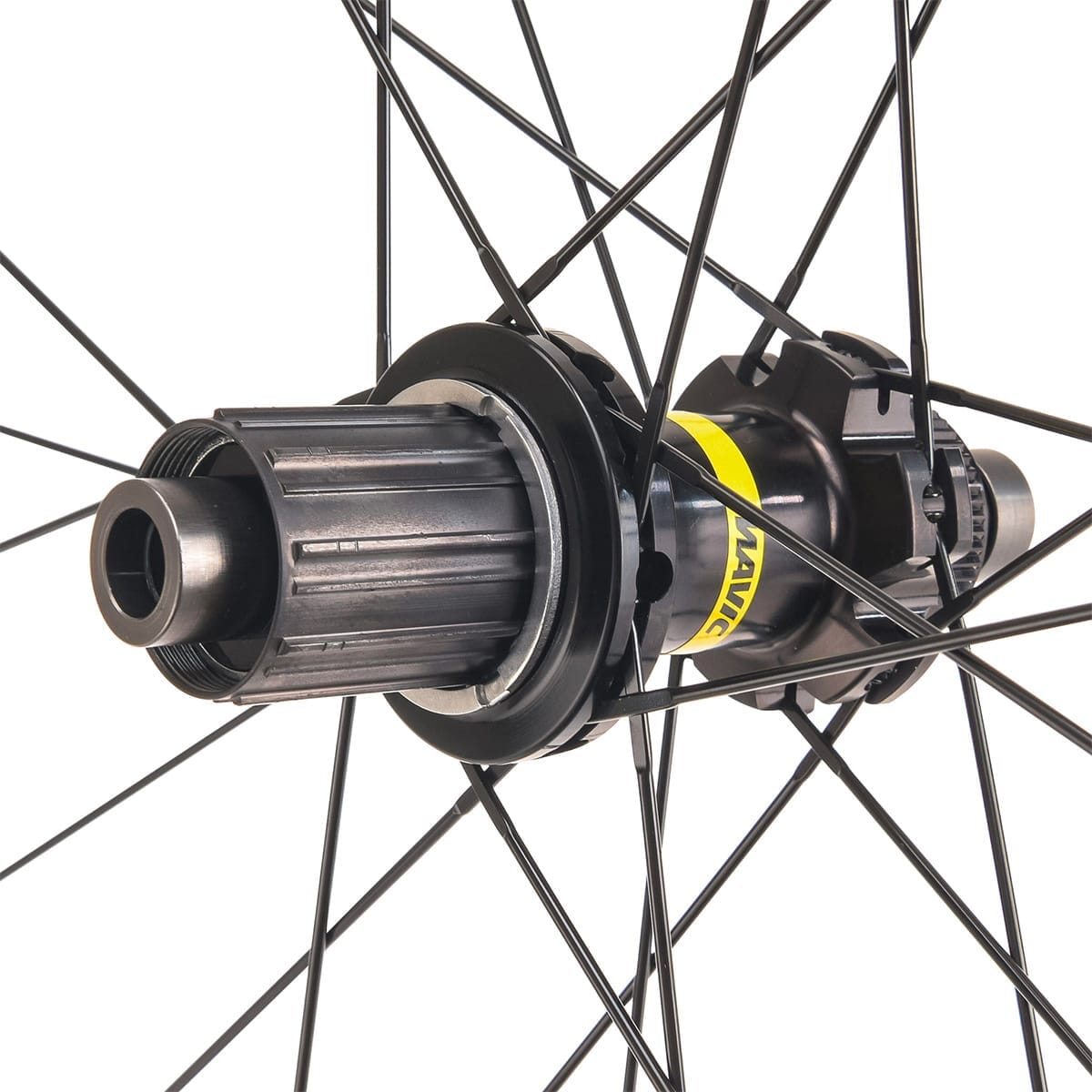

Shell material: aluminium
Disc standard: 6-bolt or Center Lock®
Axle material: aluminium
Axle size: rear 12x142 - Convertible to quick release 9x135 with adapters (included)
Freehub technology: Instant Drive 360
Freehub: Shimano HG road
Bearing technology: QRM automatic adjustment - sealed cartridge

┘SPOKES
Material: steel
Shape: straight, round
Nipples: steel, ABS, clear
Lacing: 2-cross

┘KEY TECHNOLOGIES
► INSTANT DRIVE 360: The Instant Drive 360 system ensures immediate power transfer, with no inertia, proven reliability and quick tool-free maintenance;
► QRM BEARINGS: Mavic's QRM technology uses high-precision double-sealed bearings, offering increased durability, low friction and minimal maintenance;

┘INCLUDED
User guide
Rim tape fitted to the wheel

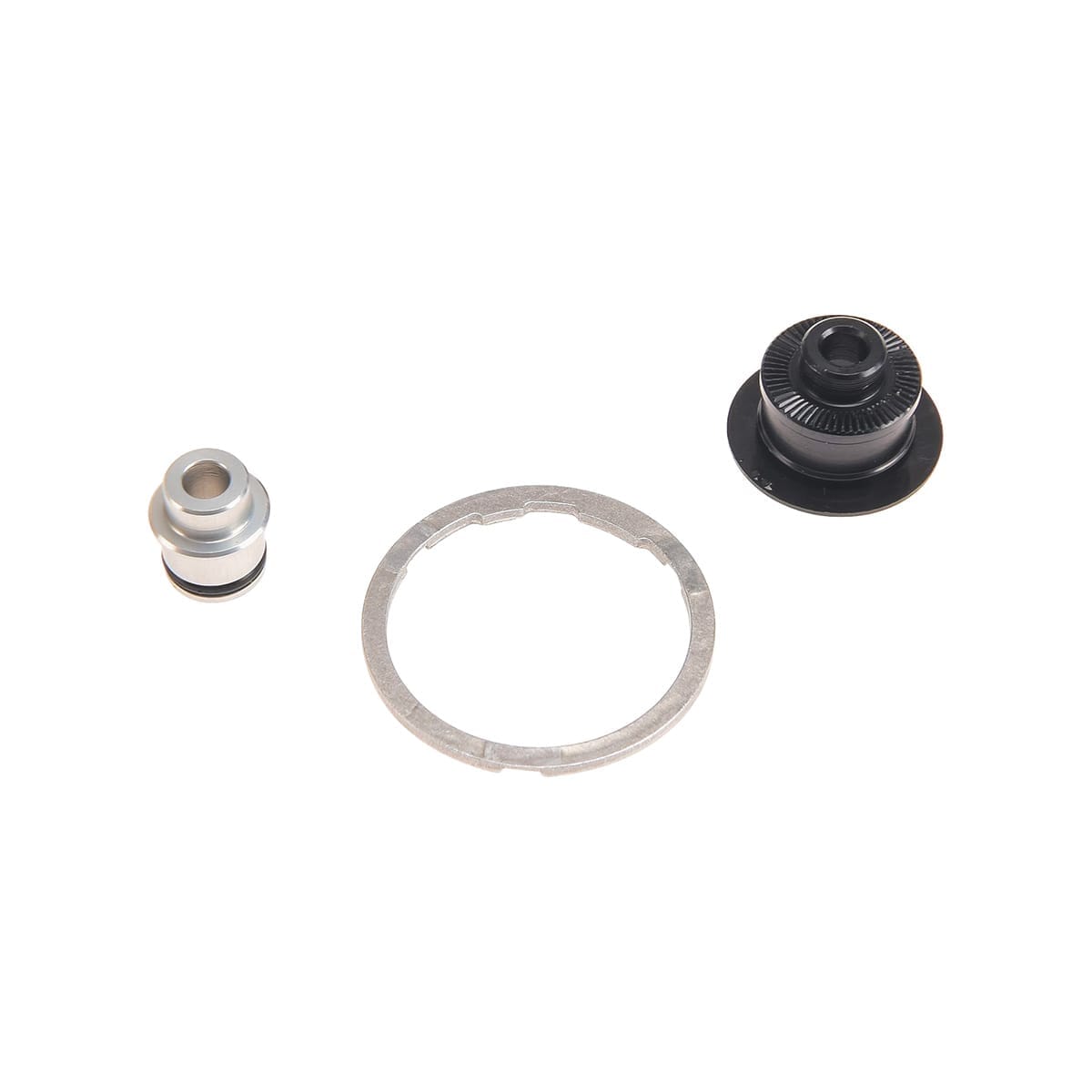

Rear axle adapters: 12x142 convertible to 9x135

┘COMPATIBLE REFERENCES
Freehub body: convertible SRAM XD road (kit V2580101 sold separately)
Freehub body: convertible SHIMANO HG light road (kit V3850101 sold separately
Freehub body: convertible SHIMANO MS (kit V3990101 sold separately)
Freehub body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freehub body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
;

Price information

*Supplier recommended retail price in February 2024
