MICHE EVO MAX PF30 46-24 crankset

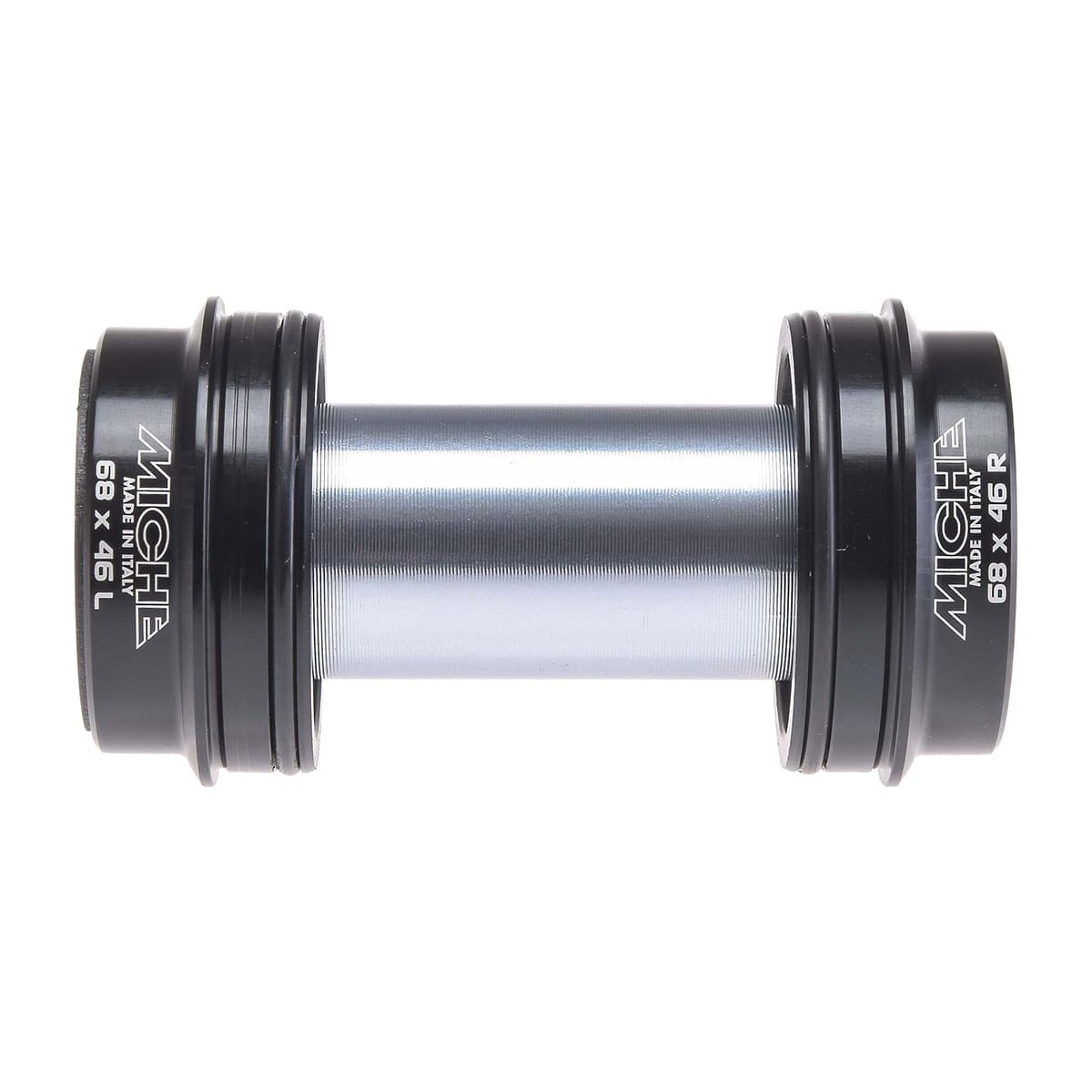

Visit MICHE Evo Max bottom bracket bottom bracket is shown here at PF30 standardstandard, with a shaft length of 68 mm and a case diameter of 46 mm.

Made from 7075-T6 aluminum, this lightweight model incorporates sealed ring bearings for smooth crankset movement and superior hardware durability.

This housing enables you to mount a classic Shimano crankset with a 24 mm axle on your PF30 frame.

A - Diameter (mm)	B - Width (mm)	Assembly	Standard
34,8	68	screw-on	BSC / BSA
34,8	73	screw-in	BSC / BSA
34,8	83	screw-in	BSC / BSA
34,8	100	screw-in	BSC / BSA
27	95,5	insert	BB 96 (Trek)
41	92	insert	PF 92
42	68	insert	BB 30
42	73	insert	BB 30
46	68	insert	PF 30
46	73	insert	PF 30

Ref: 14727420346717
