SRAM

Mini Groupesets SRAM FORCE AXS D2 2x12

The mini Groupesets FORCE AXS D2 offers top-of-the-range precision for your piloting. Updated with technologies designed for professional racers, it boasts a unique and... Read more

Recommanded price: 1.840,00 €

1.399,90 €
1.399,90 €
View full details

Description

The mini Groupesets FORCE AXS D2 offers top-of-the-range precision for your piloting.

Updated with technologies designed for professional racers, it boasts a unique and striking aesthetic.

Discover the new shape of the gearshift paddles, the more elegant ergonomics of the cockpits and the consistently powerful feel of hydraulic braking.

More than just an update, it revolutionizes your perception of the Groupesets FORCE.

AXS Manufacturer's Manual
Manufacturer's manual Batteries and charger



Ref: 9453595394397

Informations techniques

GENERAL
Groupesets AXS Force
Type : 2x12 speeds - Electronic - Hydraulic
Composition & References Manufacturer :
- Levers + Calipers left - right : 00.7918.213.002 - 00.7918.213.001
- Discs (x2) : 00.5018.122.003
- Front - rear derailleurs: 00.7618.176.000 - 00.7518.173.000

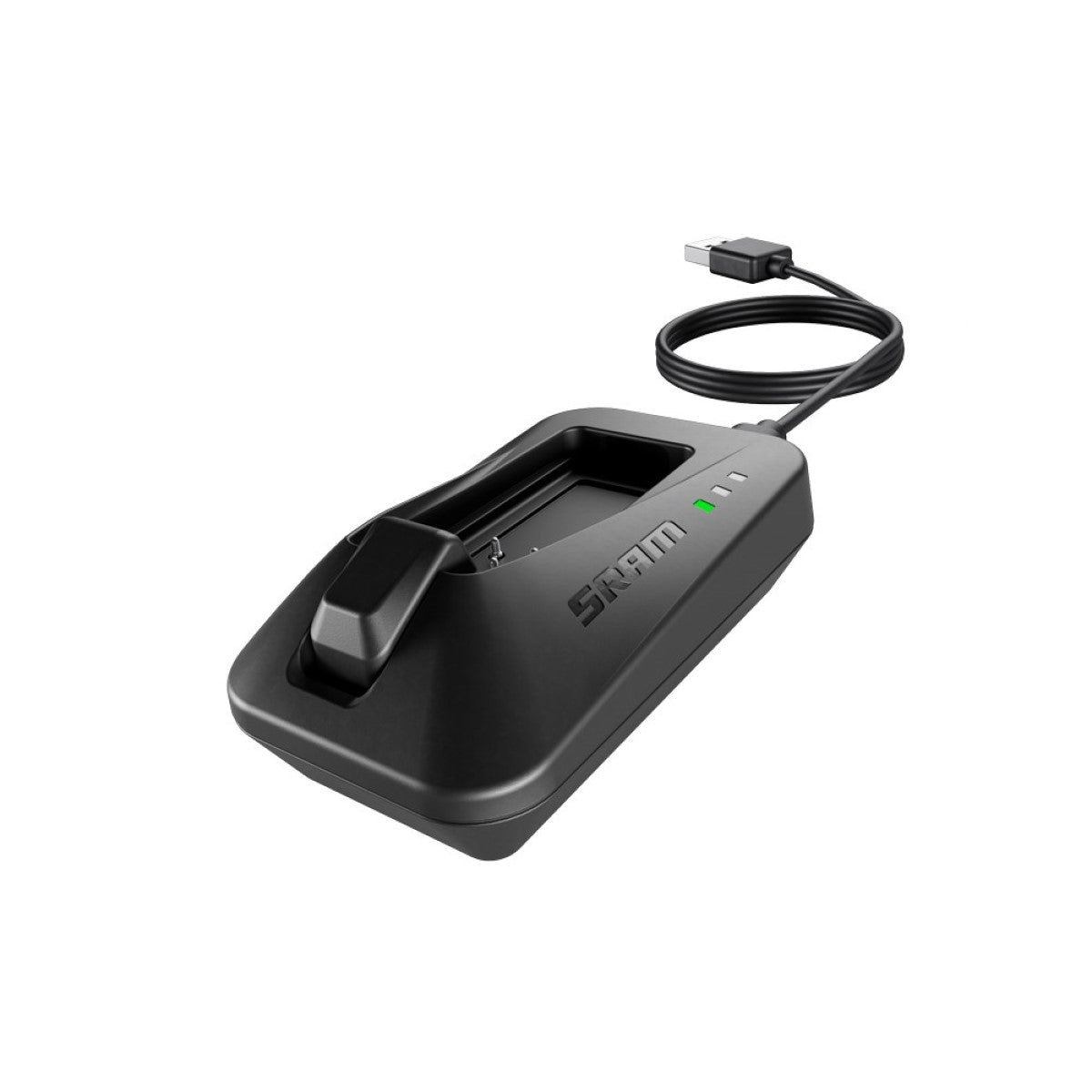

- Batteries (x2) - Charger: 00.3018.102.000 - 00.3018.117.000

TRANSMISSION
► Front axle
Number of gears: 2
Technologies : AXS (wireless) - eTap - Reach Adjust
Lever materials: Carbon and Plastic
Derailleur mounting: braze-on
Derailleur angle: 61-66°.
Technology: Yaw
Optimum gear spacing Chainrings 13 teeth (Chainrings X-Range)

► Rear axle
Number of gears: 12
Technologies : AXS (wireless) - eTap - Reach Adjust
Lever materials: Carbon and Plastic
Cage material: Aluminium
Roller material : Steel
Maximum large sprocket teeth: 36 teeth

Accessories: BLIPBOX™ - ES-EAC-BBOX-D1 / WIRELESS BUTTONS - EC-BLIP-B1 (Force D2, Rival D1 and Apex D1 shifting levers, only wireless blips can be used as optional control buttons)

BRAKING
Caliper mounting: Flat Mount - 20mm offset
Brake fluid: DOT 5.1
Caliper length Outer casing Supplied: 1300mm (front) / 2000mm (rear)
Brake Pads Supplied: Organic - Steel support
References Brake Pads Compatible : 00.5318.024.001 / 00.5315.035.020 / 00.5315.035.031
/ 00.5315.035.010
Technologies : Stealth-a-majig hoses - Bleeding Edge
Disc type: Two pieces
Disc mounting : Center Lock

ELECTRONIC
Battery life : Up to 1000km
Charging time Batteries : 60min max
Compatibility: All AXS components

WEIGHT
Levers + Stirrups left - right: 822g - 831g
Disc (x1): 164g
Front - rear derailleurs: 403g - 559g
Battery (x1) : 24g

Informations prix

Recommended retail price February 2024
