WOLFTOOTH

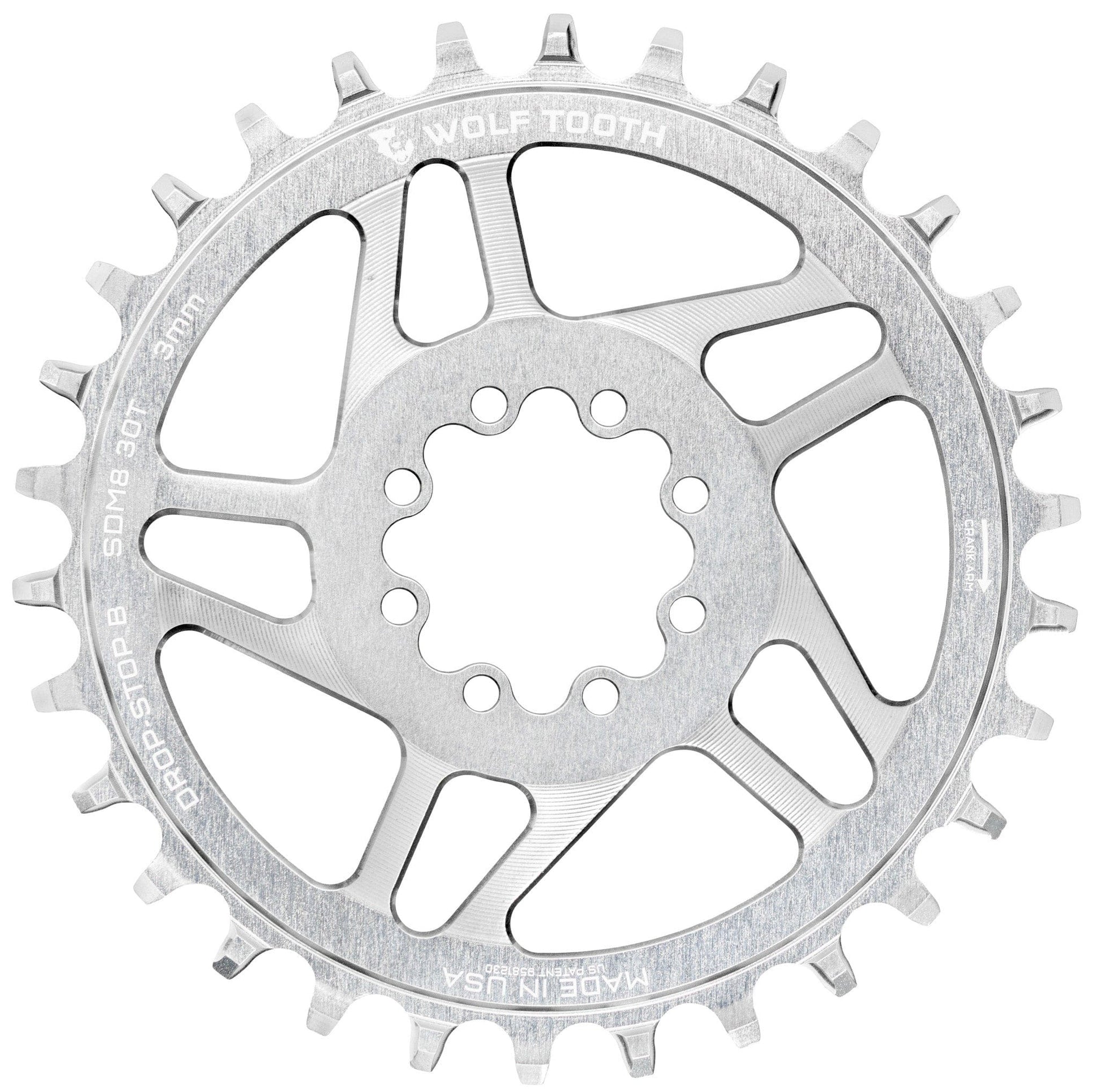

Mono WOLF TOOTH DROP-STOP B DM 8 Screws Sram Eagle Boost Offset 3mm Raw Silver

Réf. fabricant : W_SDM8-30-PLT
Specially designed for state-of-the-art MTB drivetrains, this WOLF TOOTH DROP-STOP B DM 8 Screw Sram Eagle Boost Offset 3mm Mono Chainring in Raw Silverfinish... Read more
109,99 €
109,99 €
View full details

Description

Specially designed for state-of-the-art MTB drivetrains, this WOLF TOOTH DROP-STOP B DM 8 Screw Sram Eagle Boost Offset 3mm Mono Chainring in Raw Silverfinish for SRAM 8-screw cranksets is the ultimate performance upgrade. It guarantees flawless chain retention, even in the worst conditions, thanks to the patented Drop-Stop® B tooth profile. Its CNC-machined design offers maximum rigidity for total power transfer, while remaining incredibly light and evacuating mud with formidable efficiency.

This chainring is the ideal solution for mountain bikers equipped with the new SRAM T-Type transmissions who wish to modify their original gearing or treat themselves to a high-end "Made in USA" part. It's the perfect upgrade for those looking to optimize their chain line and overall drivetrain performance with a precise and durable engineered part.

Featuring the standard 8-bolt Direct Mount, this chainring is a simple and effective upgrade. The Drop-Stop B tooth profile is optimized for SRAM T-Type and Flattop chains. Offset options of 3 mm (for DUB Wide cranksets) and 0 mm (for XX SL DUB cranksets) achieve the perfect 55 mm chain line required by T-Type drivetrains, ensuring quiet running and reduced wear.

Ref: 15611319189884

Informations techniques

Standard : Direct Mount SRAM 8‑Bolt
Dentures disponibles : 30T, 32T (en finition Raw Silver)
Offset : 3 mm
Chaînes Compatibles : Profil Drop-Stop B optimisé pour chaînes 9/10/11v et SRAM 12/13v (y compris Flattop et Transmission T‑Type). Non compatible avec les chaînes Shimano 12v HG+, KMC 12v et Campagnolo 13v.
Compatibilité Pédaliers : SRAM Transmission T‑Type AXS, Sram Transmission 70/90, Cane Creek eeWings Titanium 2025 (8‑boulons) et autres pédaliers VTT au standard 8‑boulons.

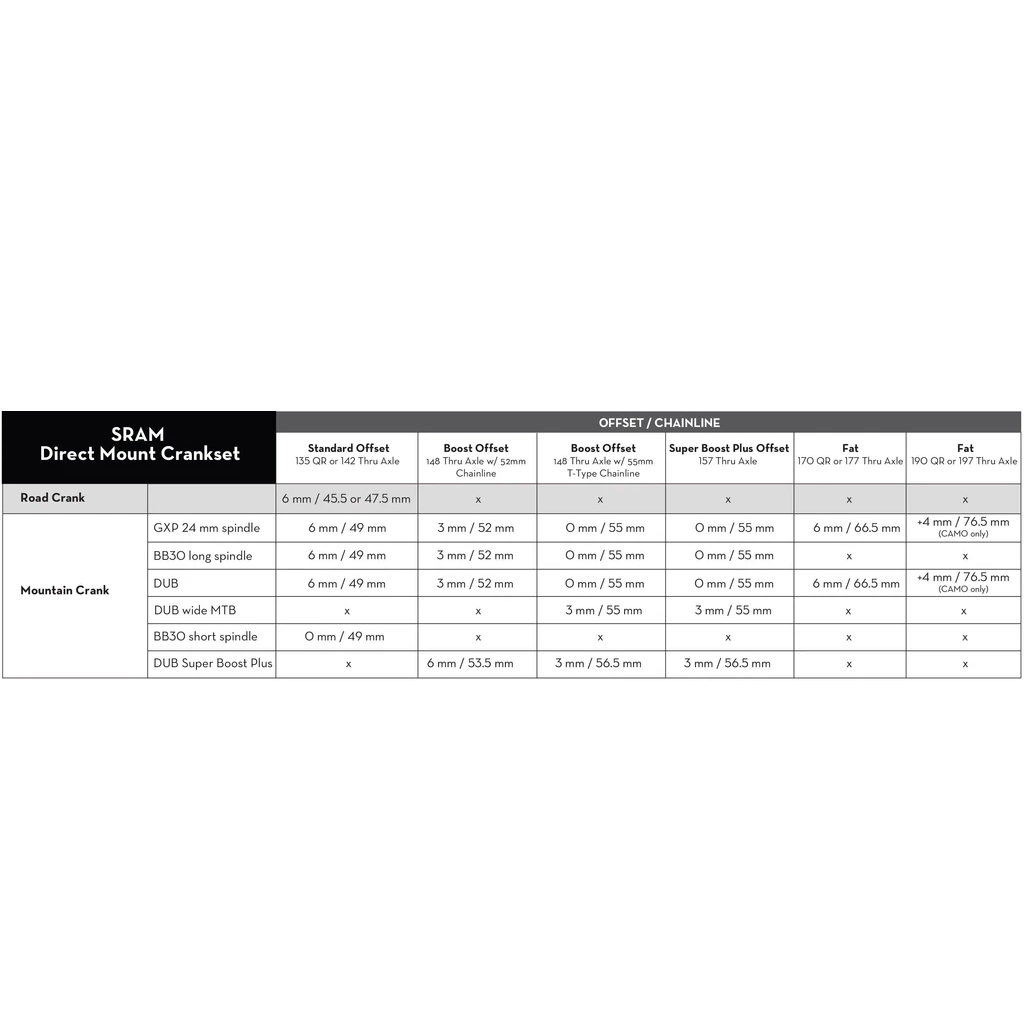

Ligne de chaîne (Chainline) :
55 mm : avec plateau offset 3 mm sur un pédalier DUB Wide.
55 mm : avec plateau offset 0 mm sur un pédalier XX SL DUB.
52 mm : avec plateau offset 3 mm sur un pédalier DUB standard.
Matériau : Aluminium 7075‑T6 usiné CNC.
Poids Indicatifs : 30T • 65 g | 32T • 69 g.
Fixation : 8 vis T20 en acier inoxydable fournies. Couple de serrage recommandé : 4 Nm.
Finition : Raw Silver.
Références EAN : 810159402057 (30T), 810159402064 (32T).
Contenu du Pack : 1x plateau Direct Mount, 1x jeu de 8 vis T20.
Recommandation : L'utilisation d'un dérailleur arrière à embrayage (type clutch) est fortement conseillée.
;

Informations prix

Supplier suggested retail price in September 2025
