ORTLIEB

ORTLIEB QUICK RACK M6 Thru-Axle for Bike Rack

Réf. fabricant : F78112
The ORTLIEB QUICK RACK M6 Rack Axle enables universal mounting of the QUICK RACK rack, offering broad compatibility thanks to its integrated M6 thread... Read more
34,99 €
34,99 €
View full details

Description

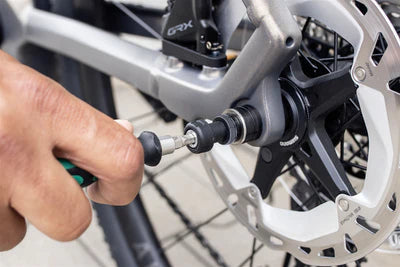

The ORTLIEB QUICK RACK M6 Rack Axle enables universal mounting of the QUICK RACK rack, offering broad compatibility thanks to its integrated M6 thread at both ends. Made from high-quality aluminium in Germany, this 12 mm thru-axle can replace axles up to 180 mm and includes spacers to adjust the length from 165 mm tapered to 168–180 mm.

Designed to fit different frame configurations, the axle is compatible with shorter lengths when screwed beyond the threaded section. It is available in three thread pitches.

Compatibility and technical information.

Ref: 15536857514364

Informations techniques

Available in three thread pitches (1mm, 1.5mm or 1.75mm)
12mm axle (M12)
Width: 180 mm
Weight: 54 g
Material: Aluminium
Made in Germany
Integrated M6 threading at both ends
Can replace axles up to 180mm in axle length
Spacers included in delivery for adapting the axle length for 165 tapered/168 - 180mm
Shorter axle lengths are compatible if the axle can be screwed through the frame (outside the threading).
Thru Axle M6-Connector 1mm is compatible with SRAM UDH/Transmission (F78112)

The Thru Axle is not compatible with bikes fitted with Speed Release threading (double-start thread), such as the ORBEA Terra from model year 2022 or certain BMC and BH models.
;
