CAMPAGNOLO

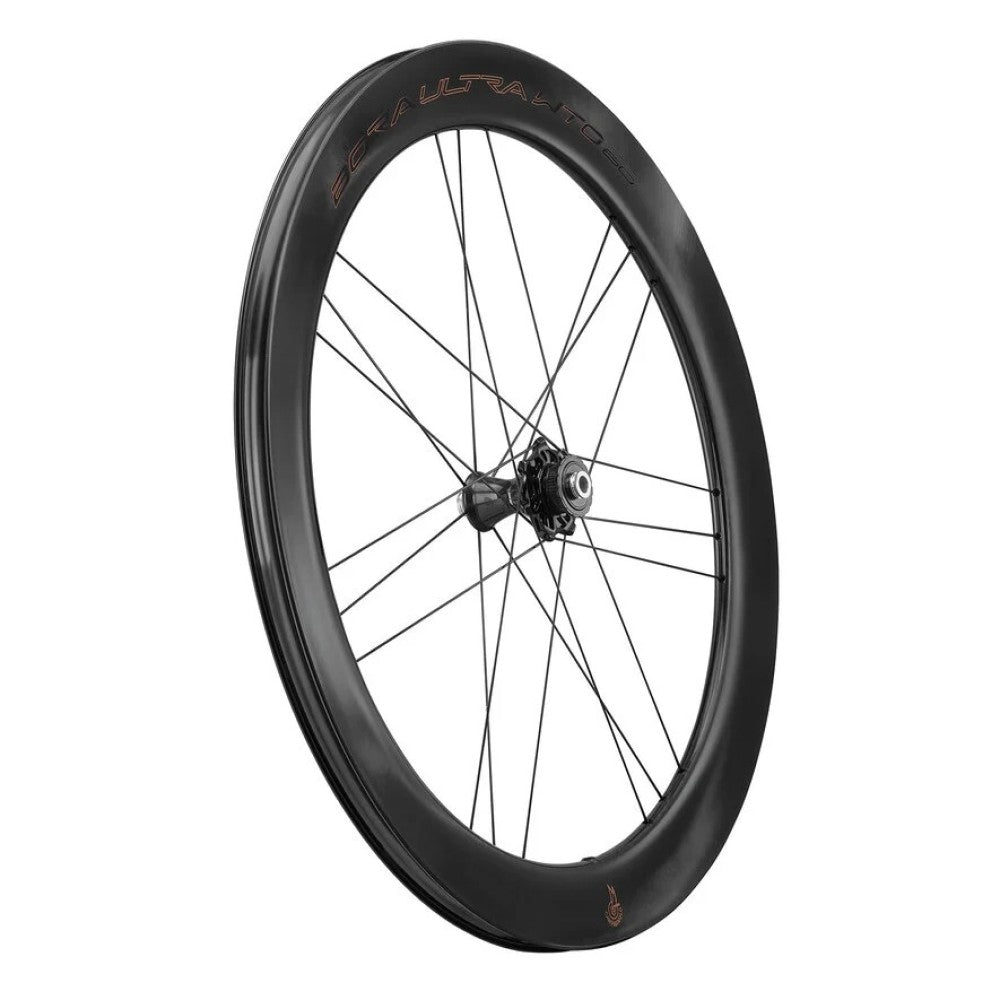

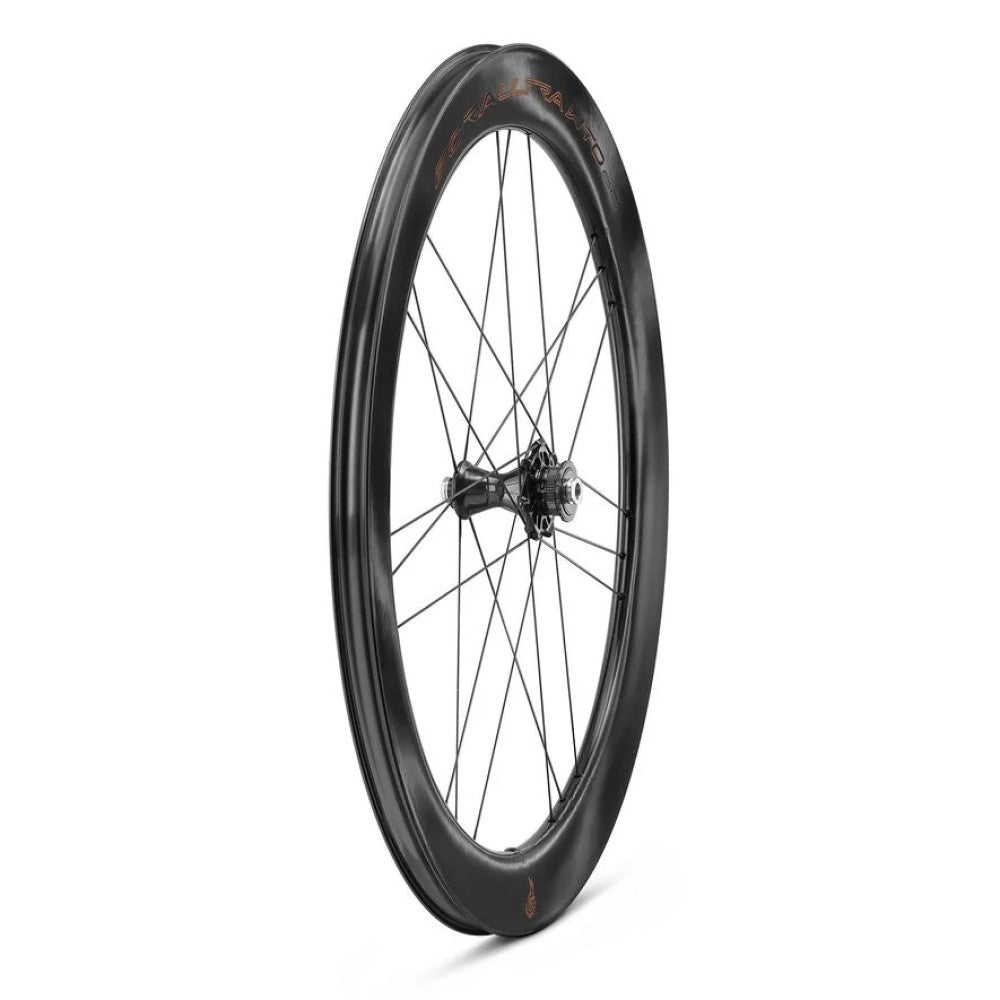

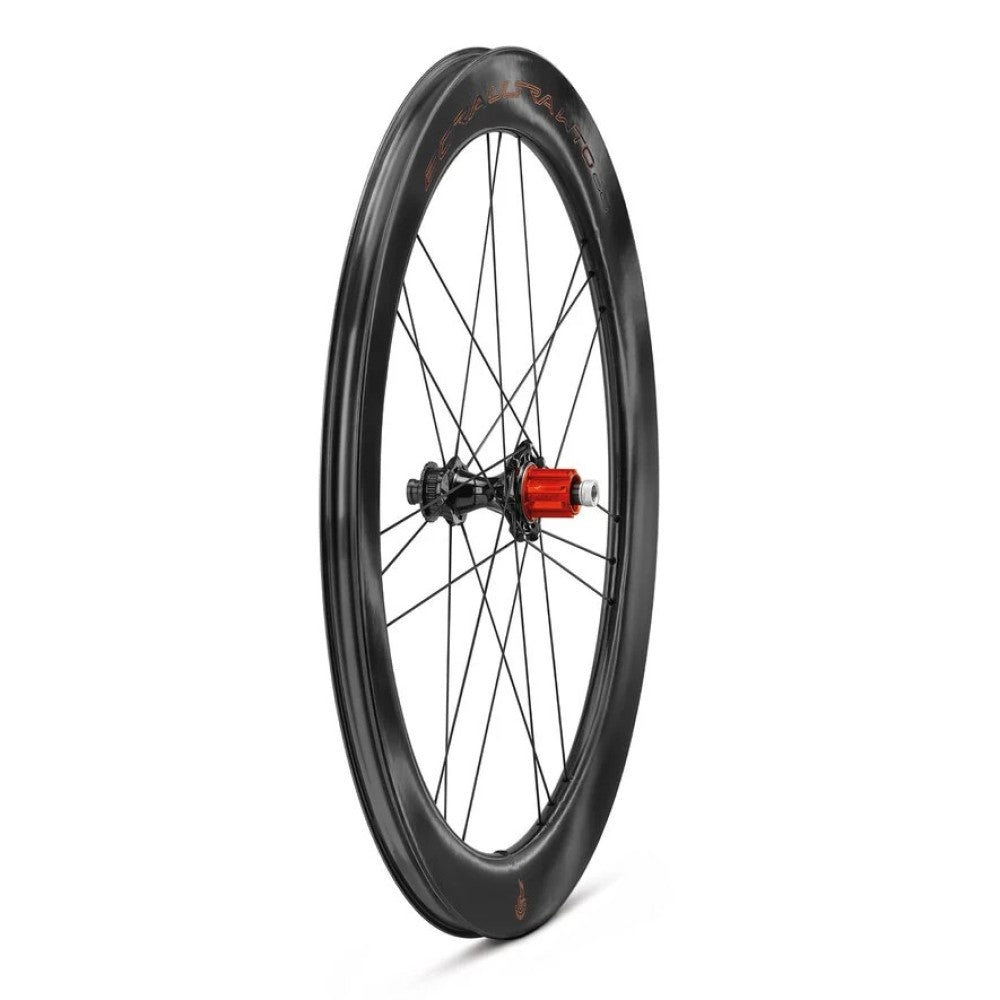

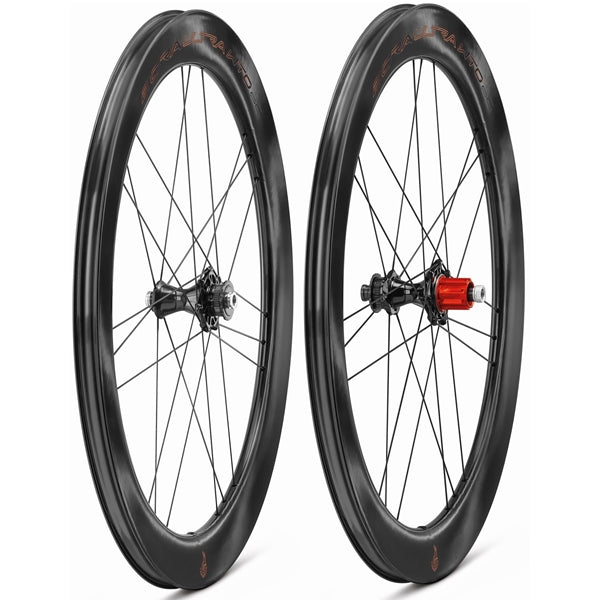

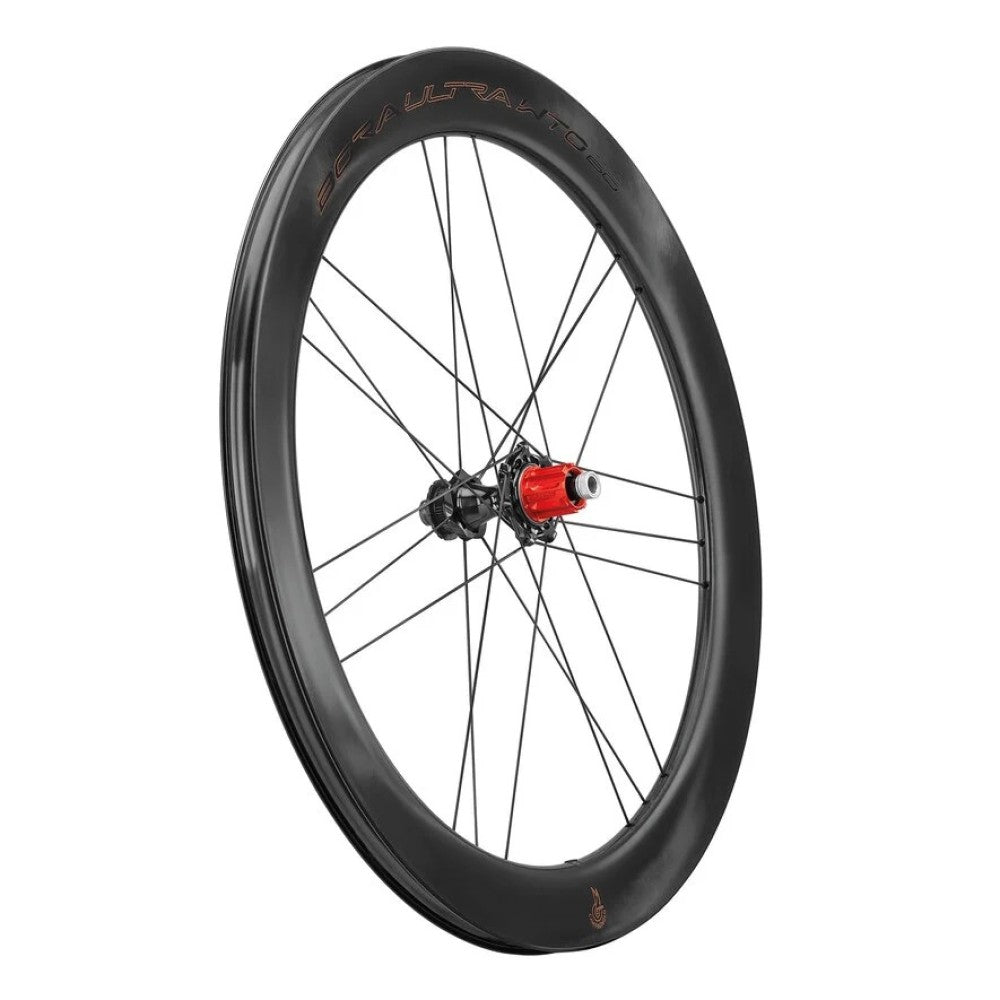

Pair of CAMPAGNOLO BORA ULTRA WTO 60 C23 DISC Tubeless Ready Wheels (Center Lock)

La Pair of CAMPAGNOLO BORA ULTRA WTO 60 C23 DISC Wheels are among the Italian manufacturer's top-of-the-range models, combining elegance and performance. Thanks to... Read more

Recommanded price: 3.699,00 €

2.799,90 €
2.799,90 €
View full details

Description

La Pair of CAMPAGNOLO BORA ULTRA WTO 60 C23 DISC Wheels are among the Italian manufacturer's top-of-the-range models, combining elegance and performance.

Thanks to rigorous testing and craftsmanship, it surpasses its predecessors in terms of aerodynamic performance, lightness and handling. Designed in hand-crafted ultra-light carbon (H.U.L.C.)this wheel is lighter and features aerodynamic elliptical spokes and hidden nipples for better air penetration.

The CULT® ceramic bearings ceramic bearings ensure smooth rotation in the carbon hub. The rims 2-Way Fit are compatible with tubeless tires without the need for rim tape

Manufacturer's manual

Campagnolo rim-tire-pressure compatibility

Ref: 9307215790429

Informations techniques

┘GENERAL
Front axle dimension: 12x100mm
Rear axle dimension: 12x142mm
Internal width: 19mm
Height: 60mm
Disc: Center Lock
Weight: 1530g
Freewheel body: Shimano HG or SRAM XDR or Campagnolo N3W
Part number :
- WC436AAP1A110 - Shimano HG
- WC436AAP5A110 - SRAM XDR
- WC436AAP8A110 - Campagnolo N3W

┘JANTES
Rim height: 60 mm
Rim material : Carbon (H.U.L.C.)
Rim section (height/width): 60/28.4 mm
Internal rim width: 19 mm
Recommended tire size: 700x23 to 700x25
Details: Water transfer DCS graphics (Dark Copper Shaded effect) / C-LUX finish
Tires: Tubeless and Tubetype (2-WAY-FIT)

┘RAYONS
Spokes: 21, aeroelliptical cross-section, straight-head, swaged, 1.5 mm
Lacing: G3
Nipples: Aero Mo-Mag aluminum, self-locking, internal

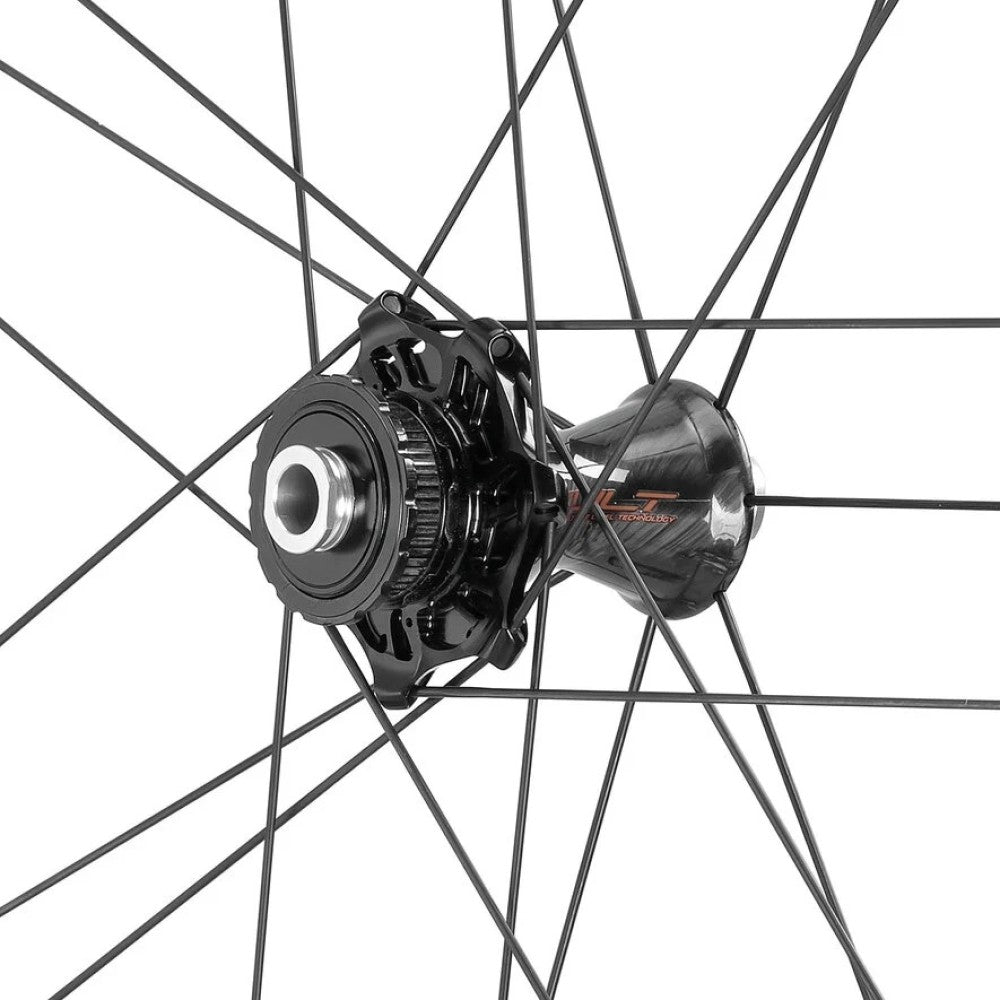

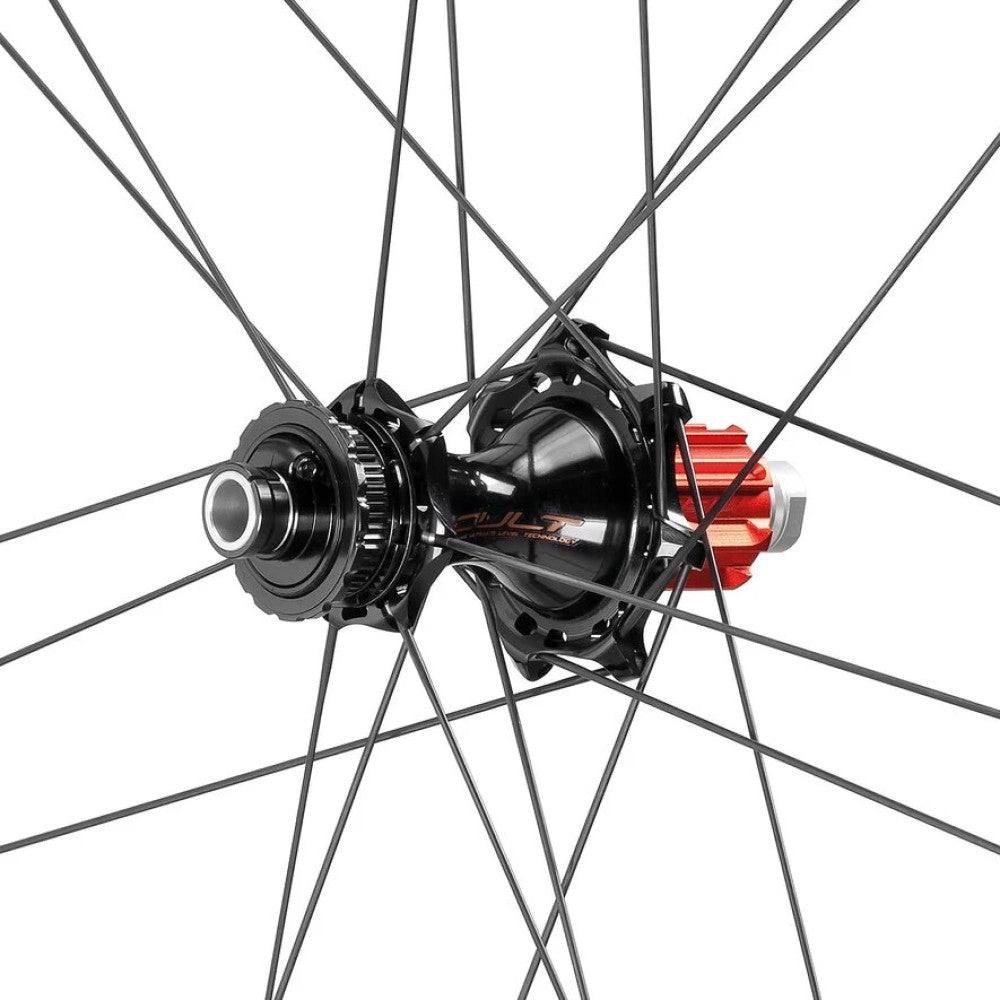

┘MOYEU
Hub type: Bora Ultra, carbon front body
Hub width:100-142 mm
Axle type: 12 mm aluminum thru axle
Bearings : CULT ceramic, cone/cuvette

┘ ASSEMBLY & TECHNOLOGIES
► The Bora™ Ultra WTO™ 60 Disc Brake wheel is assembled entirely by hand by a specialized Campagnolo® operator and 100% checked using electronic control instruments. This procedure guarantees the maximum precision and reliability of every Campagnolo® brand wheel;

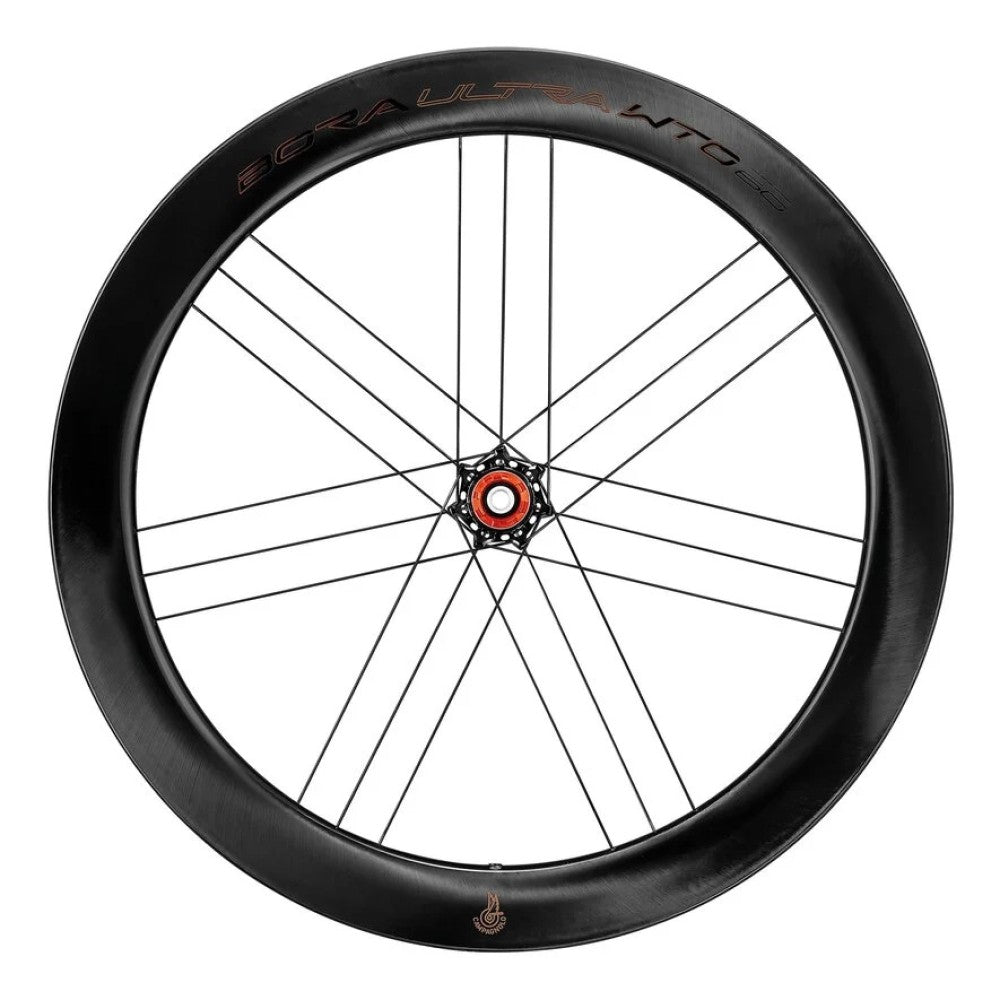

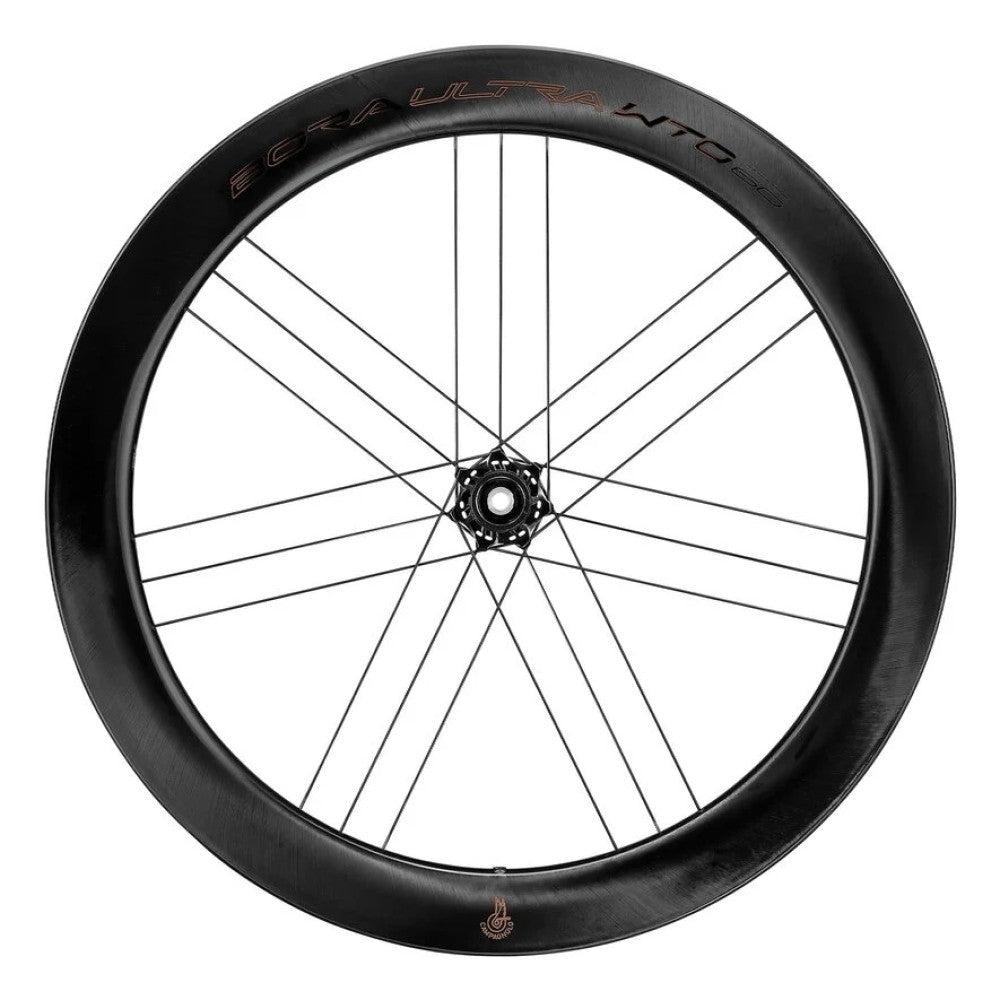

► G3 spoking: Campagnolo's G3 geometry, with its groups of three parallel straight-head spokes arranged in a 2:1 ratio, provides perfect stress balancing, increased stiffness and improved power transfer ;
► Ultra-light design thanks to H.U.L.C carbon and paint-free C-LUX finish;
► The Aerodynamics/Stability compromise of "teardrop" profiling;

┘INCLUDED
Aero Mo-Mag nut maintenance kit
tubeless valves
AFS bushings
Campagnolo wheel covers
Campagnolo accessories bag
tire levers
Campagnolo N3W adapter for Z11 (in version with Campagnolo freewheel body)

Informations prix

Recommended retail price February 2024
