CAMPAGNOLO

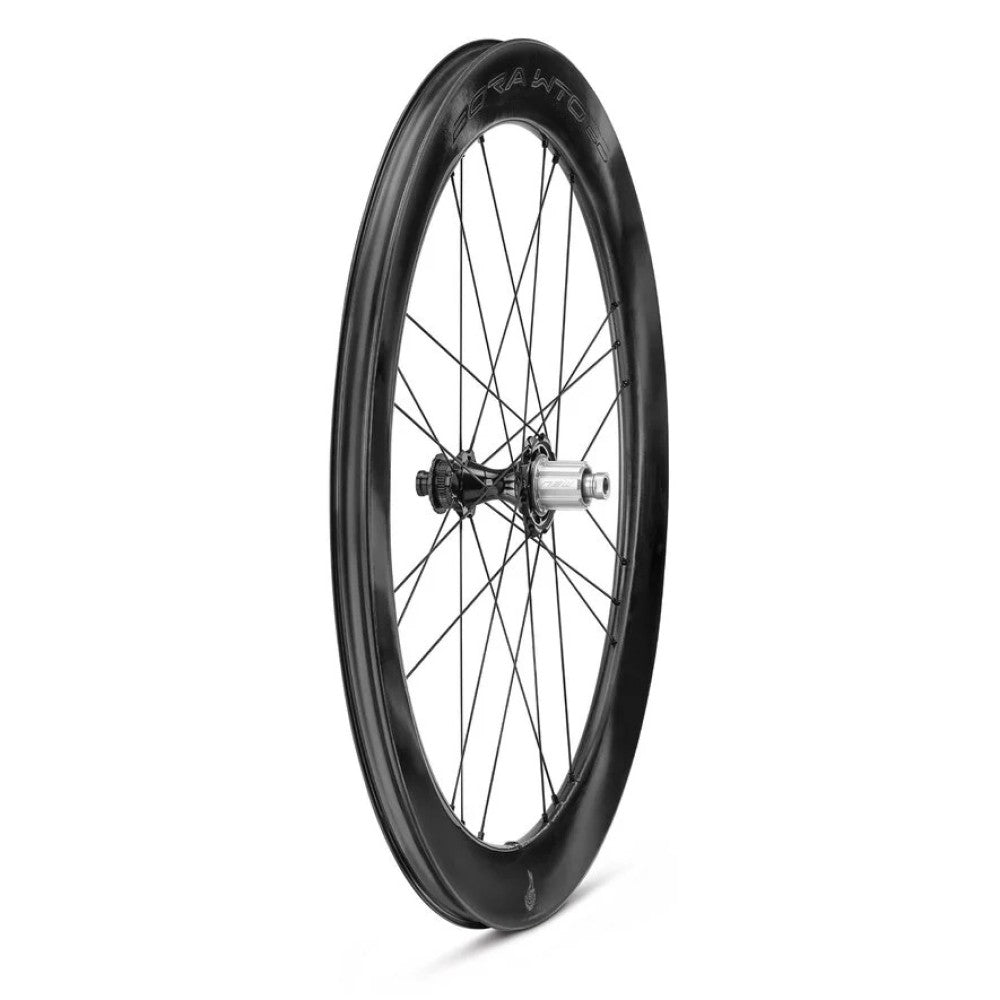

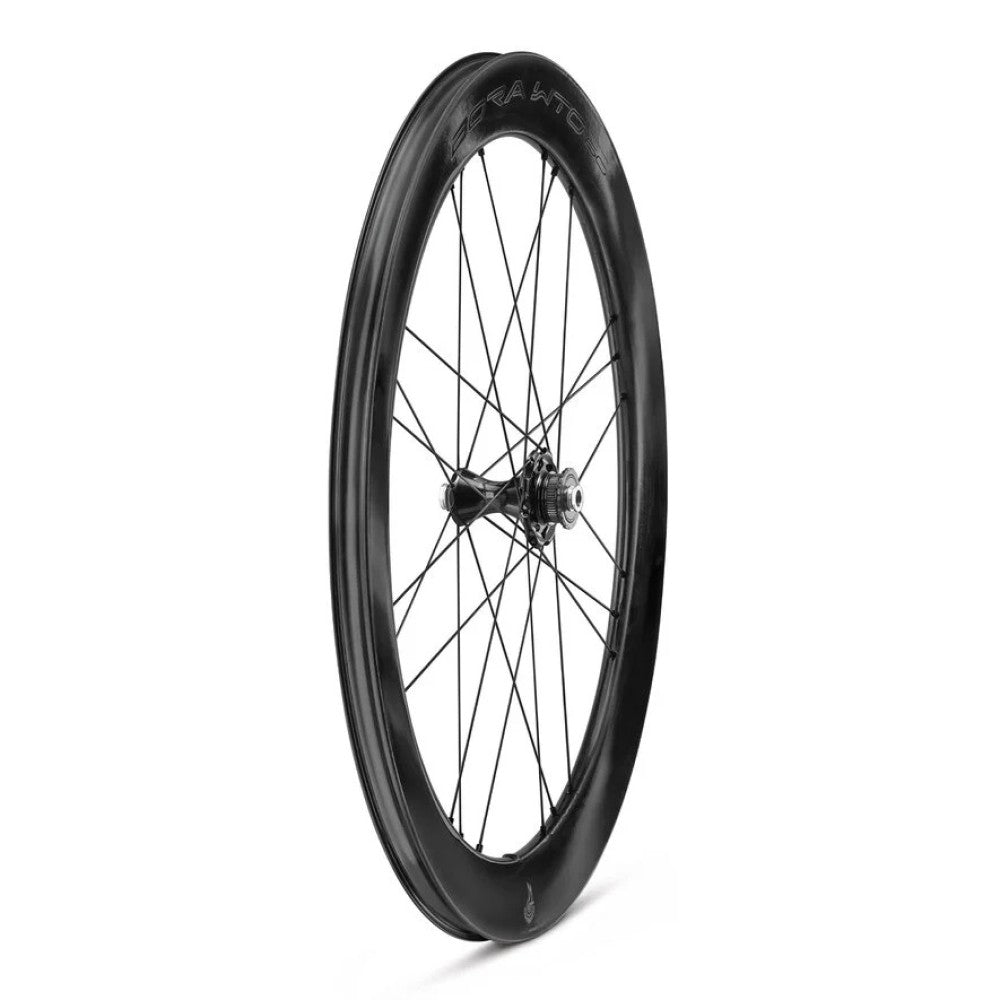

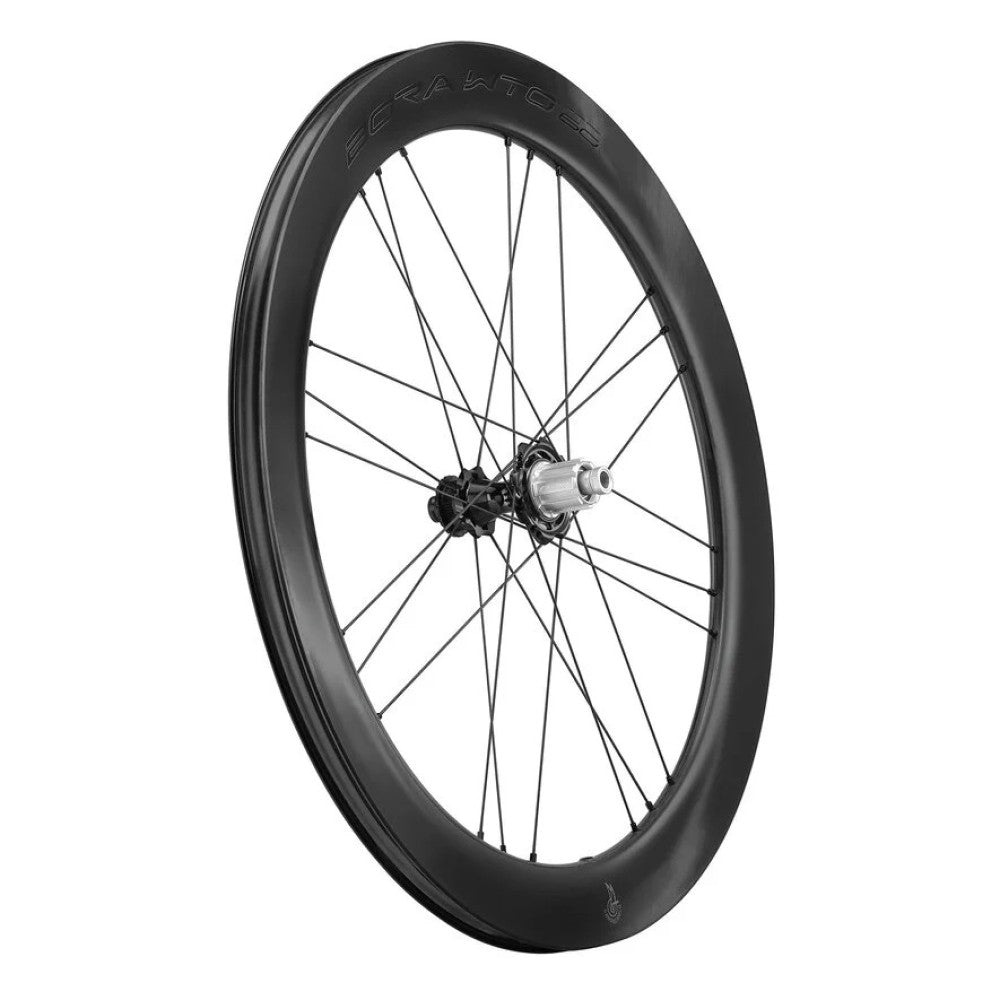

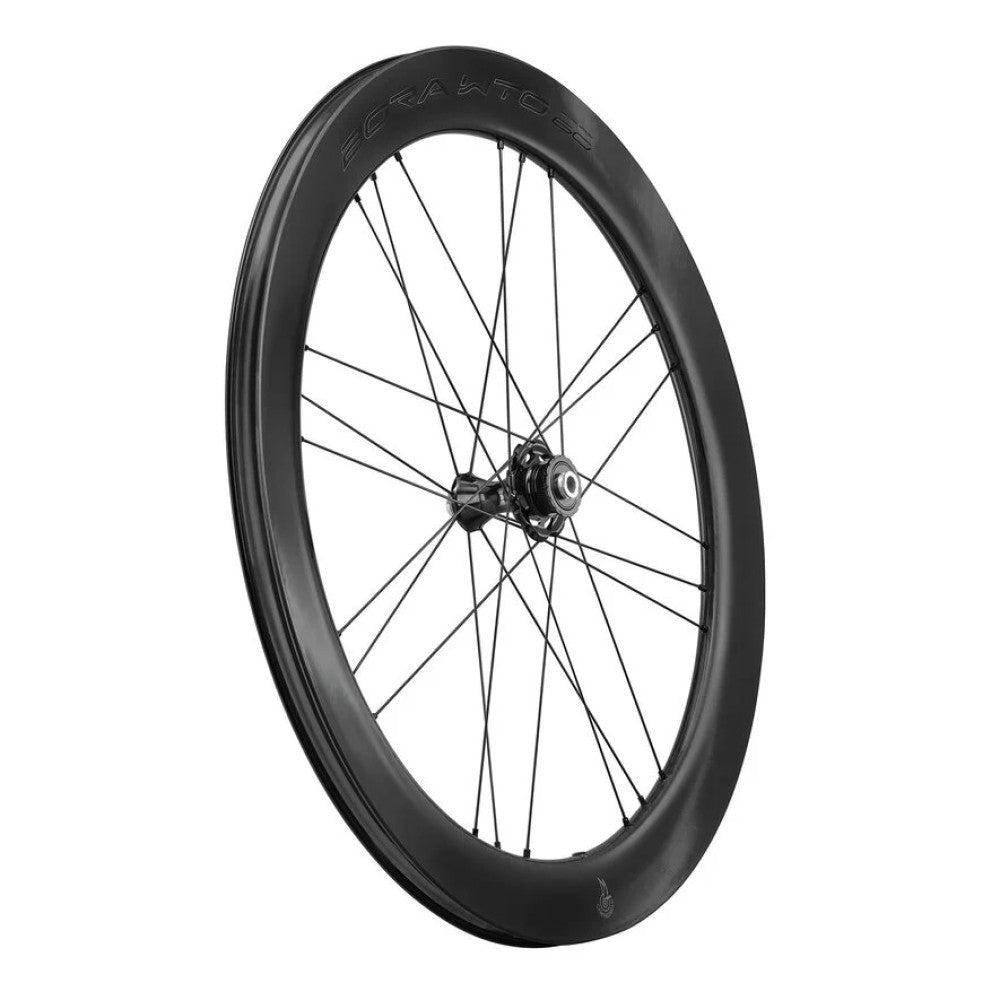

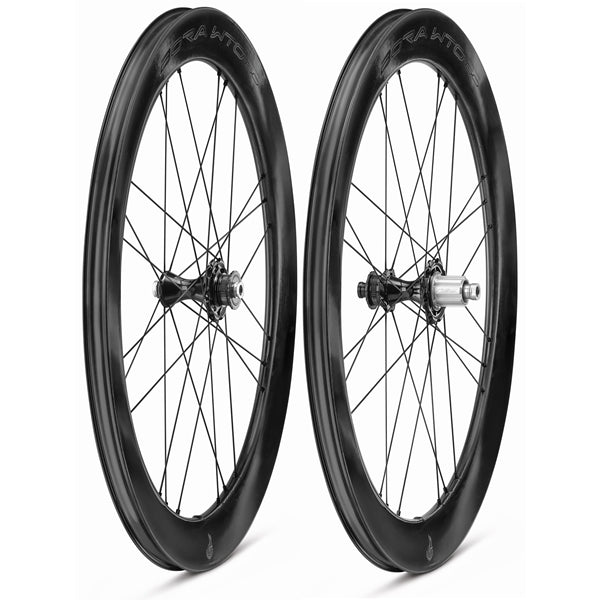

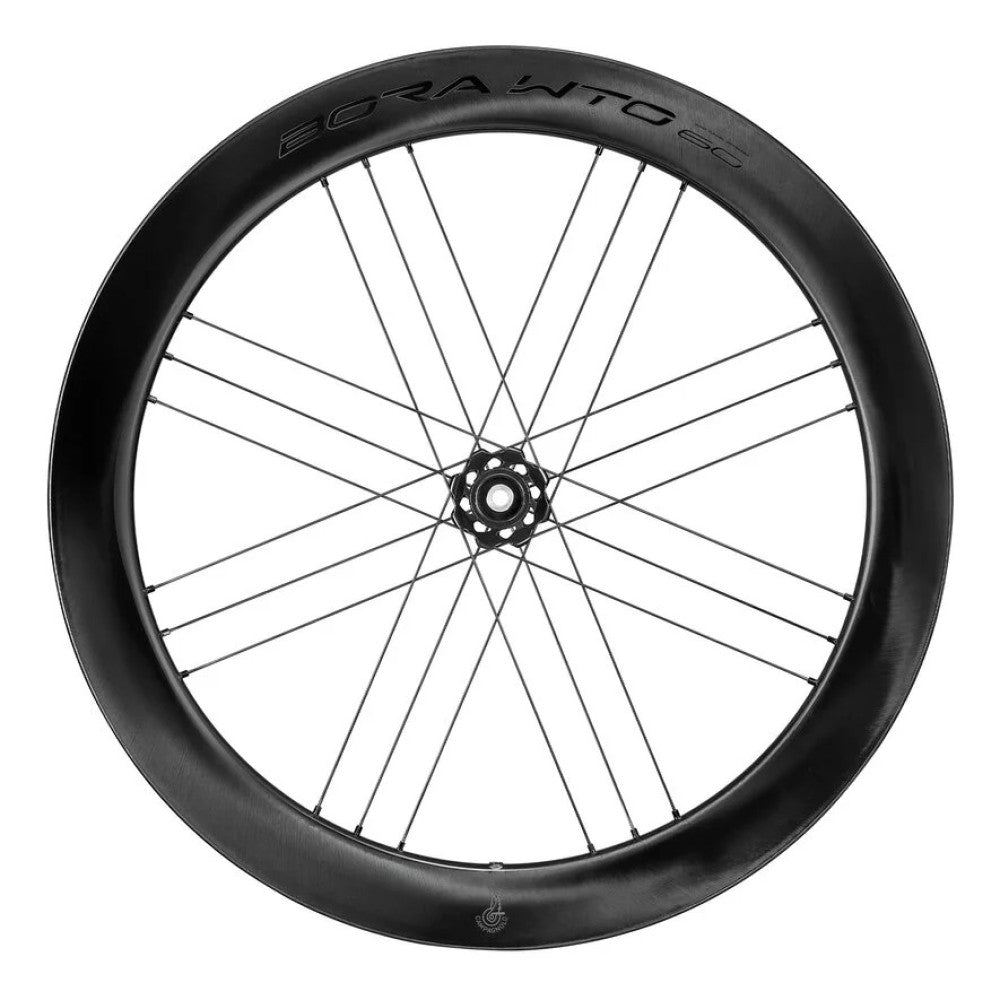

Pair of CAMPAGNOLO BORA WTO 60 DISC C23 DISC wheels clincher (Center Lock)

La pair of CAMPAGNOLO BORA WTO C23 60 wheels clincher (Center Lock) are designed for sprints, circuits, time trials and triathlons. The high profile of... Read more

Recommanded price: 2.599,00 €

Regular price 1.999,90 €
Regular price Sale price 1.999,90 €
View full details

Description

La pair of CAMPAGNOLO BORA WTO C23 60 wheels clincher (Center Lock) are designed for sprints, circuits, time trials and triathlons.

The high profile of this wheel offers aerodynamic advantages derived from advanced research. Every component is designed to optimize aerodynamics and reduce rolling resistance. Wind, once an obstacle, becomes an ally at certain angles. Unidirectional carbon rims, profiled in wind tunnels, and aerodynamic aluminum hubs, combined with the USB ceramic system, aim to optimize performance. The rim design ensures optimum aerodynamic penetration, particularly between 10° and 20° of wind angle, covering 80% of the time in Saddle. The tapered hub reduces the frontal area, and the flanges promote airflow detachment. Elliptical spokes minimize drag.

The 19 mm internal rim is compatible with 23, 25 and 28 mm tires. Thanks to 2-Way Fit technology, full compatibility with traditional and tubeless tires is guaranteed. The hole-free rim top bridge, thanks to the patented MoMag™ system, provides weight savings and increased rigidity, facilitating the use of tubeless tires without rim tape. G3 spoking with disc-side spoke doubling guarantees high-performance, safe braking.

Ref: 9548120260957

Points forts

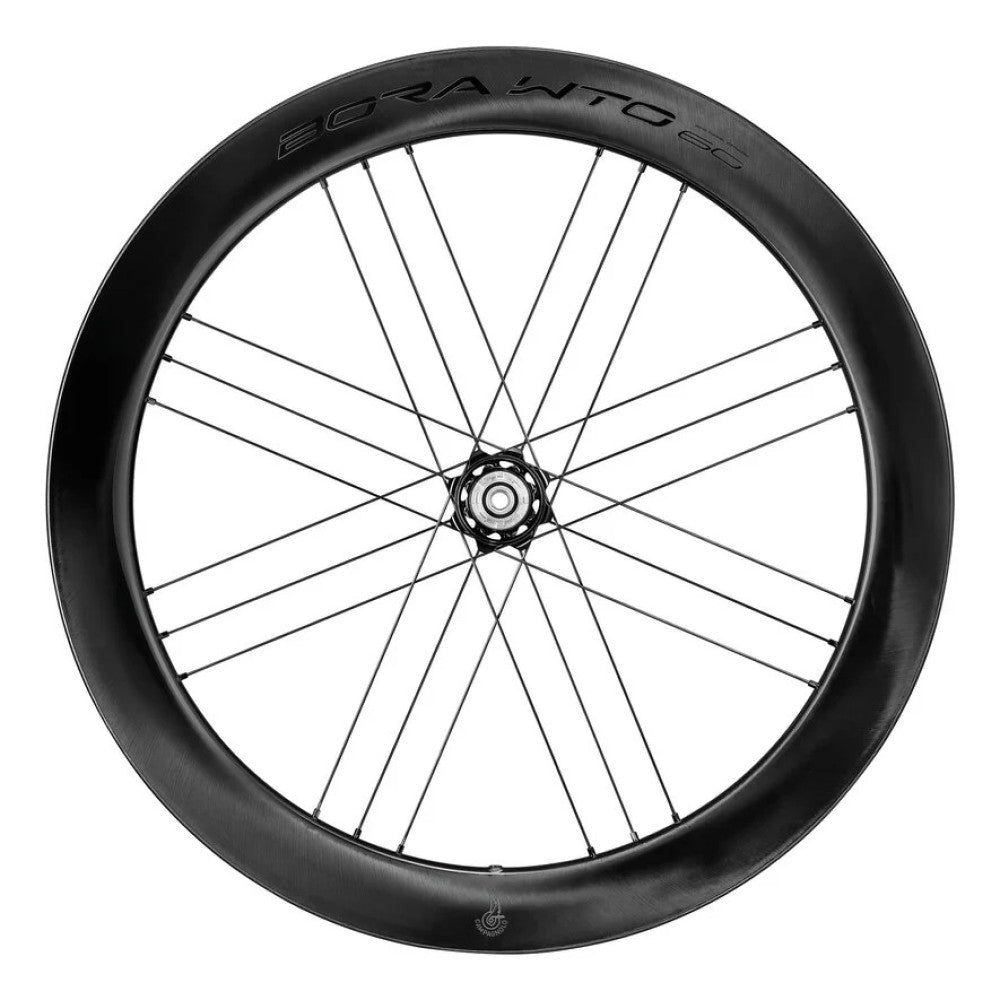

G3 spoking: Campagnolo's G3 geometry, with its groups of three parallel straight-head spokes arranged in a 2:1 ratio, provides perfect stress balancing, increased rigidity and improved power transfer.

USB bearings: Campagnolo's USB bearings, using high-quality ceramic balls, offer a very low level of friction, maximizing performance and saving energy when pedaling.

2-Way Fit rim: 2-Way Fit™ technology offers exceptional versatility by allowing the use of tubeless or traditional tires.

Informations techniques

Front axle dimension: 12x100mm
Rear axle dimension: 12x142mm
Internal width: 19mm
Height: 60mm
Disc : Center Lock
Weight: 1590 g

Rim
Rim height: 60 mm
Rim material : Carbon
Rim cross-section (height/width): 45/29.0 mm
Internal rim width: 23 mm
Recommended tire size: 700x28 to 700x35
Water Transfer graphics

Spokes
24 aeroelliptical steel spokes at the front, combined with G3 system
24 rear aeroelliptical steel spokes combined with G3 system

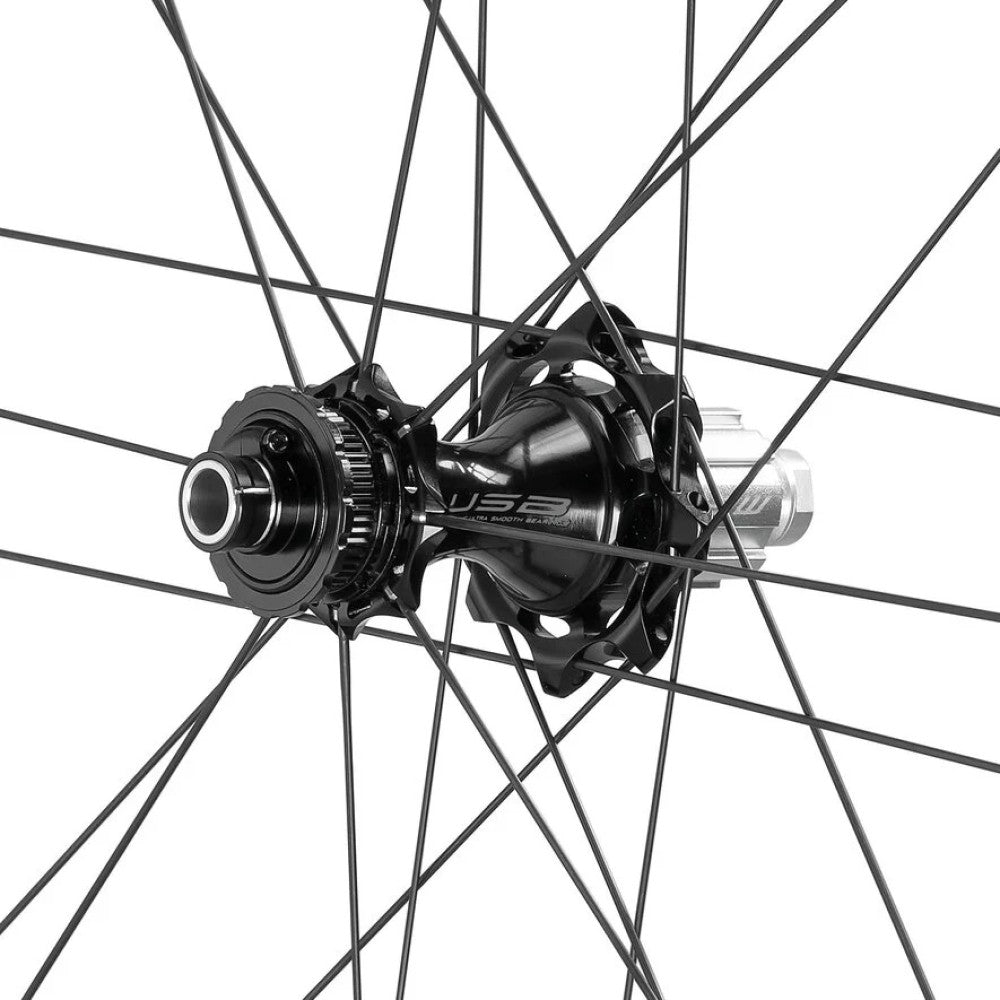

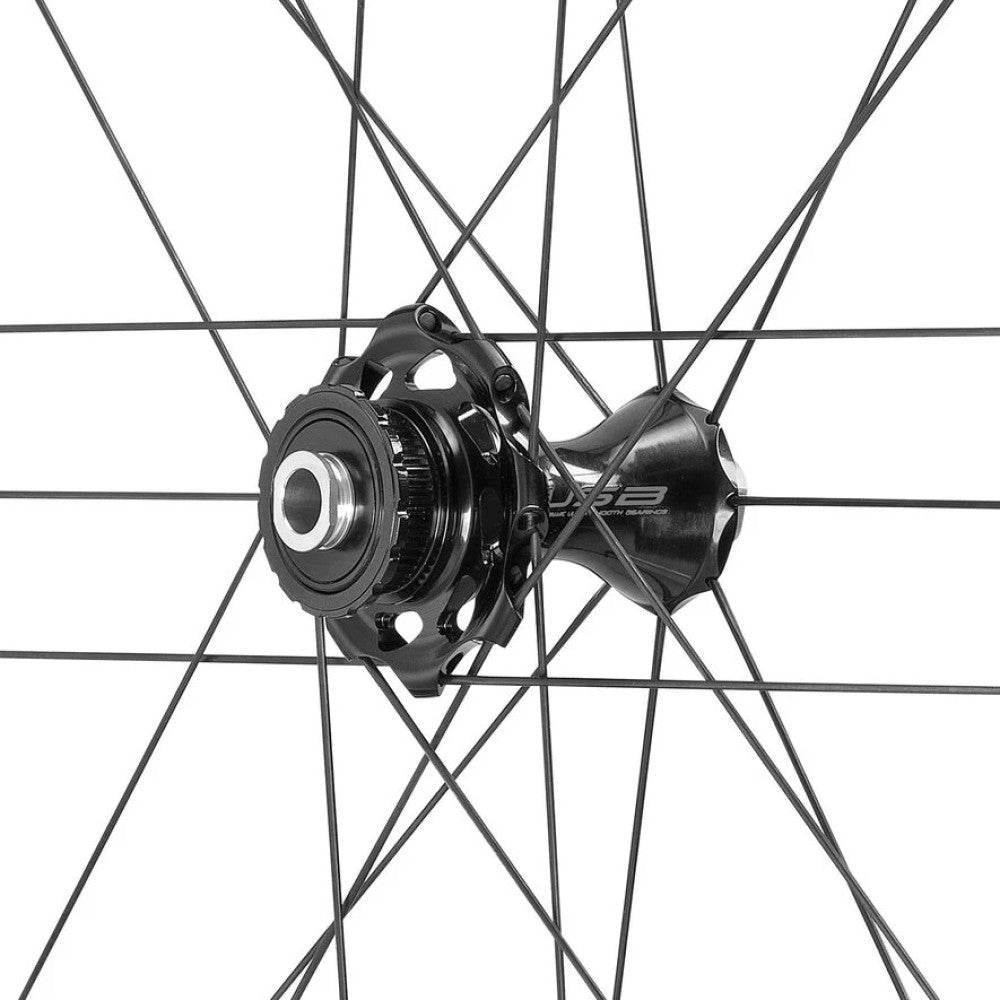

Hub
One-piece black aluminum hub
USB bowl-cone
Hub stop: 100 mm front, 142 mm rear
Axle material: aluminum
Cone and cup bearing system

Tires: Tubeless and Tubetype (2-WAY-FIT)

Mounting
The Bora™ WTO™ 60 Disc Brake wheel is assembled entirely by hand by a specialized Campagnolo® operator and 100% checked using electronic control instruments. This procedure guarantees the maximum precision and reliability of every Campagnolo® brand wheel.

Supplied with
Tubeless valve
Valve reduction barrel
2 composite levers for tire removal
Instruction manual

Informations prix

Supplier suggested retail price in May 2024
