CAMPAGNOLO

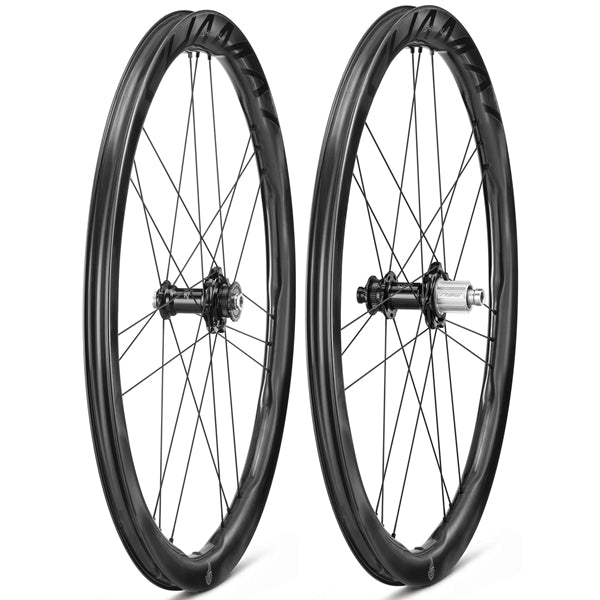

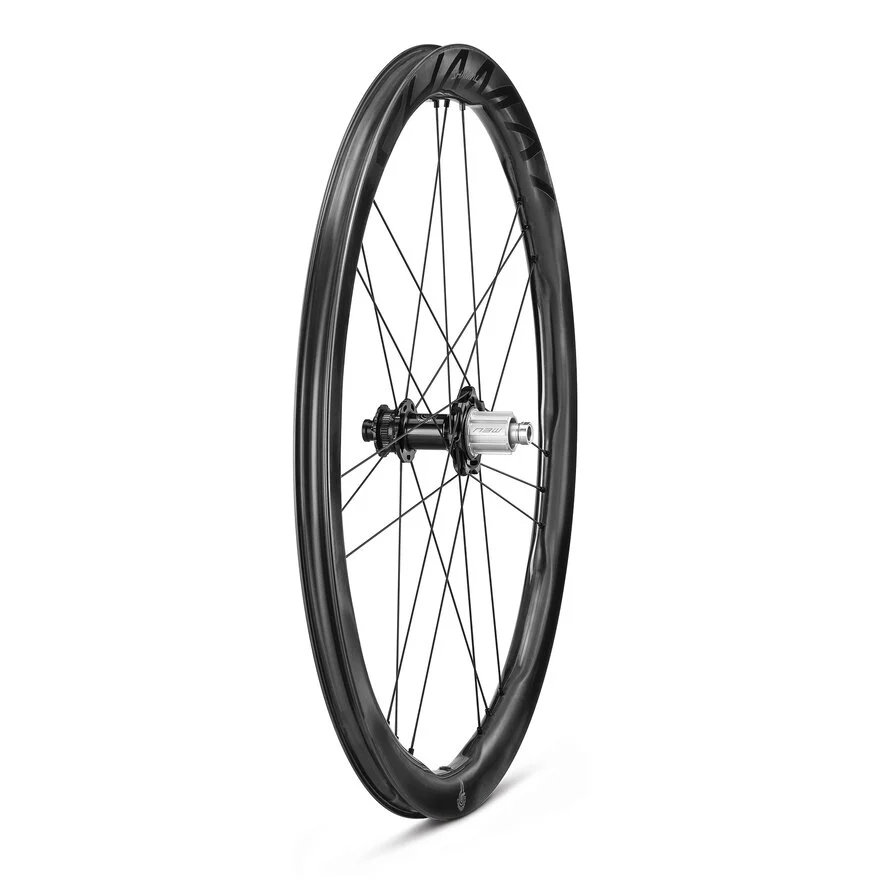

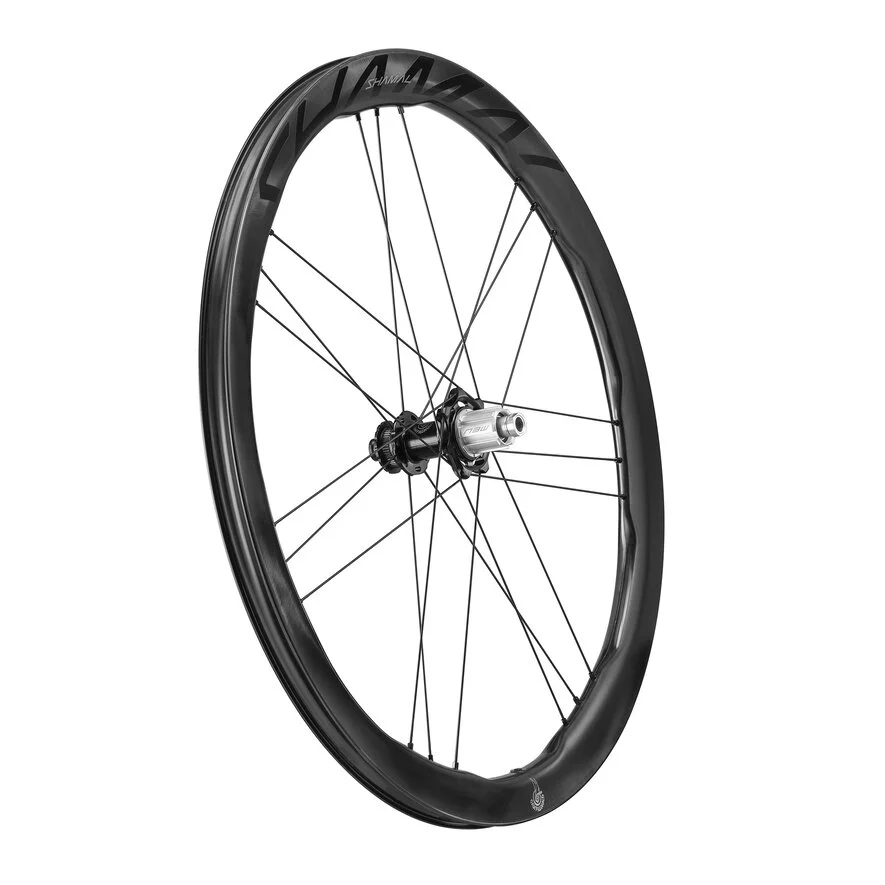

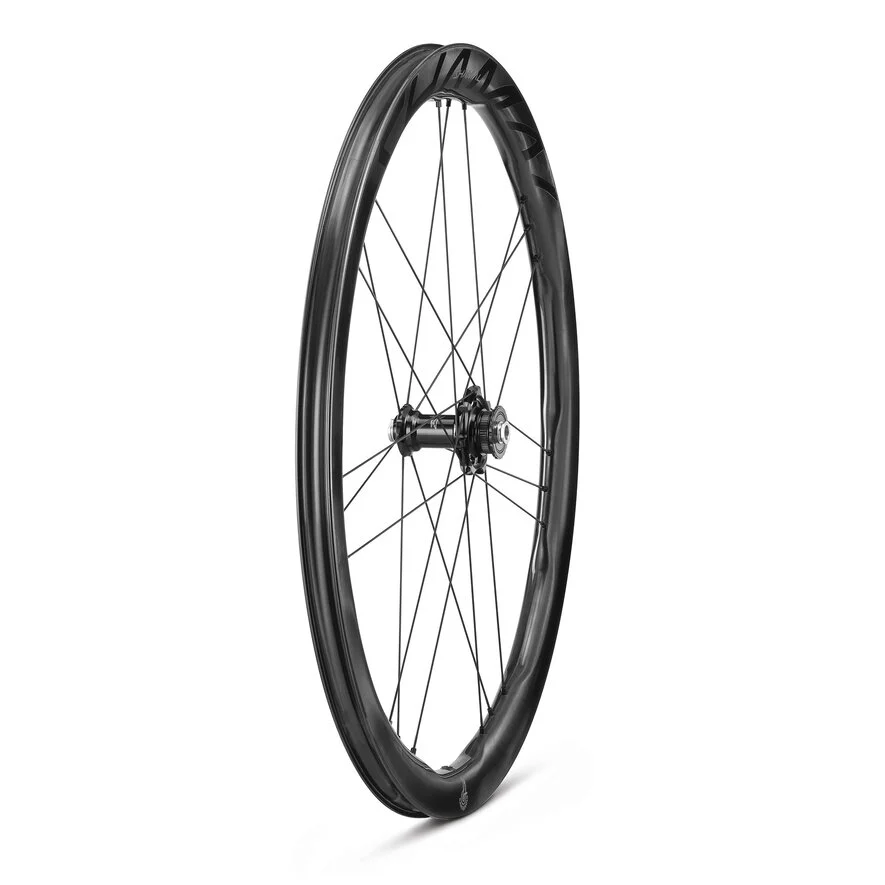

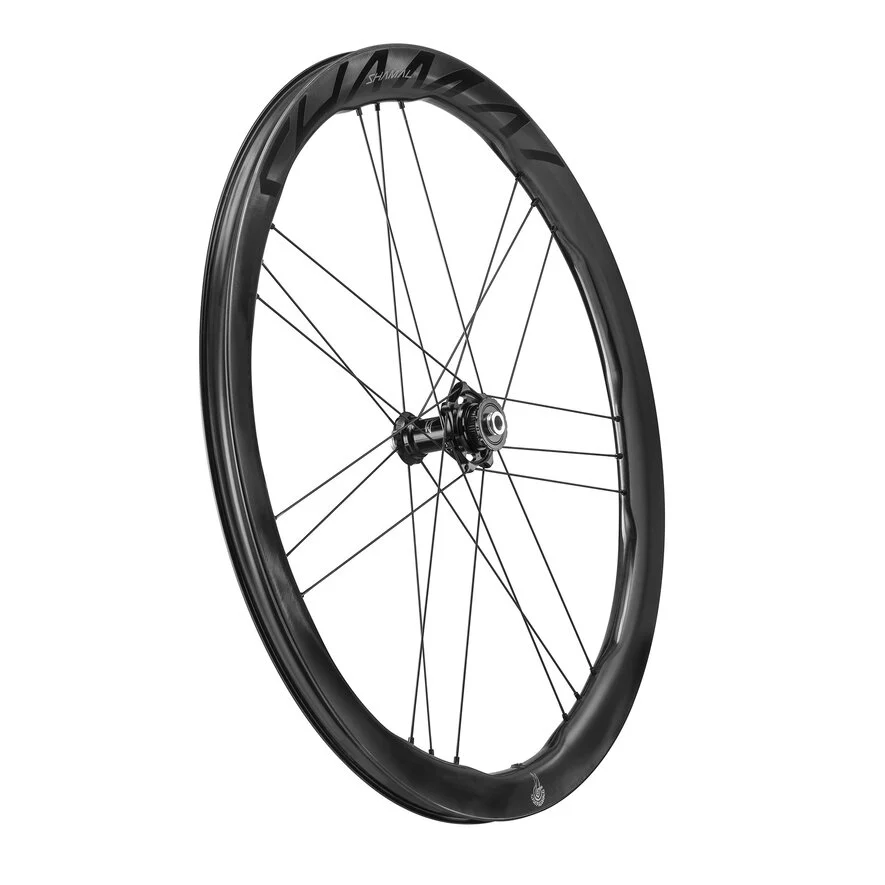

Pair of CAMPAGNOLO SHAMAL DUAL PROFILE CARBON C23 Tubeless Ready Wheels (Center Lock)

Visit Pair of CAMPAGNOLO SHAMAL DUAL PROFILE CARBON C23 wheels has embodied innovation and technological excellence since the introduction of the Shamal range range... Read more

Recommanded price: 1.890,00 €

1.890,00 €
1.890,00 €
View full details

Description

Visit Pair of CAMPAGNOLO SHAMAL DUAL PROFILE CARBON C23 wheels has embodied innovation and technological excellence since the introduction of the Shamal range range in 1992. A true revolution in its day thanks to its aerodynamic profile, this wheel continues to evolve to offer stiffness, lightness and handling, without compromising on comfort.

Equipped with a Dual Profile design design (45/40 mm), optimized in the wind tunnel with CFD analysis, it improves aerodynamics and stability in windy conditions. The unidirectional carbon fiber with C-LUX finish finish ensures optimum load distribution for a smooth ride, whatever the terrain.

The C-LUX 2-Way Fit system allows the use of tubeless or tube-type tires, while the C23 rim is ideal for tires larger than 25 mm. Patented geometry G3 geometry ensures a perfect balance of spoke tensions, maximizing stiffness and power transfer.

With a weight of just 1 480gthe Shamal Dual Profile redefines performance and comfort on Road and Gravel.

Manufacturer's manual

Campagnolo Rim-Tire-Pressure Compatibility

Ref: 14891196449148

Informations techniques

┘GENERAL
Front axle dimension: 12x100mm
Rear axle dimension: 12x142mm
Internal width: 23mm
Height: 45/40mm
Disc: Center Lock
Freewheel body: Shimano HG or SRAM XDR or Campagnolo N3W

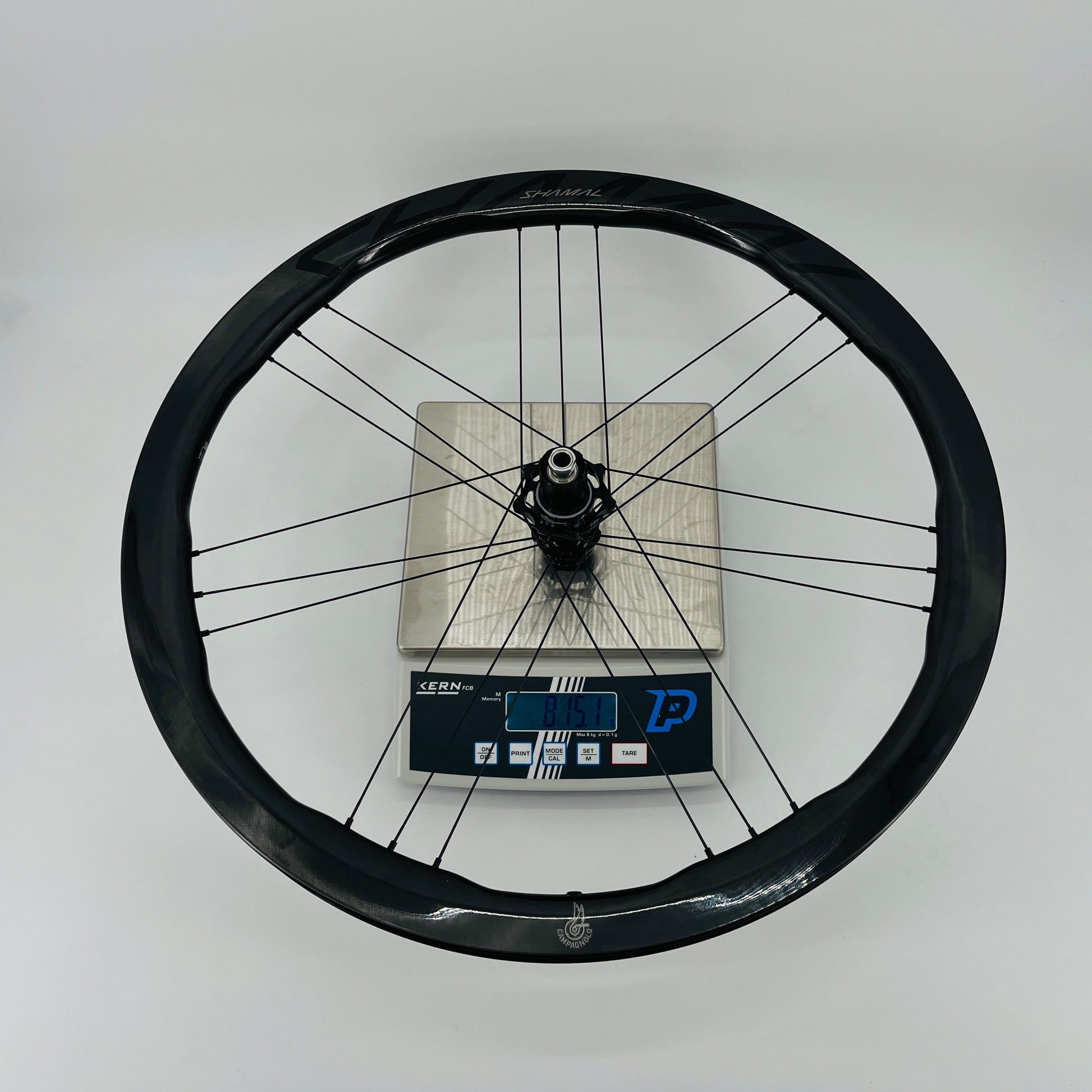

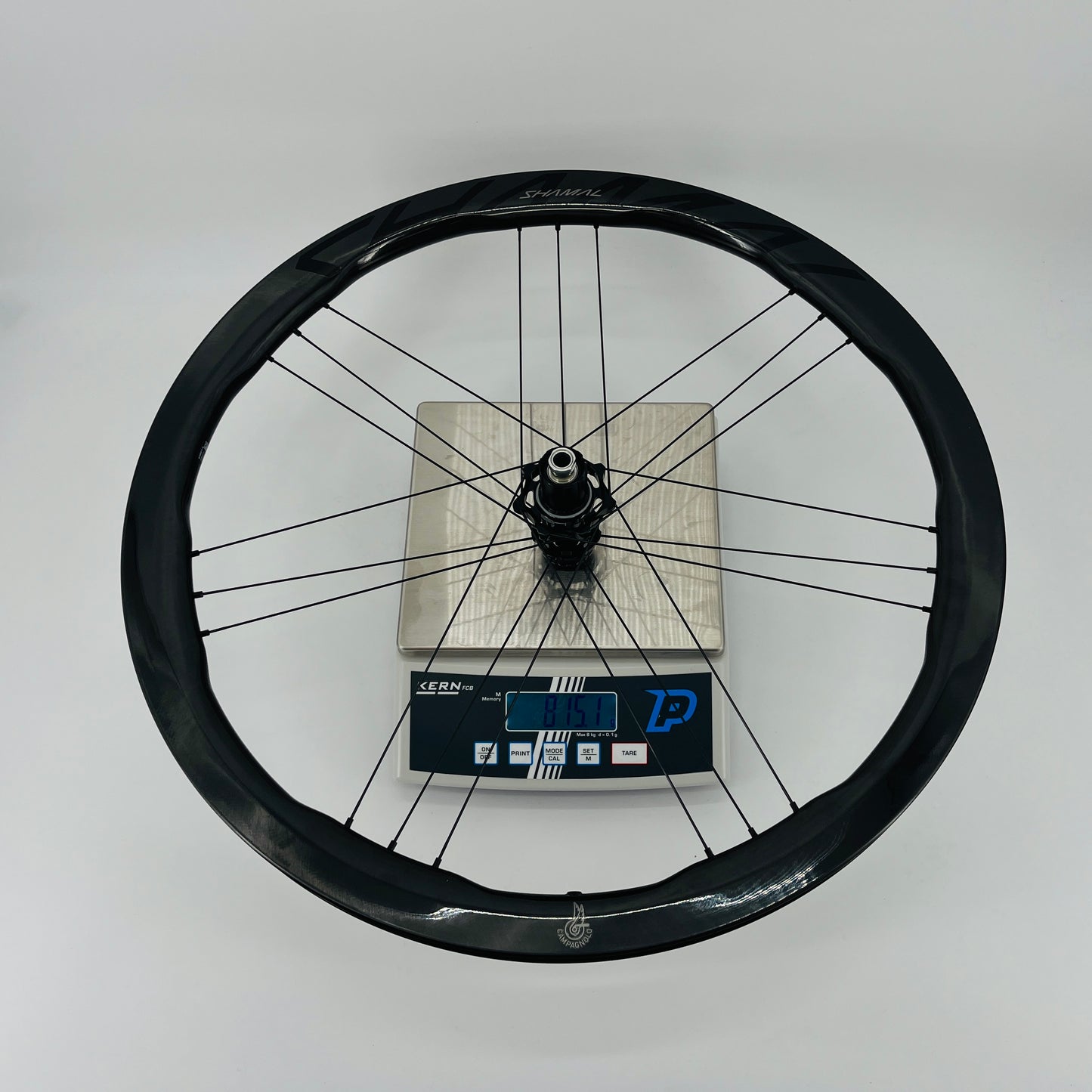

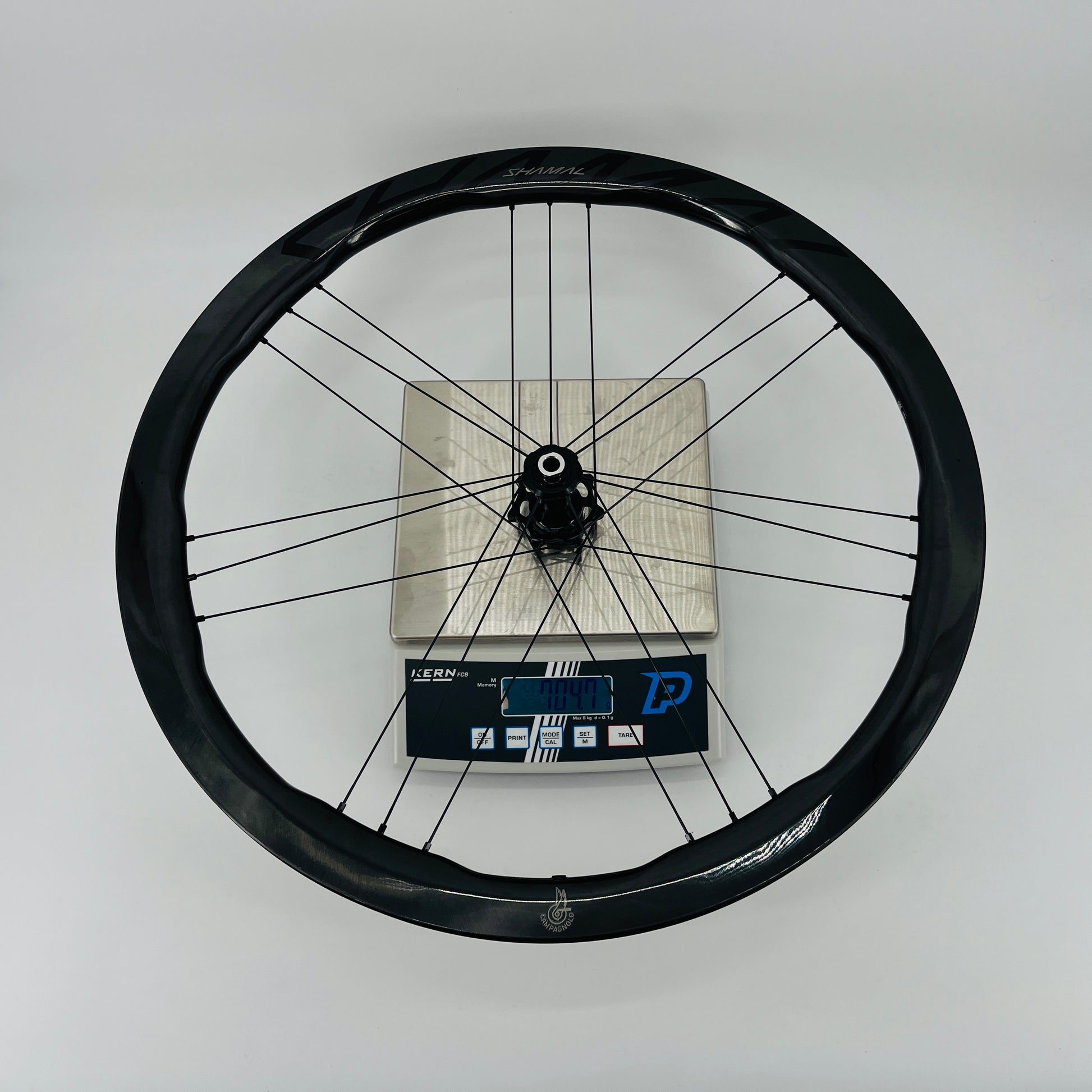

Weight: 1480g
Part number :
- WC4490AP1A110 - Shimano HG
- WC4490AP5A110 - SRAM XDR
- WC4490AP8A110 - Campagnolo N3W

┘JANTES
Rim height: 45/40 mm
Rim material : Carbon
Rim section (height/width) : Modular
Internal rim width: 23 mm / Hookless
Details: C-Lux Finish mirror Luxury
Tires: Tubeless and Tubetype (2-WAY-FIT)

┘RAYONS
Spokes:

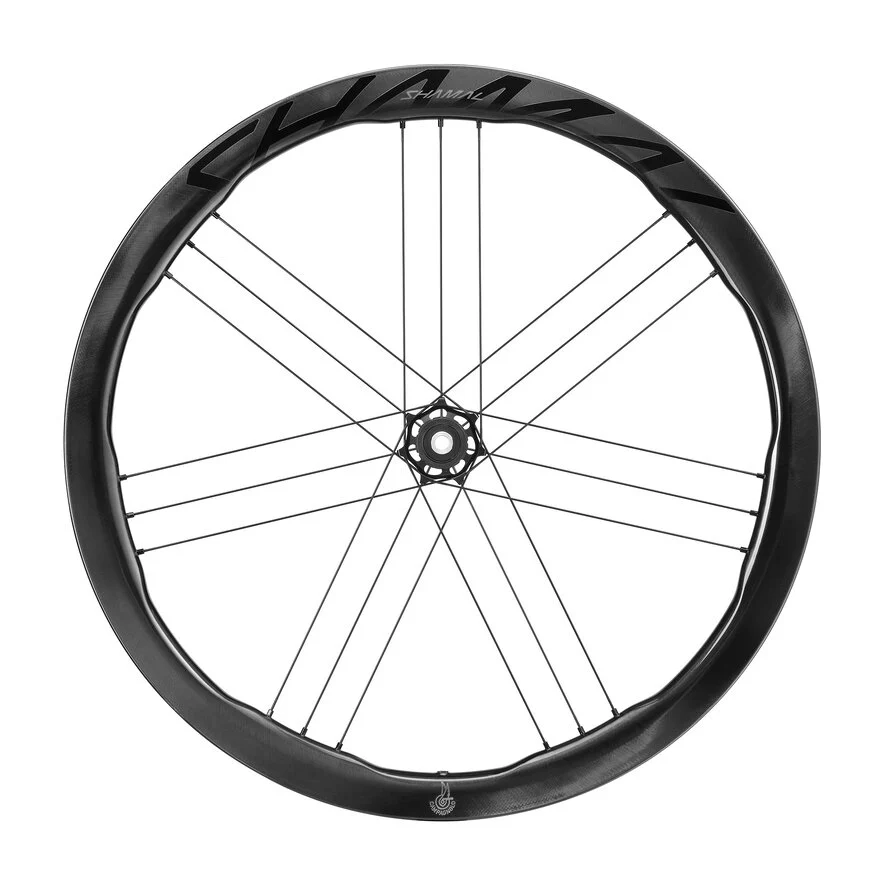

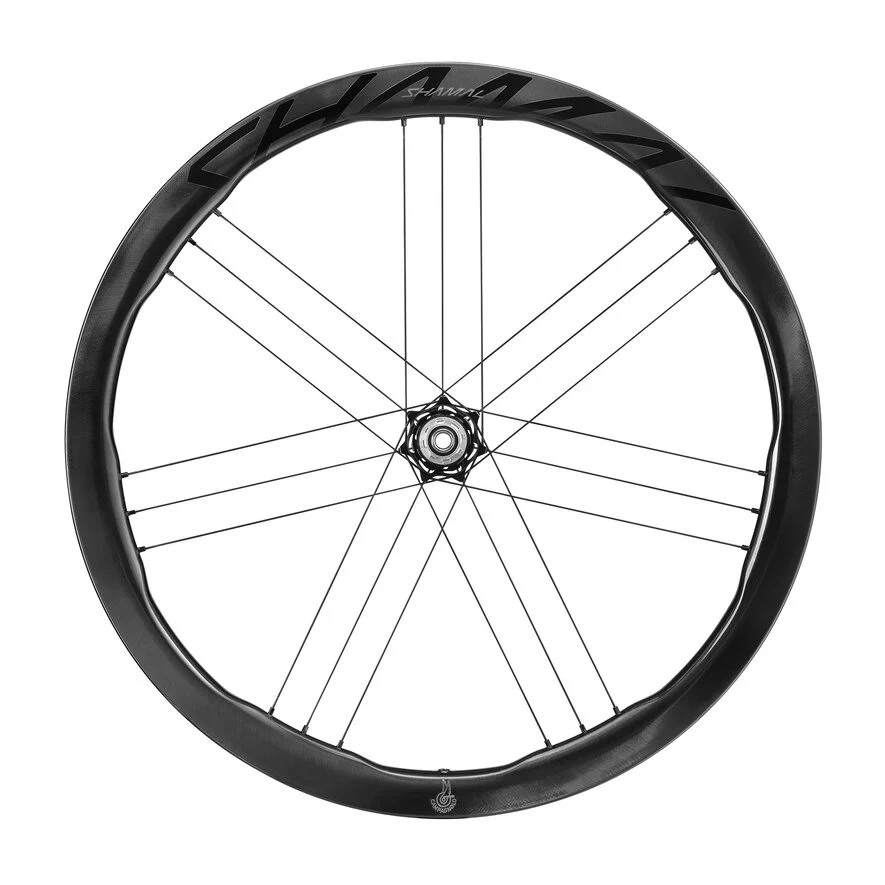

- 21 steel spokes with elliptical aero section at the front, grouped with the G3 system.
- 21 aero elliptical steel spokes at rear, combined with G3 system
Nipples: Aero Mo-Mag aluminum, self-locking, internal

┘MOYEU

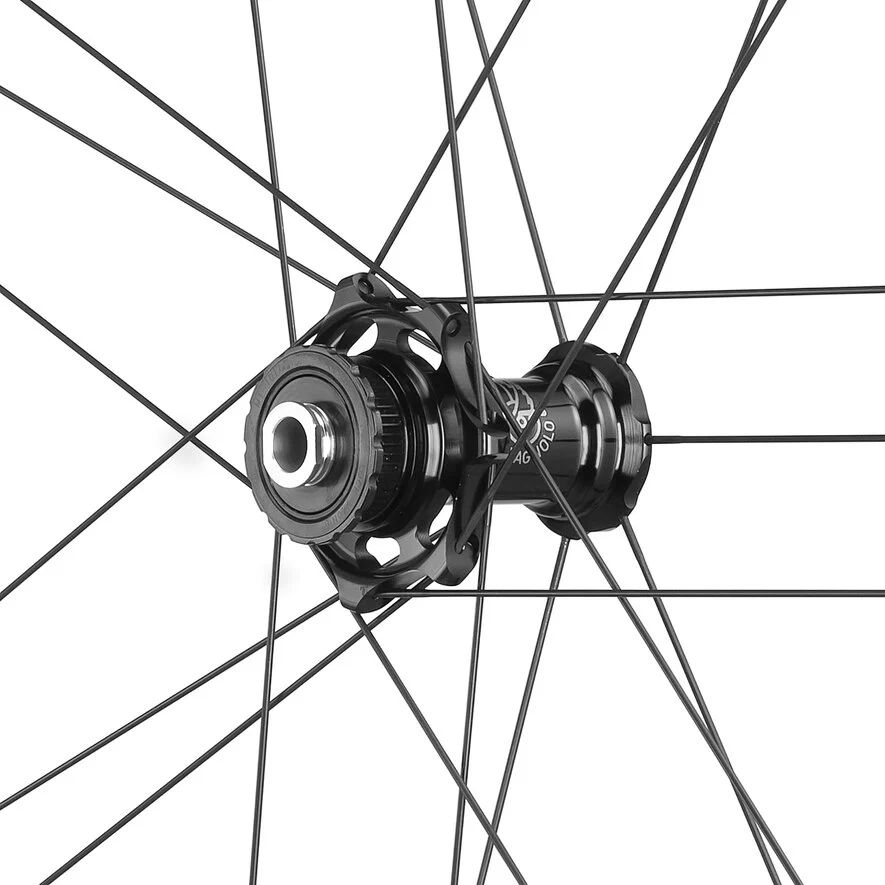

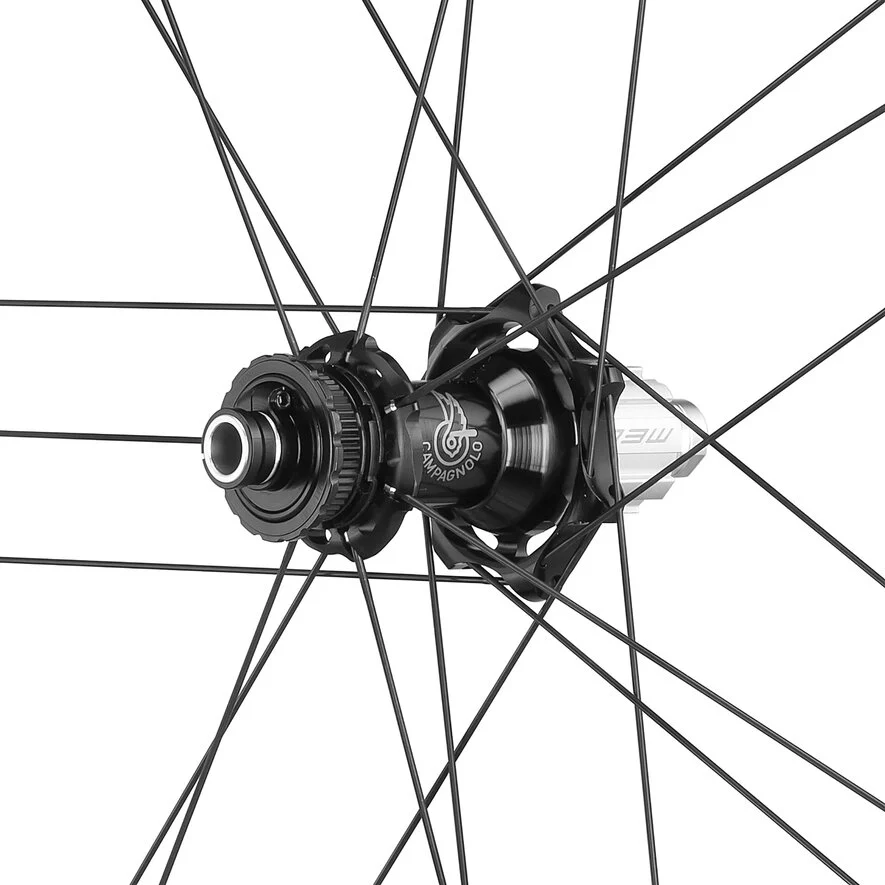

Hub type: black aluminum monoblock hub
Hub width:100-142 mm
Axle type: 12 mm aluminum through axle
Bearings: cone/cuvette - 15/28 mm front and 17/30 mm rear

┘ ASSEMBLY & TECHNOLOGIES
► The SHAMAL - Dual Profile wheel is assembled entirely by hand by a specialized Campagnolo® operator and 100% checked using electronic control instruments. This procedure guarantees the maximum precision and reliability of every Campagnolo® brand wheel;
► Ultra-light design thanks to carbon and paint-free C-LUX finish;
► Redesigned monoblock hub and G3 geometry optimize stress balance, enhancing stiffness and maximizing energy transfer efficiency;;
► Optimum handling guaranteed by Aero Mo-Mag technology ;
► The C23 rim is ideal for tires over 28 mm, offering optimum versatility for road and all-rounder use; ► The C23 rim is ideal for tires over 28 mm, offering optimum versatility for road and all-rounder use;

┘INCLUSIONS
50 mm tubeless tire valve
Valve reduction barrel
2 composite levers for tire removal User's manual
N3W™ adapter kit for 11-12v cassette compatibility (Campagnolo N3W™ body version)
Accessory bag
Gasket kit for gravel
