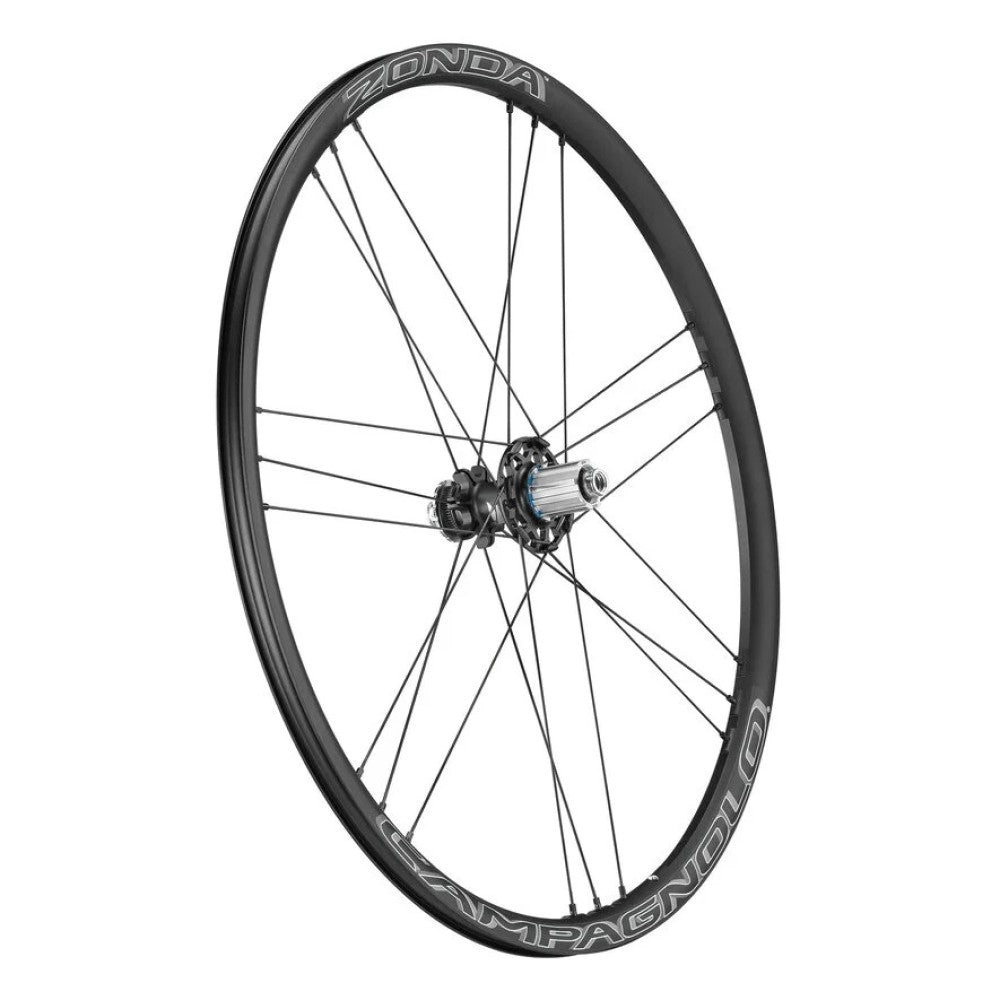

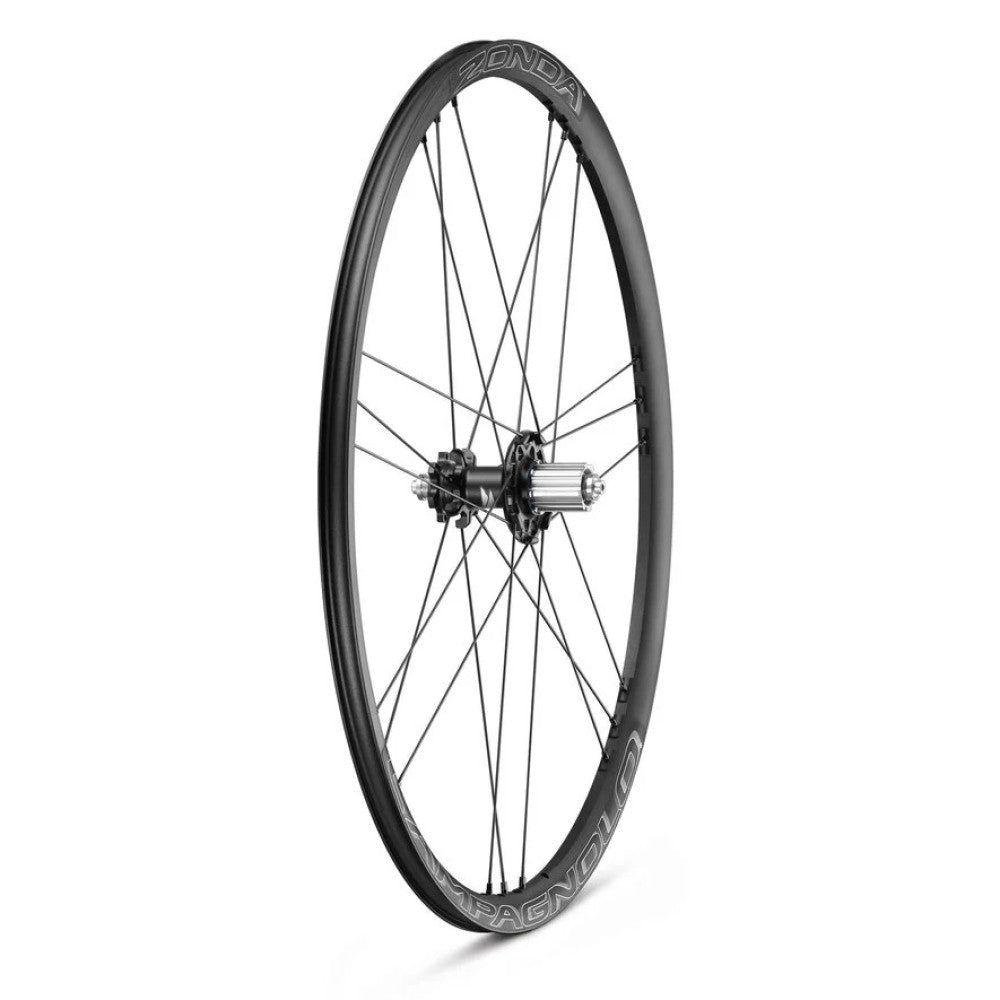

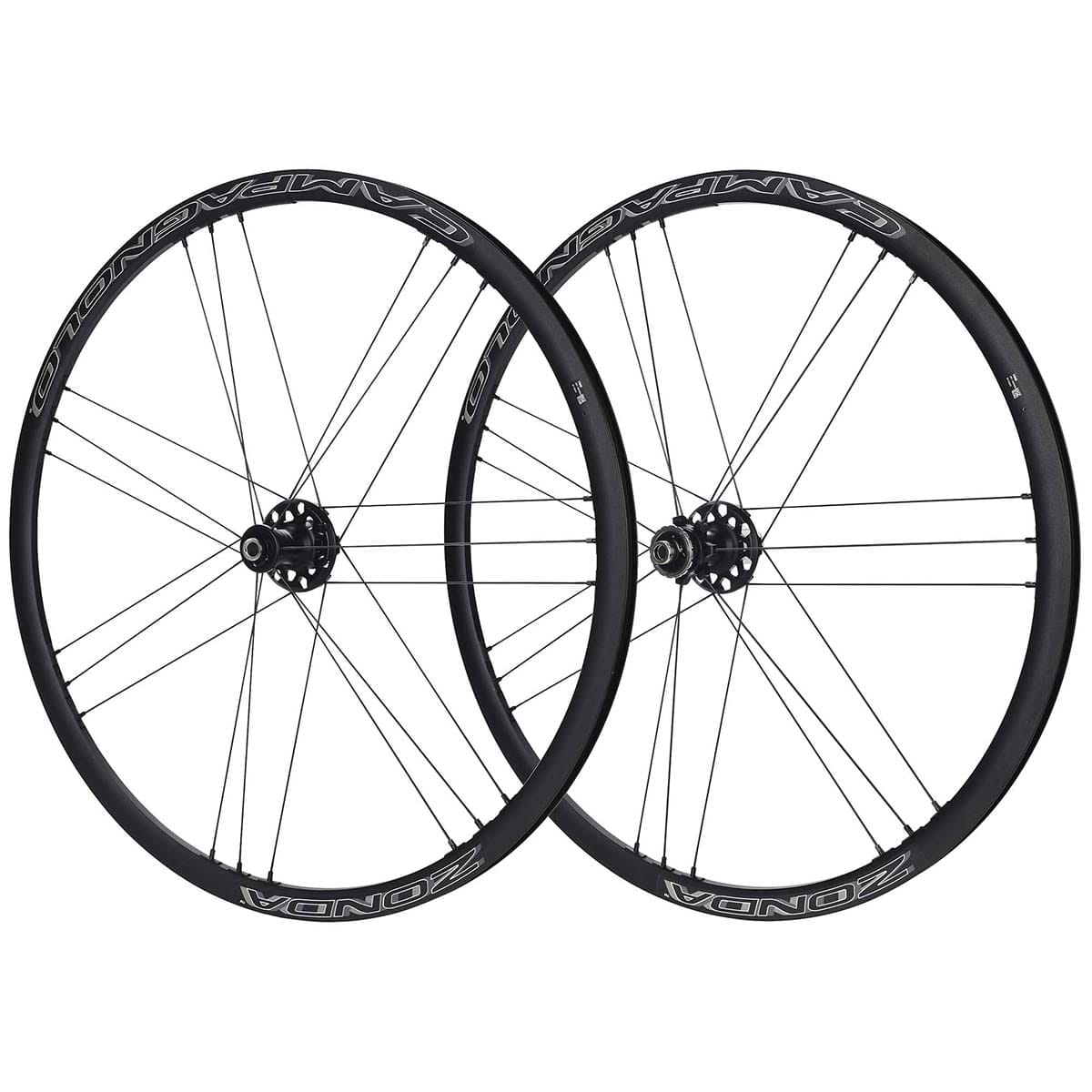

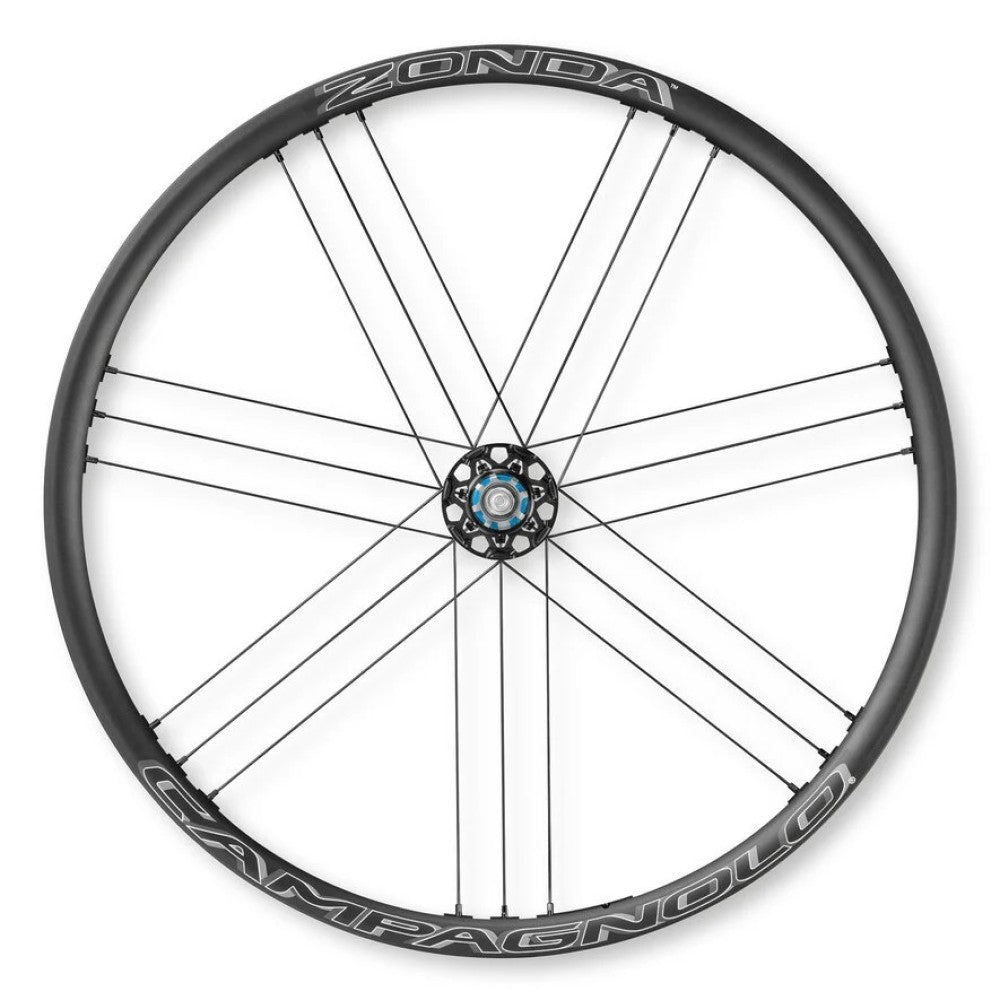

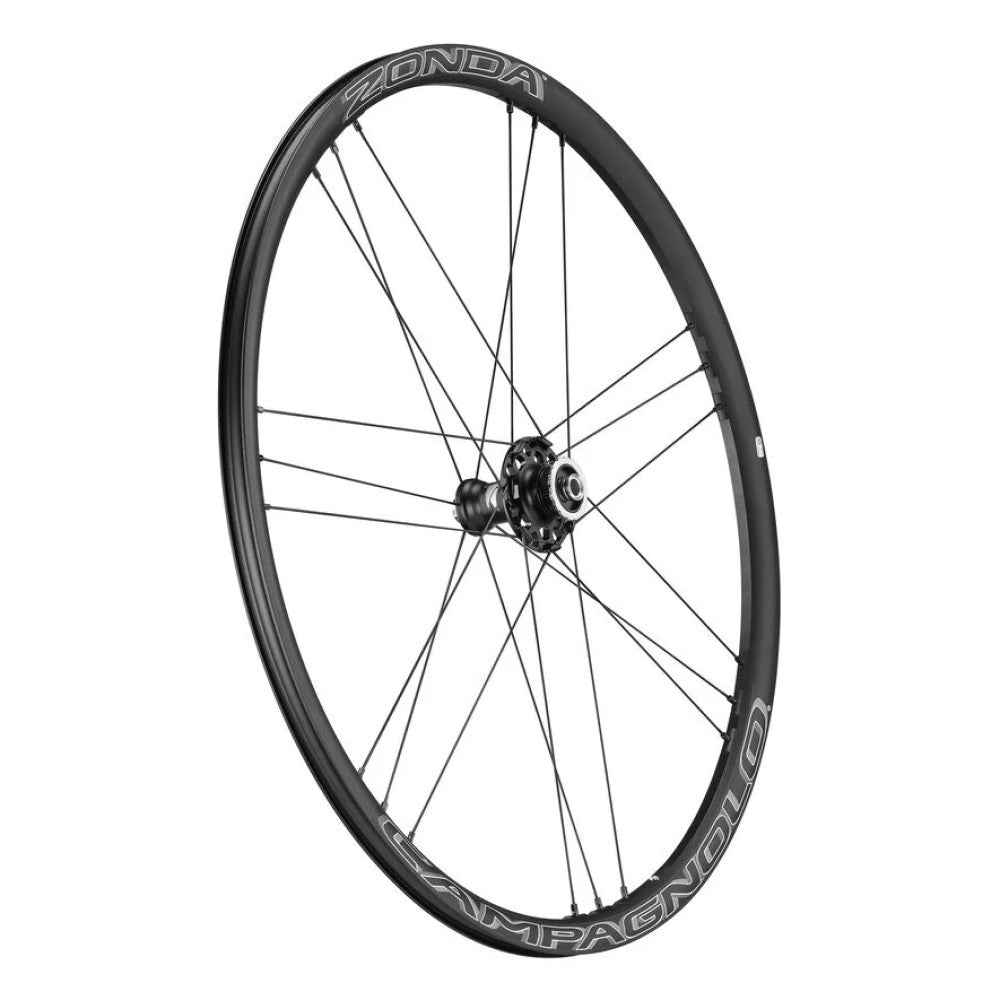

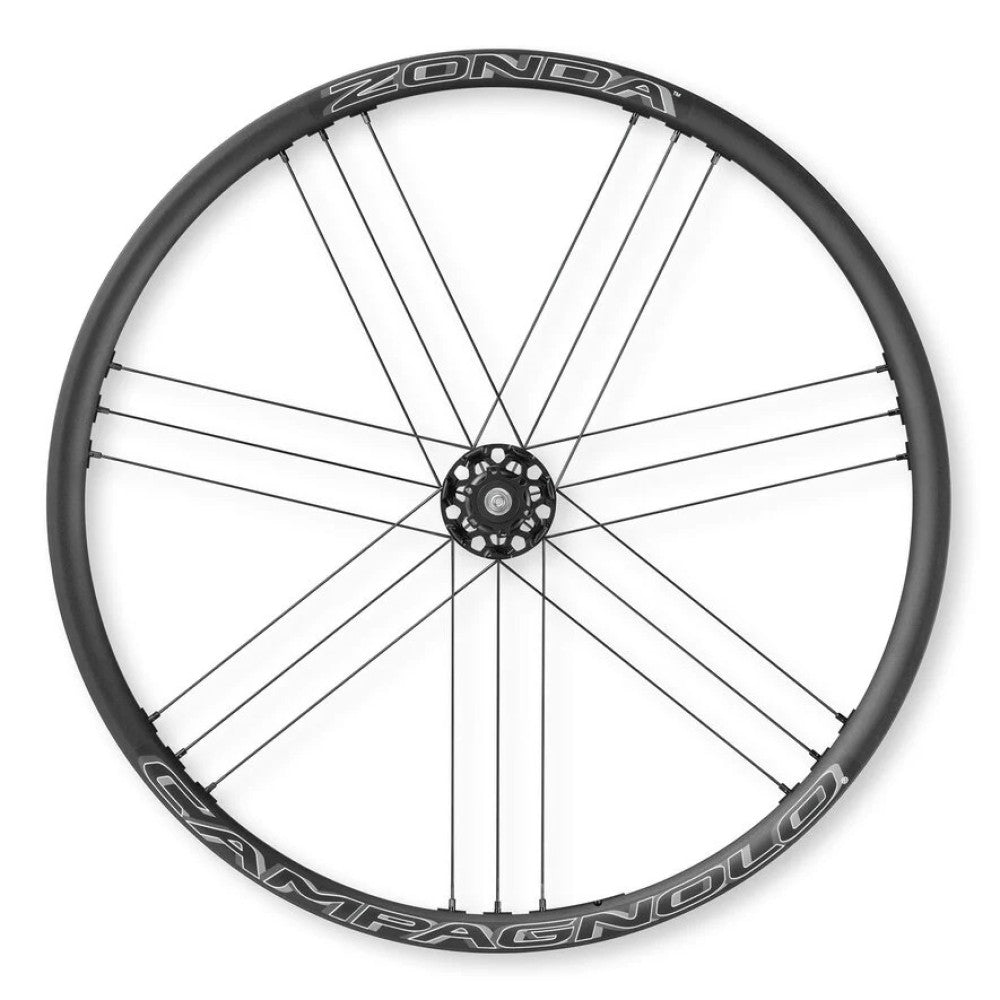

CAMPAGNOLO ZONDA DISC Tubeless Ready Wheelset (Center Lock)

The CAMPAGNOLO ZONDA DISC Wheelset is an essential reference among aluminium wheels for disc brakes. Designed specifically for bikes equipped with disc brakes, its... Read more
529,90 €
529,90 €
View full details

Description

The CAMPAGNOLO ZONDA DISC Wheelset is an essential reference among aluminium wheels for disc brakes.

Designed specifically for bikes equipped with disc brakes, its redesigned structure offers optimal responsiveness thanks to asymmetric rims and Mega G3™ hubs. This design improves the stability of the front wheel under braking torque and maximises power transfer at the rear.

Its new asymmetric profile (26-28 mm) ensures better balance of spoke tension between the drivetrain and braking sides. The milled machining reduces the perimeter weight, making the wheel more responsive. The RDB™ - Rim Dynamic Balance system guarantees perfect weight balancing, while MoMag™ technology improves stiffness and lightness.

The 21 stainless steel spokes and the Mega-G3™ geometry enhance stiffness and responsiveness, particularly under heavy braking.

The Campagnolo Zonda Disc guarantees lasting performance and great versatility.

Manufacturer's Manual


Ref: 9223665582429

Informations techniques

┘GENERAL
Rear Axle: 12/142 mm
Front Axle: 12/100 mm
Disc: Center Lock
Rim Height: 24/27mm front - 27/30 mm rear
Freehub Body: Shimano HG and Campagnolo
Weight: 1676g
• WH17-ZOCDFRX22A - Shimano HG
• WH18-ZOCDFR222A - Campagnolo N3W

┘RIMS
Profile Height: 24/27mm front - 27/30 mm rear
Rim Material: Aluminium
Rim Width: 22 mm
Details: Bright Label Graphics
Tyres and tubulars: Inner tube and Tubeless ready

┘SPOKES
16 radial aero stainless steel variable-section spokes at the front and 21 variable-section aero stainless steel spokes with doubling on the cassette side at the rear
Anti-rotation technology on radial spokes
Nipples: Aero Mo-Mag in aluminium, self-locking, internal

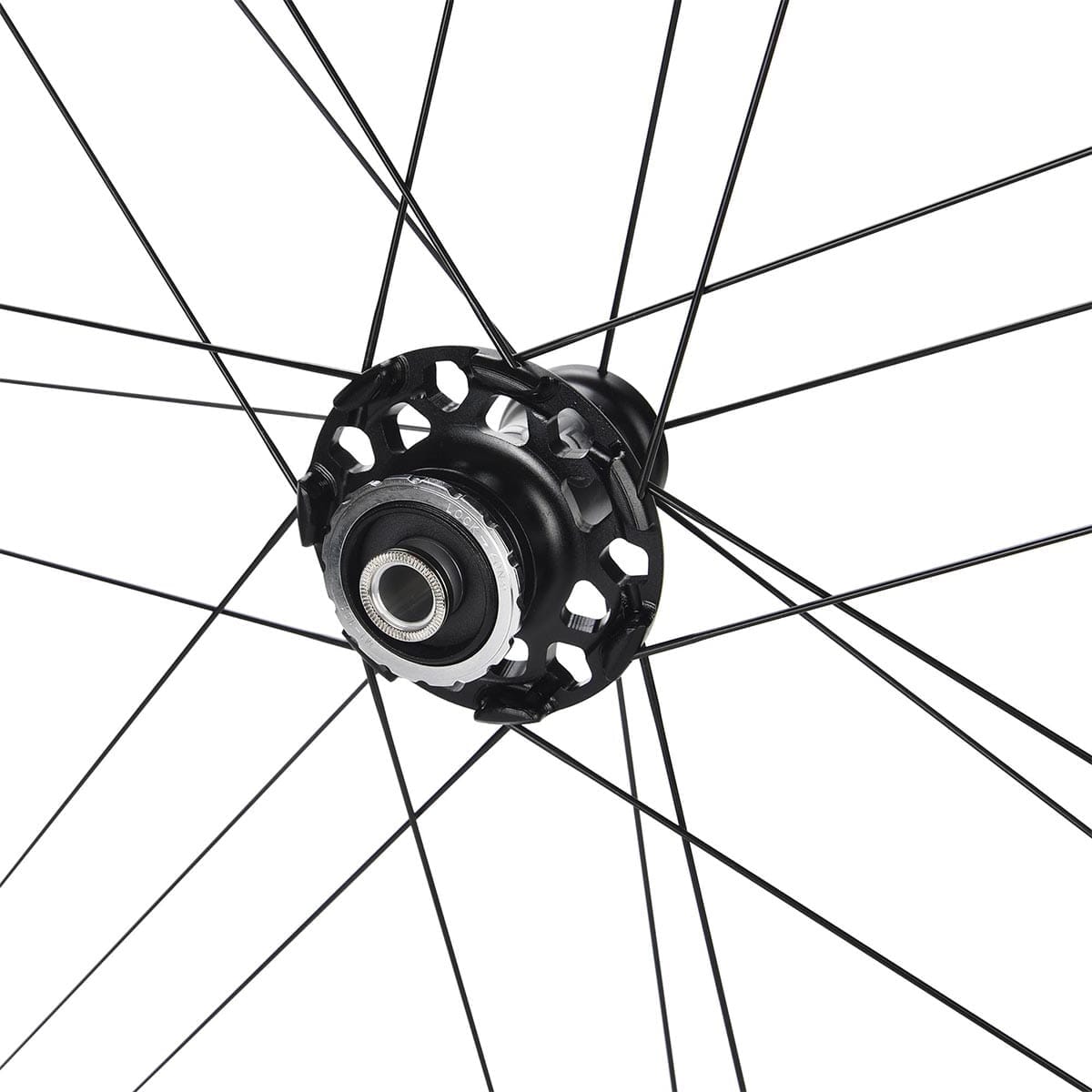

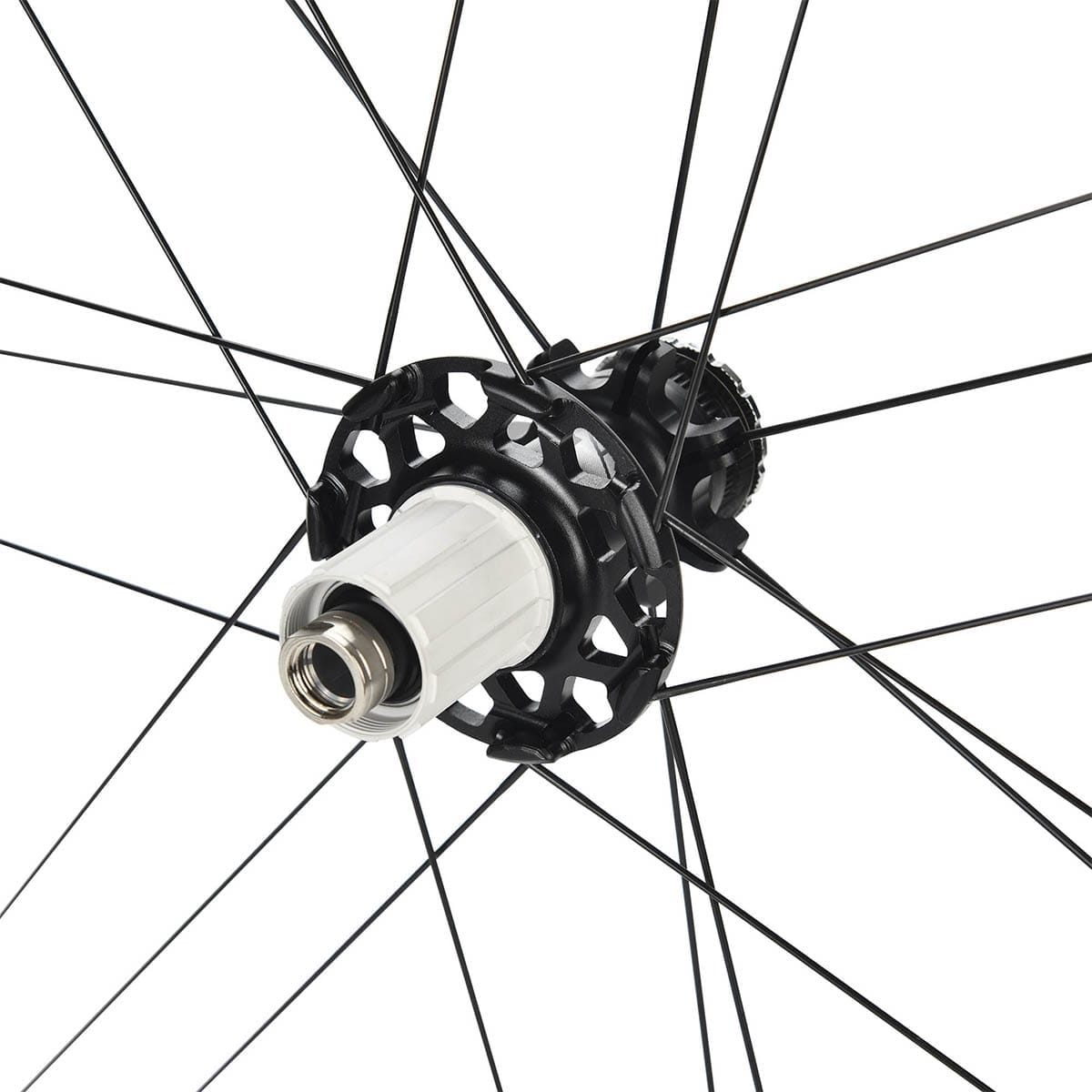

┘HUB
One-piece black aluminium hub
Steel bearings
Oversized flange
Cone/cup bearing system
AFS disc interface, similar to and compatible with Centerlock

┘ASSEMBLY & TECHNOLOGIES
► The Zonda Disc Brake Wheel is fully hand-assembled by a specialised Campagnolo® worker and 100% checked using an electronic control tool. This process guarantees maximum performance and ultimate reliability of all Campagnolo® wheels;
► Asymmetric technology optimises spoke tension balancing, improving symmetry, efficiency and responsiveness between transmission and braking;
► RDB™ technology balances the valve weight with an opposing counterweight, ensuring smooth and stable rotation for better performance;
► Thanks to MoMag™ technology, the hole-free outer profile improves rigidity and reduces weight, thus optimising the reliability and efficiency of the wheel;
► MEGA-G3™ technology enhances rigidity and responsiveness, stabilising front braking and maximising rear transmission, with a racing design;

┘INCLUDED
User guide
;

Informations prix

*Supplier recommended retail price in February 2024
