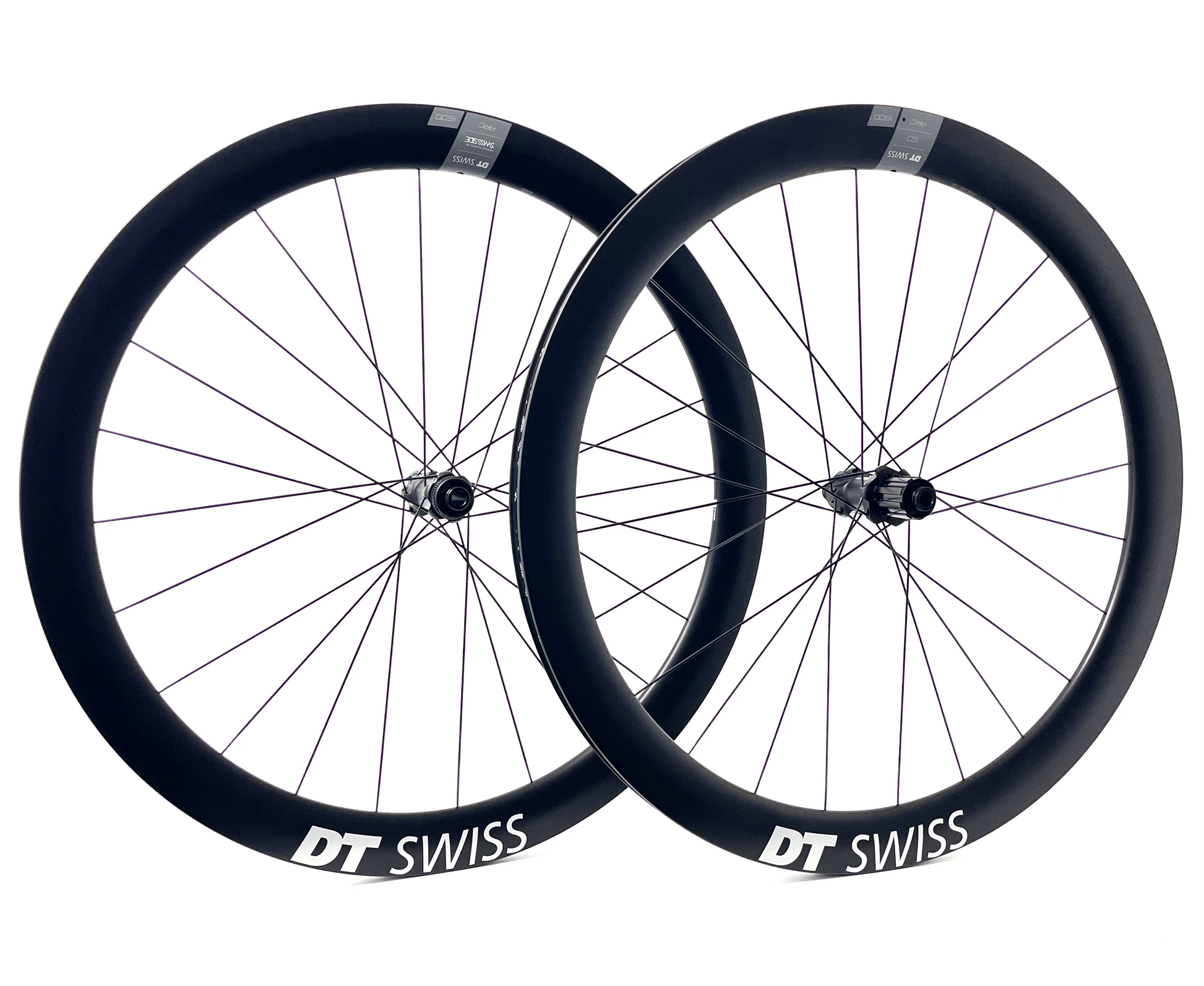

DT SWISS ARC 1600 SPLINE 50mm Tubeless Ready Wheelset (Center Lock)

The DT SWISS ARC 1600 SPLINE 50 DISC wheelset is designed for optimal aerodynamics through collaboration with SWISS SIDE, specialists in the field. Its... Read more
1.049,90 €
1.499,80 € 1.049,90 €
-30%
View full details

Description

The DT SWISS ARC 1600 SPLINE 50 DISC wheelset is designed for optimal aerodynamics through collaboration with SWISS SIDE, specialists in the field.

Its AERO+ rim profile reduces drag and steering torque for perfect stability and control, even in crosswinds. This design maximises the sail effect for more efficient propulsion.

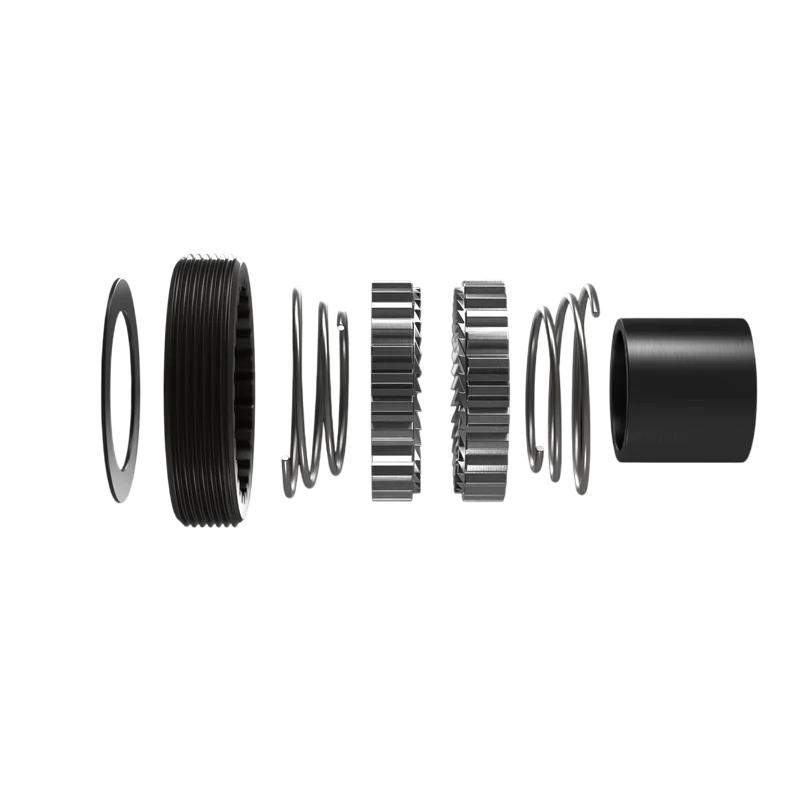

Equipped with the 350 Ratchet System SL 36-tooth hub, the wheelset guarantees fast and efficient engagement, ensuring optimal power transfer. The reinforced spokes provide perfect stiffness while maintaining excellent smoothness, even on technical and hilly roads. You enjoy a supple and dynamic ride whatever the conditions.

Offering a perfect balance between performance and handling, these wheels are ideal for cyclists seeking speed and control in all conditions.

Manufacturer Manual + Rim/Tyre Compatibility Chart & Pressures

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 15105511326076

Informations techniques

┘GENERAL
Category: Road
Max Load: 110 kg
ASTM Classification: 1
E-Bikes Recommended: No

┘RIM
Material: Carbon
Tyre Interface: Hooked/Crochet tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 50mm
Internal Width: 20mm
External Width: 27mm

┘HUBS
Axle System: 12mm Thru axle
Front Spacing: 100mm
Rear Spacing: 142mm
Disc Mount: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet System 36 SL
Hub Type: 350

┘SPOKES AND NIPPLES
Left Spokes: DT aero comp® t-head
Right Spokes: DT aero comp® t-head
Lacing Type: Two-cross (1:1)
Nipples: DT ProLock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight-pull spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► ARTISANAL CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
2x Rim tape: Tubeless strip 23mm
2x Valves: Black alu TL valve 49-65 mm / Valve protection sticker
;
