DT SWISS

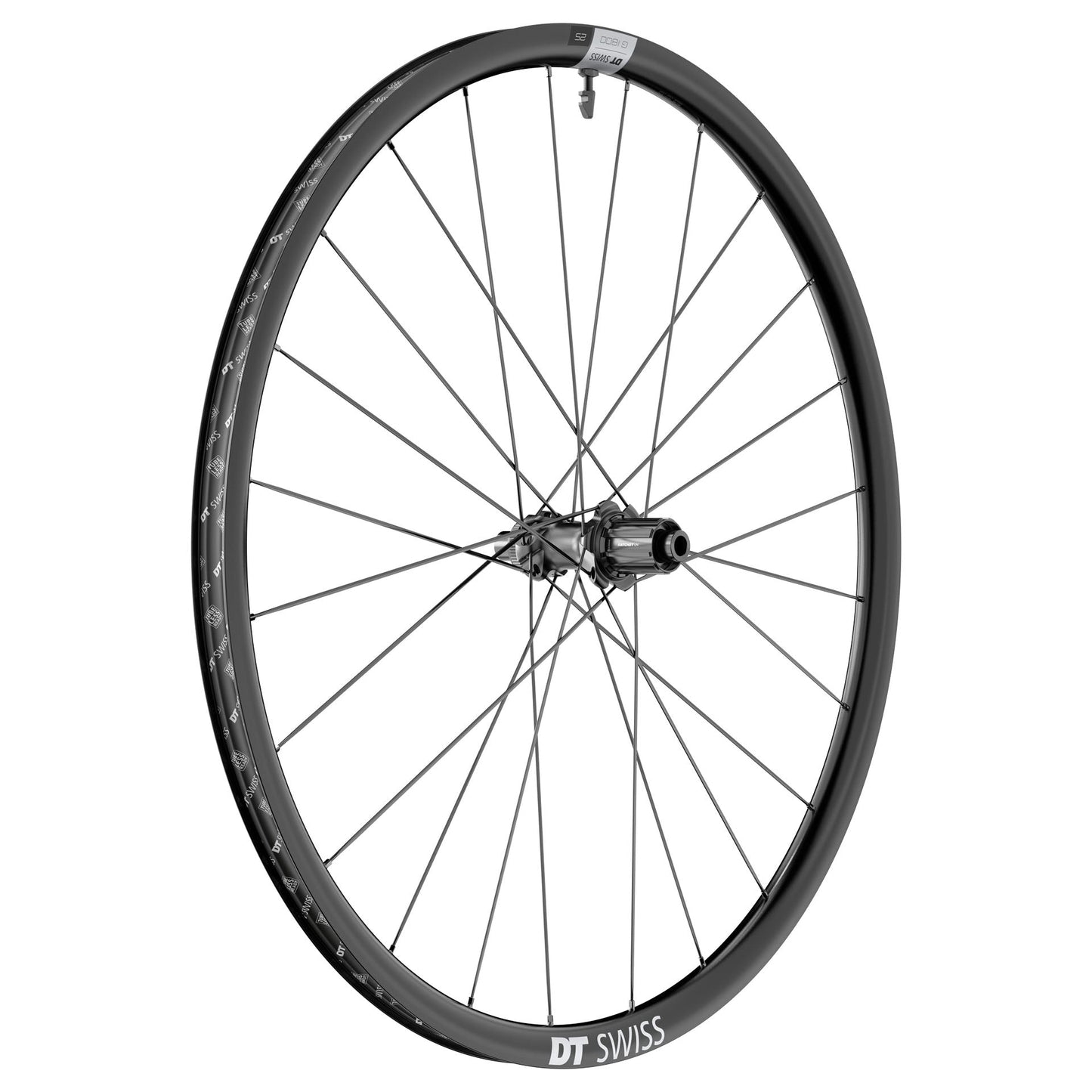

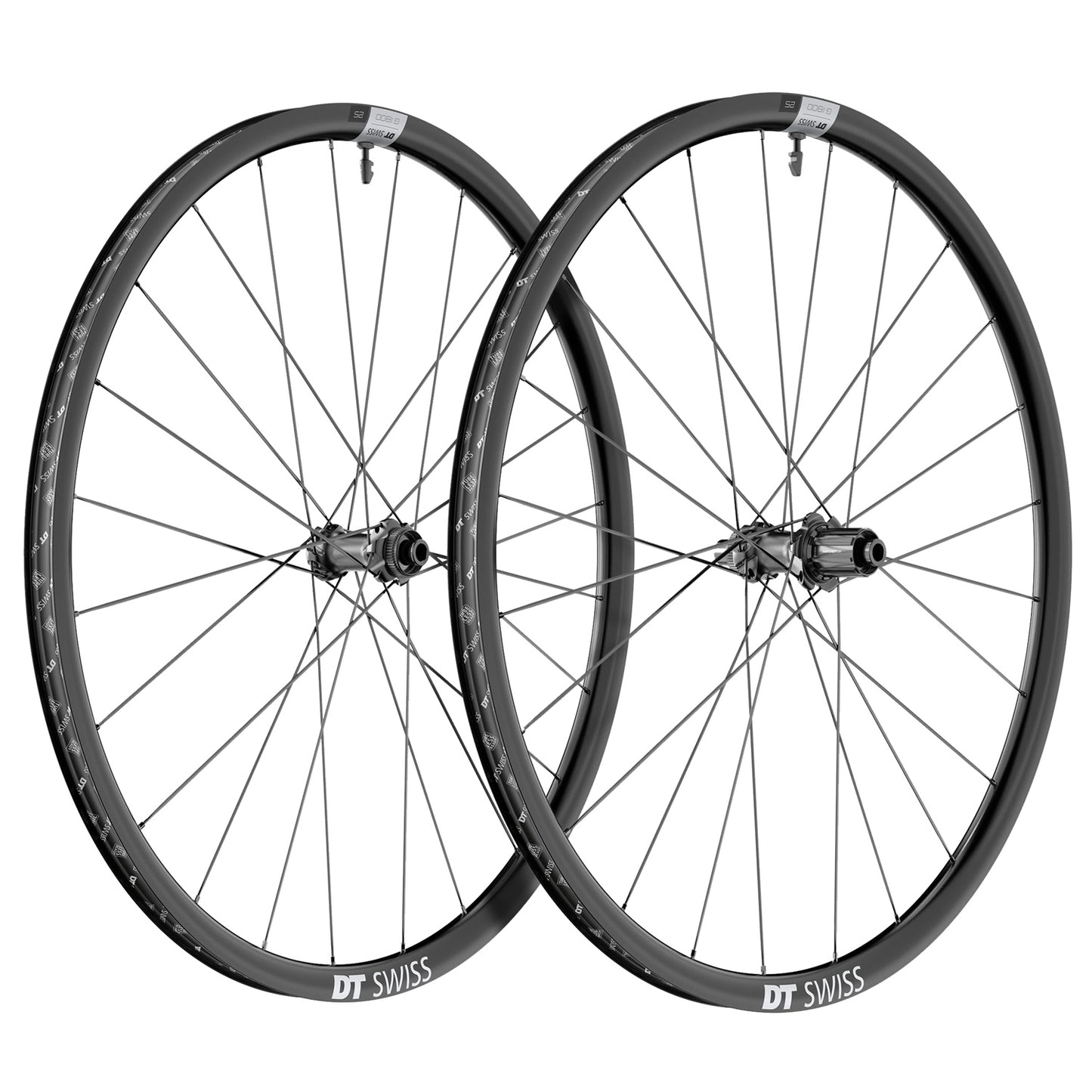

Pair of DT SWISS G 1800 SPLINE 25 Tubeless Ready (Center Lock) Dynamo Wheels

TheDT SWISS G 1800 SPLINE 25 DISC WHEELS are ideal for exploring new horizons off-road. Designed with care, they combine robustness and reliability to... Read more
469,90 €
489,80 € 469,90 €
View full details

Description

TheDT SWISS G 1800 SPLINE 25 DISC WHEELS are ideal for exploring new horizons off-road. Designed with care, they combine robustness and reliability to accompany your Gravel adventures. This version comes with a dynamo hub for perfect lighting integration.

Its wide aluminum rim ensures comfort and versatility, offering excellent compatibility with large-volume tires. The 370 hub, combined with Ratchet System freewheel body technology, guarantees precise engagement and efficient power transmission, even on the most demanding terrain. Reinforced spokes ensure optimum rigidity and increased shock resistance.

For the front hub, DT SWISS collaborated with Shutter Precision, market leader in dynamo hub technology, seamlessly integrating their SP PL-7 generator into a custom hub body. At 15 km/h, providing standard 6 volt/3 watt (6V3W) power, 4.2 watts of your pedaling power is used to power the lights.

Thanks to its durable design, this wheel lets you tackle every outing without strain. Whether it's a multi-day ride or a fast off-road outing, it will accompany you with reliability and performance. Pack your panniers, leave the asphalt behind and set off confidently on new adventures.

Manufacturer's Manual + Wheel/Tyre Compatibility & Pressure Chart

SPLINE Models Manual

Tubeless Installation Manual

Ref: 15105791295868

Informations techniques

┘GENERAL Category: Gravel Weight Manufacturer : Front: 1098 g Rear: 994g Max. load. : 130 kg ASTM Classification : 2 Recommended E-Bikes : Yes (max. 32Km/h or max. 250W) Part Number: W0G1800AIDXSA27425/W0G1800NIDMSA21294 ┘JANTE Material: Aluminum Tire interface: Hooked/Crochet tubeless TC Wheel diameter: 622mm / 29" / 700c Rim height: 25mm Internal width : 24mm External width: 28mm ┘MOYUX Axle system: 12mm Thru axle Axle center distance: 100mm/142mm Disc attachment: Center Lock Freewheel body: Shimano HG Freewheel: Ratchet System LN 18 Rear hub type: 370 Front hub type: Dynamo SP PL-7, German Road Code (StVZO) compliant, 6V3W power ┘RAYONS AND NUTS Left spokes: DT aero comp® wide straightp Right spokes: DT aero comp® wide straightp Spoking type: Two-cross (1:1) Nuts: DT ProLock Squorx ProHead alu ┘MONTAGE & TECHNOLOGIES ► GRAVEL RANGE: DT Swiss's G range is specially designed for gravel, combining robustness, lightness and comfort. With rims optimized for wide tires and tubeless compatibility, it guarantees grip and performance on varied terrain; ► SPLINE: DT Swiss's SPLINE concept combines robust hubs, optimized straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance; ► ARTISANAL KNOW-HOW: Handcrafted, guaranteed to benefit from all DT Swiss know-how; ┘INCLUDED Rim base: 27mm tubeless roller Valve: 18-25mm black TL alu valve ┘ CONVERSION REFERENCES Rear wheel: ► Adapters for Shimano HG / QR: HWGXXX0006383S; ► Kit XDR / QR: HWYABM00S5716S; ► Kit XDR / 12x142: HWYABX00S7711S; ► Adapters for XDR / QR: HWGXXX00S5483S; ► Kit Microspline / 12x142 : HWYABM00S1962S; ► Adapters for Microspline / QR: HWGXXX00S5623S; ► Kit Campagnolo N3W / 12x142: HWYABM00S0692S; ► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S; ► Adapters for Shimano HG / 12x135: HWGXXX0007569S ;
