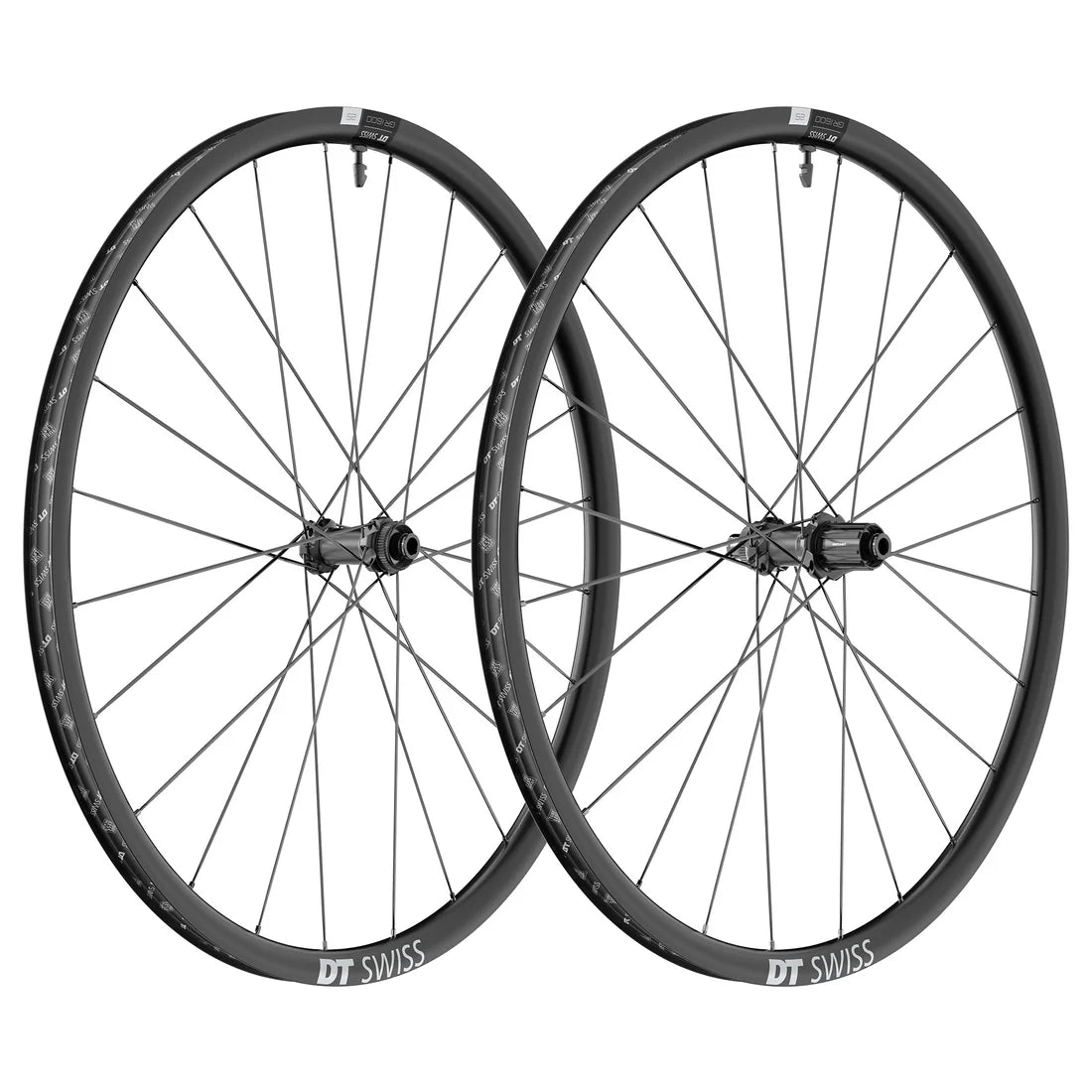

DT SWISS GR 1600 SPLINE 25 Tubeless Ready Wheelset (Center Lock) Dynamo

The DT SWISS GR 1600 SPLINE 25 Wheelset is designed to explore new horizons and push the limits of Gravel. This version comes with... Read more
599,90 €
609,80 € 599,90 €
View full details

Description

The DT SWISS GR 1600 SPLINE 25 Wheelset is designed to explore new horizons and push the limits of Gravel. This version comes with a dynamo hub for seamless lighting integration.

Whether for a bikepacking adventure or a quick outing on the trails, it offers an ideal combination of performance and reliability. Its premium aluminium rim, light and robust, guarantees excellent resistance on demanding terrain.

The 350 hub, renowned for its durability, is paired with the Ratchet freehub system, offering fast and efficient engagement for optimal power transfer. With its SPLINE hub and high-quality components, this wheel delivers excellent responsiveness and precise handling in all conditions.

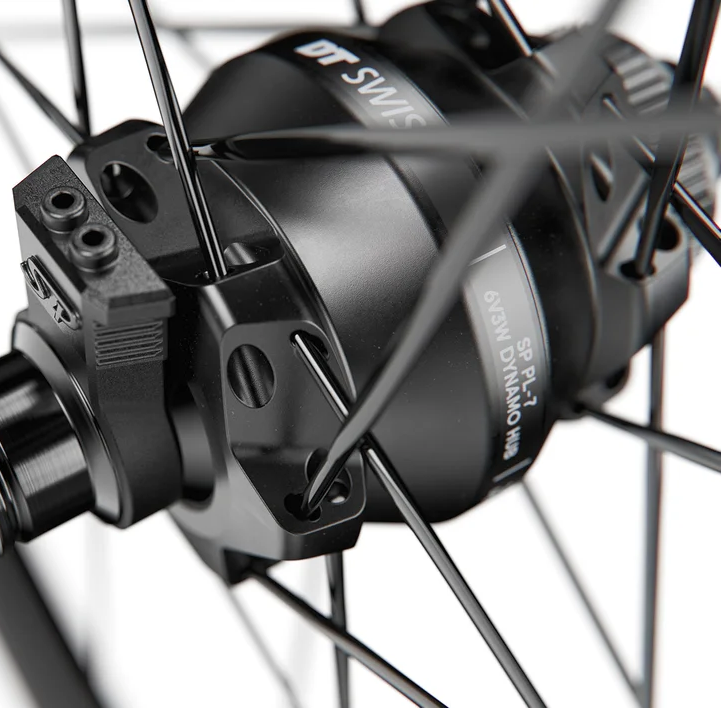

For the front hub, DT SWISS collaborated with Shutter Precision, a market leader in dynamo hub technology, by seamlessly integrating their SP PL-7 generator into a custom hub shell. At 15 km/h, providing a standard output of 6 volts/3 watts (6V3W), 4.2 watts of your pedalling power are used to power the lights.

Designed to be compatible with tubeless tyres, it further improves comfort and grip by reducing the risk of punctures. Ideal for cyclists eager for new experiences.

Manufacturer Manual + Rim/Tyre Compatibility Chart & Pressures

SPLINE Models Manual

Tubeless Fitting Manual

Ref: 15105799094652

Informations techniques

┘GENERAL
Category: Gravel
Front Weight: 830 g
Rear Weight: 1075 g
Max Load: 130 kg
ASTM Classification: 2
E-Bikes Recommended: No
Manufacturer Reference Front / Rear: WGR1600AIDXSA27424 / WGR1600NIDISA21281

┘RIM
Material: Aluminium
Tyre interface: Hooked tubeless TC
Wheel diameter: 622mm / 29" / 700c
Rim height: 25mm
Internal width: 24mm
External width: 28mm

┘HUBS
Axle system: 12mm Thru axle
Front spacing: 100mm
Rear spacing: 142mm
Disc mount: Center Lock
Freehub body: Shimano HG
Freehub: Ratchet System 36 SL
Rear hub type: 350
Front hub type: Dynamo SP PL-7, compliant with German road traffic regulations (StVZO), power output 6V3W

┘SPOKES AND NIPPLES
Left spokes: DT aero comp® wide straightp
Right spokes: DT aero comp® wide straightp
Spoke pattern: Two-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

┘ASSEMBLY & TECHNOLOGIES
► GRAVEL RANGE: The DT Swiss G range is specifically designed for gravel riding, combining robustness, lightness and comfort. With rims optimised for wide tyres and tubeless compatibility, it ensures grip and performance on varied terrain;
► SPLINE: The DT Swiss SPLINE concept combines robust hubs, optimised straight spokes and Ratchet technology for efficient power transfer. It ensures reliability, responsiveness and ease of maintenance for versatile performance;
► RATCHET: DT Swiss Ratchet freehub body technology ensures fast and precise engagement thanks to its high-precision serrated ring system. It delivers efficient power transmission, high reliability and minimal maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's know-how;

┘INCLUDED
Rim tape: 27mm tubeless roll
Valve: Black alu TL valve 18-25mm

┘CONVERSION REFERENCES
• Rear Wheel
► Adapters for Shimano HG / QR: HWGXXX0006383S;
► XDR / QR Kit: HWYABX00S8883S;
► XDR / 12x142 Kit: HWYABX00S7711S;
► Adapters for XDR / QR: HWGXXX00S5483S;
► Microspline / 12x142 Kit: HWYABL00S1961S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S2992S;
► Campagnolo / QR Kit: HWYABX00S1296S;
► Campagnolo / 12x142 Kit: HWYABX00S7154S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;
