DT SWISS GRC 1400 DICUT 30 DISC Tubeless Ready Wheelset (Centerlock)

The DT SWISS GRC 1400 DICUT 30 DISC Wheelset is designed to push the limits of Gravel. With a robust and high-performing construction, it... Read more
1.599,90 €
1.738,80 € 1.599,90 €
-10%
View full details

Description

The DT SWISS GRC 1400 DICUT 30 DISC Wheelset is designed to push the limits of Gravel.

With a robust and high-performing construction, it absorbs vibrations and clears obstacles with confidence. Its optimised 30 mm rim profile reduces steering torque, offering exceptional agility, ideal for long off-road adventures.

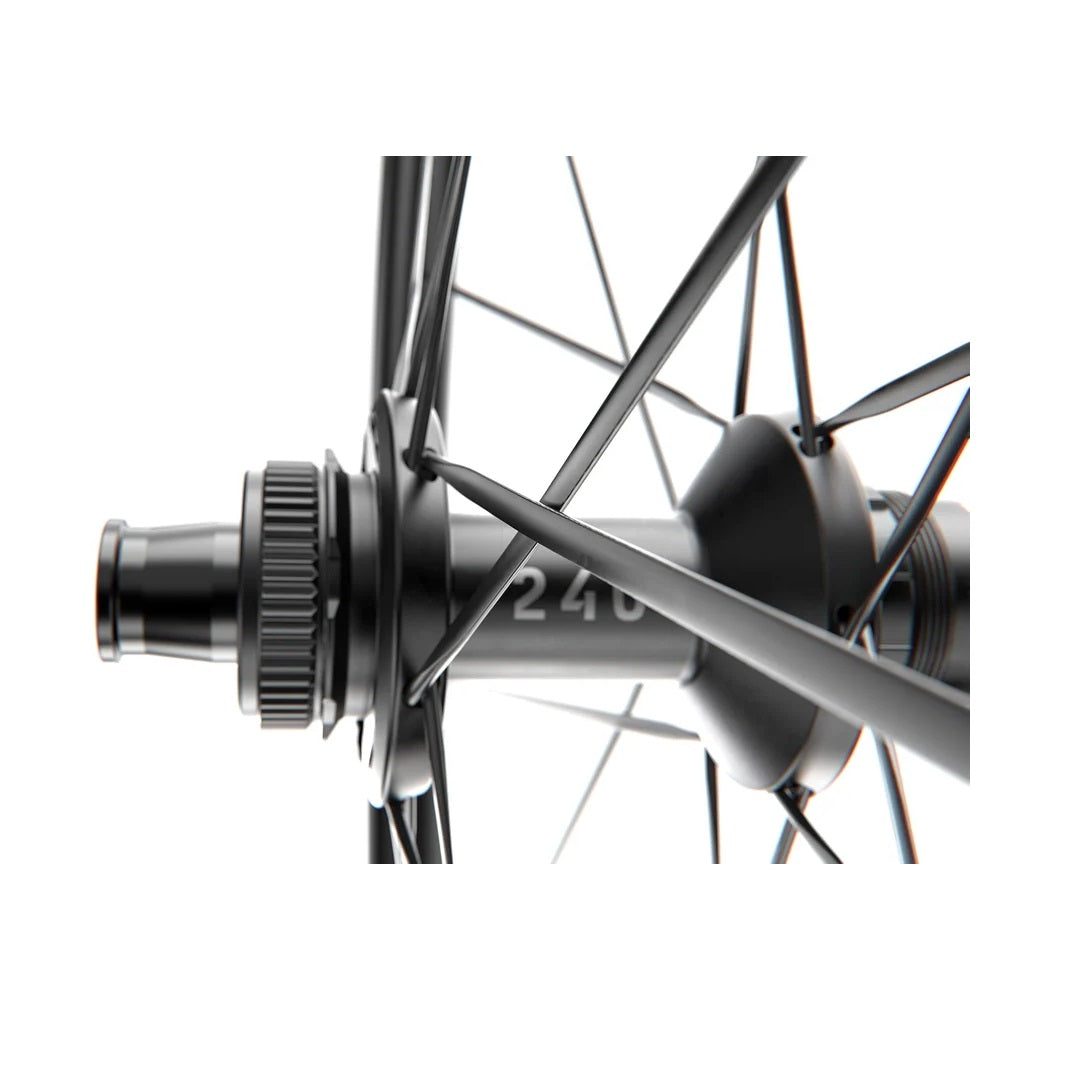

Equipped with the lightweight 240 DICUT hub and the Ratchet EXP freehub system, it ensures optimal power transfer and great reliability. Its DT aero comp II spokes enhance stiffness and durability for maximum performance on all terrain.

Its raw, unvarnished finish, resulting from an innovative manufacturing process, gives it a unique aesthetic and a weight saving. Ready to tackle technical trails and fast tracks, it accompanies you through every Gravel challenge with fluidity and responsiveness.

Manufacturer Manual + Rim/Tyre Compatibility Chart & Pressures

DICUT Models Manual

Tubeless Assembly Manual

Ref: 9861972623709

Informations techniques

┘GENERAL
Category: Gravel
Pair Weight: 1431 g
Front Weight: 656 g
Rear Weight: 775 g
Max. Load: 130 kg
ASTM Classification: 2
E-Bikes Recommended: Yes (max. 32km/h or max. 250W)
Manufacturer Reference Front / Rear: WGRC140AIDXCA19673 / WGRC140NIDICA19674

┘RIM
Material: Carbon
Tyre Interface: Hooked tubeless TC
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 30mm
Internal Width: 24mm
External Width: 31mm

┘HUBS
Axle System: 12mm Thru axle
Front Spacing: 100mm
Rear Spacing: 142mm
Disc Mounting: Center Lock
Freehub Body: Shimano HG
Freehub: Ratchet EXP 36
Hub Type: 240

┘SPOKES AND NIPPLES
Front Spokes:
• Left: DT aero comp® II t-head
• Right: DT aero comp® II t-head
Rear Spokes:
• Left: DT aero comp® II t-head
• Right: DT aero comp® II t-head
Lacing Pattern: Two-cross (1:1)
Nipples: DT Pro Lock hidden aluminum

┘ASSEMBLY & TECHNOLOGIES
► GRAVEL RANGE: The DT Swiss G range is specially designed for gravel, combining robustness, lightness and comfort. With rims optimised for wide tyres and tubeless compatibility, it guarantees grip and performance on varied terrain;
► DICUT: DT Swiss's DICUT concept combines high-performance hubs, optimised spokes and advanced aerodynamics. Designed for speed and efficiency, it maximises lateral stiffness and power transfer on road and track;
► RATCHET EXP: DT Swiss's Ratchet EXP freehub body technology optimises hub engagement by integrating a single conical spring, reducing weight and increasing durability. It ensures efficient power transfer and simplified maintenance;
► ARTISAN CRAFTSMANSHIP: Hand-built, guaranteed to benefit from all of DT Swiss's expertise;

┘INCLUDED
Rim tape: 27mm tubeless roll
Black aluminium TL valve 26-35 mm / Valve protection sticker
SRAM XDR freehub body

┘CONVERSION REFERENCES
• Front Wheel
► Adapters for QR: HWGXXX0000051S;
• Rear Wheel
► Adapters for Shimano HG / QR: HWGXXX00S7446S;
► XDR / QR Kit: HWYABL00S5382S;
► XDR / 12x142 Kit: HWYABL00S5401S;
► Adapters for XDR / QR: HWGXXX00S2760S;
► Microspline / 12x142 Kit: HWYABL00S1960S;
► Adapters for Microspline / QR: HWGXXX00S5623S;
► Campagnolo N3W / 12x142 Kit: HWYABL00S2993S;
► Campagnolo / QR Kit: HWYABL00S7073S;
► Campagnolo / 12x142 Kit: HWYABL00S7074S;
► Adapters for Campagnolo / QR: HWGXXX00S2766S;
► Adapters for DT Swiss Thru Bolt System: HWGXXX0006560S;
► Adapters for Shimano HG / 12x135: HWGXXX0007569S;
;

Informations prix

*Supplier recommended retail price in February 2024
