MAVIC

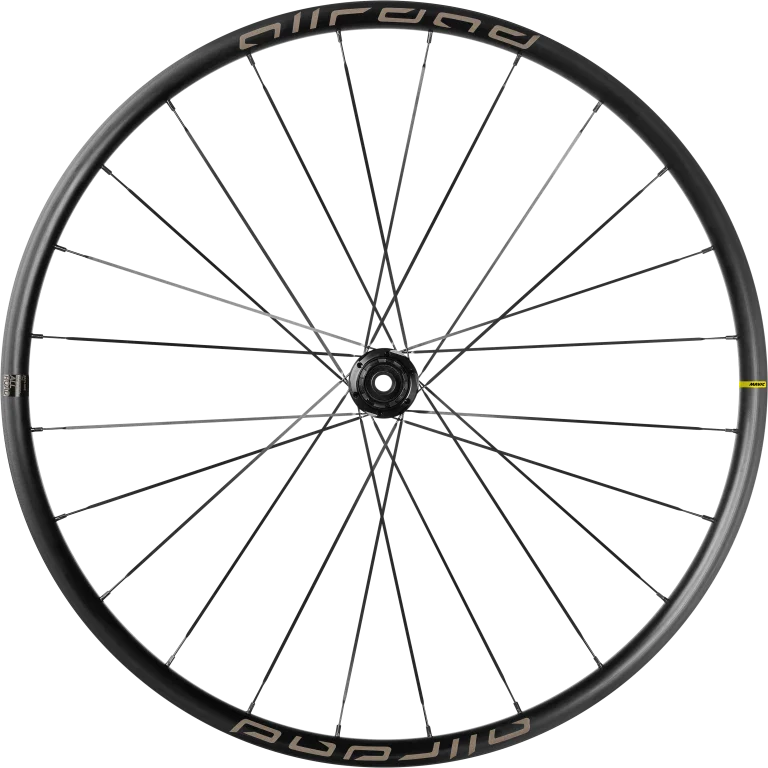

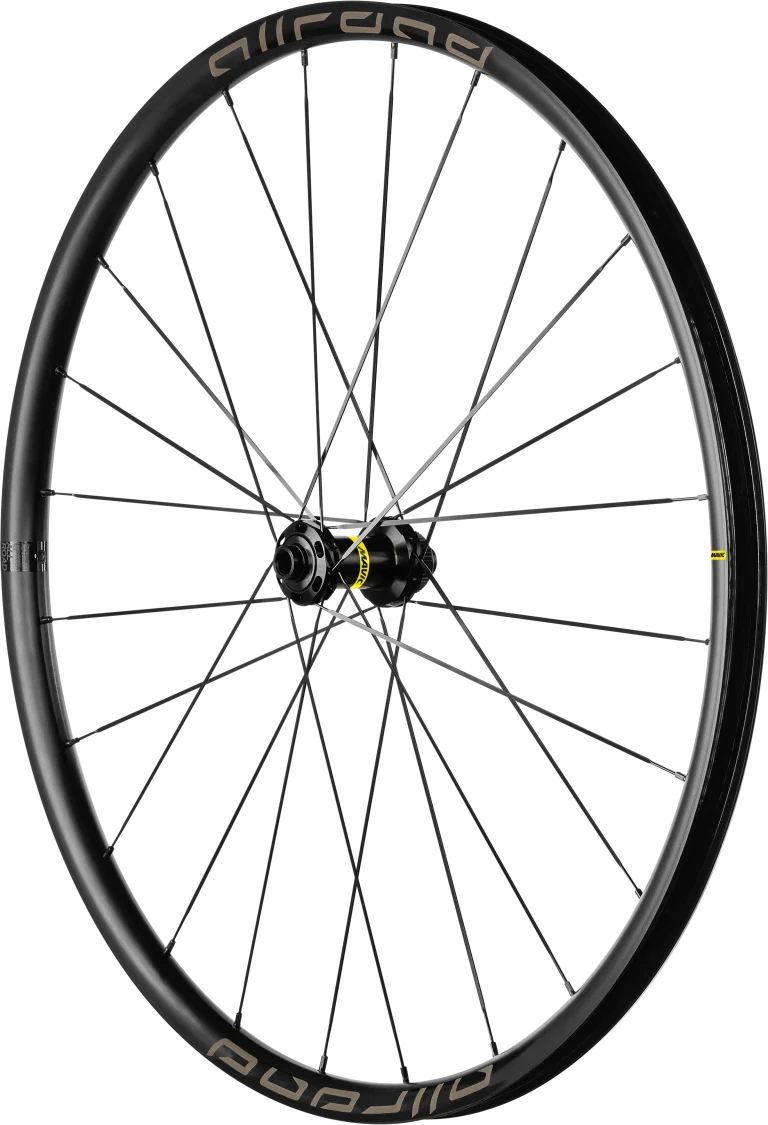

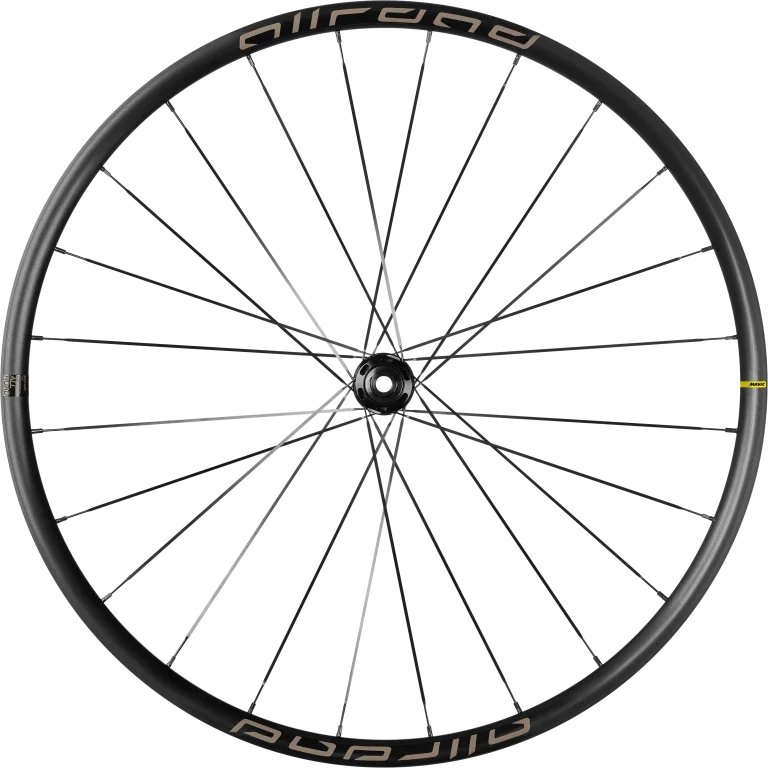

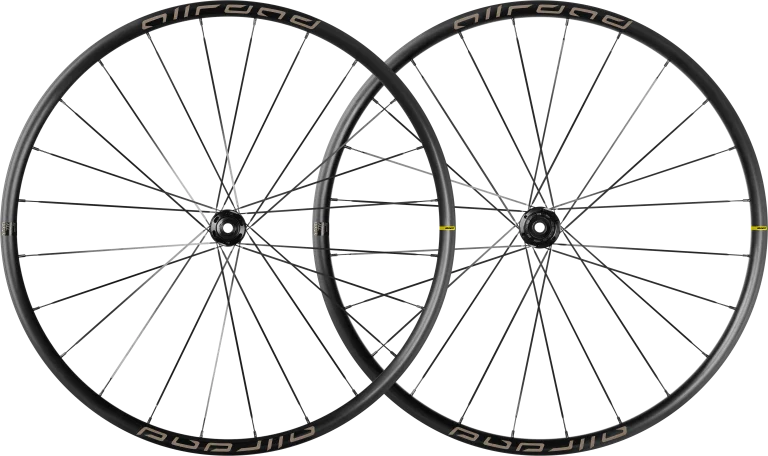

Pair of MAVIC ALLROAD 650b DISC wheels (Center lock)

Visit Pair of MAVIC ALLROAD 650b DISC Wheels (Center lock) are versatile enough to be at home on any terrain! Compatible with Center Lock disc... Read more
269,90 €
289,80 € 269,90 €
-10%
View full details

Description

Visit Pair of MAVIC ALLROAD 650b DISC Wheels (Center lock) are versatile enough to be at home on any terrain! Compatible with Center Lock disc brakes, they're also equipped with the latest Center Lock technology. UST Tubelesstechnology, which adds to its comfort and minimizes the risk of punctures.

Made of S6000 aluminumaluminum, the Allroad rim benefits from a 23 mm internal width, allowing the use of large-section tires. The solidity of the whole is ensured by the reinforced spoking of the 24 spokes, which effectively contain and redistribute the superior forces of disc braking.

Manufacturer's manual + Rim/tire compatibility chart

Manual MAVIC Road Axle Adapters

MAVIC UST Tubeless Manual

Ref: 9842237473117

Informations techniques

┘GENERAL
Part Number Front / Rear : F9281101 / R4078155
Weight Pair : 1840 g
Front weight : 860 g
Rear weight: 980 g
ASTM: category 2 (road and trails with jumps less than 15 cm high)
Maximum load: 120 kg (including bike weight)

┘JANTE
Material: S6000 aluminum
Height: 21 mm
Seal: sleeved
Internal width: 19 mm
Internal width: 25 mm
Drilling: traditional (front/rear 24 holes)
Braking: Center Lock disc
Profile: without hooks
ETRTO size: 584x25
Tire compatibility: UST Tubeless Ready / Tubetype
Minimum tire size: width 30mm - max. pressure 4.05Bar/59PSI
Maximum tire size: width 64mm - max. pressure 2.45Bar/36PSI

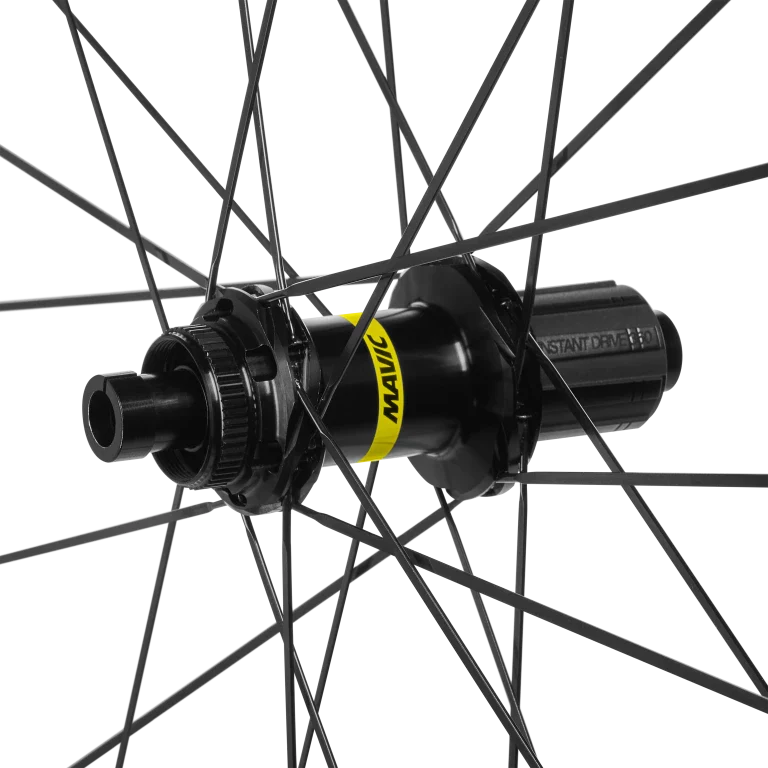

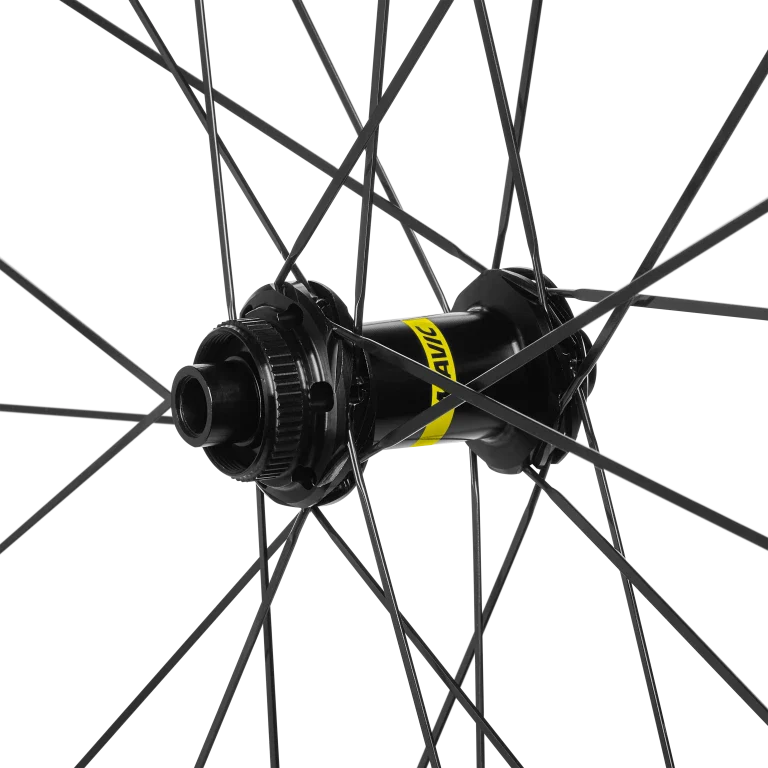

┘MOYEUX
Body material: aluminum
Body design: INFINITY
Disc standard: Center Lock® only
Spindle material: aluminum
Spindle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not supplied)
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG road
Bearing technology : QRM self-adjusting - sealed cartridge

┘RAYONS
Material: steel
Shape: straight, flat, anti-rotation (front and rear)
Nuts: steel, ABS, black
Shelving: crossed by 2 (front and rear)

┘KEY TECHNOLOGIES
► INSTANT DRIVE 360: The Instant Drive 360 system ensures immediate transmission of effort, without inertia, with proven reliability and rapid maintenance without tools ;
► QRM BEARINGS: Mavic's QRM technology uses high-precision double-sealed bearings, offering enhanced durability, low friction and minimal maintenance ;
► UST SYSTEM: UST technology offers tubeless rolling, reducing resistance, improving comfort and grip, while lightening the rim by 20g ;

┘INCLUSIONS
User guide
UST rim tape mounted on the wheel
UST valve not mounted on wheel
Multifunction adjustment key with rear wheel

┘COMPATIBLE REFERENCES
Freewheel body: SRAM XD road convertible (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately)
Rear axle adapters: 12x142 convertible into 12x135 (kit V2510901 sold separately)
