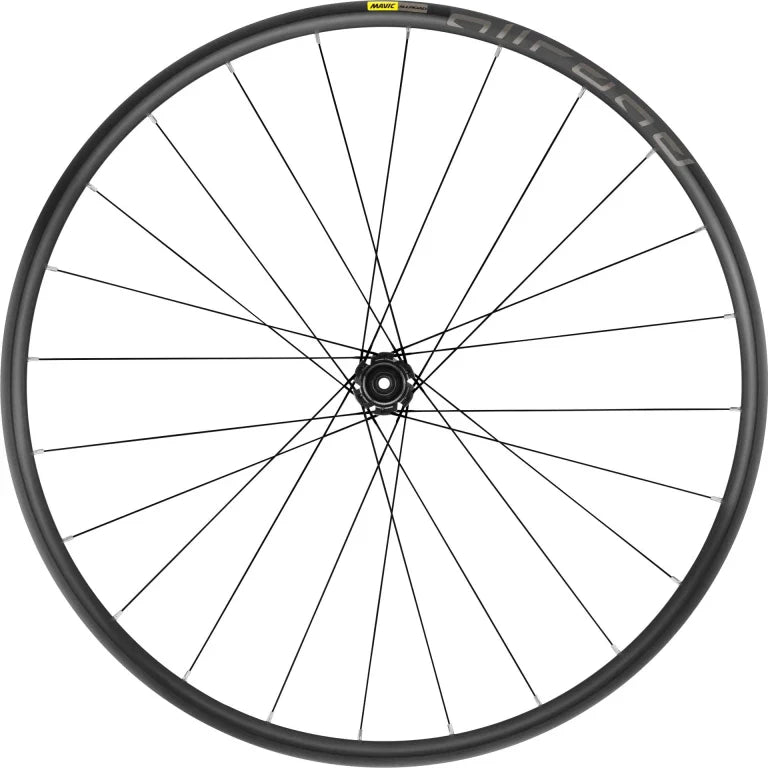

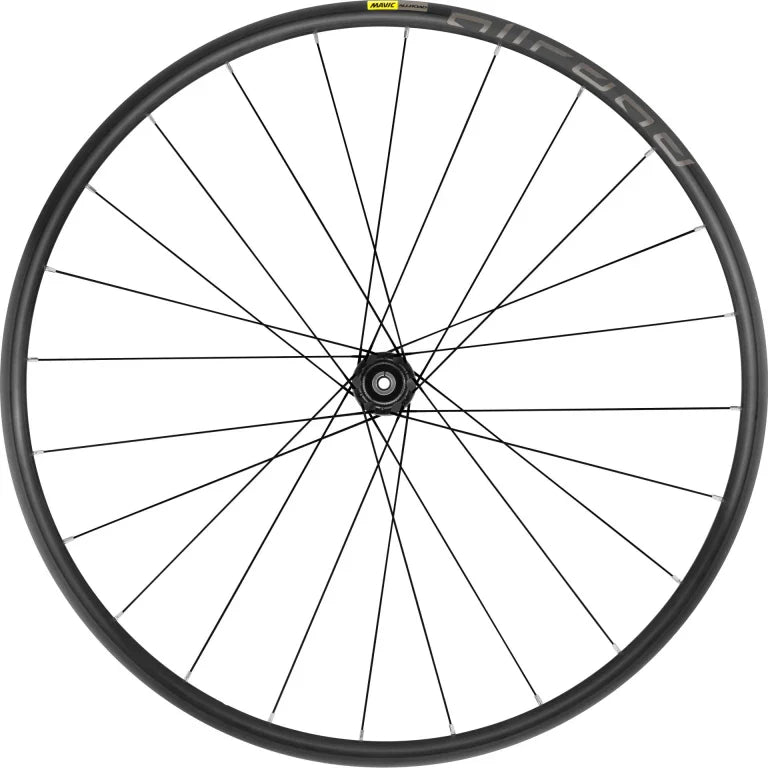

Pair of MAVIC ALLROAD DISC wheels clincher (6 Holes)

La Pair of MAVIC ALLROAD DISC Wheels clincher (6 Holes) is sufficient versatile enough to be at home on any terrain! Compatible with six-hole disc brakes, it... Read more
268,80 €
268,80 €
View full details

Description

La Pair of MAVIC ALLROAD DISC Wheels clincher (6 Holes) is sufficient versatile enough to be at home on any terrain! Compatible with six-hole disc brakes, it also benefits from Tubeless UST technology, which adds to its comfort and minimizes the risk of punctures.

Made from S6000 aluminum, the Allroad Disc rim boasts a 23mm internal width, enabling the use of large-section tires. The solidity of the whole is ensured by the reinforced spoking of the 24 spokes, which effectively contain and redistribute the superior forces of disc braking.

In addition, cartridge bearings ensure long-lasting hub performance, while the ID360 freewheel system promises ultra-fast engagement!

Ref: 9842263097693

Points forts

Versatility

Aluminum design

Superior rim width

The responsiveness of the ID360 freewheel

Tubeless compatibility

Informations techniques

GENERAL
Part Number Front / Rear : F8124101 / R2333155
Weight Pair : 1890 g
Front weight : 870 g
Rear weight: 1020 g
ASTM: category 2 (Road and trails with jumps less than 15 cm high)
Maximum load: 120 kg (including bike weight)

RIM
Material: S6000 aluminum
Height: 22 mm
Seal: sleeved
Internal width: 23 mm
Drilling: traditional (24 holes)
Braking: 6-hole disc
ETRTO size: 622x23
Tire compatibility: UST Tubeless Ready / Tubetype
Minimum tire size: width 28mm - max. pressure 5.5Bar/80PSI
Maximum tire size: width 64mm - max. pressure 3.25Bar/47PSI

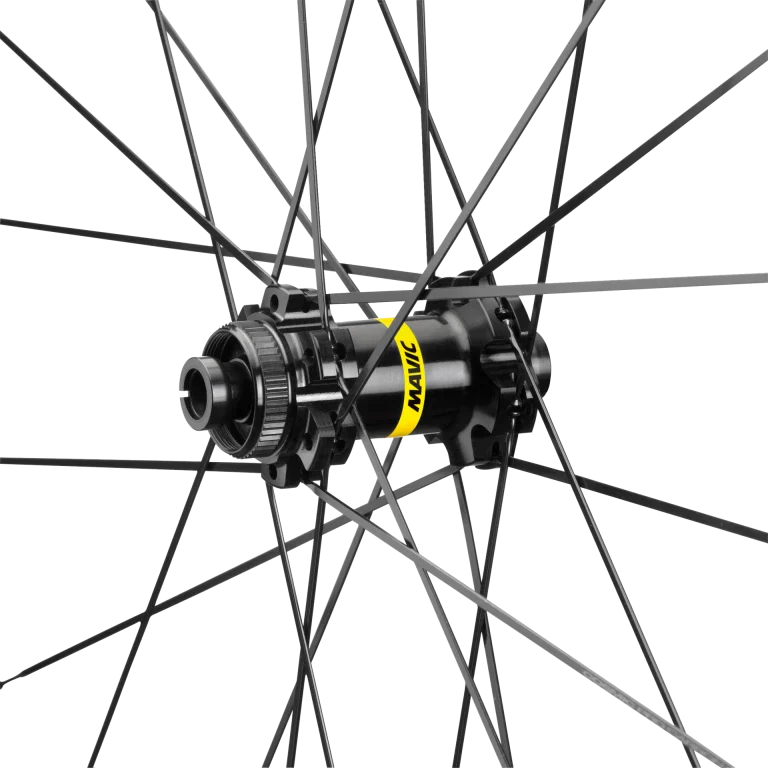

MEDIUM
Body material: aluminum
Disc standard: 6 holes
Spindle material: aluminum
Spindle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (supplied)
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG Road
Bearing technology : QRM self-adjusting - sealed cartridge

RAYONS
Material: steel
Shape: straight, round
Nuts: steel, ABS, colorless
Shelving: crossed by 2

INCLUDED
User's guide
UST rim tape mounted on wheel
UST valve not mounted on wheel
Front axle adapters: 12x100 convertible to 9x100
Rear axle adapters: 12x142 convertible into 9x135

COMPATIBLE REFERENCES
Freewheel body: SRAM XD convertible Road (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light Road (kit V3850101 sold separately
Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible into 9x135 (kit V2510801)
Rear axle adapters: 12x142 convertible into 12x135 (kit V2510901 sold separately)
