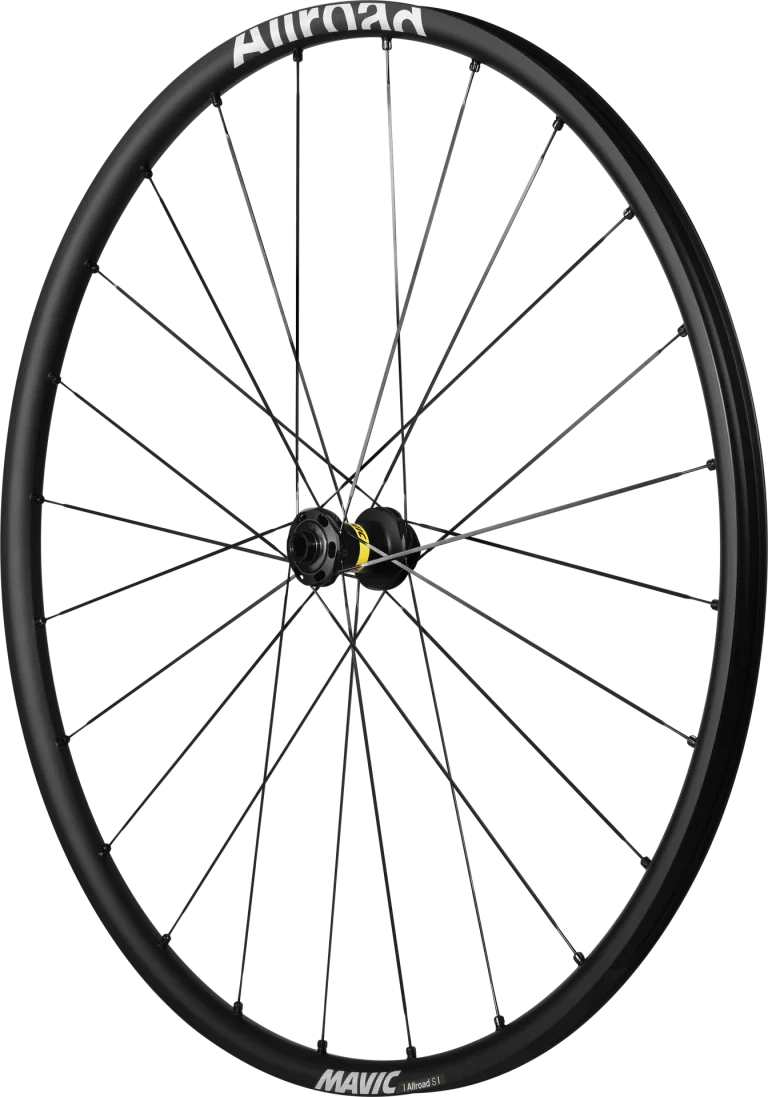

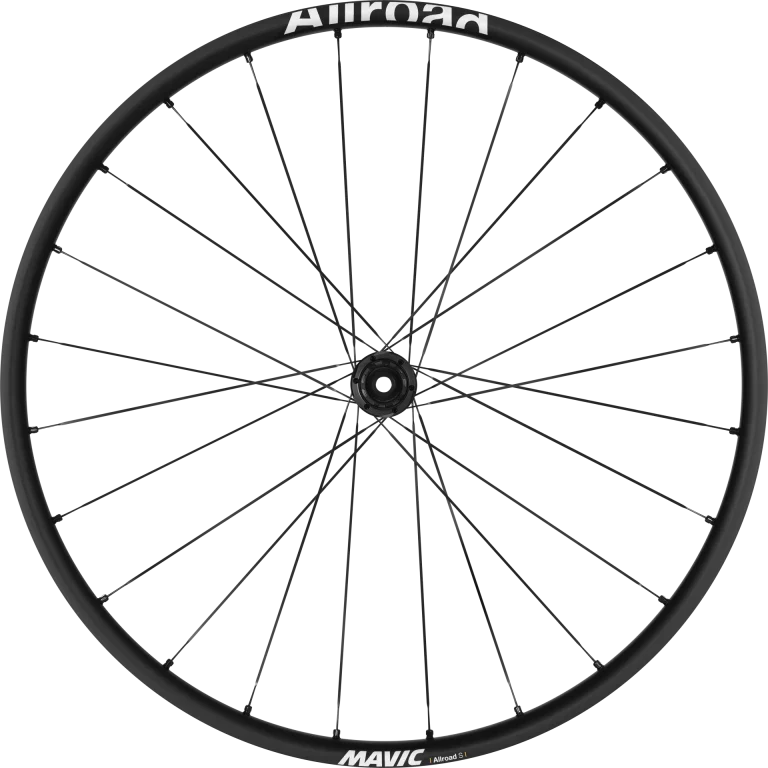

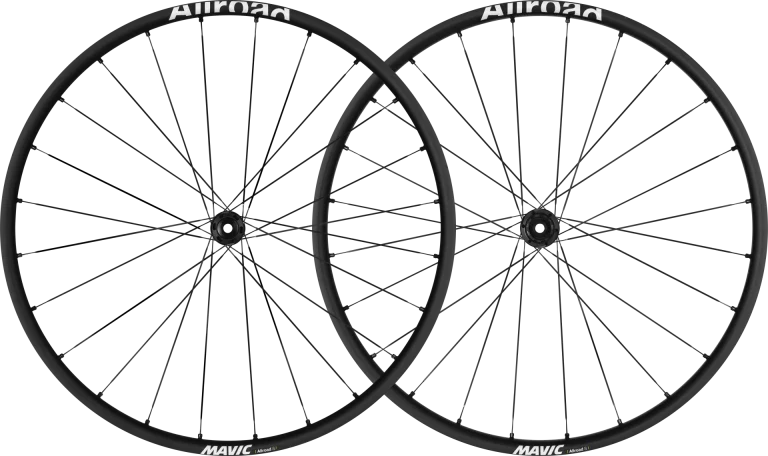

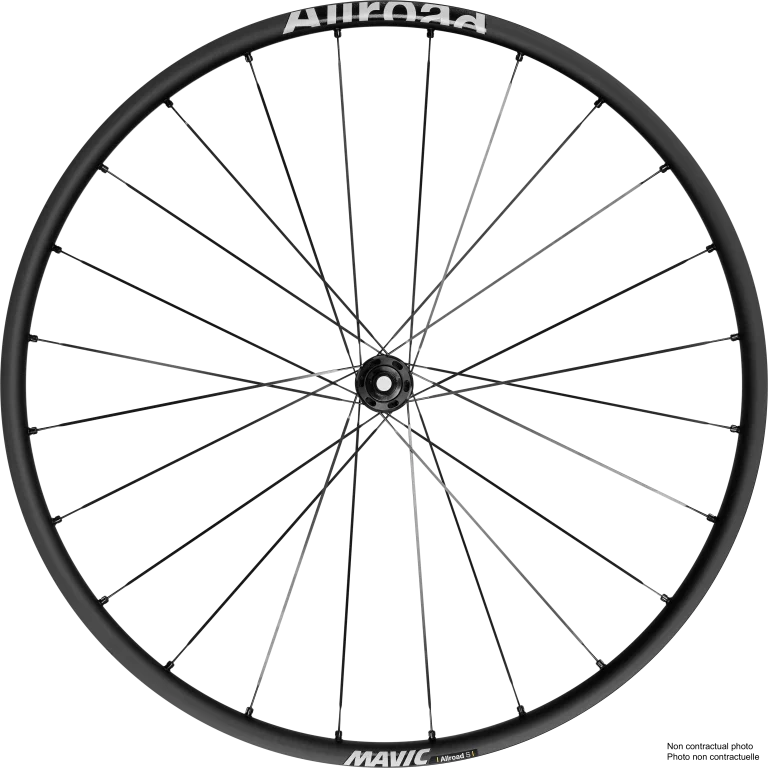

Pair of MAVIC ALLROAD S DISC wheels clincher (Center Lock)

Visit Pair of MAVIC ALLROAD S DISC Wheels wheels are ideal for adventure-seeking cyclists looking for performance and versatility on all types of terrain. Designed... Read more
429,90 €
431,80 € 429,90 €
View full details

Description

Visit Pair of MAVIC ALLROAD S DISC Wheels wheels are ideal for adventure-seeking cyclists looking for performance and versatility on all types of terrain. Designed for Gravelit combines lightness, robustness and advanced technologies for an optimal riding experience.

Its rim UST Tubeless rim, 25 mm wide, offers superior comfort and compatibility with 30 to 64 mm tires, allowing you to adapt your bike to the conditions of the day. UST Tubeless technology improves grip, reduces the risk of punctures and optimizes efficiency by reducing friction.

Thanks to the Fore drillingdrilling, the rim remains watertight without a rim base, saving 30g per wheel. The ID360 freewheel freewheel ensures rapid engagement and smooth power transfer, while the bearings QRM Auto bearings guarantee increased durability.

Stable and responsive, theAllroad S DISC will accompany you on all your explorations, with reliability and performance.

Manufacturer's manual + Rim/tire compatibility chart

Manual MAVIC Road Axle Adapters

MAVIC UST Tubeless Manual

Ref: 9842274861405

Informations techniques

┘GENERAL
Part Number Front / Rear : F00020601 / R00020703
Weight Pair : 1790 g
Front weight : 840 g
Rear weight: 950 g
ASTM: category 2 (road and trails with jumps less than 15 cm high)
Maximum load: 135 kg (including bike weight)

┘JANTE
Material: Maxtal (Aluminum)
Height: 22 mm
Joint: SUP welding technique
Internal width: 25 mm
Drilling: Fore tubeless technology without rim tape (24 holes)
Braking: disc
Profile: hookless
ETRTO size: 622x25
Tire compatibility: UST Tubeless Ready / Tubetype
Minimum tire size: width 30mm - max. pressure 4.05Bar/59PSI
Maximum tire size: width 64mm - max. pressure 2.45Bar/36PSI

┘MOYEUX
Body material: aluminum
Body design: INFINITY
Disc standard: Center Lock® only
Spindle material: aluminum
Spindle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not supplied)
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG road
Bearing technology : QRM self-adjusting - sealed cartridge

┘RAYONS
Material: steel
Shape: straight, extra-flat, swaged, anti-rotation
Nuts: brass, black
Screws: M7
Shelving: crossed by 2

┘KEY TECHNOLOGIES
► INSTANT DRIVE 360: The Instant Drive 360 system ensures immediate transmission of effort, without inertia, with proven reliability and rapid maintenance without tools ;
► FORE ALUMINIUM: This invention enables spokes to be screwed directly into the rim, eliminating nipples and rim tape, offering rigidity and simplicity ;
► INFINITY: Infinity hubs ensure even spoke tension, offering stability, fluidity and durability, without contact or parasitic noise, for simplified maintenance ;
► QRM BEARINGS: Mavic's QRM technology uses high-precision double-sealed bearings, offering enhanced durability, low friction and minimal maintenance ;
► UST SYSTEM: UST technology offers tubeless rolling, reducing resistance, improving comfort and grip, while lightening the rim by 20g ;

┘INCLUSIONS
User guide
UST valve not mounted on wheel
2 Multifunction adjustment key with rear wheel

┘COMPATIBLE REFERENCES
Freewheel body: SRAM XD road convertible (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible into 12x135 (kit V2510901 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately) and by changing the axle (V2373401 also sold separately)
