MAVIC

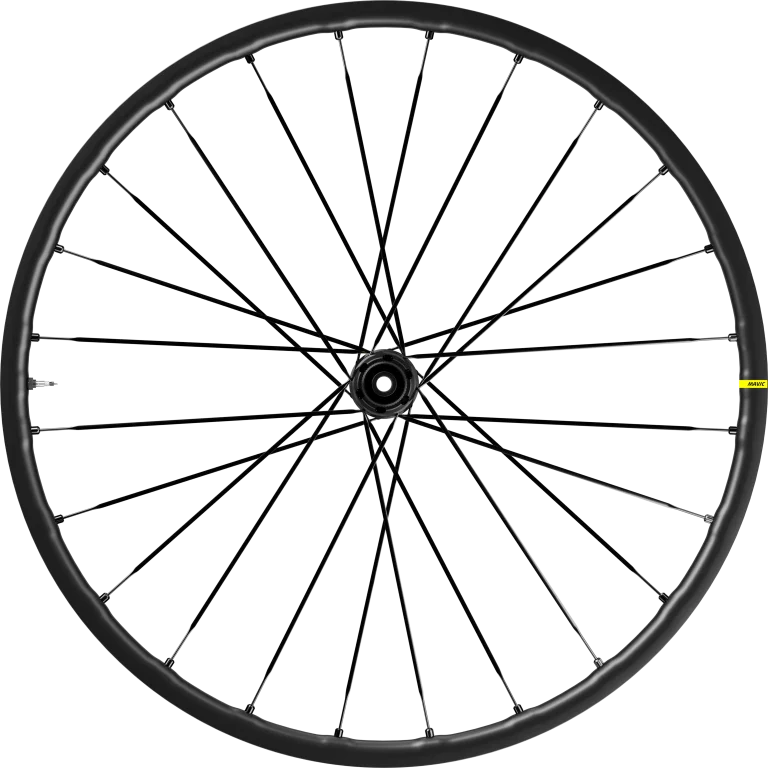

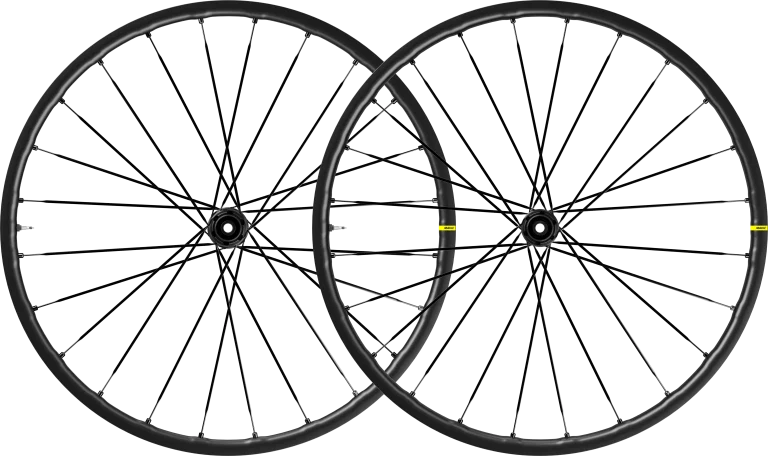

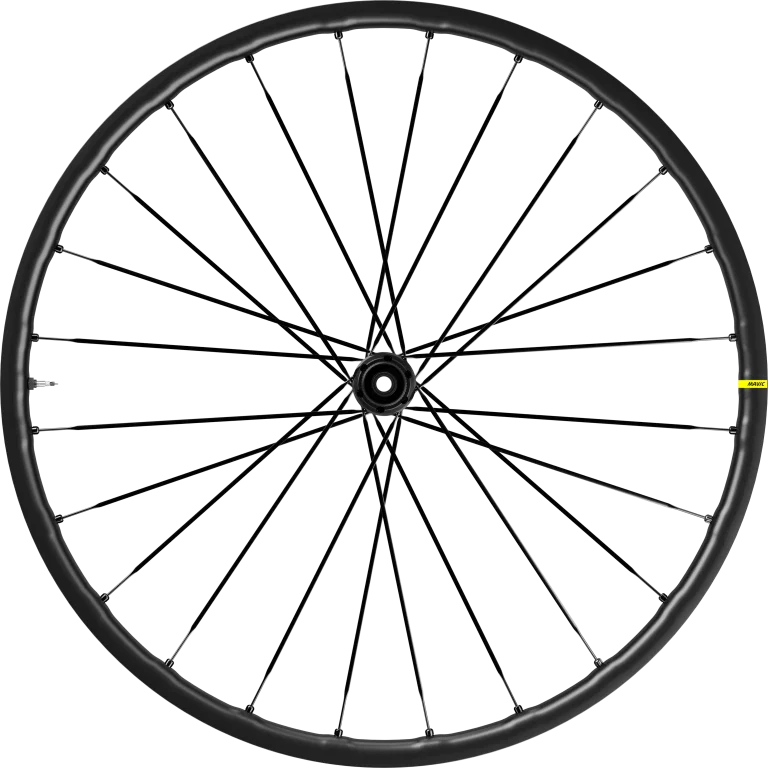

Pair of MAVIC ALLROAD SL ROAD+ 650b wheels (Center Lock)

La Pair of MAVIC ALLROAD SL ROAD + 650B Wheels (Center Lock)at ease on all types of terrain, with superior performance, is for hybrid use, such... Read more
726,80 €
726,80 €
View full details

Description

La Pair of MAVIC ALLROAD SL ROAD + 650B Wheels (Center Lock)at ease on all types of terrain, with superior performance, is for hybrid use, such as Gravel or Cyclocross. It features Tubeless UST technology for optimized tubeless mounting. The 650b rim has an internal width of 25 mm, allowing very wide tires up to 64 mm to be fitted.

The aluminum rim (Maxtal alloy) benefits from Fore Tubeless's integrated mounting system, which avoids MAVIC having to drill the top of the rim.

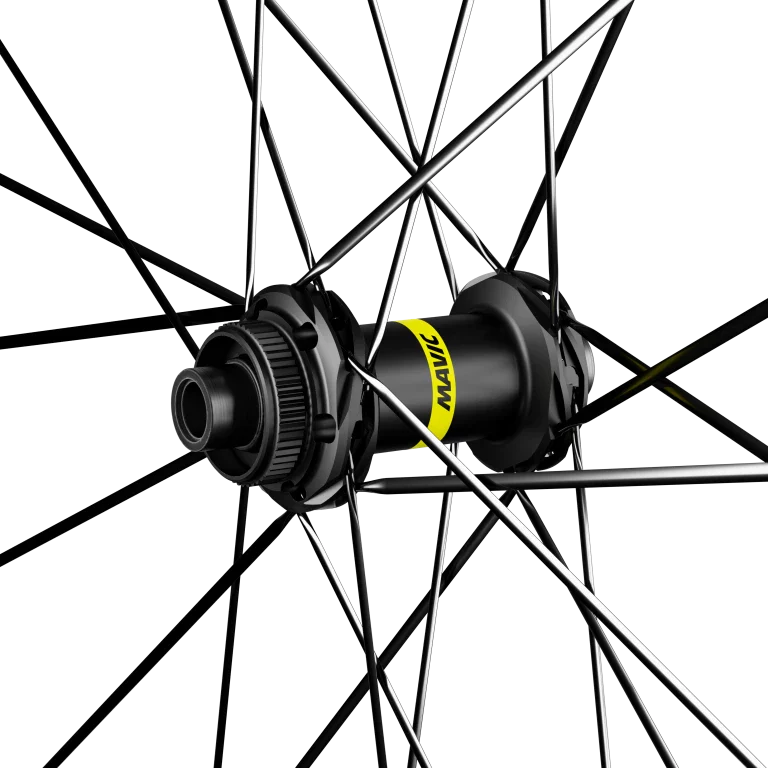

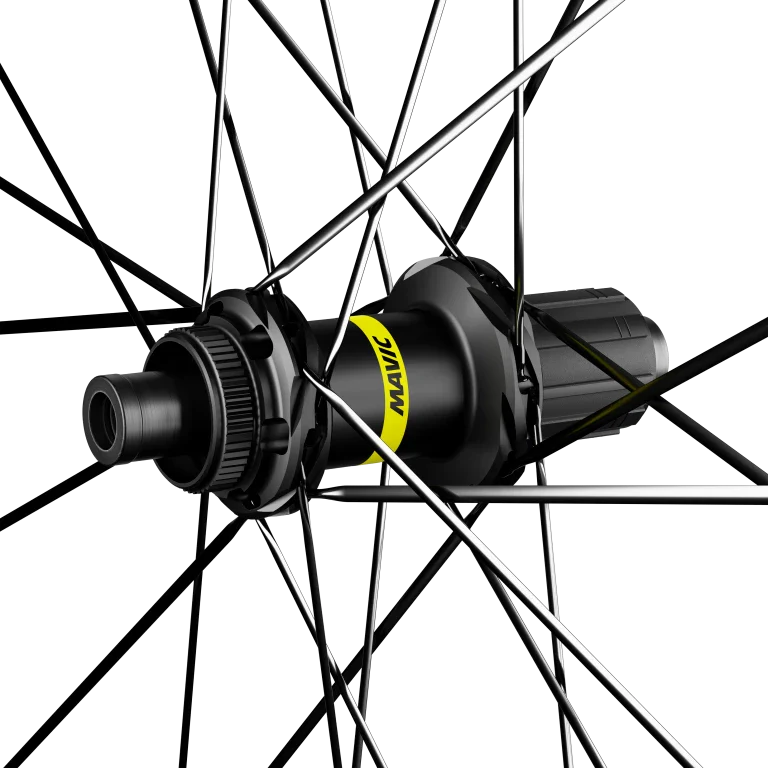

The Infinity hub uses the ID 360 freewheel body for efficient engagement. This type of hub helps to balance spoke tension for better power transfer and improved wheel behavior.

Ref: 9842259460445

Points forts

The 650b wide rim optimized for Gravel use, for mounting wide tires.

Patented lightweight aero spokes

Versatility

The responsiveness of the ID360 freewheel

Tubeless compatibility

Informations techniques

GENERAL
Part Number Front / Rear : F9037101 / R3693155
Weight Pair : 1555 g
Front weight : 723 g
Rear weight: 832 g
ASTM: category 2 (Road and trails with jumps less than 15 cm high)
Maximum load: 120 kg (including bike weight)

RIM
Material: Maxtal (Aluminum)
Height: 22 mm
Joint: SUP welding technique
Internal width: 25 mm
Drilling: Fore tubeless technology without rim tape (24 holes)
Braking: disc Center Lock
Profile: hookless
ETRTO size: 584x25
Tire compatibility: UST Tubeless Ready / Tubetype
Minimum tire size: width 30mm - max. pressure 4.05Bar/59PSI
Maximum tire size: width 64mm - max. pressure 2.45Bar/36PSI

MEDIUM
Body material: aluminum
Body design: INFINITY
Disc standard : Center Lock® only
Spindle material: aluminum
Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not supplied)
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG Road
Bearing technology : QRM self-adjusting - sealed cartridge

RAYONS
Material: steel
Shape: straight, aerodynamic, swaged, anti-rotation (front and rear)
Nuts: brass, black
Screws: M7
Shelving: crossed by 2

INCLUDED
User's guide
UST valve not mounted on wheel
2 Multifunction adjustment key with rear wheel

COMPATIBLE REFERENCES
Freewheel body: SRAM XD convertible Road (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light Road (kit V3850101 sold separately
Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible into 12x135 (kit V2510901 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately) and by changing the axle (V2373401 also sold separately)
