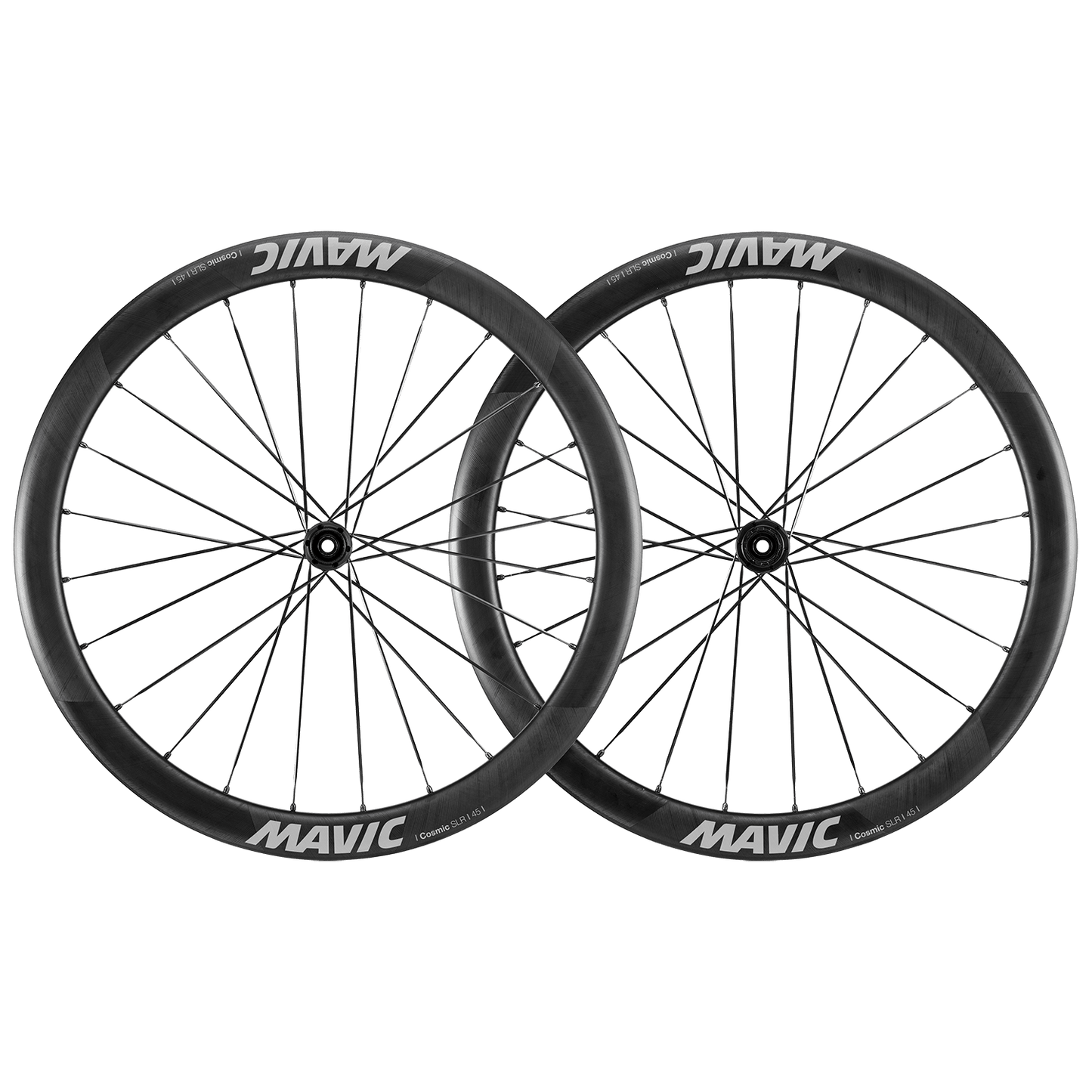

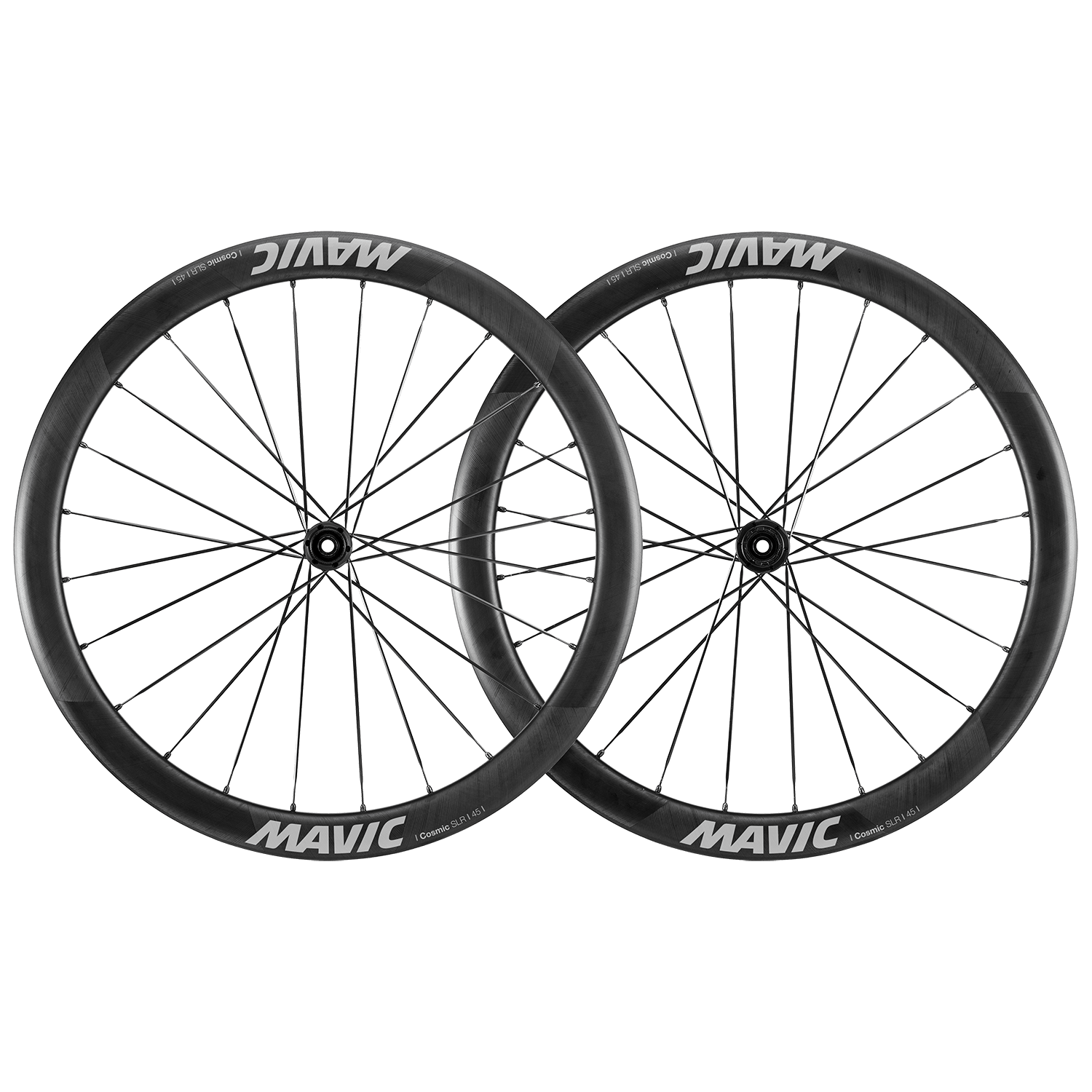

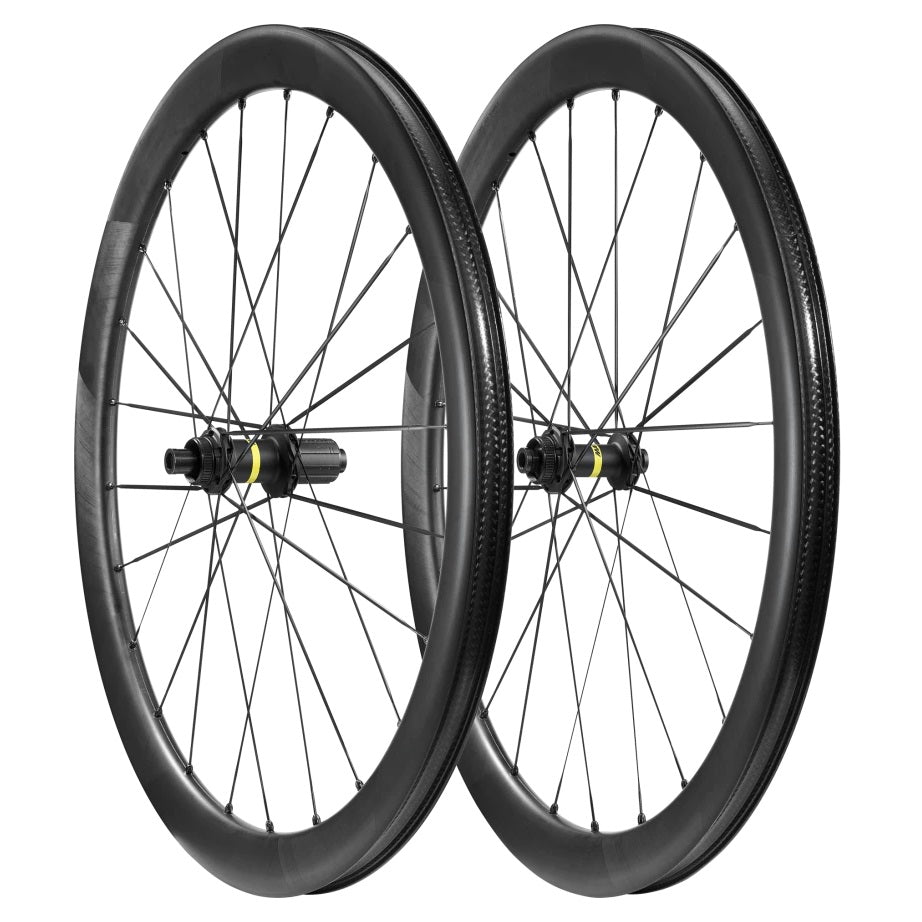

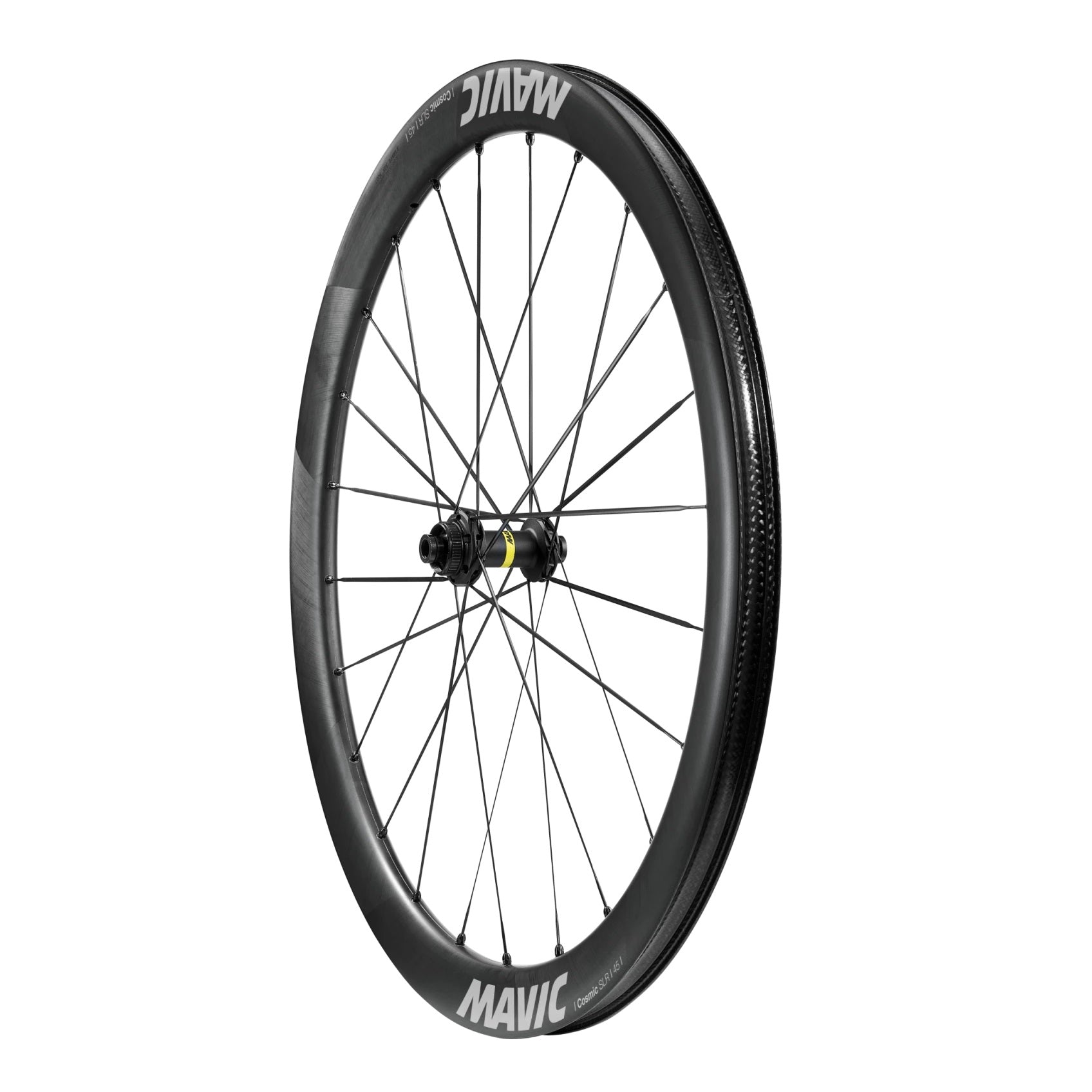

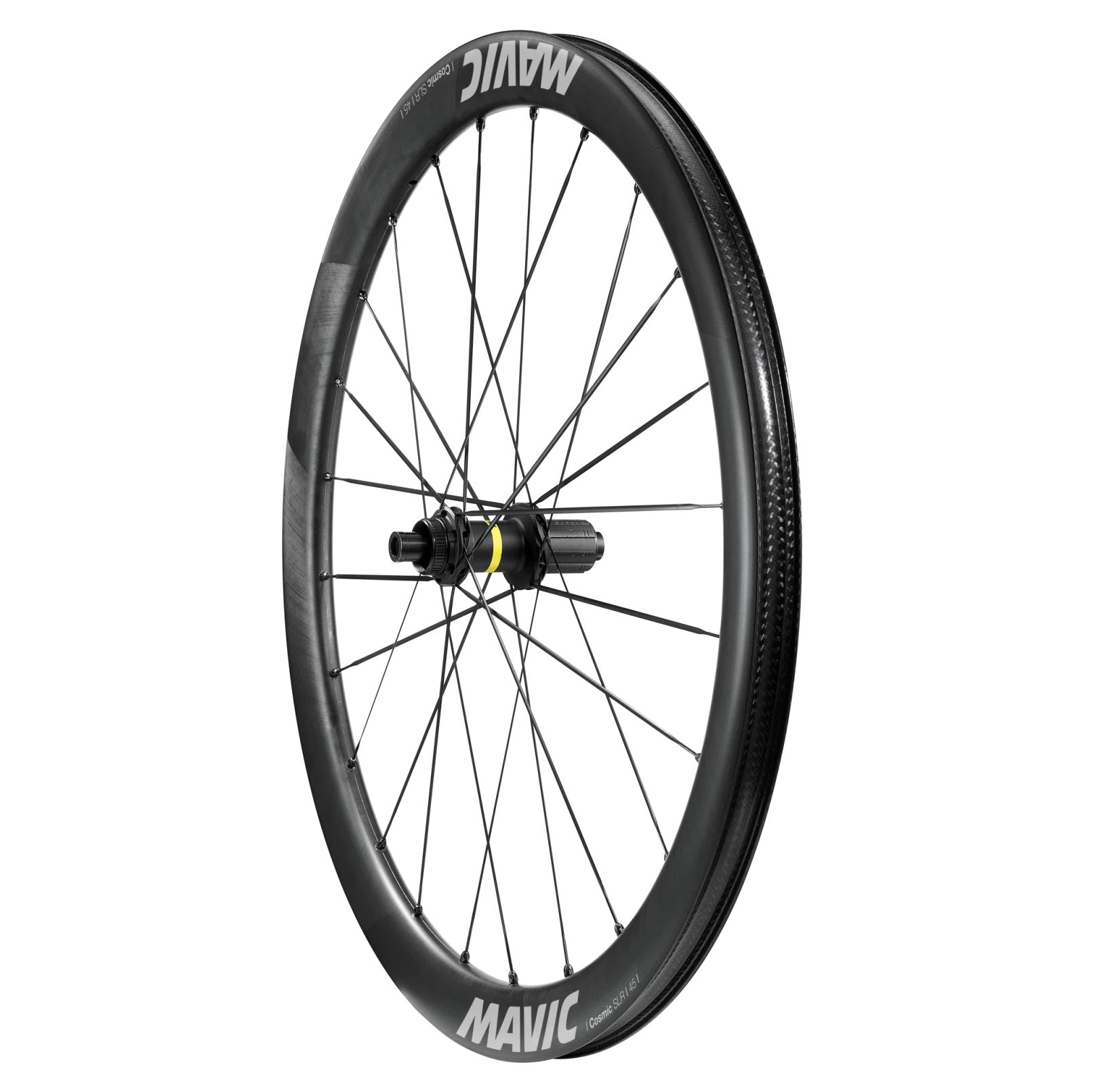

Pair of MAVIC COSMIC SLR 45 DISC 23mm Tubeless Ready Wheels (Center Lock)

Visit Pair of MAVIC COSMIC SLR 45 DISC Wheels wheels offer exceptional performance thanks to their lightweight, 45mm-high carbon rims and the UD² finish.. This... Read more
1.999,90 €
1.999,90 €
View full details

Description

Visit Pair of MAVIC COSMIC SLR 45 DISC Wheels wheels offer exceptional performance thanks to their lightweight, 45mm-high carbon rims and the UD² finish.. This wheel optimizes aerodynamics and rigidity, enabling rapid acceleration and enhanced stability at high speeds.

The NACA profile profile, 45 mm high and 26 mm wide, is specially designed for disc brakes, while patented aerodynamic spoke technology and UD² layup save 55 g in weight, eliminating the need for a rim tape. The Fore Carbon technology technology ensures enhanced stiffness of the upper deck, optimizing power transfer.

With the Infinity hub hub platform and ID360 freewheel bodyfreewheel body, this wheel guarantees exceptional responsiveness and durability.

The UST Tubeless system and their new internal width of 23mmsimplifies the installation of tubeless tires, offering greater comfort and handling while reducing friction and the risk of punctures.

Manufacturer's manual + Rim/tire compatibility chart

Manual MAVIC Road Axle Adapters

MAVIC UST Tubeless Manual

Ref: 9902119715165

Informations techniques

┘GENERAL
Part Number Front / Rear : F00093501 / R00093603
Weight Pair : 1482 g
Front weight : 676 g
Rear weight: 806 g
ASTM: category 2: road and trails with jumps less than 15 cm high
Maximum load: 120 kg (including bike weight)
Lifetime warranty and Crash Replacement (after registration)

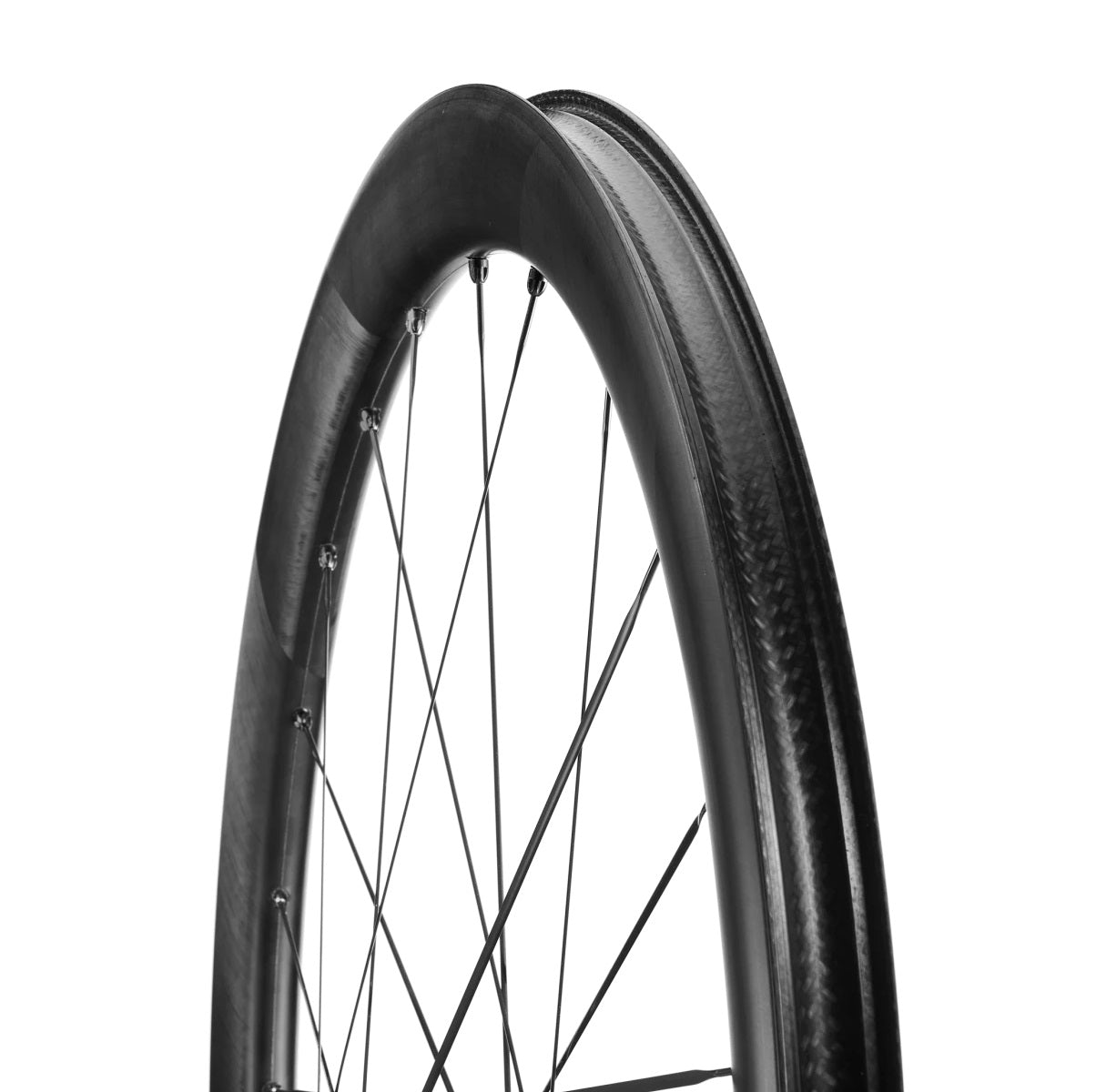

┘JANTE
Material: 100% carbon fiber with UD outer layer
Height: 45 mm
Internal width: 23 mm
Drilling: Fore Carbon tubeless technology without rim tape (24 holes)
ETRTO size: 622x23
Tire compatibility: UST Tubeless Ready
Minimum tire size: width 28mm - max. pressure 5.5Bar/80PSI
Maximum tire size: width 64mm - max. pressure 3.25Bar/47PSI
Brakes: disc

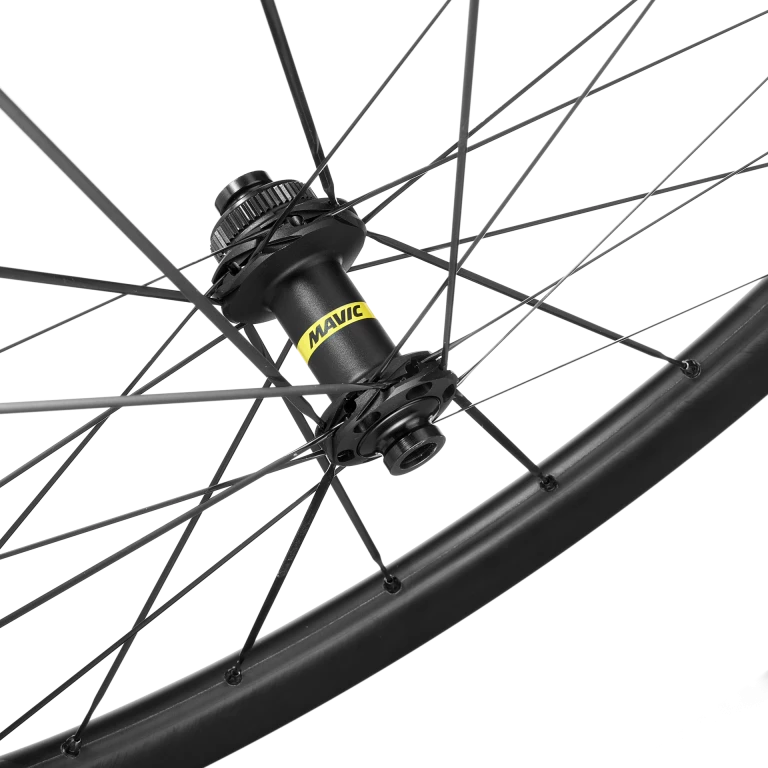

┘MOYEUX
Body material: aluminum
Body design: INFINITY
Disc standard: Center Lock® only
Spindle material: aluminum
Spindle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not supplied)

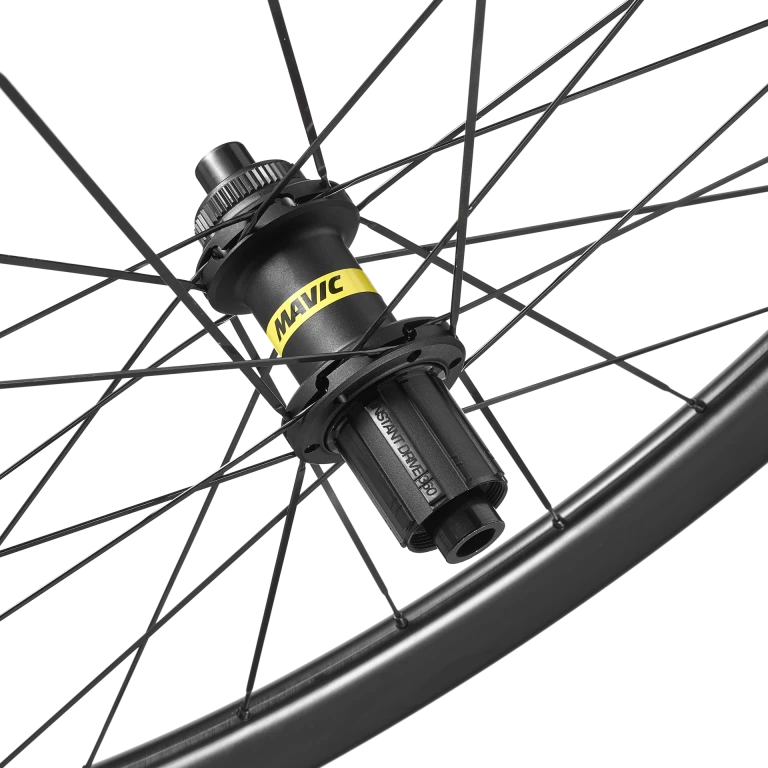

Freewheel technology: Instant Drive 360
Freewheel: Shimano HG road
Bearing technology : QRM self-adjusting - sealed cartridge

┘RAYONS
Material: steel
Shape: straight, extra-flat, swaged, anti-rotation
Nuts: brass, black
Screws: M6
Shelving: crossed by 2

┘KEY TECHNOLOGIES
► FORE CARBON: The Fore system uses metal inserts to connect the spokes to the rim, eliminating the need for a rim base ;
► INSTANT DRIVE 360: The Instant Drive 360 system ensures immediate transmission of effort, without inertia, with proven reliability and rapid tool-free maintenance ;
► INFINITY: Infinity hubs ensure even spoke tension, offering stability, fluidity and durability, without contact or parasitic noise, for simplified maintenance ;
► QRM BEARINGS: Mavic's QRM technology uses high-precision double-sealed bearings, offering enhanced durability, low friction and minimal maintenance ;
► UST SYSTEM: UST technology offers tubeless rolling, reducing resistance, improving comfort and grip, while lightening the rim by 20g ;

┘INCLUSIONS
User guide
UST valve not mounted on wheel
Multifunction adjustment wrench + M6 spoke wrench with rear wheel

┘COMPATIBLE REFERENCES
Freewheel body: SRAM XD road convertible (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately) and by changing the axle (V2373401 also sold separately)
