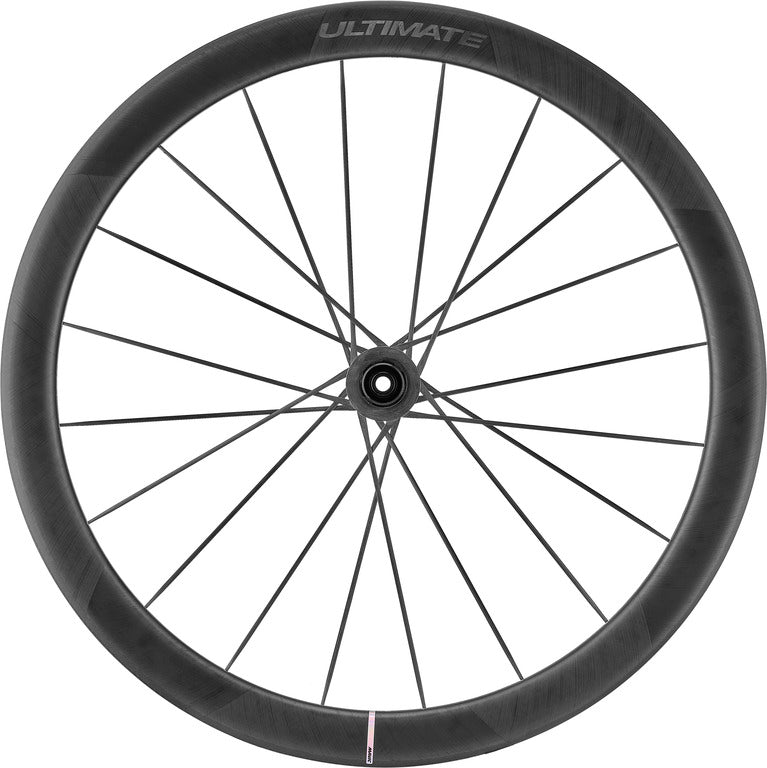

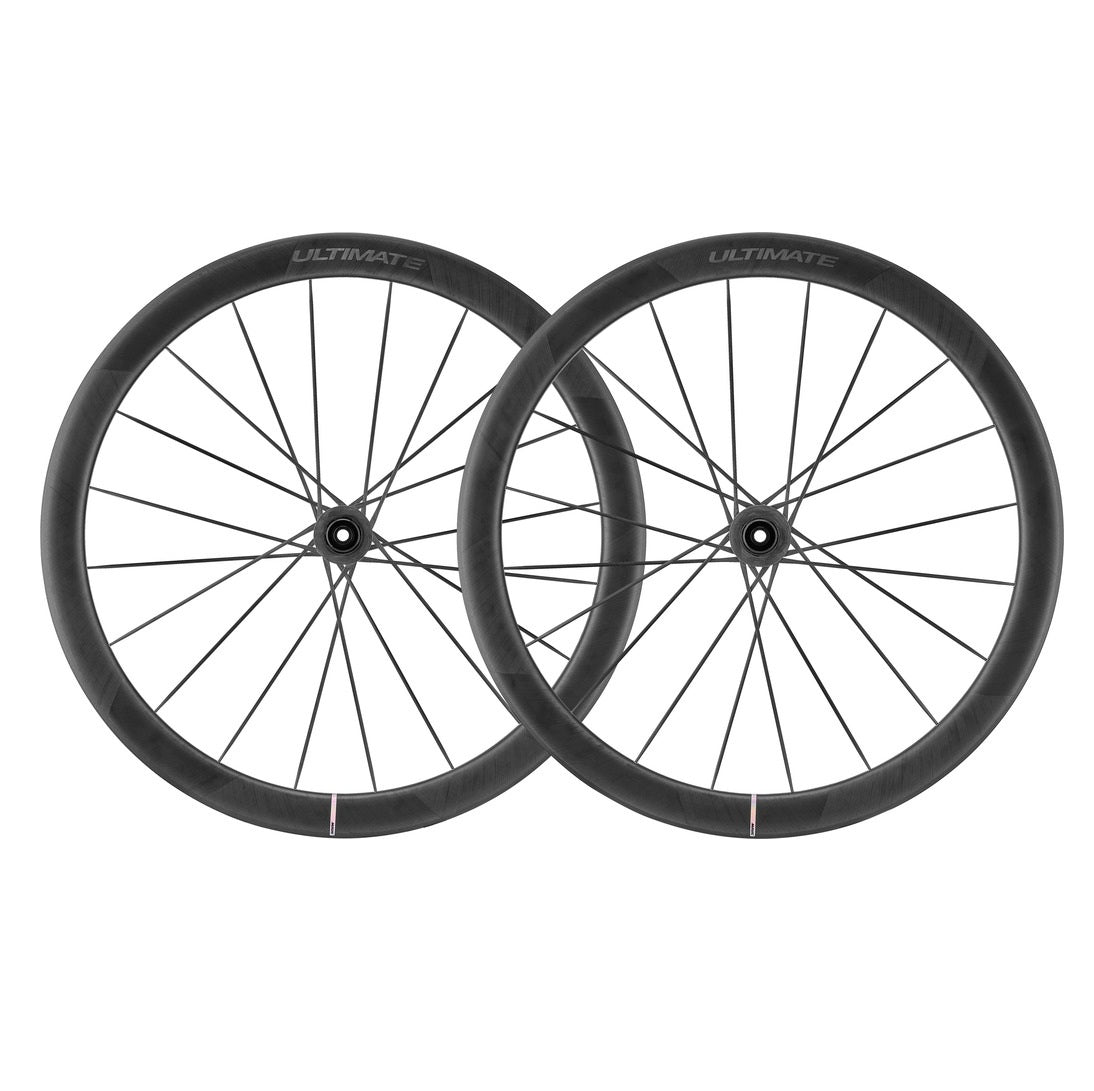

Pair of MAVIC COSMIC ULTIMATE 45 DISC Tubeless Ready Wheels (Center Lock)

The MAVIC COSMIC ULTIMATE 45 wheelset lives up to its name: "Ultimate" stands for absolute excellence. Developed to offer the ultimate in performance, they... Read more
Regular price 4.399,00 €
Regular price Sale price 4.399,00 €
View full details

Description

The MAVIC COSMIC ULTIMATE 45 wheelset lives up to its name: "Ultimate" stands for absolute excellence. Developed to offer the ultimate in performance, they combine extreme lightness, rigidity and aerodynamics in a package weighing just 1260 g. Compatible with tubeless and clincher tires, as well as disc brakes, it is aimed at the most demanding cyclists in search of speed, reliability and unique sensations.

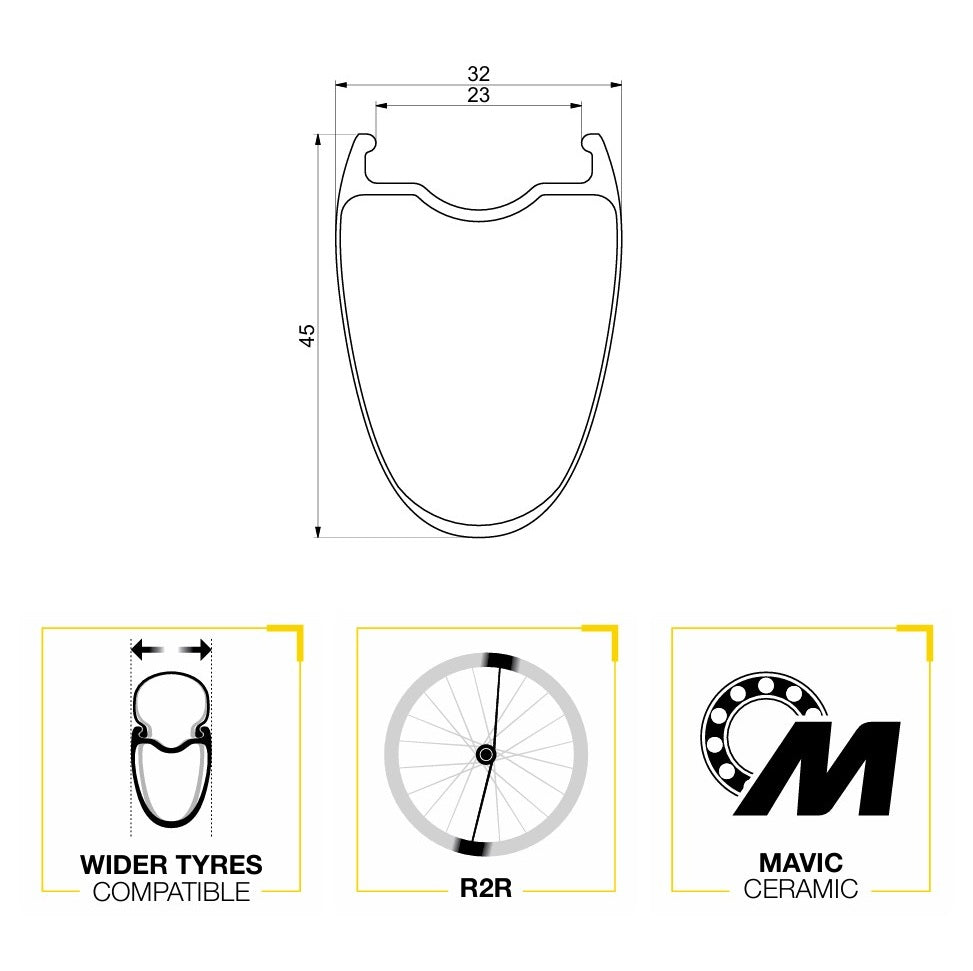

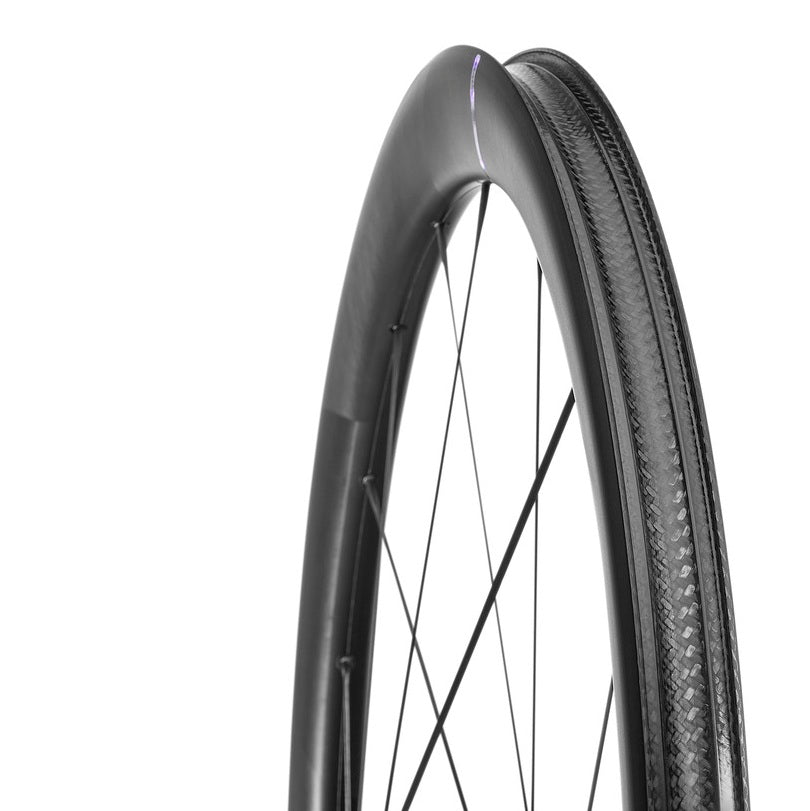

Its carbon rim, with a NACA profile of 45 mm and an external width of 32 mm, combines aerodynamic efficiency and stability. A complex assembly optimizes the rim's weight/stiffness ratio, while the superimposition of Adaptative Lay Up layers saves 70g in weight. Undrilled, the rim requires no rim tape for waterproofing, guaranteeing simple, worry-free tubeless use.

The UST Tubeless system and the internal width of 23mm simplify the installation of wide tubeless tires from 700x28 upwards, offering greater comfort and handling while reducing friction and the risk of punctures.

On the spoking side, R2R (rim-to-rim) technology makes all the difference. The 20 elliptical unidirectional carbon-fibre spokes are continuous, passing through the hubs to form a monobloc structure. This design significantly increases rigidity, improves aerodynamics and eliminates the weak points associated with traditional fasteners.

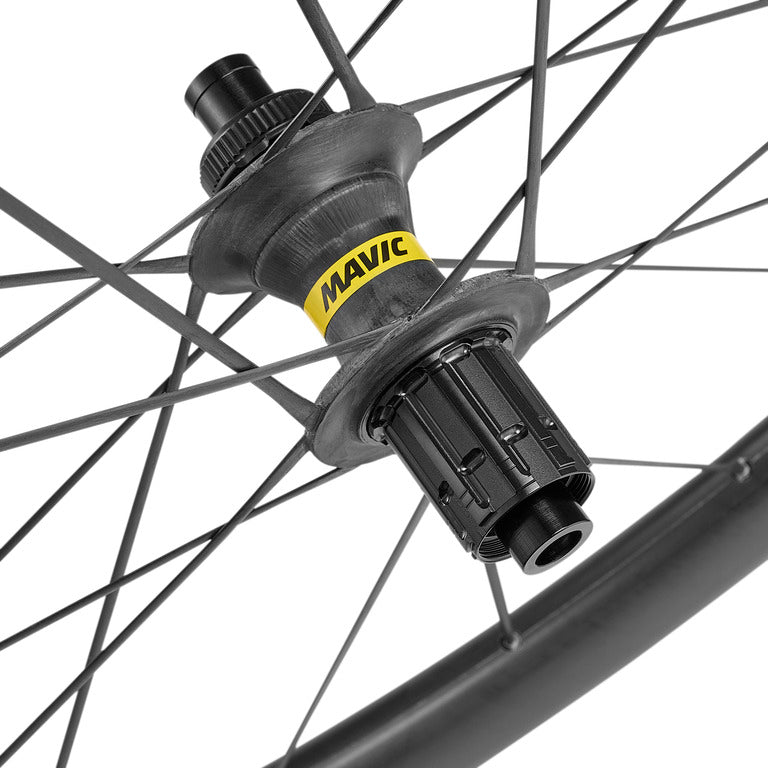

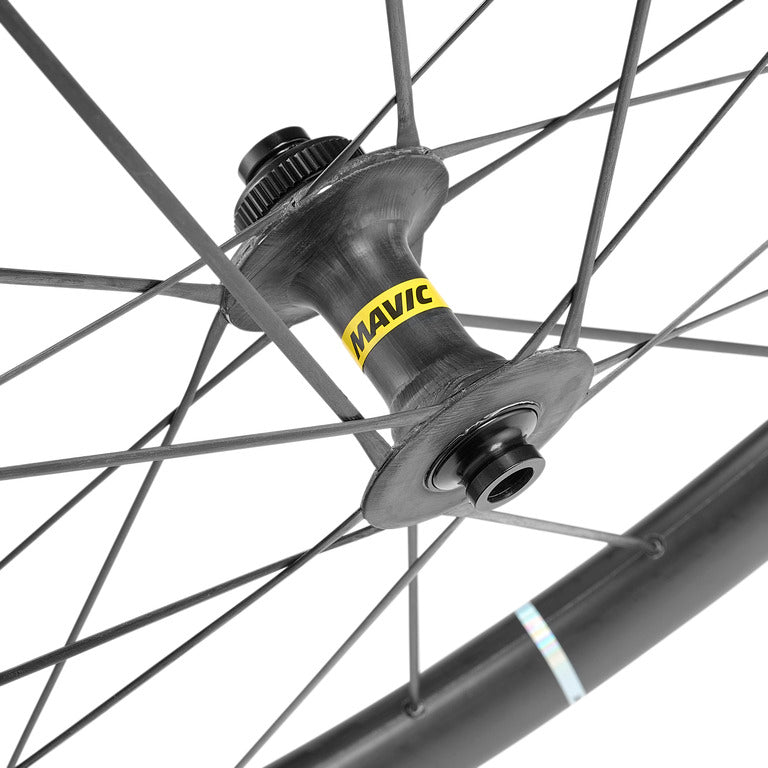

The carbon hubs feature ceramic bearings for smooth, long-lasting operation and premium performance. At the rear, the ID360 freewheel system ensures instant engagement with its 40 points, for explosive relaunching and transmission without loss of energy. Designed for through axles (12x100 / 12x142) and Center Lock disc brakes, this pair is perfectly suited to modern bikes.

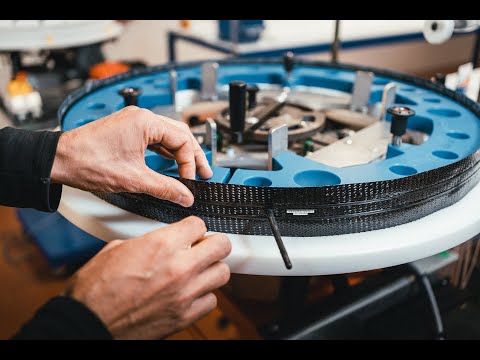

Entirely handcrafted in France at Mavic's carbon workshop in Annecy, the Cosmic Ultimate 45 Discs benefit from unique know-how. Offered with a lifetime warranty and a generous drop-in replacement policy, they represent the perfect blend of innovation, durability and ultimate performance.

Manufacturer's manual + Rim/tire compatibility chart

Manual MAVIC Road Axle Adapters

MAVIC UST Tubeless Manual

Ref: 15464268136828

Informations techniques

┘GENERAL
Pair weight: 1260 g
Front weight: 575 g
Rear weight: 685 g
ASTM: category 1: road only
Maximum load: 120 Kg (including bike weight)
Lifetime warranty and Crash Replacement (after registration)

┘JANTE
Material: 100% carbon fiber with Adaptative Lay Up outer layer
Height: 45 mm
External width: 32 mm
Internal width: 23 mm
Drilling: Fore Carbon co-moulded rimless tubeless technology (20 holes)
Radius hole reinforcements
ETRTO size: 622x23
Tire compatibility: UST Tubeless Ready
Minimum tire size: width 28mm - max. pressure 5.5Bar/80PSI
Maximum tire size: width 64mm - max. pressure 3.25Bar/47PSI
Brakes: disc

┘MOYEUX
Body material: carbon and aluminum
Disc standard: Center Lock® only
Axle material: aluminum
Axle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not supplied)
Freewheel technology: Instant Drive 360
Bearing technology : Mavic Ceramic.

┘RAYONS
Material: unidirectional carbon fiber
Shape: straight, extra-flat (front and rear)
Shelving: crossed by 2 (front and rear)
Rim-to-rim lacing system (R2R)

┘KEY TECHNOLOGIES
►ADAPTIVE LAY UP: Strategically positioned carbon layer with local reinforcement at spoke holes. Strong at some points, light everywhere else ;
► FORE CARBON: The Fore system uses metal inserts to connect the spokes to the rim, eliminating the need for a rim base ;

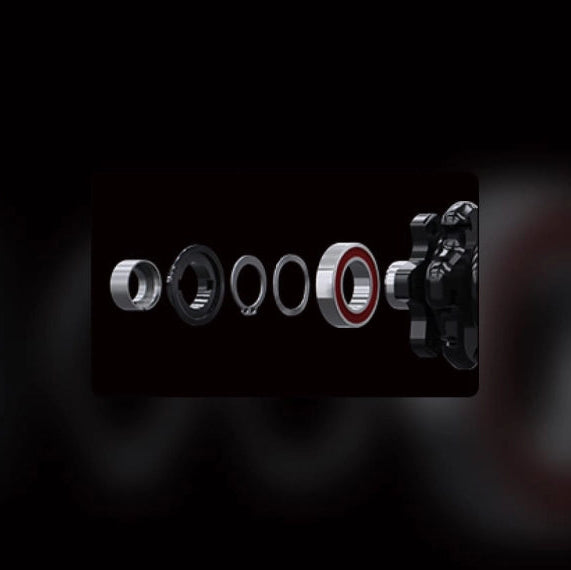

► INSTANT DRIVE 360: The Instant Drive 360 system ensures immediate transmission of effort, without inertia, with proven reliability and rapid maintenance without tools ;
► CARBON R2R spokes: lightweight, rigid and robust, from edge to edge through the hub
► Mavic Ceramic BEARINGS: premium material bearings for premium performance ;
► UST SYSTEM: UST technology offers tubeless rolling, reducing resistance, improving comfort and grip, while lightening the rim by 20g ;

┘INCLUSIVE
User guide
UST valve not mounted on wheel
Multifunction adjustment wrench + M6 spoke wrench with rear wheel

Handmade in France.
Manual molding and assembly process.
Developed and manufactured in the Mavic carbon workshop in Annecy, France.
Comes with exclusive wheel cover.

┘COMPATIBLE REFERENCES
Freewheel body: SRAM XD road convertible (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freewheel body: SHIMANO MS convertible (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately) and by changing the axle (V2373401 also sold separately)

Informations prix

Supplier suggested retail price in September 2025
