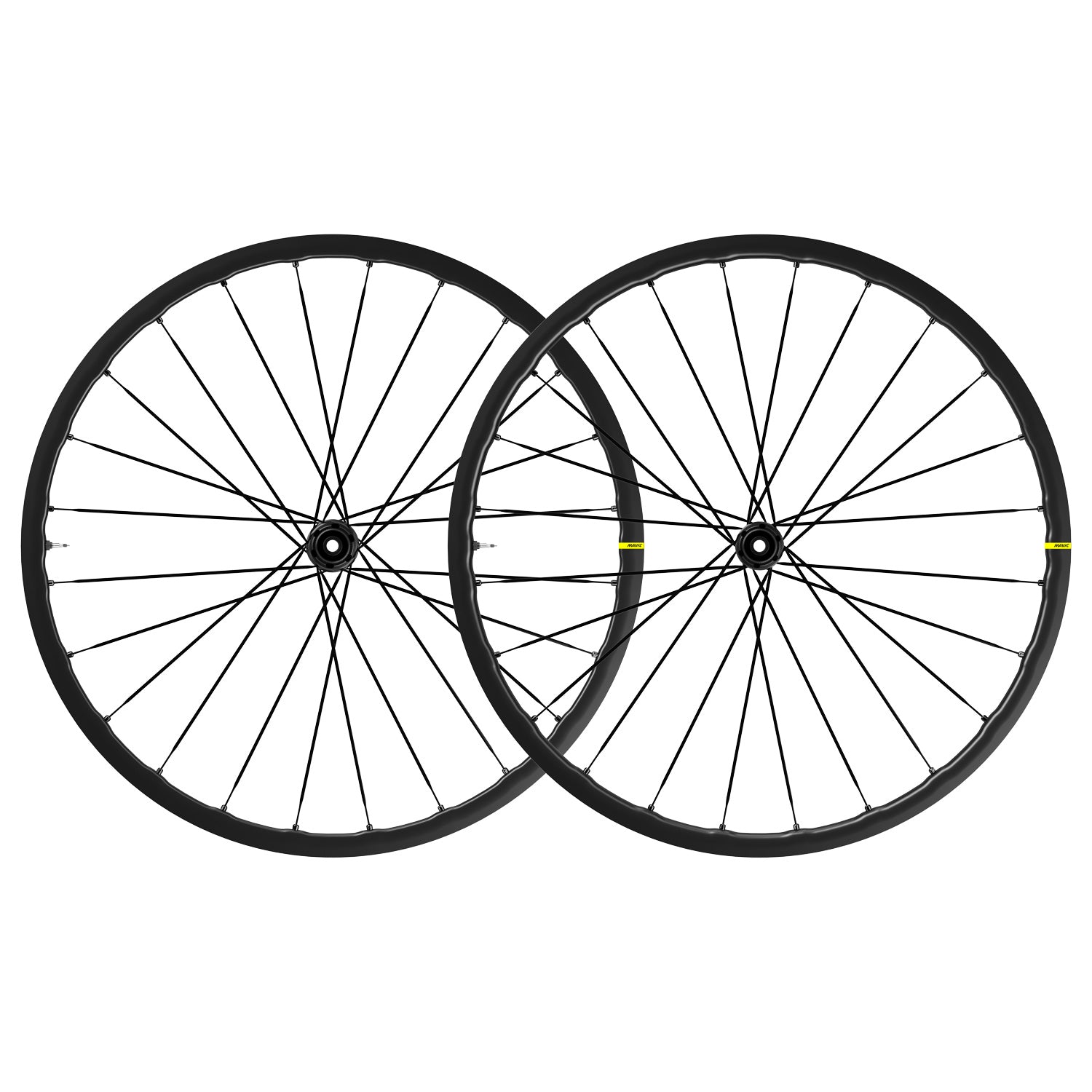

Pair of MAVIC KSYRIUM SL DISC Tubeless Ready Wheels (Center Lock)

Visit Pair of MAVIC KSYRIUM SL DISC Wheels wheels are a benchmark in the aluminum wheel category, offering exceptional lightness and durability. Thanks to the patented... Read more

Recommanded price: 729,00 €

499,90 €
596,80 € 499,90 €
-20%
View full details

Description

Visit Pair of MAVIC KSYRIUM SL DISC Wheels wheels are a benchmark in the aluminum wheel category, offering exceptional lightness and durability.

Thanks to the patented ISM4Dtechnology, the rim is optimized by eliminating excess material while maintaining strength where it's needed, reducing weight by 120g compared to the previous model.

The double-butted spokes with their patented elliptical shape not only improve responsiveness but also save 5 watts, improving overall efficiency.

Rigidity is enhanced by the Fore technologytechnology, where the undrilled upper deck ensures strength without the need for a rim base, saving 30 g.

The new Infinity hub hub platform optimizes spoking, with carefully adjusted spoke tension for maximum power transfer. Lightweight, double-reinforced flat spokes ensure maximum durability and reliability. Finally, the Instant Drive 360 freewheel system freewheel system for ultra-fast engagement.

The UST Tubeless system system improves rolling resistance and reduces the risk of punctures. The Infinity hub ensures optimum power transmission and rapid engagement.

Manufacturer's manual + Rim/tire compatibility chart

Manual MAVIC Road Axle Adapters

MAVIC UST Tubeless Manual

Ref: 9842268143965

Informations techniques

┘GENERAL
Part Number Front / Rear : F9041101 / R3697155
Weight Pair : 1575g
Front weight : 723g
Rear weight : 852g
ASTM: category 2 (road and trails with jumps less than 15 cm high)
Maximum load: 120 Kg (bike weight included)

┘JANTE
Material: Maxtal
Height: 22 mm
Seal: SUP welding technique
Internal width: 19 mm
Drilling: Fore tubeless rimless technology (24 holes)
ETRTO size: 622x19
Tire compatibility: UST Tubeless Ready / Tubetype
Minimum tire size: width 23mm - max. pressure 6.75Bar/97PSI
Maximum tire size: width 62mm - max. pressure 3.8Bar/55PSI

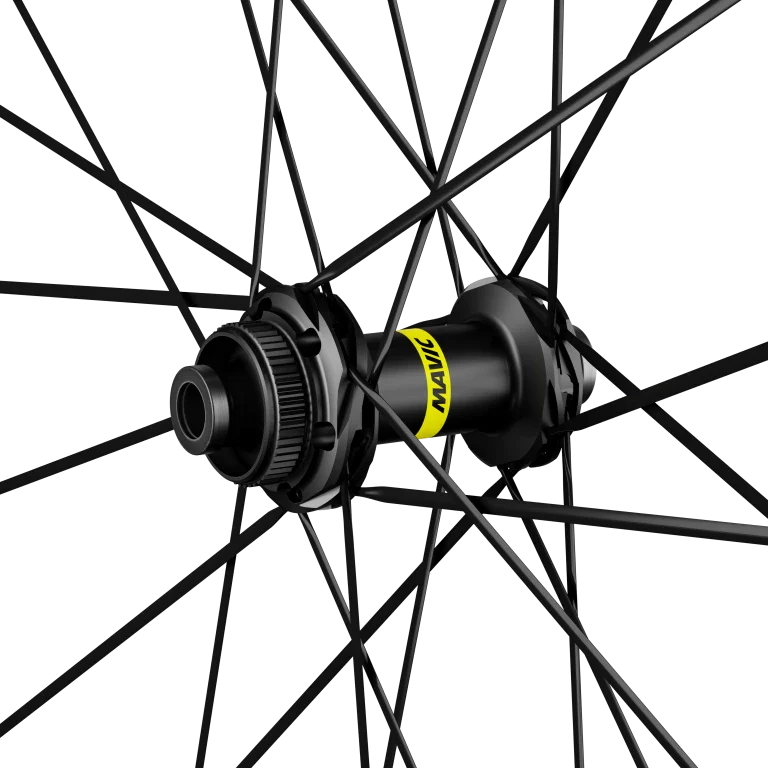

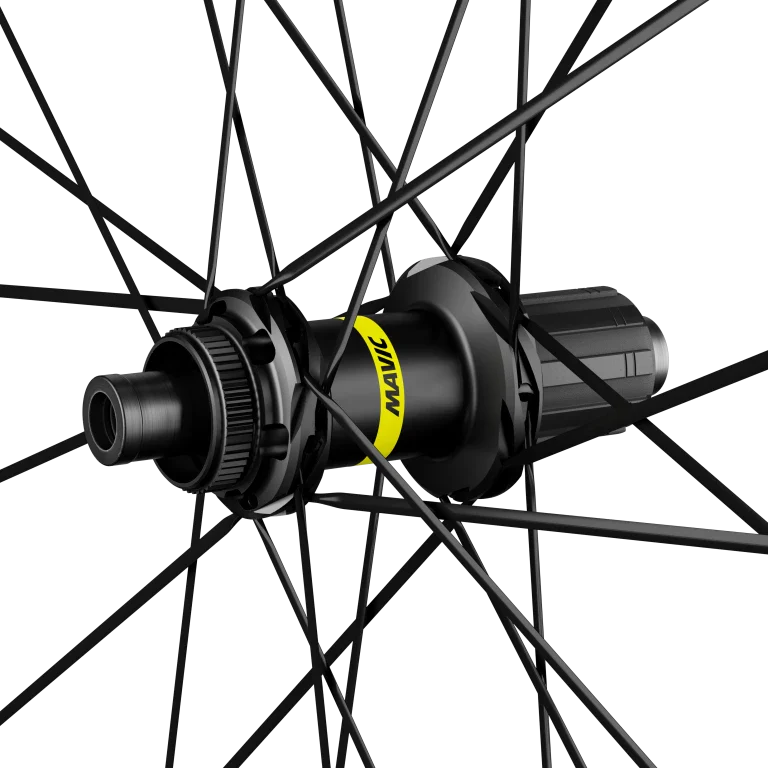

┘MOYEUX
Body material: aluminum
Body design: INFINITY
Disc standard: Center Lock® only
Spindle material: aluminum
Spindle size: front 12x100 / rear 12x142 - Convertible to quick release with adapters (not supplied)
Freewheel technology: Instant Drive 360
Freewheel: Shimano HG road
Bearing technology : QRM self-adjusting - sealed cartridge

┘RAYONS
Material: steel
Shape: straight, extra-flat, swaged, anti-rotation
Nuts: brass, black
Screws: M7
Shelving: crossed by 2

┘KEY TECHNOLOGIES
► ISM4D: ISM4D technology eliminates excess material while preserving strength, reducing weight without compromising rigidity ;
► FORE ALUMINIUM: This invention enables spokes to be screwed directly into the rim, eliminating nipples and rim tape, offering rigidity and simplicity ;
► INFINITY: Infinity hubs ensure even spoke tension, offering stability, fluidity and durability, without contact or parasitic noise, for simplified maintenance ;
► INSTANT DRIVE 360: The Instant Drive 360 system ensures immediate transmission of effort, without inertia, with proven reliability and rapid maintenance without tools ;
► QRM BEARINGS: Mavic's QRM technology uses high-precision double-sealed bearings, offering enhanced durability, low friction and minimal maintenance ;
► UST SYSTEM: UST technology offers tubeless rolling, reducing resistance, improving comfort and grip, while lightening the rim by 20g ;

┘INCLUSIONS
User guide
UST valve not mounted on wheel
2 Multifunction adjustment key with rear wheel

┘COMPATIBLE REFERENCES
Freewheel body: SRAM XD road convertible (kit V2580101 sold separately)
Freewheel body: convertible SHIMANO HG light road (kit V3850101 sold separately)
Freewheel body: convertible SHIMANO MS (kit V3990101 sold separately)
Freewheel body: convertible CAMPAGNOLO ED (kit V3440101 sold separately)
Freewheel body: convertible CAMPAGNOLO N3W (kit V4270101 sold separately)
Front axle adapters: 12x100 convertible to 9x100 (kit V2680301 sold separately)
Rear axle adapters: 12x142 convertible to 12x135 (kit V2510901 sold separately)
Rear axle adapters: 12x142 convertible to 9x135 (kit V2510801 sold separately) and by changing the axle (V2373401 also sold separately)

Informations prix

Supplier suggested retail price in February 2025
