MICHE

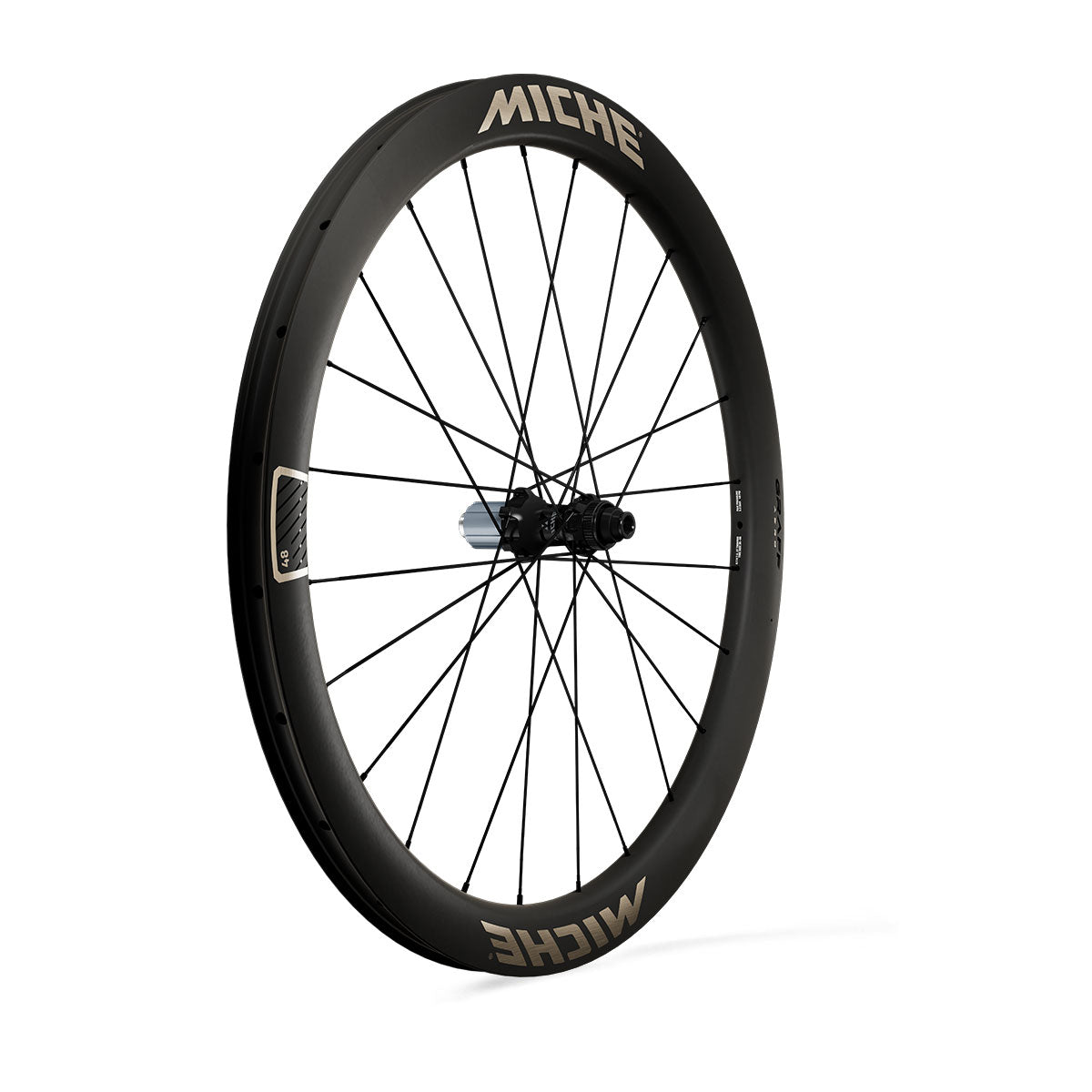

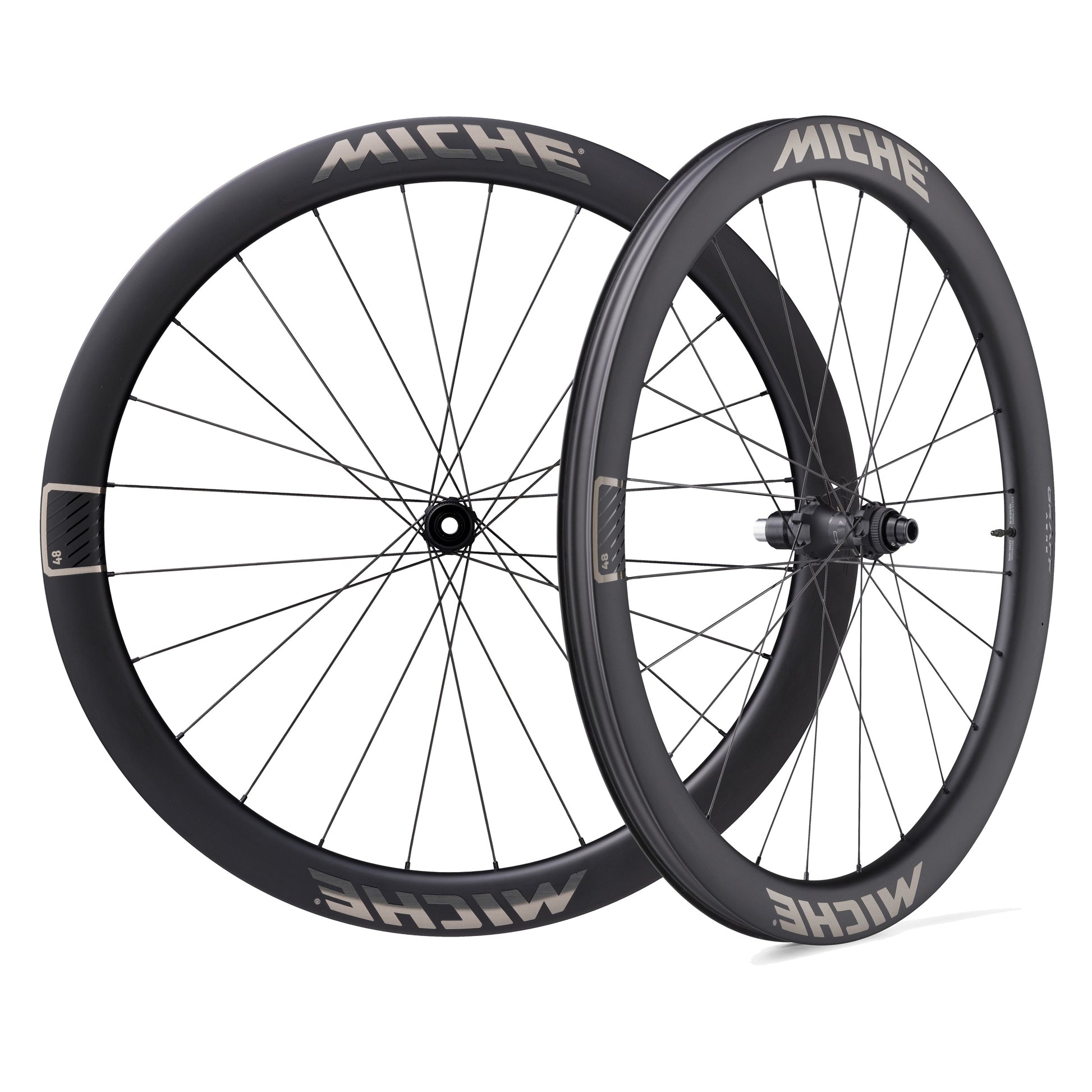

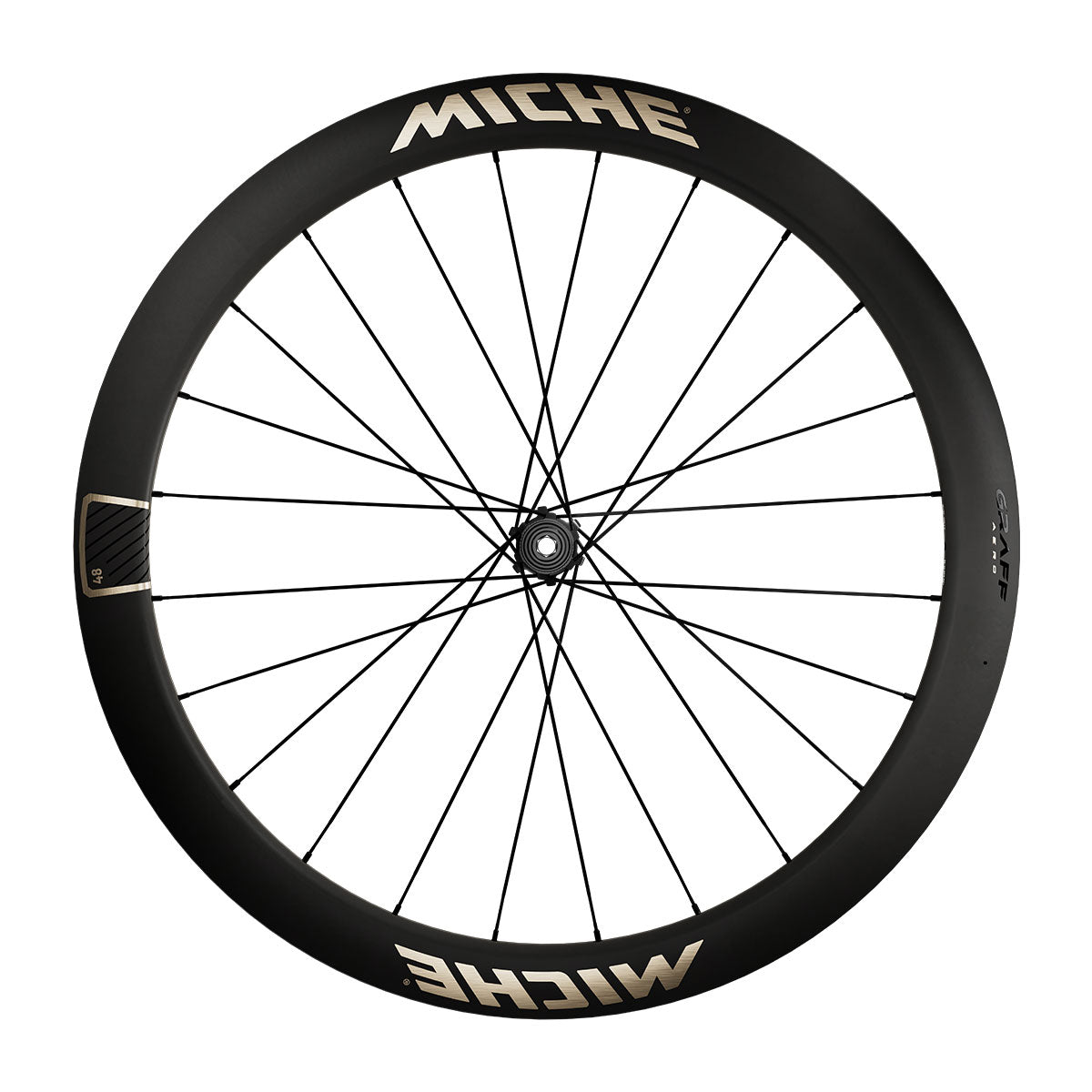

Pair of MICHE GRAFF AERO 48 Tubeless Ready Wheels (Center Lock)

Designed for high-level gravelracing, the MICHE GRAFF AERO 48 wheels combine speed, control, and reliability on all terrains. Developed in collaboration with gravel specialists,... Read more
Regular price 1.099,90 €
Regular price Sale price 1.099,90 €
View full details

Description

Designed for high-level gravelracing, the MICHE GRAFF AERO 48 wheels combine speed, control, and reliability on all terrains. Developed in collaboration with gravel specialists, including Traka and Unbound winner Ivar Slik, these carbon wheels were designed for riders seeking maximum performance. Their 48 mm aerodynamic profile optimizes air penetration and improves stability at high speeds.

The UD carbon rim features a Hookless TSS design with an internal width of 27 mm, perfectly suited for tubeless tires ranging from 35 to 60 mm. This architecture promotes tire retention, comfort, and traction on challenging trails. Combined with double-thickness aerodynamic spokes, it ensures an excellent balance between lateral stiffness and vibration absorption.

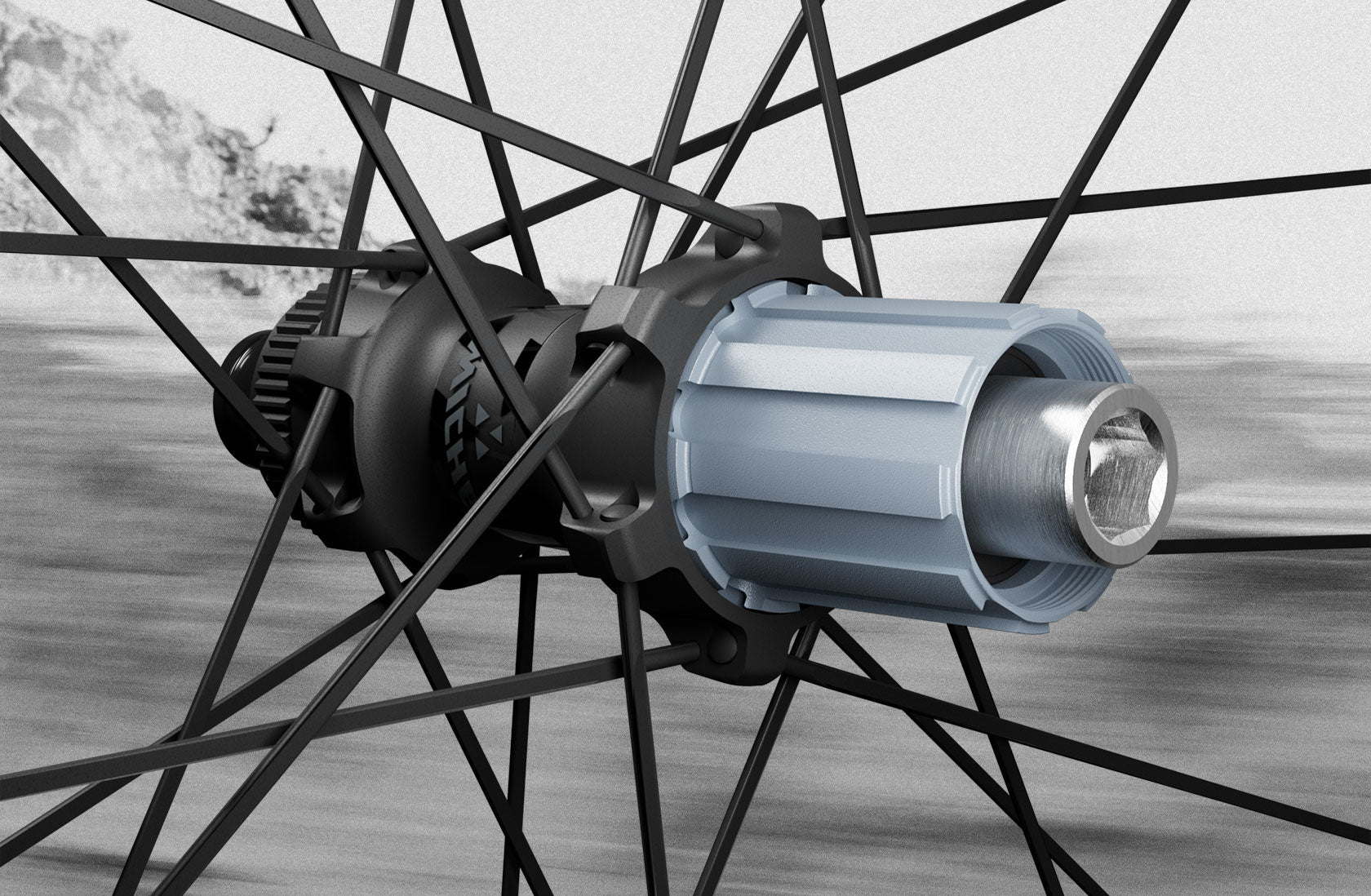

The CX-Graff hubs feature high-fluidity MICHE® bearings to ensure smooth and long-lasting rotation. The 24-hole lacing pattern with a 12+12 configuration optimizes stress distribution for greater durability during accelerations and technical sections. The RES 30 Rapid Engagement System improves responsiveness and power transfer.

Compatible with Shimano HG or SRAM XDRcassettes ,the GRAFF AERO 48 is designed for demanding riders seeking a high-performance, fast wheel set ready for modern gravel racing.

Ref: 15964693987708

Informations techniques

┘GENERAL
Poids (fabricant) Paire : 1525g
ASTM : catégorie 2
Charge maximale : 108 Kg

┘JANTE
Matériau : UD Carbone symétrique, Hookless TSS
Hauteur : 48 mm
Largeur interne : 27 mm
Perçage : 24 trous
Taille ETRTO: 622x27
Compatibilité Pneu : Tubeless
Taille minimale du pneu: largeur 35mm
Taille maximale du pneu: largeur 60mm

┘MOYEUX
Matériau du corps: Aluminium AL 7075 T6
Standard de disque: Center Lock®
Taille de l'axe: avant 12x100 / arrière 12x142
Technologie de la roue libre :
RES 30 Rapid Engagement System
Roue libre : Shimano HG route ou Sram XDR - Alliage Aluminium AL 7075 T6 et Acier
Technologie des roulements : MICHE® 2RS

┘RAYONS
Matériau: Acier inoxydable
Forme: Aero, straight pull, aero, double butted
Ecrous: AL 7075 T6 / Noir
Rayonnage: 24 / Croisée

┘TECHNOLOGIES CLÉS
► RES 30 RAPID ENGAGEMENT : La technologie RES 30 Rapid Engagement System de Miche optimise l'engagement du moyeu grâce à 30 points d’accroche, offrant une réactivité et une transmission de puissance maximales ;
► MICHE®2RS : La technologie MICHE® 2RS utilise des roulements à double étanchéité, garantissant une protection optimale contre poussière et humidité, assurant fluidité, durabilité et faible entretien ;

┘INCLUS
Guide utilisateur
Sacoche de roues
Écrou Centerlock externe
Adaptateur CL>IS6

┘REFERENCES COMPATIBLES
► Corps de Roue Libre Shimano HG : FWSW0BS
► Corps de Roue Libre XDR : FWSW0BX
► Corps de Roue Libre Campagnolo N3W : FWSW0BN
