DT SWISS

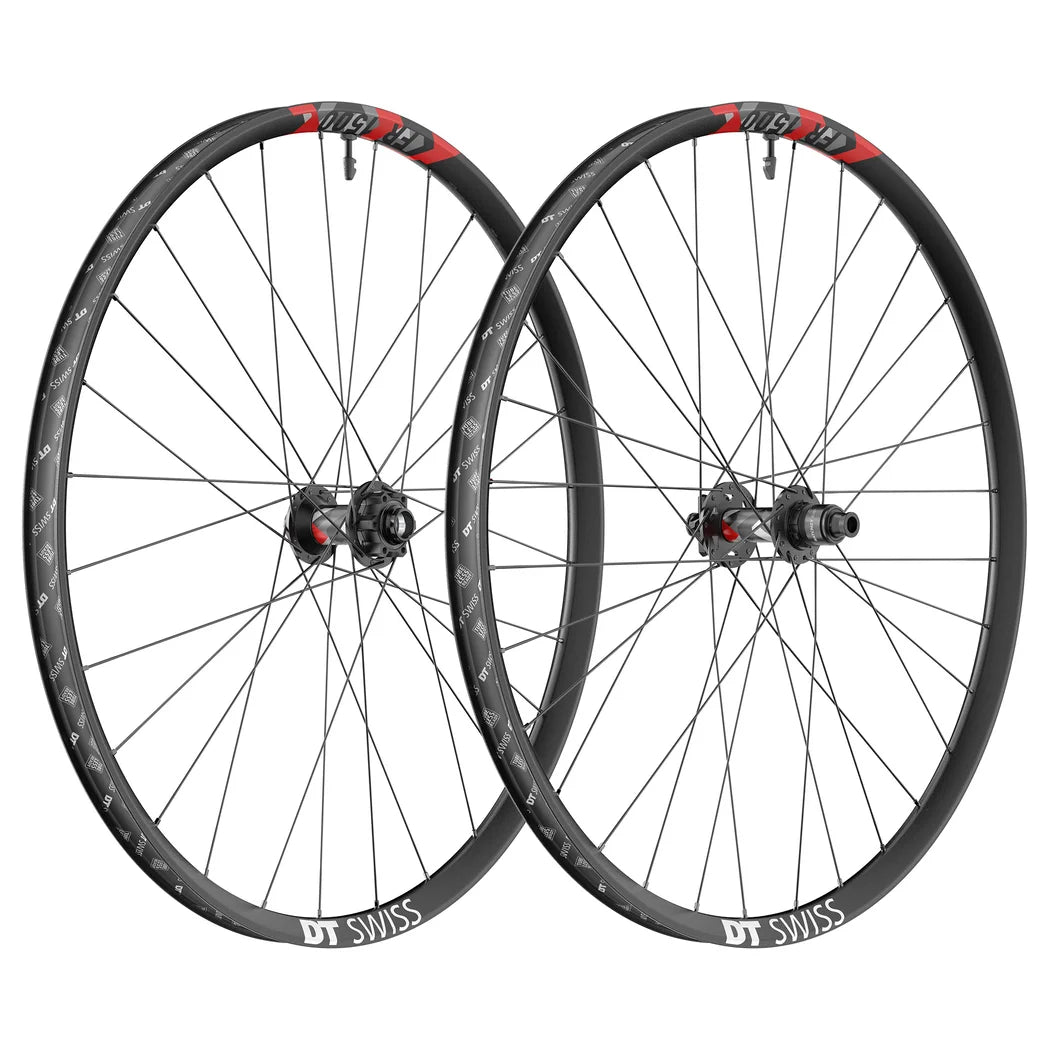

DT SWISS FR 1500 CLASSIC 30 mm 29" 12x157/20x100 mm Wheelset

The DT SWISS FR 1500 CLASSIC wheelset was developed to withstand the most demanding stresses encountered in downhill and freeride. Designed to offer maximum... Read more
Regular price 699,90 €
Regular price 759,80 € Sale price 699,90 €
-10%
View full details

Description

The DT SWISS FR 1500 CLASSIC wheelset was developed to withstand the most demanding stresses encountered in downhill and freeride. Designed to offer maximum solidity and durability, it is capable of absorbing repeated impacts, heavy compressions and the most committed landings. Thanks to its new rim profile, this wheelset combines robustness and weight optimisation to guarantee more dynamic and precise handling on the most demanding terrain.

Made from aluminium, the rims feature localised reinforcements that increase their resistance to shocks and deformation. The redesigned sidewalls also improve protection against pinch flats, an essential advantage for riders tackling technical and rough trails. This design maintains excellent stability and high reliability, even during the most demanding sessions.

The wheels are fitted with DT Swiss 240 hubs paired with Ratchet EXP 36 technology, ensuring efficient, reliable and durable power transfer. The DT Competition® spoke pattern is distributed with 28 spokes at the front and 32 at the rear to provide an optimal balance between stiffness, steering precision and resistance to high loads. DT ProLock nipples contribute to maintaining spoke tension over time and preserving the wheel's performance throughout its lifespan.

With their 30 mm internal width, Tubeless Ready compatibility and ASTM 5 certification suited to the most intensive use, the FR 1500 CLASSIC wheels are aimed at riders seeking a high-performance and reliable wheelset capable of handling the demands of modern riding while maintaining precision, stability and robustness ride after ride.

Ref: 16022697509244

Technical information

Use: DH/Freeride
Rim: Aluminium 29"
Construction: welded
Tyre interface: Hooked / Crotchet Tubeless TC
Internal width: 30 mm
External width: 35 mm
Rim height: 21 mm
Valve: Presta
Tubeless Ready compatible

Hubs: DT Swiss 240
Technology: Ratchet EXP 36
Braking: Disc IS 6-bolt
Spokes: DT Competition® (32 rear and 28 front)
Lacing: Three-cross (1:1)
Nipples: DT Pro Lock Squorx ProHead aluminium
Axle: 12x157 mm SuperBoost and 20x110 mm front
Available freehub bodies:
Sram XD fitted and Shimano HG additionally supplied
or
Shimano HG only

Weight: 1073 g rear and 1008 g front depending on version
Maximum system weight: 140 kg
Certification: ASTM 5
E-MTB compatibility: Yes, up to 250 W / 32 km/h

Included accessories: 32 mm Tubeless rim tape
Black aluminium Tubeless valve 18-25 mm
