SHIMANO

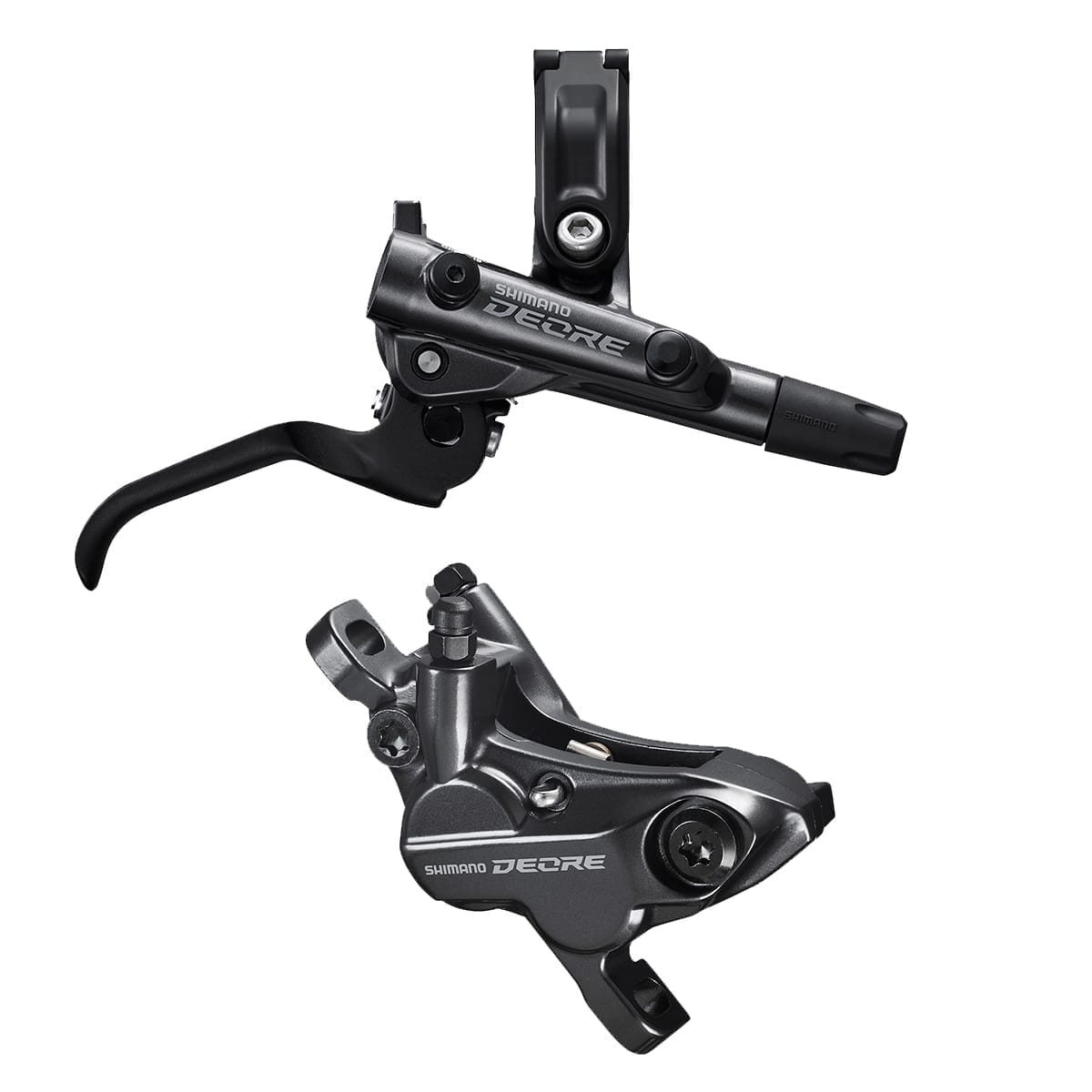

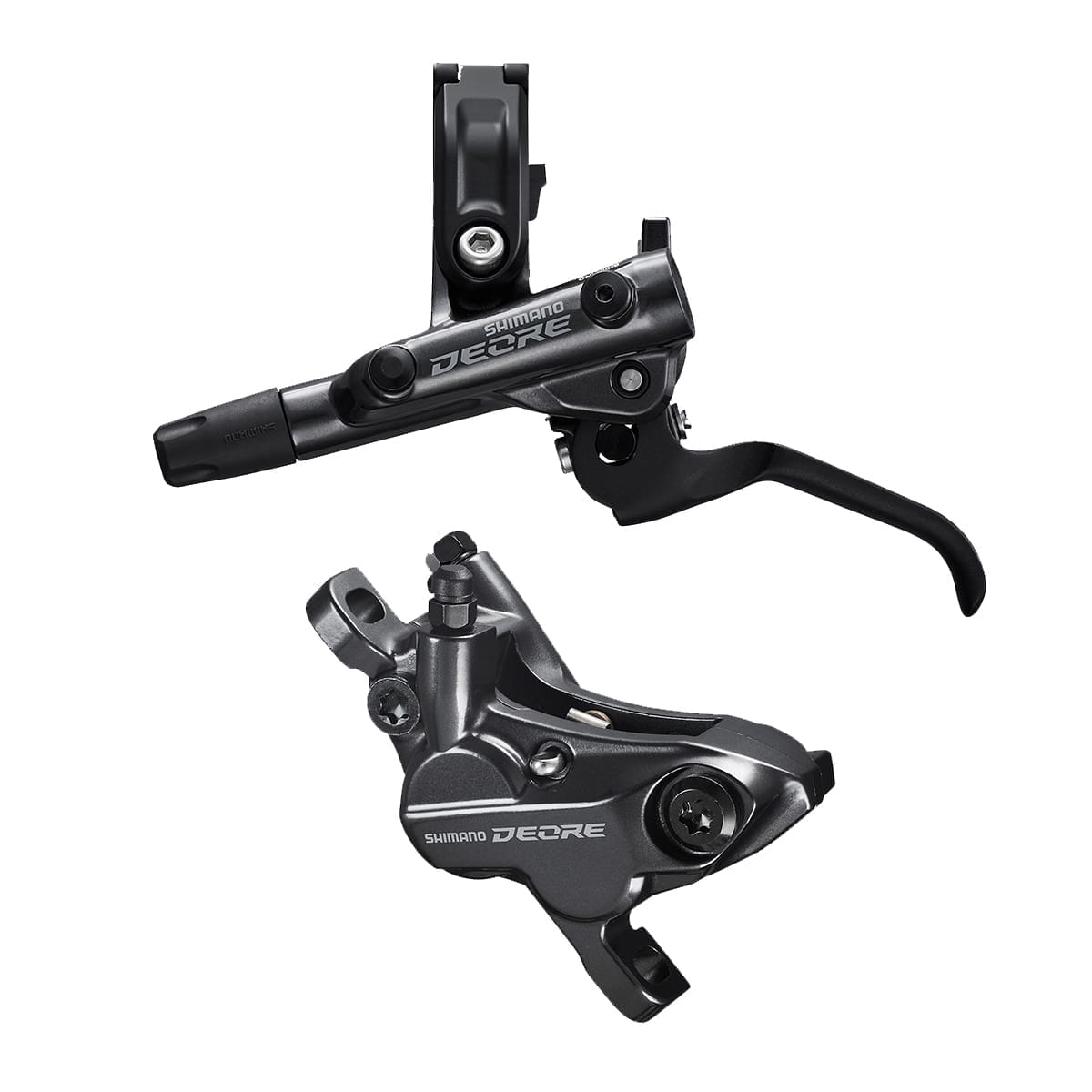

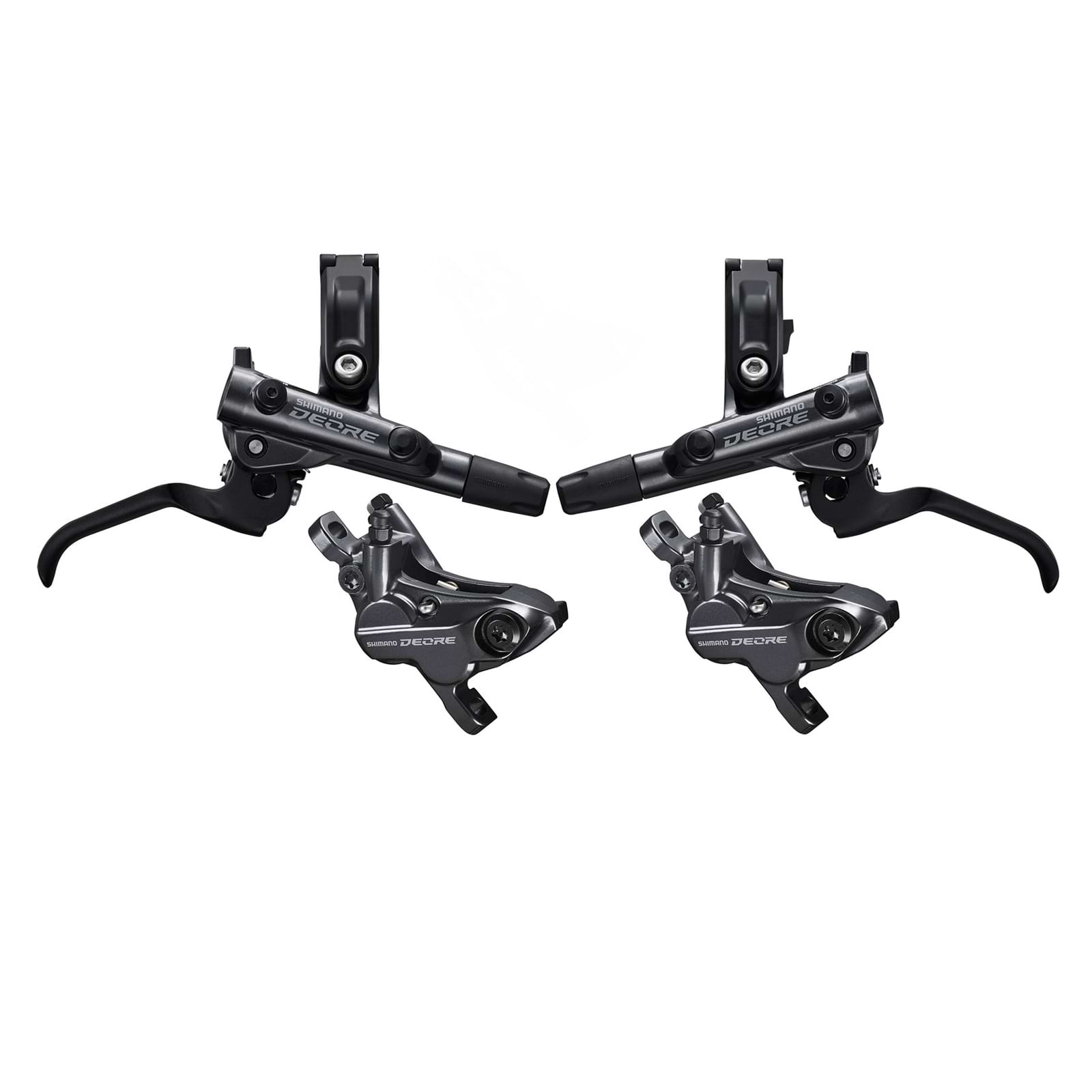

Pair of SHIMANO DEORE M6120 4 Piston J-KIT Discless Brakes

Pair of SHIMANO Deore M6120 brakes allows you to benefit from the Japanese manufacturer's design quality, at a very competitive price! This versatile model,... Read more
Regular price 229,90 €
Regular price Sale price 229,90 €
View full details

Description

Pair of SHIMANO Deore M6120 brakes allows you to benefit from the Japanese manufacturer's design quality, at a very competitive price! This versatile model, ideal for leisure mountain biking, can be used on all types of outings (from Trail toEnduro). Simple and practical to install, it is supplied here in a Junction-Kit designed above all for frames with internal ducting.

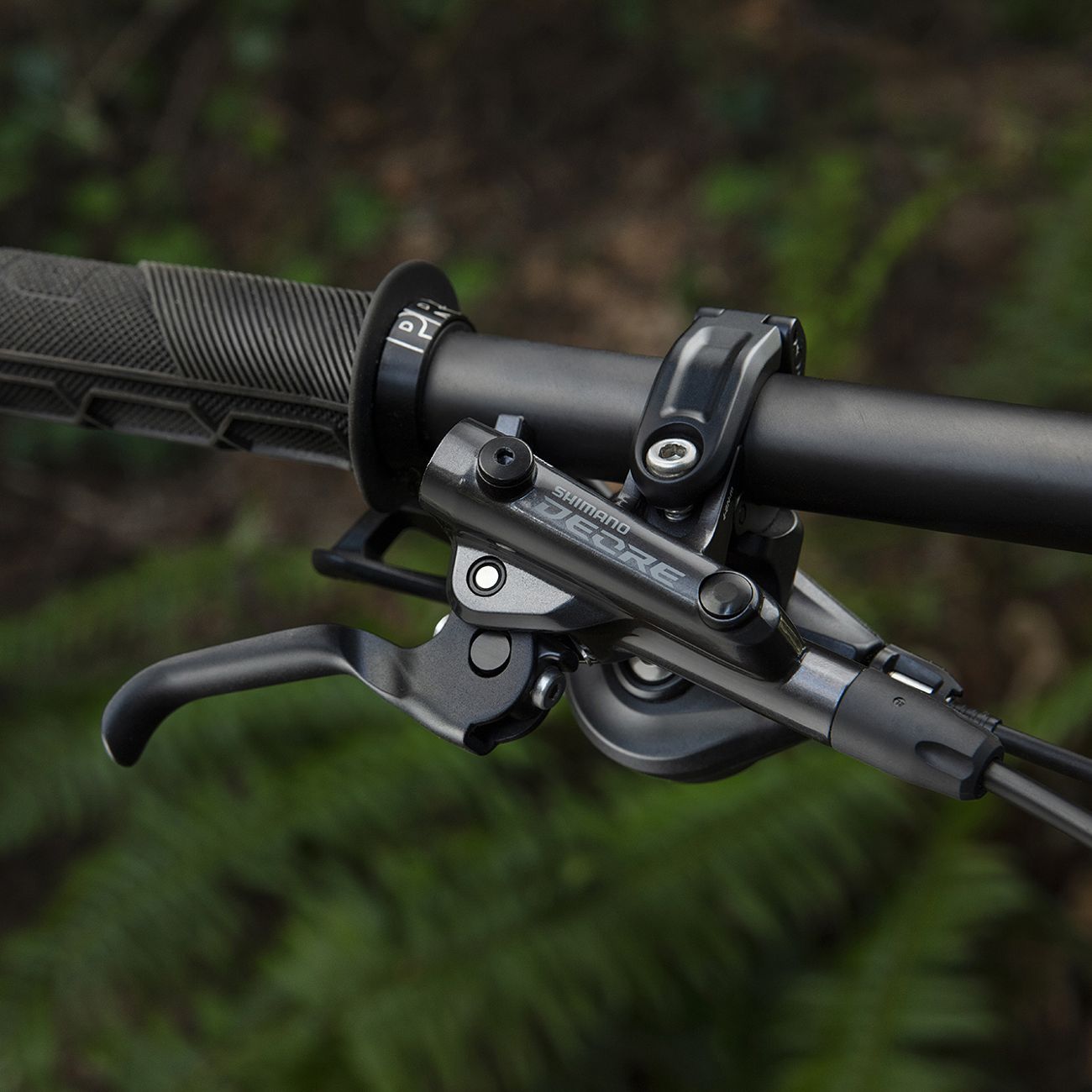

The ergonomic lever incorporates Servo Wave technology, which provides precise, almost instantaneous braking. It also features an additional contact point on the handlebars to stiffen the assembly and ensure a precise feel. The streamlined design, especially the clamp, is inspired by top-of-the-range Shimano models.

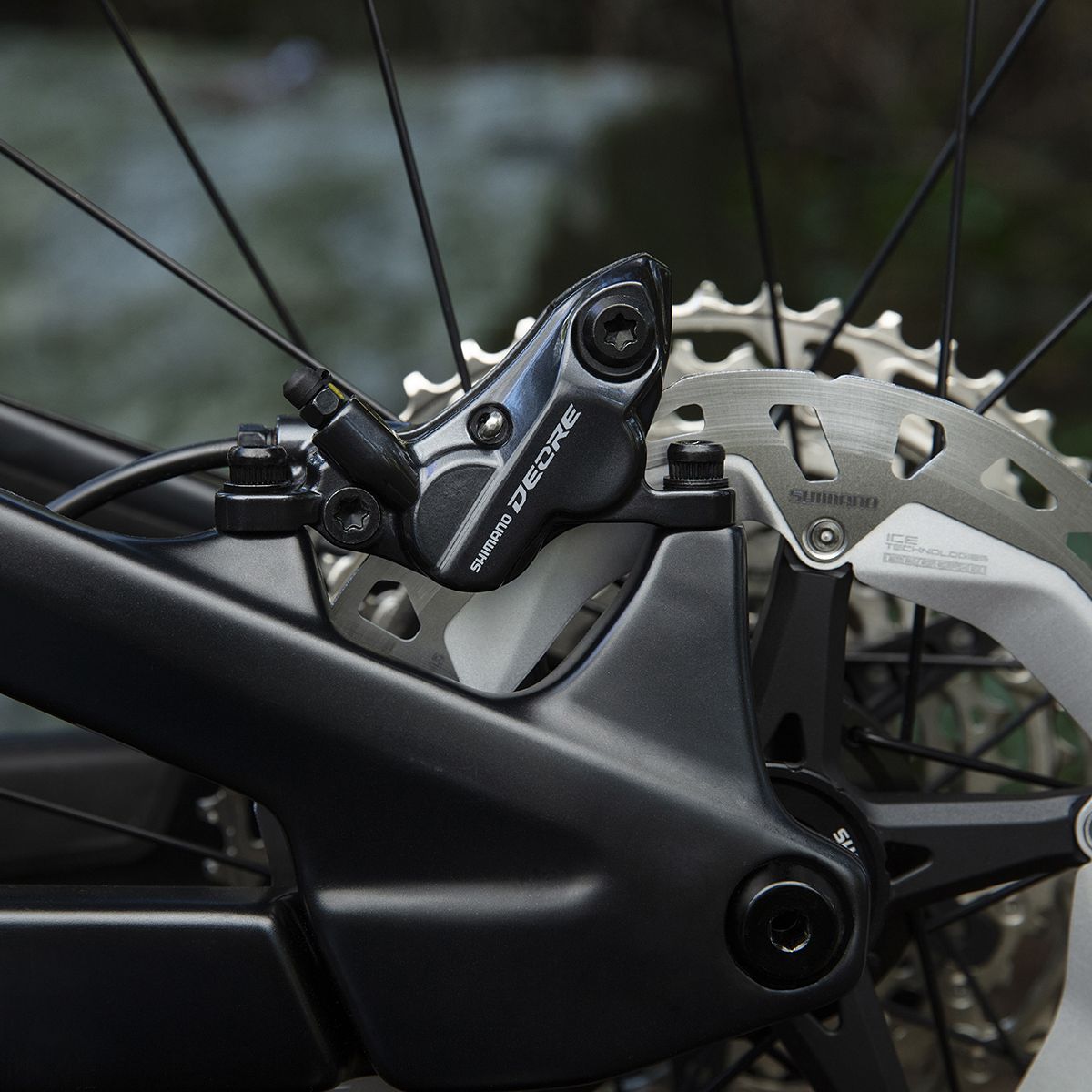

As for the BR-M6120 caliper, based on a reliable and efficient four-piston system in two different sizes. It features a light, rigid design, engineered for a smooth attack of the pads on the disc, but also to ensure a large contact surface for reduced noise, a clean feel and easy power metering.

Ref: 9182102716765

Points forts

Versatility and power

Lightweight, rigid caliper

Servo Wave mechanism for precise, powerful metering with a short stroke

One-Way bleed system and mineral oil for easy maintenance

Compatible with I-Spec EV systems: a single clamp for brake lever and shifter

Informations techniques

Deore BR-M6120 brake caliper :
Aluminum caliper Ice Technologies ;
4-piston ;
Original brake pads: D03S (organic) ;
Compatible pads: D02S (Metal)
Ice-Tech ventilated pads compatible ;
One Way Bleeding system ;
SM-BH90-SBLS hose;
Recommended disks: SM-RT64, SM-RT66, SM-RT54 and SM-RT56.
Deore BL-M6100 lever:
Ergonomic 2-finger, non-slip aluminum lever;
Servo Wave mechanism;
Guard adjustment with tool;
I-Spec EV mounting.
Model year: 2020
Color: Gray
Disc : Not supplied
Warranty : 2 ans
Brake fluid : Mineral
Hose length: Rear 170 cm
Lever material: Aluminum
Pads : Organic
Practice: All Mountain
Practice: Enduro
Caliper type: 160 PM Rear
Hose type: Standard
Brake type: Front/Rear

J-Kit brake assembly:
- Position your brake lever on the bike handlebars
- Mount your brake caliper on the fork and/or frame
- Route the brake hose through the internal passage in your frame (if your bike is so equipped).
- Remove the black rubber plug from the end of the hose
- Remove the yellow end caps from the brake levers.
- Slide the black rubber nut cover over the hose
- Do not remove the small white cap from the end of the hose.
- Insert brake hose into lever nut
- Keeping the hose at the bottom of the lever nut, tighten the nut to compress the olive inside the lever. There's no need to overtighten, as the nut thread should remain visible, and is then masked by the nut cover you slid over the hose earlier.
- Now you can operate the brake to finalize its installation.

PM = Postmount
IS = International Standard Mounting
If the spacing between the two caliper mounting bolts (on frame or fork) is 74mm, this corresponds to a PM mounting. If the spacing is 51mm, it's an IS mounting.
