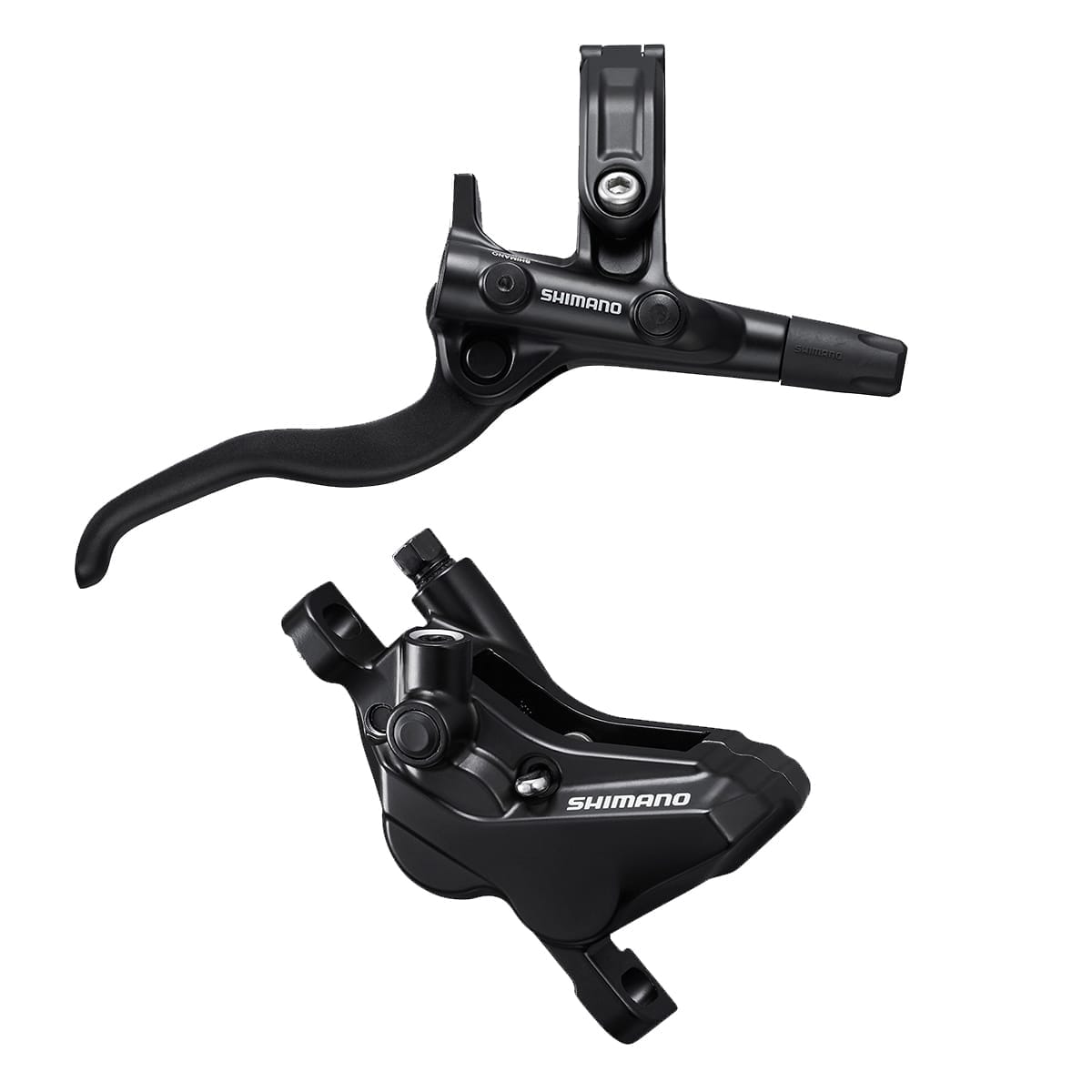

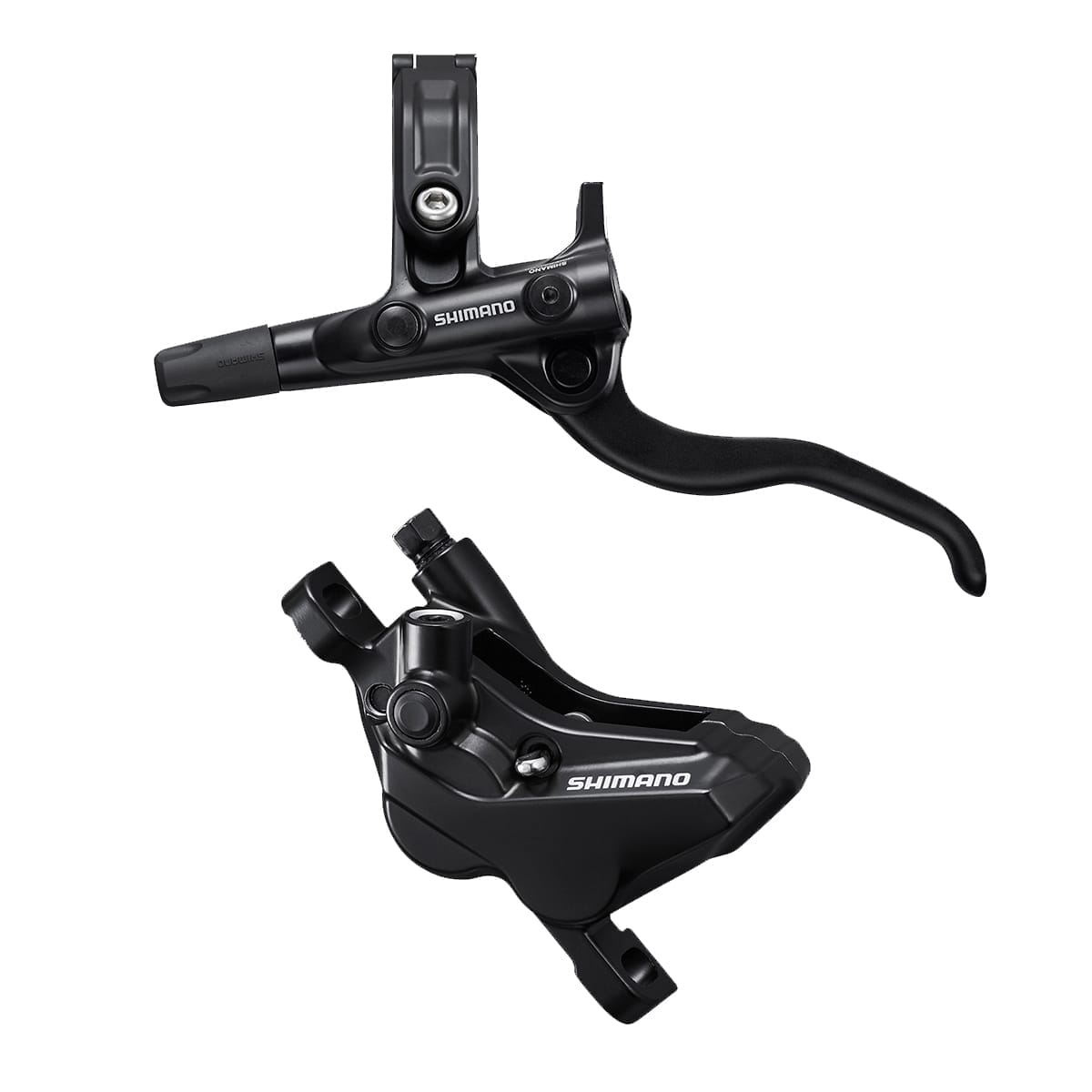

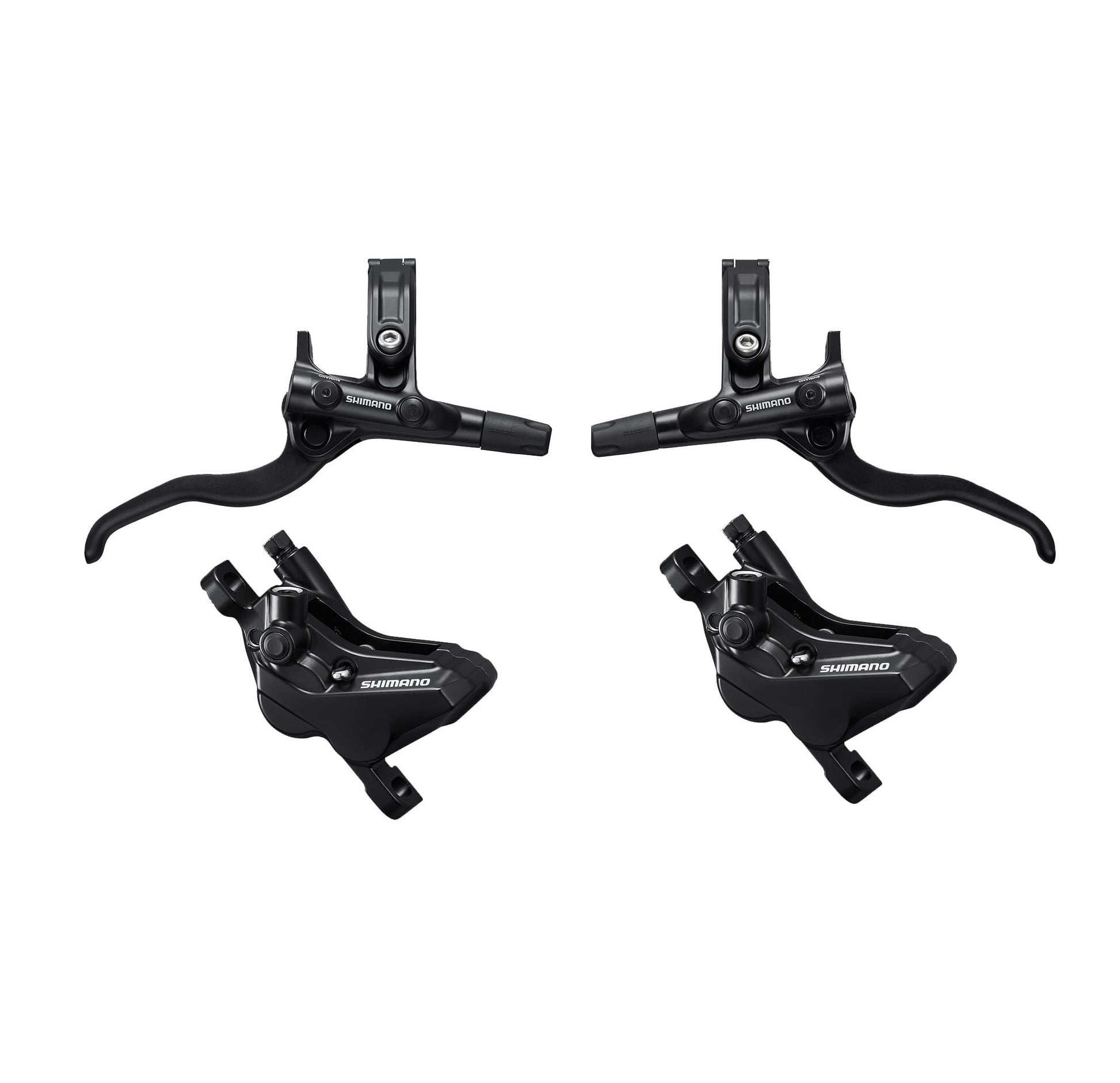

Pair of SHIMANO MT420 4 Piston J-KIT Discless Brakes

Pair of brakes SHIMANO MT420 allows you to benefit from the Japanese manufacturer's design quality, at a very competitive price! This high-performance model, ideal... Read more
Regular price 149,90 €
Regular price Sale price 149,90 €
View full details

Description

Pair of brakes SHIMANO MT420 allows you to benefit from the Japanese manufacturer's design quality, at a very competitive price! This high-performance model, ideal for leisure mountain biking, can be used on all types of outings (from the Hiking to All Mountain). Simple and practical to install, it is supplied here in a Junction-Kit designed above all for frames with internal ducting.

The lever allows two-finger braking, while the reach adjustment is suitable for small hands. It also features an additional contact point on the handlebars to stiffen the assembly and ensure a precise feel.

As for the BR-MT420 caliper, it's based on a reliable, powerful four-piston system in two different sizes. It features a reliable design, engineered for a smooth attack of the pads on the disc, but also to ensure a large contact surface for reduced noise, a clean feel and easy power metering.

Ref: 9201273274717

Points forts

20% more powerful than its 2-piston counterpart;

Heats up less and withstands long descents better;

One-Way bleeding system and mineral oil for easy maintenance;

Compatible with I-Spec EV systems: a single clamp for brake lever and shifter.

Informations techniques

Deore BR-MT420 brake caliper :
Aluminum caliper ;
4-piston ;
Original brake pads: D03S (organic) ;
Compatible pads: D02S (metallic) ;
One Way Bleeding system ;
SM-BH90-SS hose ;
Recommended disks: SM-RT30*, SM-RT54*, SM-RT56* and SM-RT64 ;
*Compatible only with resin (organic) inserts;
Deore BL-M4100 lever:
Ergonomic 2-finger, non-slip aluminium lever;
Guard adjustment with tool;
I-Spec EV attachment.

Model year: 2020
Color: Black
Disc : Not supplied
Warranty : 2 ans
Brake fluid : Mineral
Hose length: Rear 170 cm
Lever material: Aluminum
Pads : Organic
Practice: All Mountain
Practice: Hiking
Caliper type: 160 PM Rear
Hose type: Standard
Brake type: Front/Rear

J-Kit brake assembly:
- Position your brake lever on the bike handlebars
- Mount your brake caliper on the fork and/or frame
- Route the brake hose through the internal passage in your frame (if your bike is so equipped).
- Remove the black rubber plug from the end of the hose
- Remove the yellow end caps from the brake levers.
- Slide the black rubber nut cover over the hose
- Do not remove the small white cap from the end of the hose.
- Insert brake hose into lever nut
- Keeping the hose at the bottom of the lever nut, tighten the nut to compress the olive inside the lever. There's no need to overtighten, as the nut thread should remain visible, and is then masked by the nut cover you slid over the hose earlier.
- Now you can operate the brake to finalize its installation.

PM = Postmount
IS = International Standard Mounting
If the spacing between the two caliper mounting bolts (on frame or fork) is 74mm, this corresponds to a PM mounting. If the spacing is 51mm, it's an IS mounting.
