SHIMANO

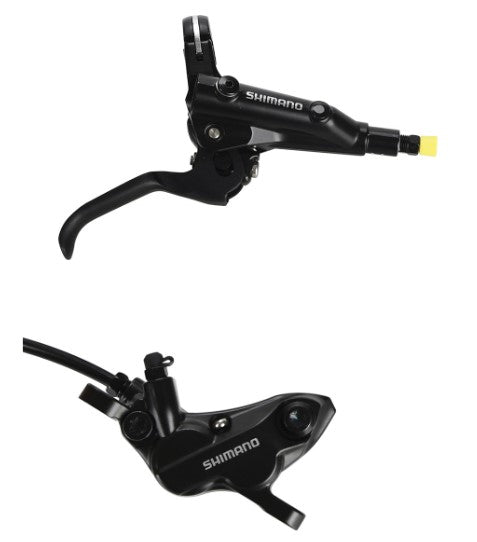

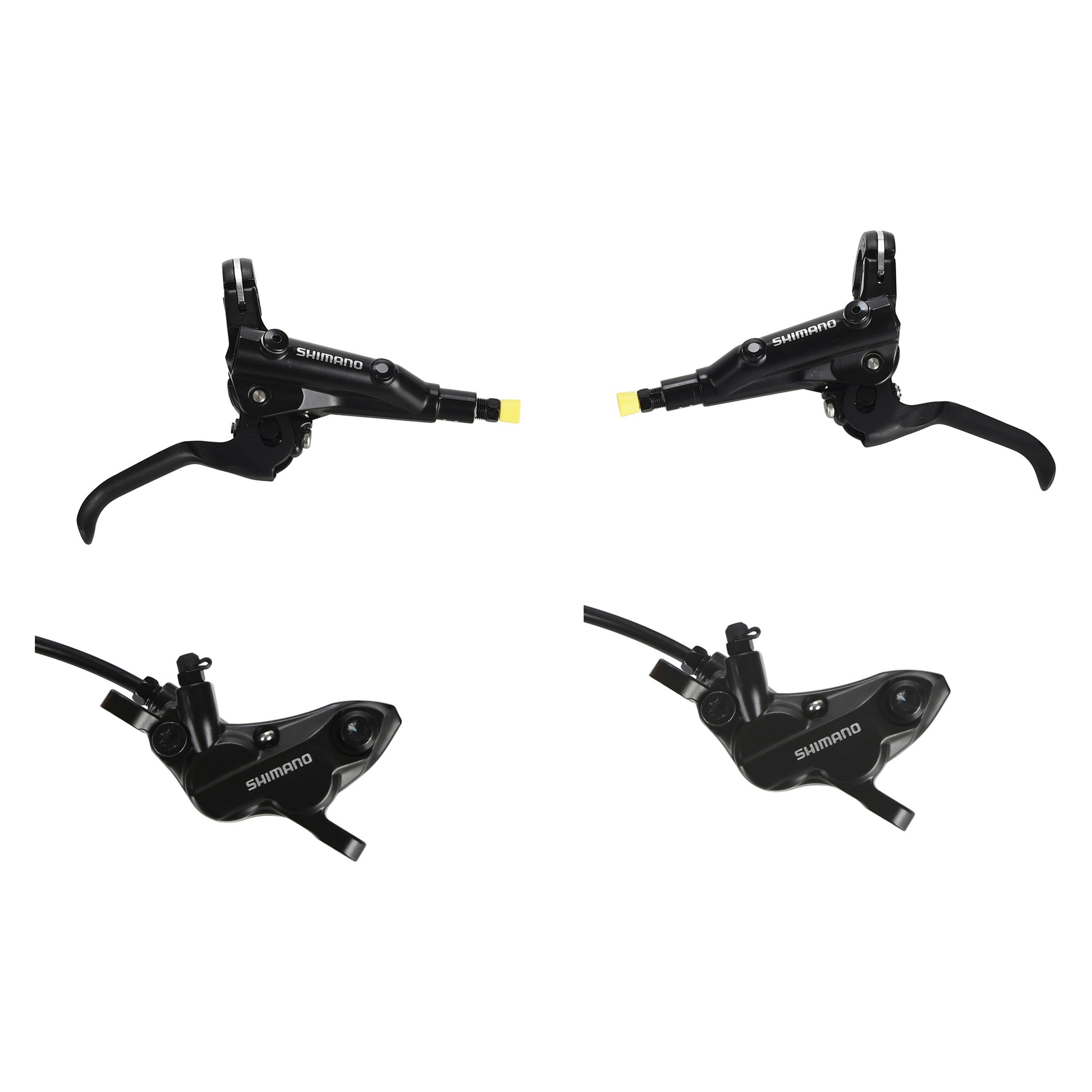

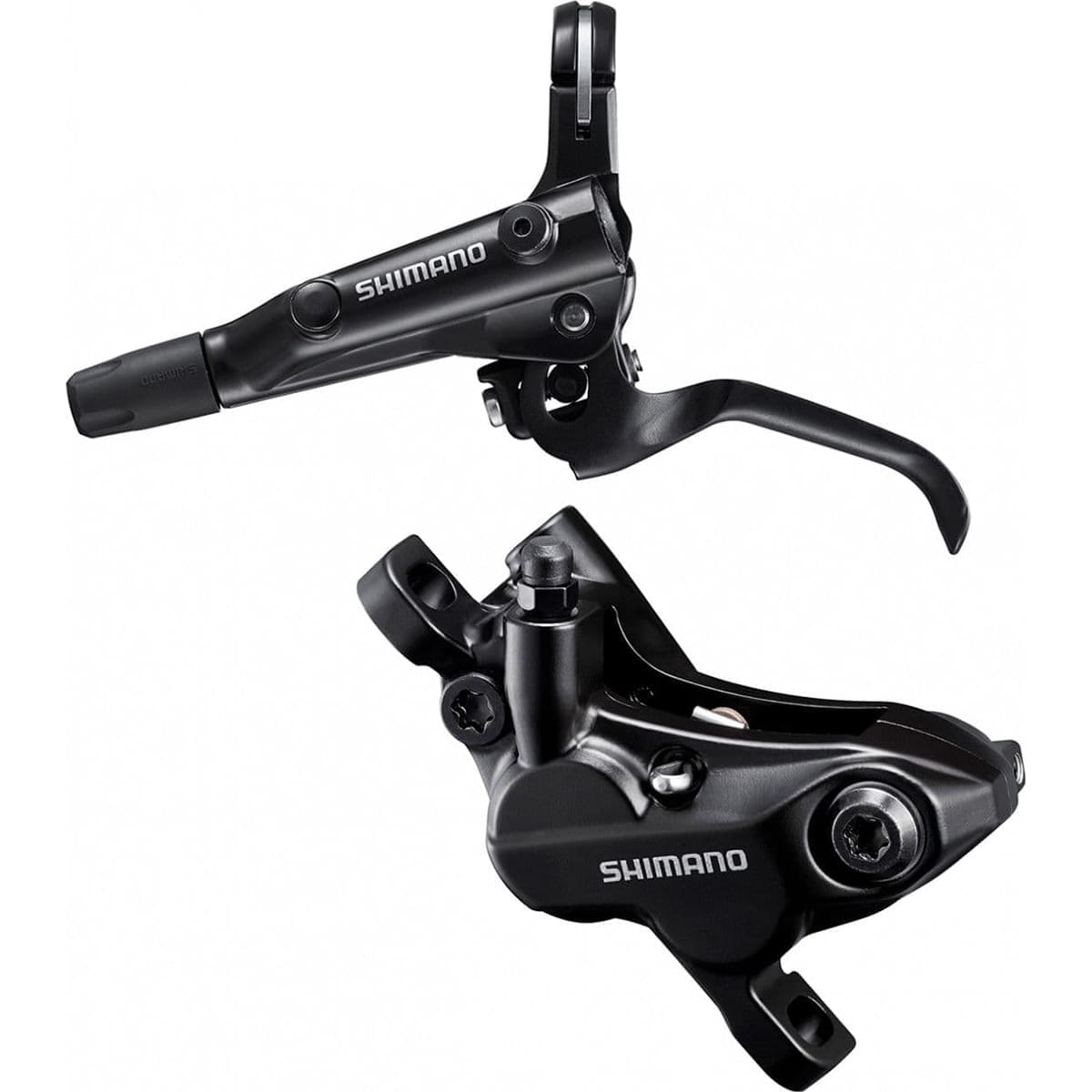

Pair of SHIMANO MT520 4 Piston J-KIT Discless Brakes

This Pair of hydraulic brakes SHIMANO MT520 J-Kit is a powerful yet easy-to-maintain model that can be fitted to a mountain bike for sporty outings... Read more
229,90 €
229,90 €
View full details

Description

This Pair of hydraulic brakes SHIMANO MT520 J-Kit is a powerful yet easy-to-maintain model that can be fitted to a mountain bike for sporty outings or a trekking bike.

The aluminum lever features secure "2-finger" ergonomics, and the shift height can be adjusted for personalized comfort. It also benefits from Servo-Wave technology, which ensures a short stroke to find a precise contact point on the disc, thus ensuring excellent responsiveness, as well as great power!
The 2-piston caliper also benefits from an aluminum design, to ensure reliable, solid braking.

Simple and practical to install, it comes here in a Junction-Kit version designed above all for frames with internal cable routing. What's more, the system is easy to bleed thanks to the One Way Bleeding hydraulic circuit.

Ref: 9200940646749

Points forts

A very competitive price

2-finger lever ergonomics

Servo Wave mechanism for precise, powerful dosing with a short stroke

One-Way purge system and mineral oil for easy maintenance

Compatible with I-Spec II systems: a single clamp for brake lever and shifter

Informations techniques

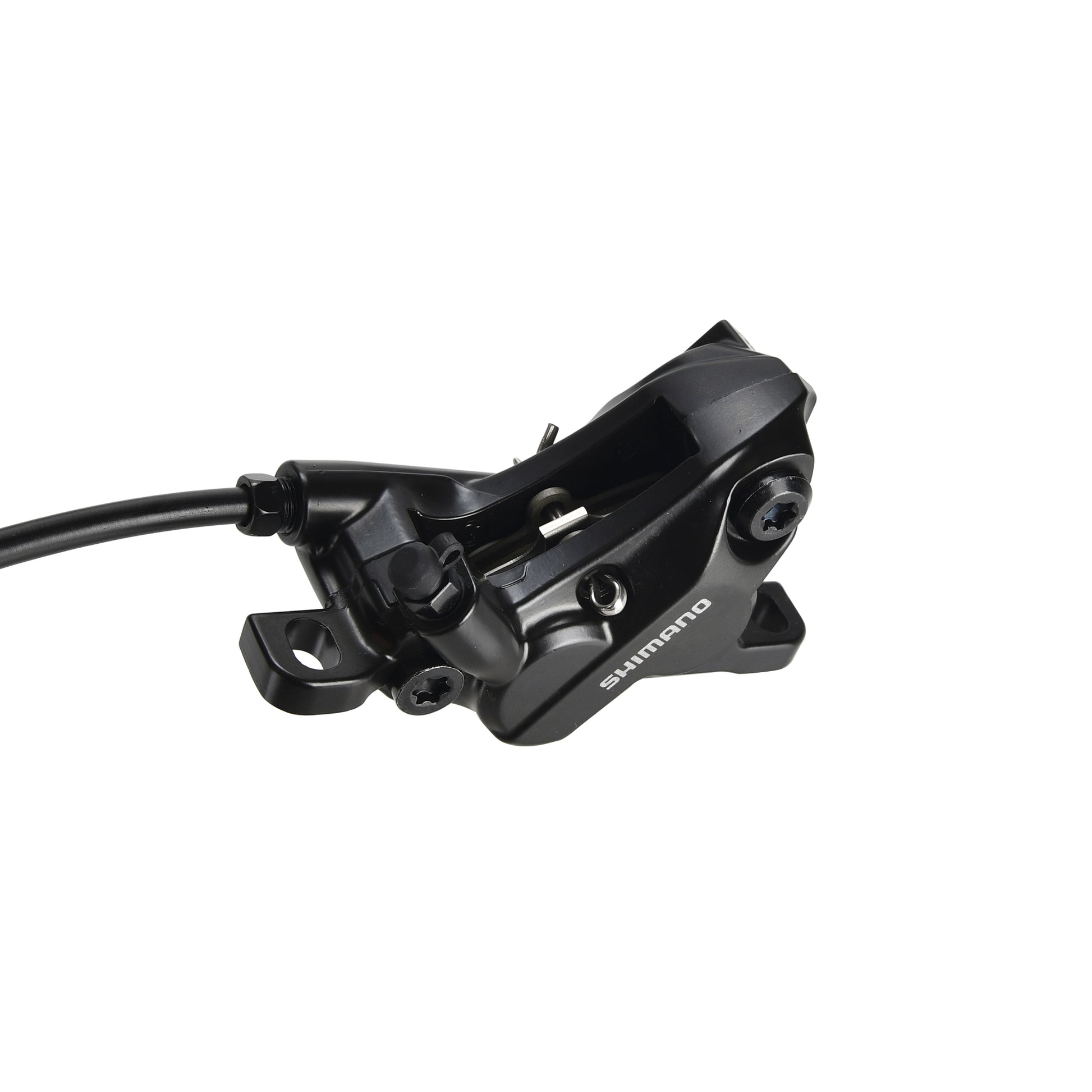

Deore BR-MT520 brake caliper :
Aluminum caliper ;
4-piston ;
Organic B01S brake pads;
One Way Bleeding system;
SM-BH90-SS hose.
Deore BL-MT501 lever:
Ergonomic 2-finger aluminum lever;
Servo Wave mechanism;
Guard adjustment with tool;
I-Spec II mounting.

Model year: 2020
Color: Black
Disc : Not supplied
Warranty : 2 ans
Brake fluid : Mineral
Hose length: Rear 170 cm
Lever material: Aluminum
Pads : Organic
Practice: Leisure
Caliper type: 160 PM Rear
Hose type: Standard
Brake type: Front/Rear

J-Kit brake assembly:
- Position your brake lever on the bike handlebars
- Mount your brake caliper on the fork and/or frame
- Route the brake hose through the internal passage in your frame (if your bike is so equipped).
- Remove the black rubber plug from the end of the hose
- Remove the yellow end caps from the brake levers.
- Slide the black rubber nut cover over the hose
- Do not remove the small white cap from the end of the hose.
- Insert brake hose into lever nut
- Keeping the hose at the bottom of the lever nut, tighten the nut to compress the olive inside the lever. There's no need to overtighten, as the nut thread should remain visible, and is then masked by the nut cover you slid over the hose earlier.
- Now you can operate the brake to finalize its installation.

PM = Postmount
IS = International Standard Mounting
If the spacing between the two caliper mounting bolts (on frame or fork) is 74mm, this corresponds to a PM mounting. If the spacing is 51mm, it's an IS mounting.
