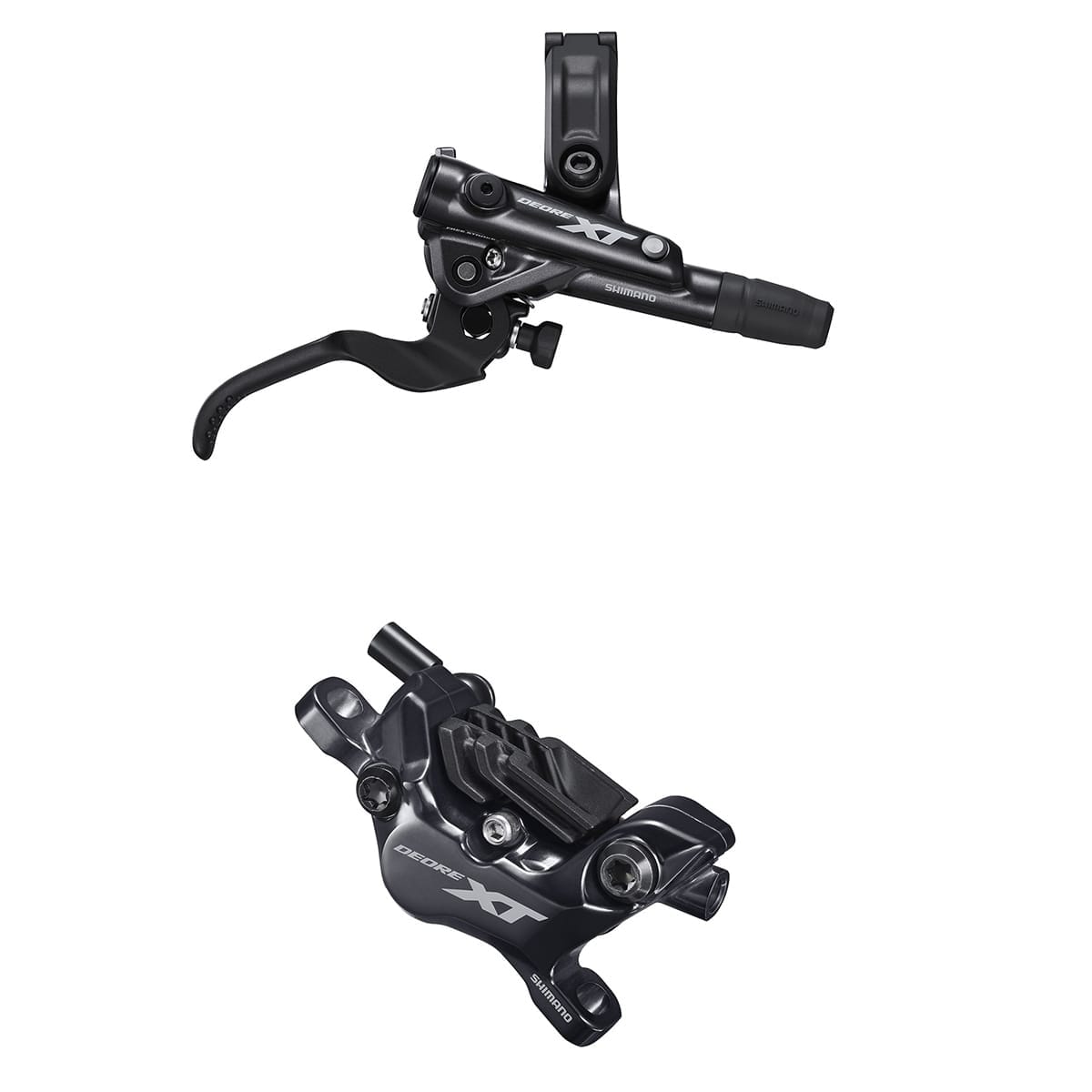

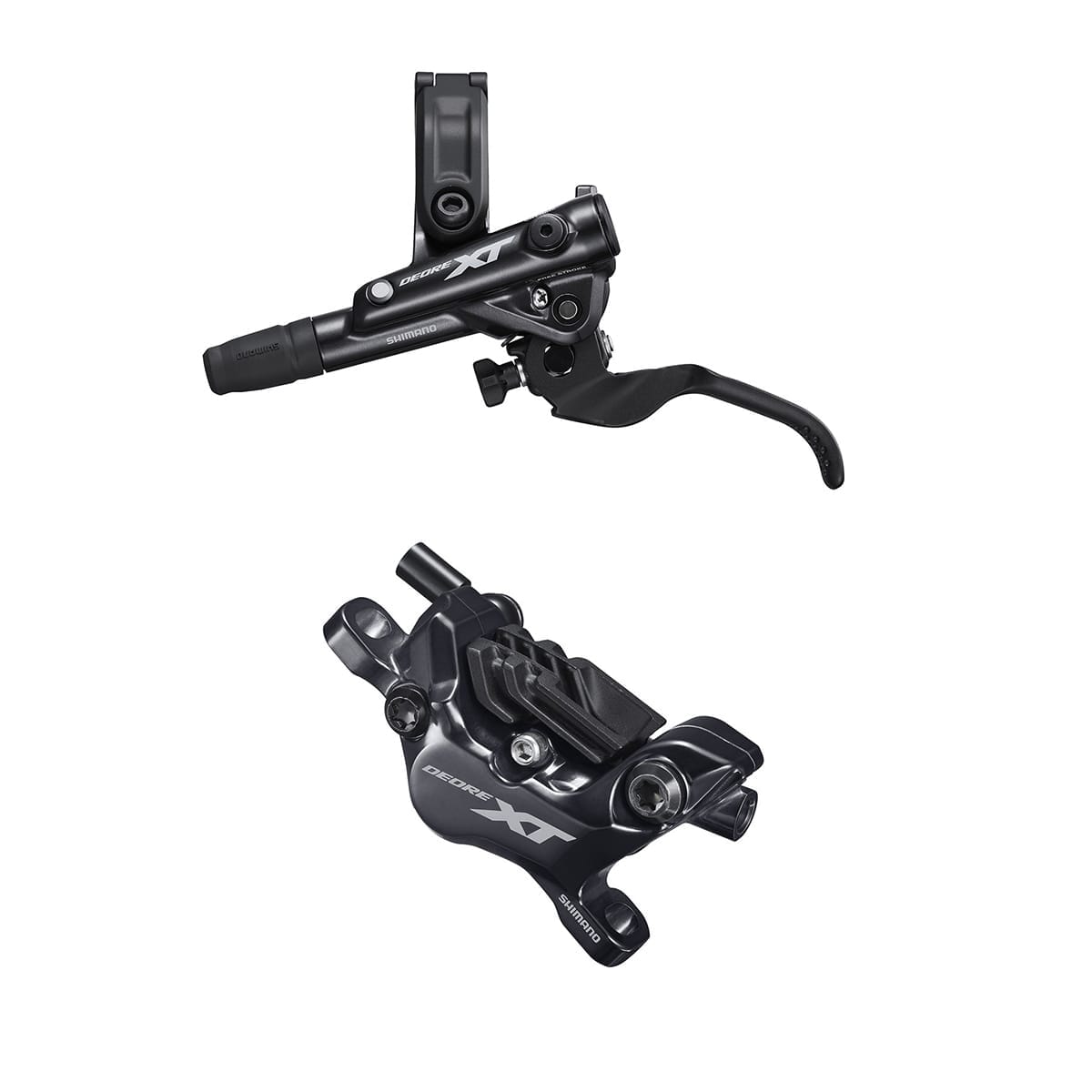

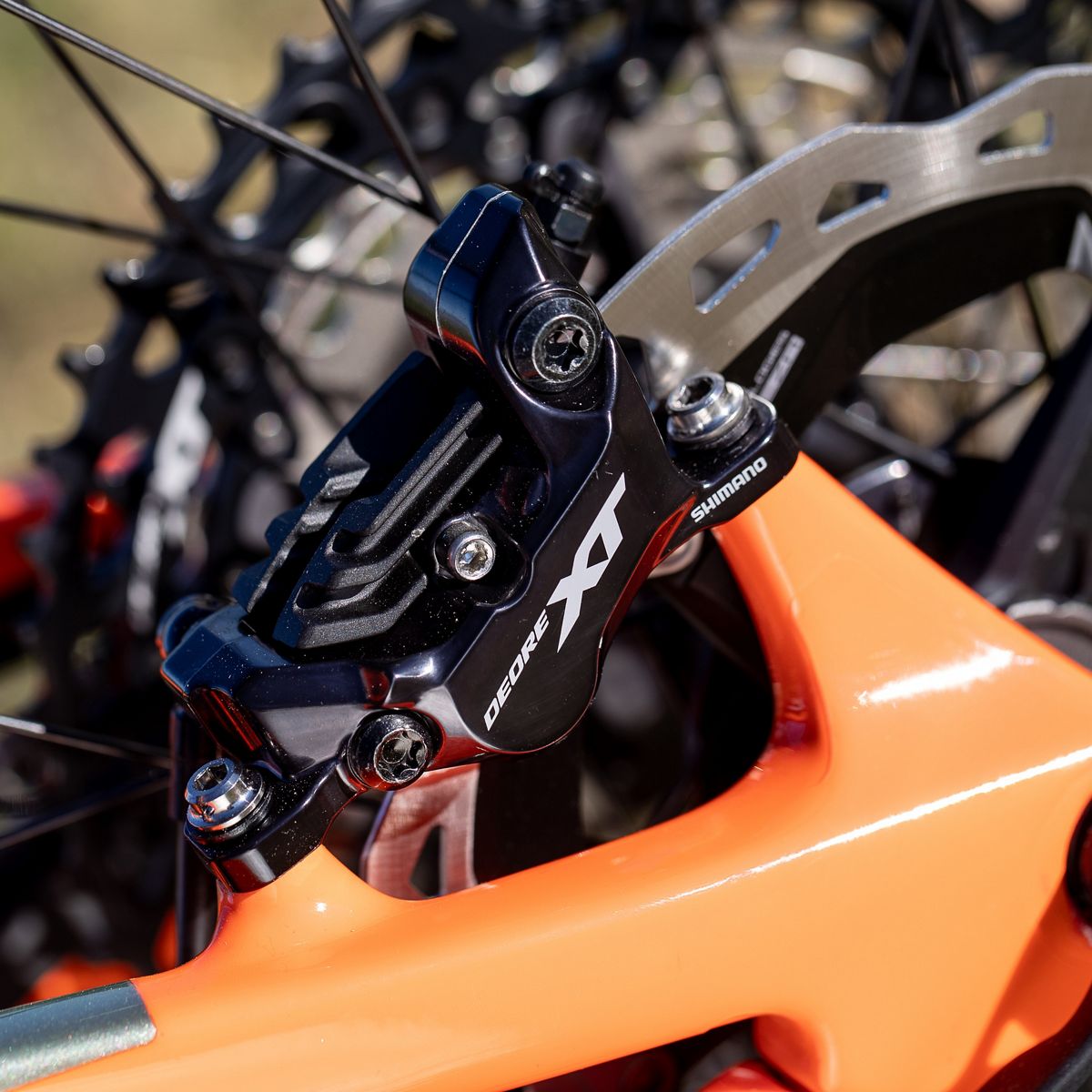

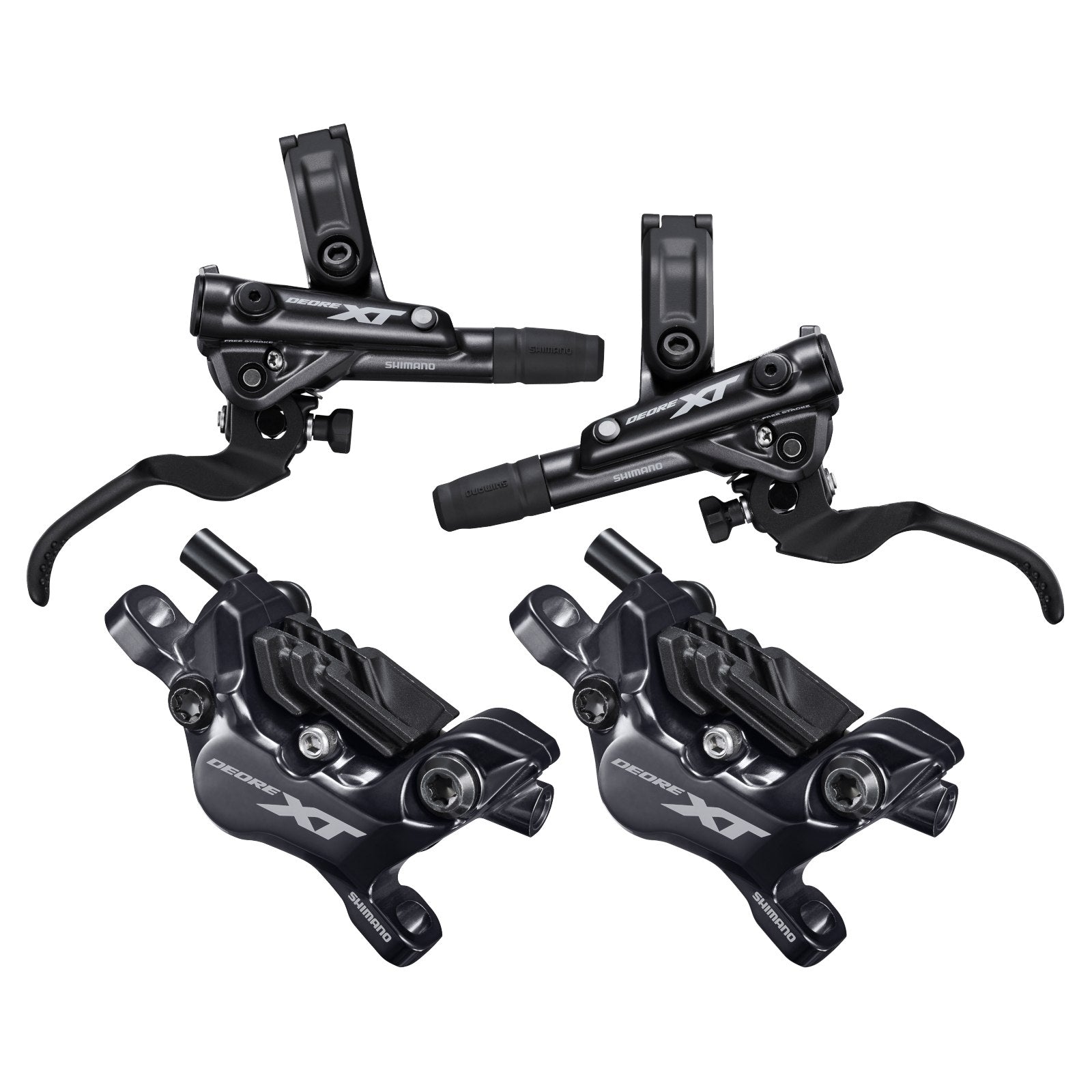

Pair of SHIMANO XT M8120 4 Piston J-KIT Ventilated Brake Pads

Visit Pair of SHIMANO XT M8120 brakes are designed to deliver consistent braking performance and reliable stopping power in all conditions. Its 4-piston caliper enhances confidence and control... Read more
289,90 €
319,80 € 289,90 €
-10%
View full details

Description

Visit Pair of SHIMANO XT M8120 brakes are designed to deliver consistent braking performance and reliable stopping power in all conditions. Its 4-piston caliper enhances confidence and control on descents, while the BL-M8100 leverlever, lightweight and intuitive, provides precise modulation to explore your limits with confidence.

The lever's optimized axis position and refined ergonomics, combined with the I-SPEC EVtechnology, offer intuitive and versatile braking. The system is 10% stiffer than the M8000, even at high temperatures, with quicker brake engagement thanks to a shorter stroke.

Tool-free adjustment of reach and stroke provides total adaptability for every user. Fast piston return and four-piston design offer superior modulation for better control. Installation is quick and easy thanks to the banjo-style connection and internal cable routing, making this brake a high-performance, practical choice for demanding cyclists.

An excellent choice for committed riding Enduro or Trail !

► Manufacturer Manual

Ref: 14967541727612

Informations techniques

╝FEATURES
► Lightweight and powerful: Suitable for cross-country with intuitive modulation
► Intuitive braking: Optimized lever position and refined ergonomics
► Increased rigidity: 10% stiffer than the M8000, even at high temperatures
► Easy assembly: banjo connection and internal wiring for rapid installation.
► J-KIT: The J-Kit system facilitates the passage of the brake hose inside the frame, with a simplified connection to the caliper and a pre-mounted olive, for quick and easy installation
► I-SPEC EV: The I-SPEC EV mounting standard offers a streamlined cockpit, adaptable to all riders thanks to a generous adjustment range, improving comfort and concentration with ergonomic design and increased rigidity for optimal control
► REACH AJUST: Brake lever with reach adjustment allows the distance between grip and lever to be adjusted, adapting to all hand sizes and riding preferences for optimal braking and gear shifting
► ACTION SERVOWAVE: SERVOWAVE lever enables rapid pad contact with the rotor, then multiplies braking power for increased control with less lever movement
► ONE WAY BLEEDING: System designed to prevent air bubbles in the hydraulic circuit, ensuring fast, clean bleeding thanks to a unidirectional oil path and funnel-shaped tool
► FREE STROKE: Adapt the gap between initial lever position and pad contact point according to hand size, type of practice and personal╔ preferences.

┘GENERAL
- Series: Deore XT
- Part Number :
_Lever: BL-MT8100 (x2)
Stirrup: BR-MT8120 (x2)
- Weight :
_Lever: 105g
Stirrup: 141g
Lever/Caliper/Hose assembly: 394g for front brake with 800mm hose
- Materials:
_Lever: Aluminum
Stirrup: Aluminum
Pistons: Ceramic┌

┘FEATURES
- Brake lever/gear lever integration: I-SPEC EV
- Lever length: 2 Fingers
- I-SPEC EV adjustment angle: 20°.
- Number of pistons: 4
- Stirrup mounting: PostMount (PM)
- Pads : N03A-RF, N04C-MF, D03S-RX, D02S-MX
- Recommended brake fluid: Shimano mineral oil
- Hoses: 1000mm (front) 1700mm (rear) - SM-BH90-SBM - Banjo fitting
- Disk Ø min./max. 160mm to 220mm (combined with required adapters)
- Recommended disc: RT-MT800 (not supplied)
- J-Kit pre-purge : Yes┌
