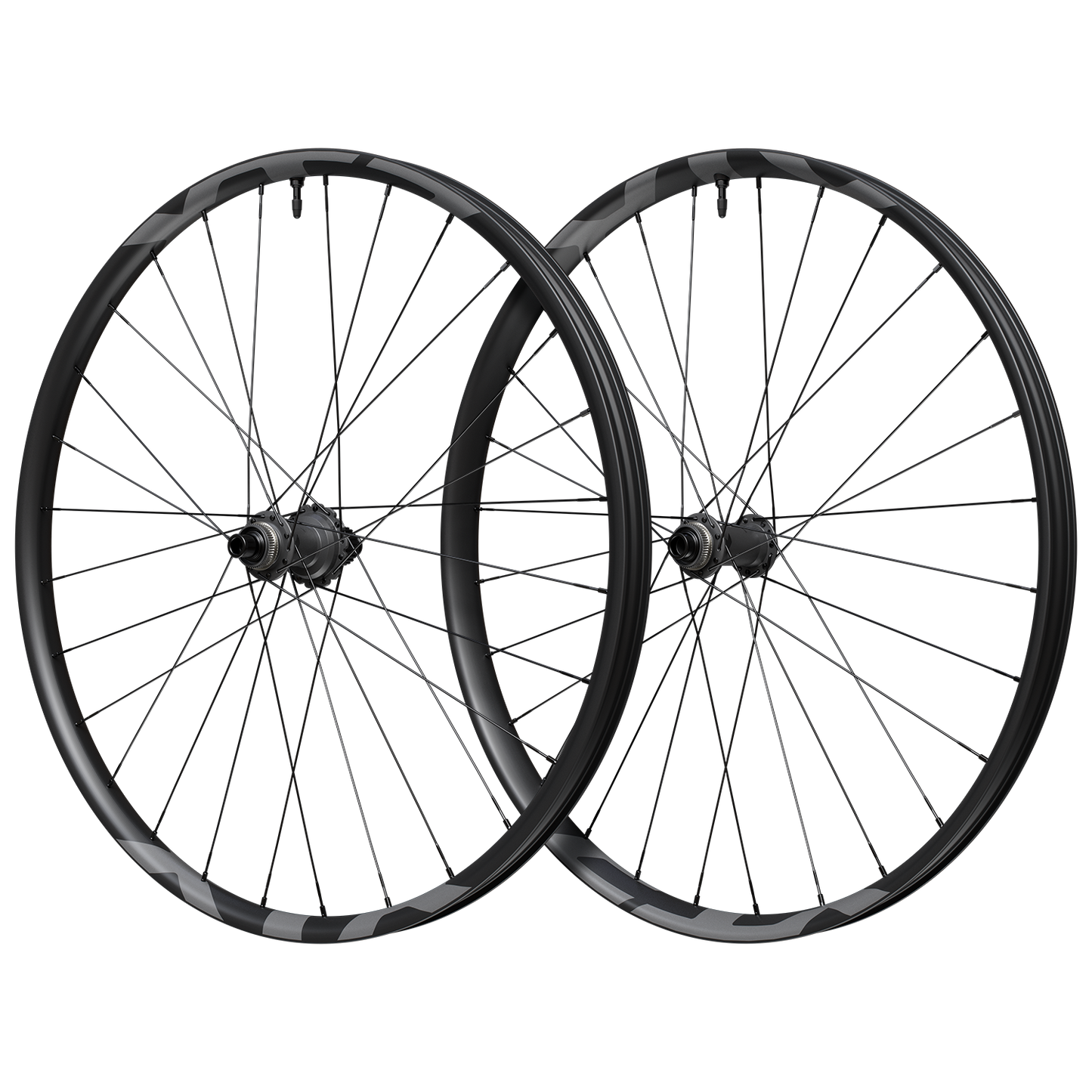

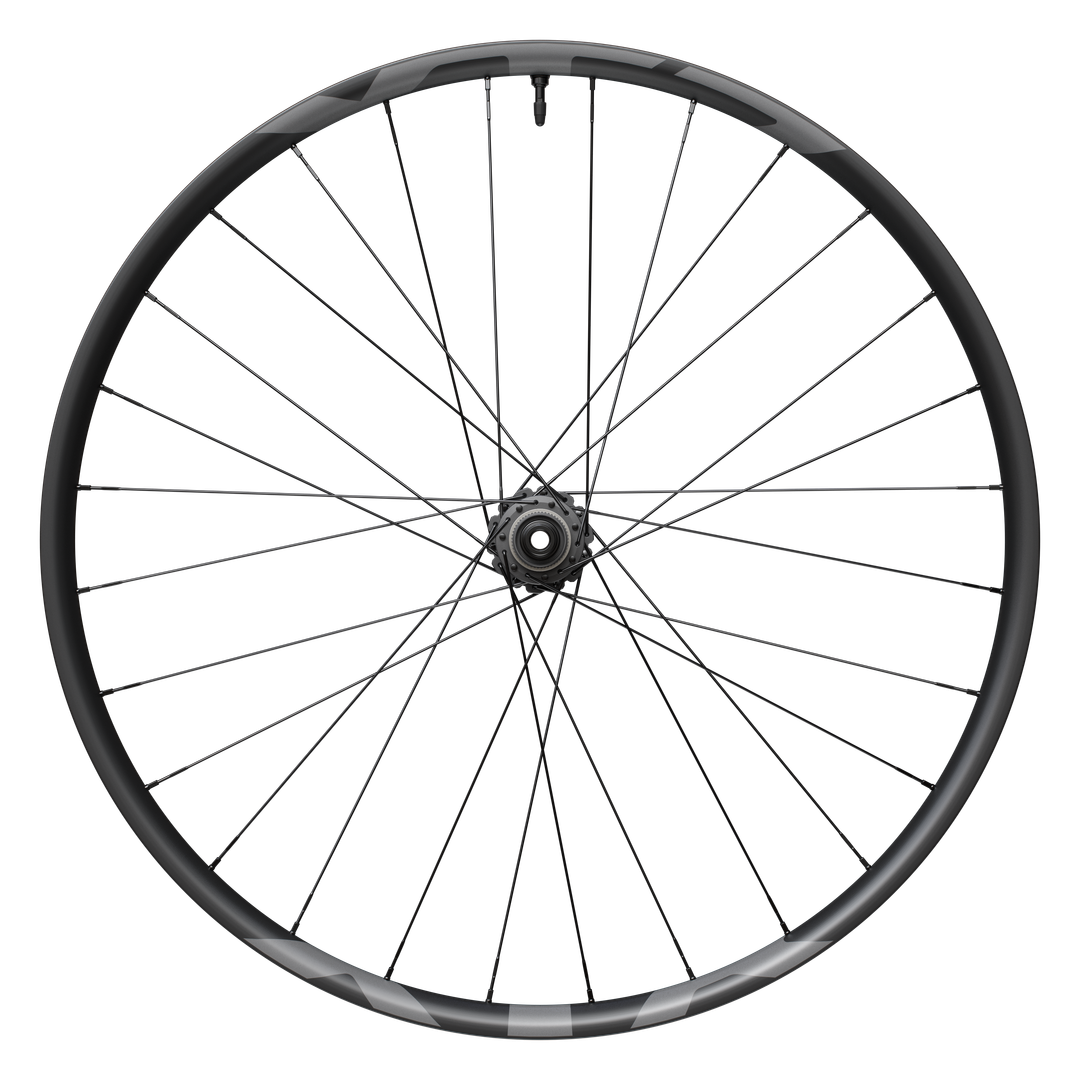

SHIMANO XTR M9220 Enduro 29'' 15x110mm/12x148mm Boost Wheel Pair

The SHIMANO XTR M9220 Enduro 29'' wheel pair was designed to meet the extreme demands of Enduro World Series competitions, while remaining easy to... Read more
1.499,89 €
1.499,89 €
View full details

Description

The SHIMANO XTR M9220 Enduro 29'' wheel pair was designed to meet the extreme demands of Enduro World Series competitions, while remaining easy to maintain. It is the most robust carbon wheel ever offered by Shimano. With its 30 mm hookless carbon rim, new XTR hubs and stainless steel J-Bend spokes (28 in total), it combines performance, reliability and ease of repair.

One of the major assets of this wheel is its ultra-fast engagement angle of 3.5°, which ensures instant acceleration. This system is combined with smooth bearings and an intelligent seal design, considerably reducing resistance during freewheeling phases.

The WH-M9220 comes in a standard 29-inch format with a Boost 148x12 mm/15x110 mm rear/front hub and a classic 28-hole drilling, which facilitates compatibility with many frames and parts availability in case of replacement.

Finally, the stainless steel cartridge bearings are not only durable but also easy to maintain. Combined with optimised preload adjustment and excellent sealing, they guarantee smooth and consistent rotation on all terrains.

Ref: 15412891550076

Informations techniques

Model: WH-M9220 for All-Mountain and Enduro riding.

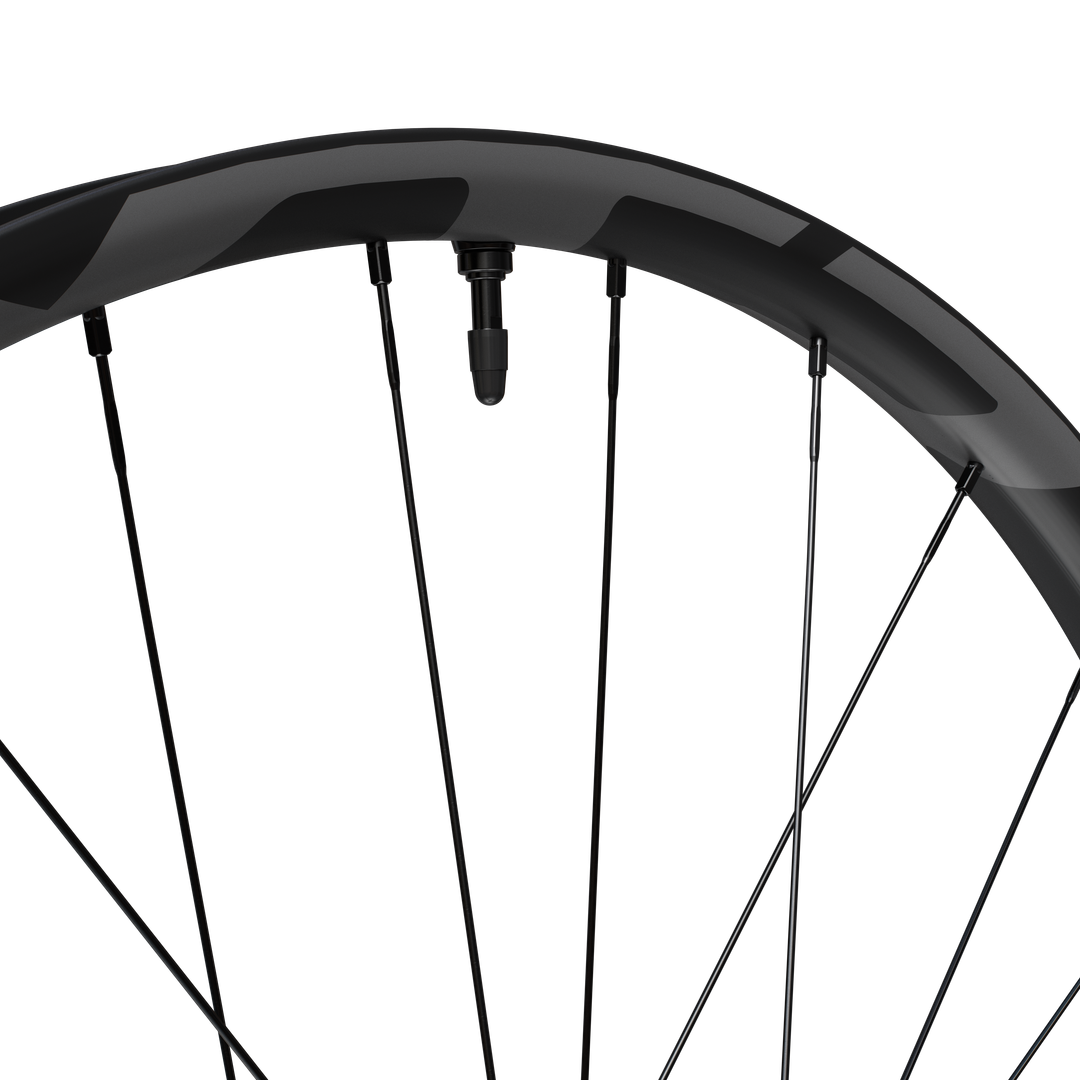

Rim:
Carbon rim.
30mm internal width.
38mm external width.
19.7mm height.
Tubeless compatible and Hookless version.
Asymmetric profile.
Tubeless rim tape and valve included.
For tyres 29 x 2.30 - 2.60.

Spokes:
J-Bend stainless steel 2.0-1.6mm.
Conventional drilling.
28 spokes.
2 spare spokes and nipples included.
Spoke wrench included.

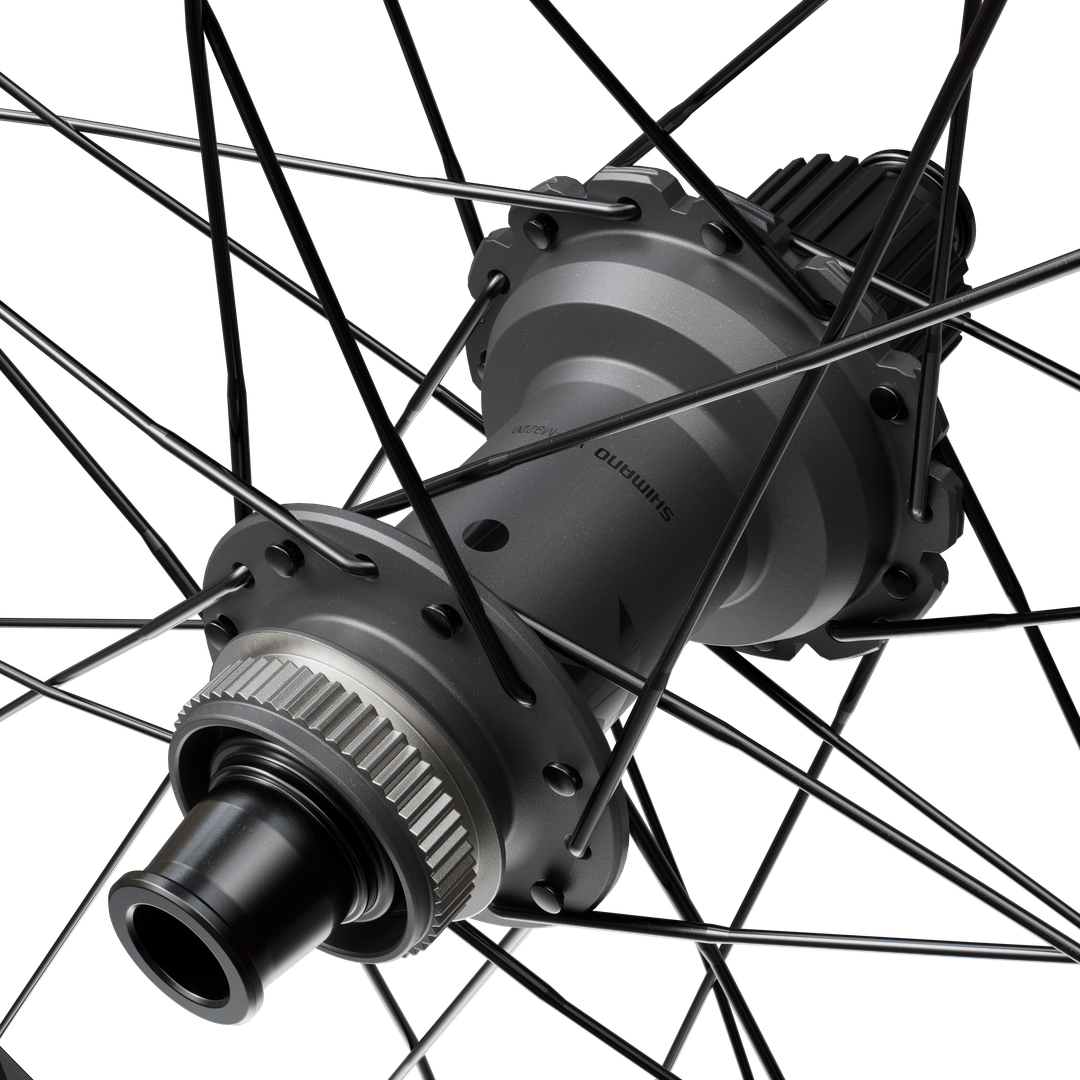

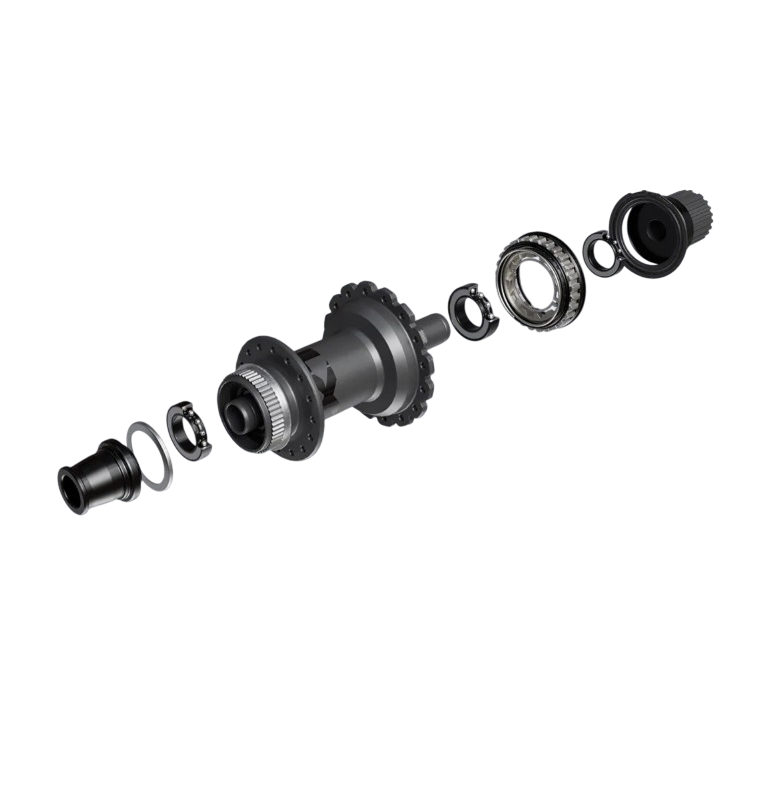

Hub:
Rear axle 12x148mm.
Front axle 15x110mm.
Aluminium shell.
Direct Engagement system.
3.5-degree engagement angle allows for quick pick-up, while a smart seal design and smooth bearings mean less drag when freewheeling.
Stainless steel cartridge bearings.
Labyrinth + Contact seals.
Centerlock disc mounting (lockring included).

Microspline freehub body

Weight (probikeshop): 968.7g rear and 848.7g front
;

Informations prix

*Supplier recommended retail price in May 2025
