SHIMANO

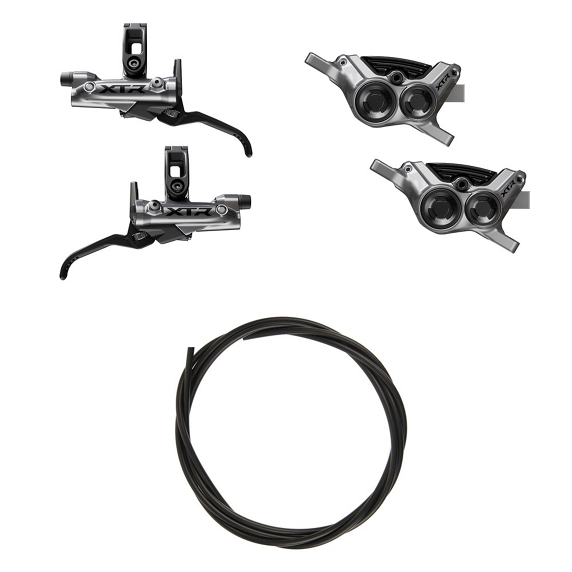

Pair of SHIMANO XTR M9220 Enduro 4 Piston Brakes

Réf. fabricant : IBRM9220UPGKIT2
The SHIMANO XTR M9220 Enduro 4-piston brakes are designed to deliver maximum power, control and consistency, even in the most extreme Enduro racing conditions.... Read more
489,90 €
489,90 €
View full details

Description

The SHIMANO XTR M9220 Enduro 4-piston brakes are designed to deliver maximum power, control and consistency, even in the most extreme Enduro racing conditions. The BL-M9220 lever has been ergonomically redesigned, with a closer pivot point and a blade raised by 5° to naturally follow finger movement. Guard adjustment and the new SERVO WAVE power curve ensure fast, intuitive response.

Combined with the BR-M9220 caliper, this braking system becomes one of the most powerful in the Shimano XTR range. Equipped with 4 pistons, it ensures constant, progressive braking, adapted to the demands of enduro riding. The use oflow-viscosity mineral oil guarantees a stable contact point, whatever the temperature or duration of the descent. The robust construction of the forged alloy lever blade enhances durability.

Designed for technical trails, this brake also offers great comfort of use: with its hoses close to the handlebars for a streamlined cockpit. The M9220 embodies ultimate precision for riders seeking reliability and performance.

Ref: 15923440288124

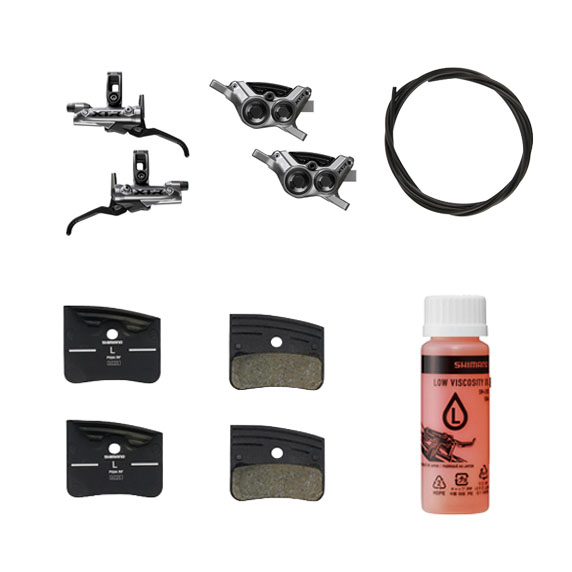

Informations techniques

- BR-M9220 brackets
- BL-M9220 levers
- SM-BH90-SBM 1000mm and 1700mm hoses
- I-Spec EV compatible
- Postmount mounting
- J-Kit version
- Metal plates (installed): 2 pairs, P04C-MF

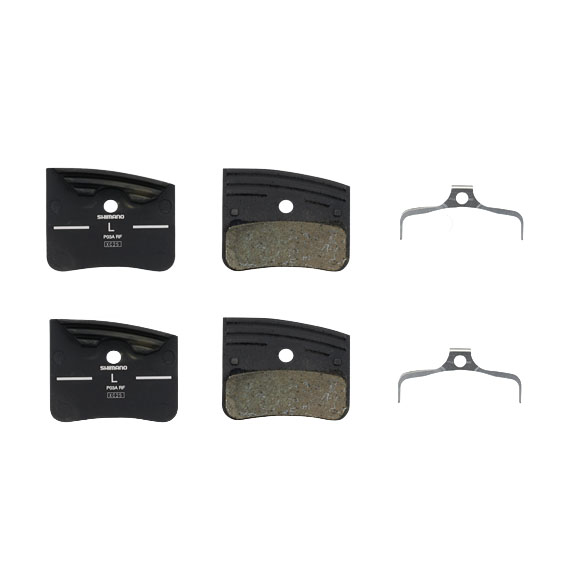

- Resin inserts (spare): 2 pairs, P03A-RF
- BL-M9220 ergonomic lever: close pivot and blade raised 5° for a natural grip.
- Optimized SERVO WAVE technology: more responsive, frictionless power curve optimized for Enduro racing.
- Specific low-viscosity mineral fluid (100 ml) SM-LVOIL: Ensures constant braking power in all conditions.
- BR-M9220 4-piston caliper: maximum braking power for enduro and downhill riding.
- Forged alloy lever construction: Greater strength and durability.
- Integrated guard adjustment: Precise adjustment of lever position to rider preference.
- Modular compatibility: BL-M9220 lever can be combined with M9220 (Enduro) or M9200 (XC) calipers.
- Anti-noise pads: Oval mounting and improved pads to eliminate sound vibrations.
- Clean hose routing: Streamlined design for better integration into the cockpit.
- Weight (manufacturer): 307g per brake
;
