TUNE

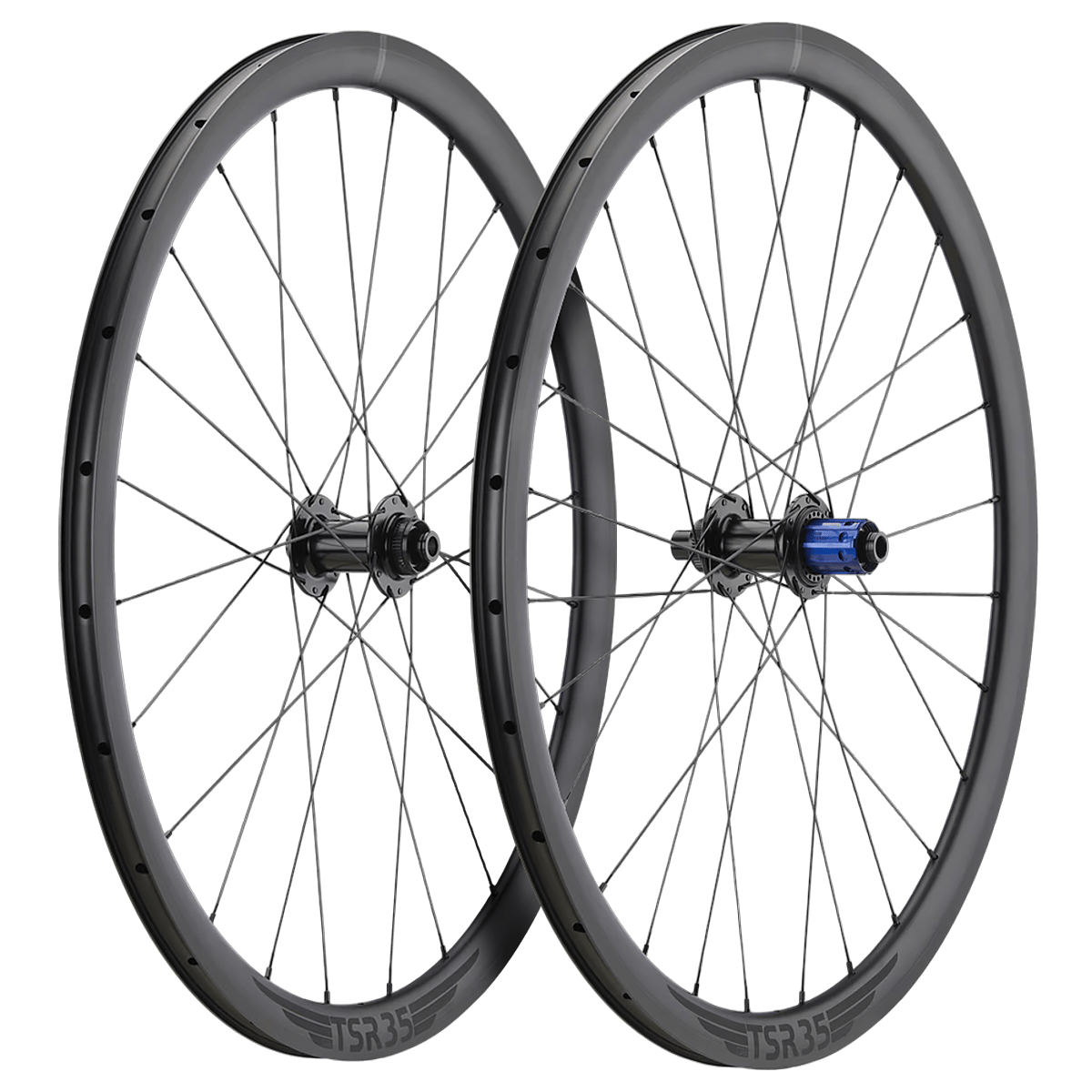

Pair of TUNE TSR 35 DISC wheels (Center Lock)

Versatile and modern Pair of TUNE TSR 35 DISC Wheels (Center Lock) wheels feature an aerodynamic profile, high lateral stiffness and low weight to accompany... Read more
Regular price 849,90 €
Regular price 939,80 € Sale price 849,90 €
-10%
View full details

Description

Versatile and modern Pair of TUNE TSR 35 DISC Wheels (Center Lock) wheels feature an aerodynamic profile, high lateral stiffness and low weight to accompany you on all types of cycling outings.

Equipped with a 35 mm rim, this wheelset features an aerodynamic profile ideal for riding on the flat. On climbs, its high lateral stiffness and low weight help you climb. On descents, you'll set the fastest times thanks to high-performance braking.

With their timeless black anodized look, TSR35 Disc wheels are the perfect match for modern racing bikes and enhance classic racing bikes. SPAIM CX-Ray spokes increase lateral stiffness.

The rims are double-anodized with laser logos and assembled with a pair of KINGkong and Kong Road/Crosser hubs. Double anodizing compacts the rim surface, giving it a deep, durable finish.

Ref: 9842675089757

Informations techniques

GENERAL
Part Number Front / Rear : LKV.TSR35D.KHCl.24.12.BeaStd.CR.Nip.bck / LKH.TSR35D.CHCl.24.12.BeaStd.HG12.3t.CR.Nip.bck
Pair weight: 1590 g
Maximum load: 110 Kg

RIM
Material: CNC aluminum
Height: 35 mm
Internal width: 19.9 mm
Drilling: 24 holes
ETRTO size Front / Rear: 622x19.9
Tire compatibility : Tubeless Ready / Tubetype
Minimum tire size: width 23mm
Maximum tire size: width 40mm

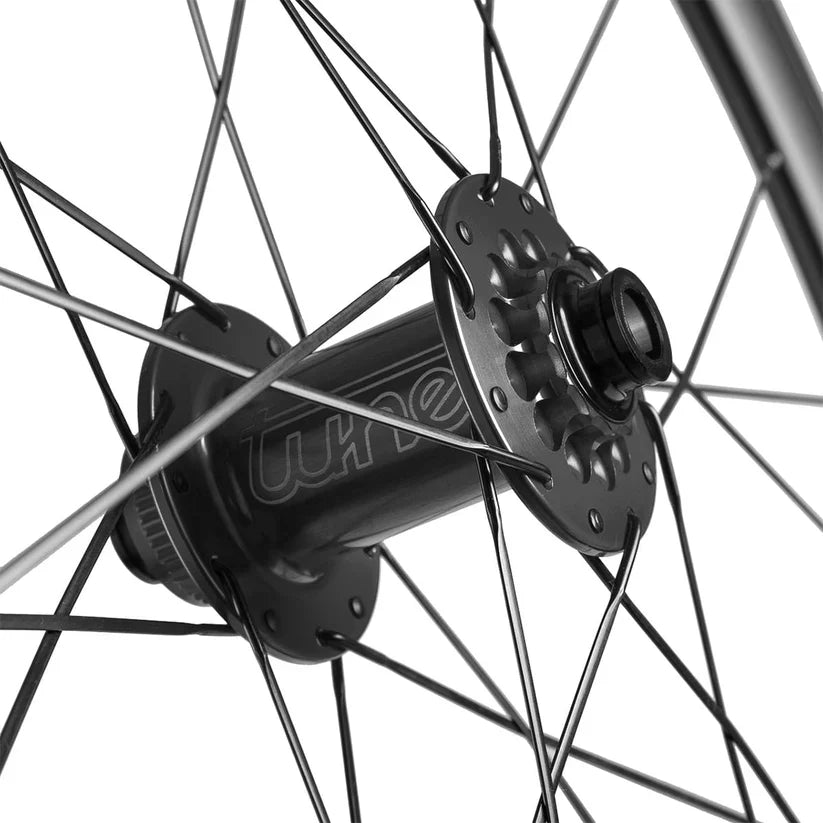

FRONT MIDDLE
Model: KillHill CL
Reference: BVN.KHCl.24.12.BeaStd.bck
Body material: CNC aluminum
Weight: 113.9 g
Maximum spoke tension: 1100N
Disc standard : Center Lock®
Spindle size: front 12x100 mm
Bearings : Steel - 2x Kugellager ABEC5 17x26x7 - ref : BNZ0502

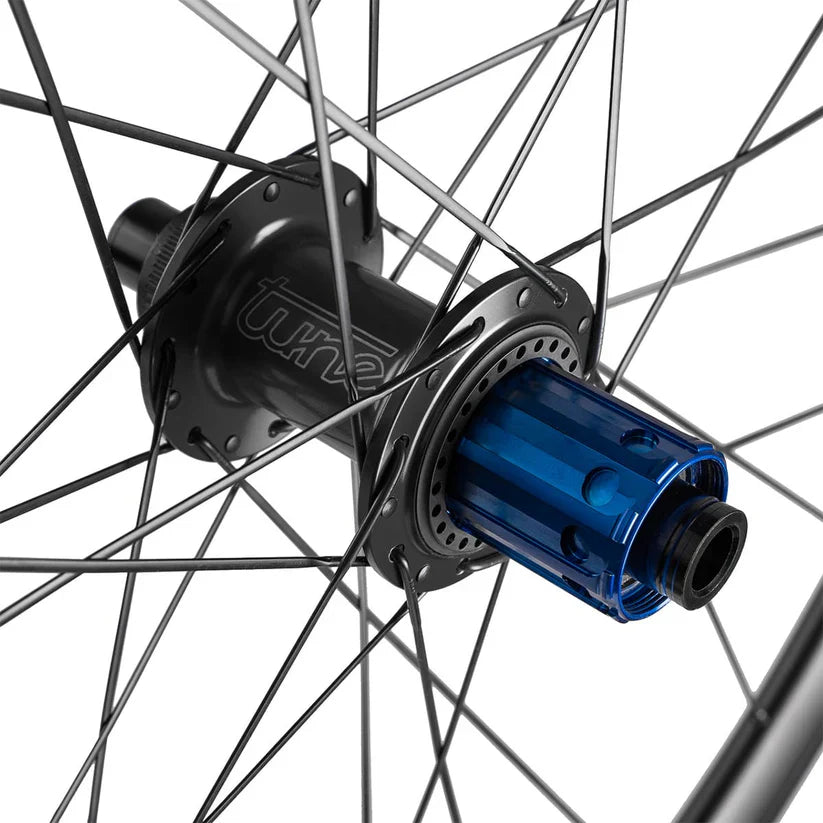

REAR HUB
Model: ClimbHill CL
Reference: BHN.CHCl.24.12.BeaStd.HG12.3t.bck
Body material: CNC aluminum
Weight: 208.9 g
Maximum spoke tension: 1100N
Disc standard : Center Lock®
Spindle size: front 12x142 mm
Bearings : Steel - 3x ABEC5 17x26x7 bearing; 1x ABEC5 17x30x7 bearing - ref : BNZ0501

RAYONS
Material: Stainless steel
Model: SAPIM CX-Ray
Number: 24

INCLUDED
User's guide
