ZIPP

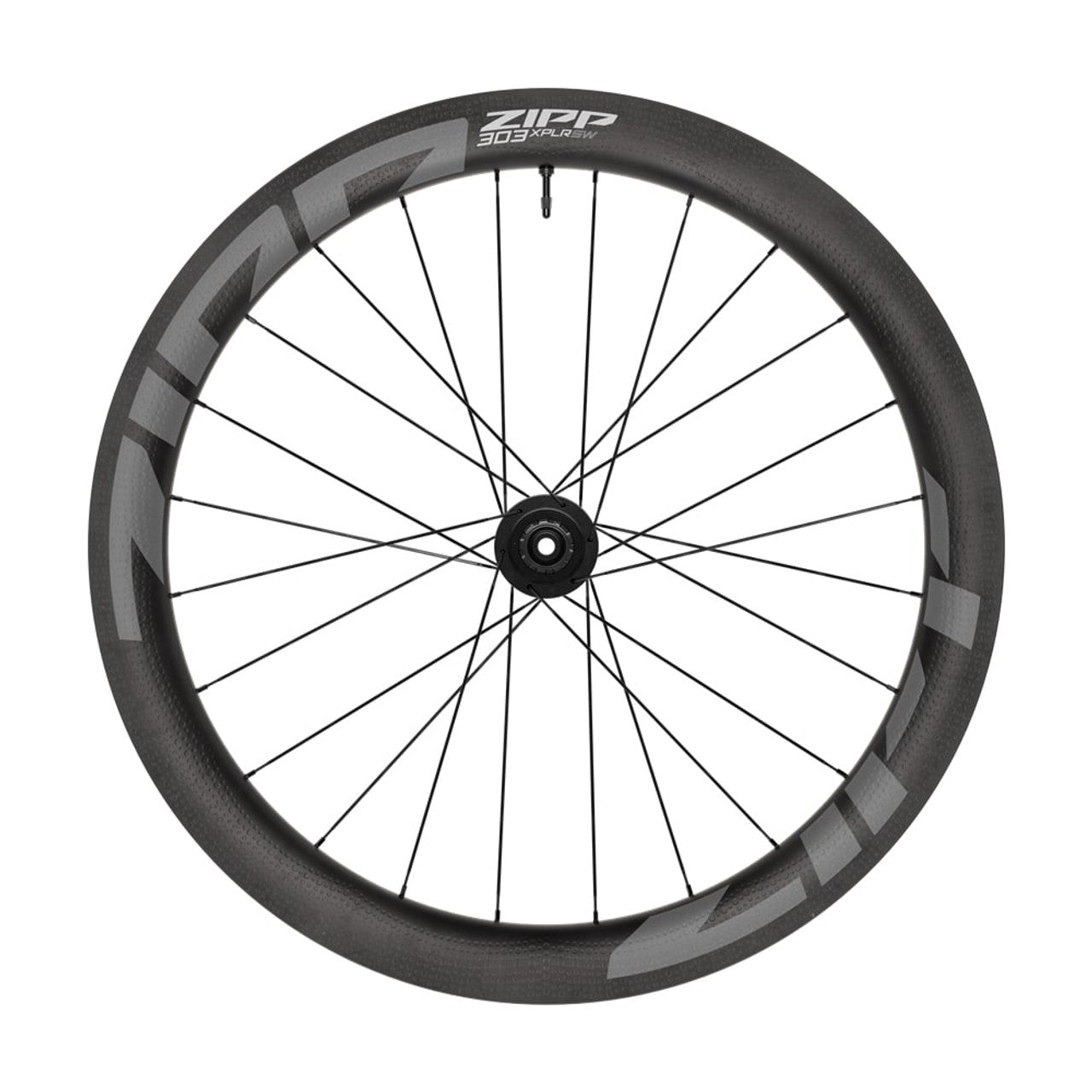

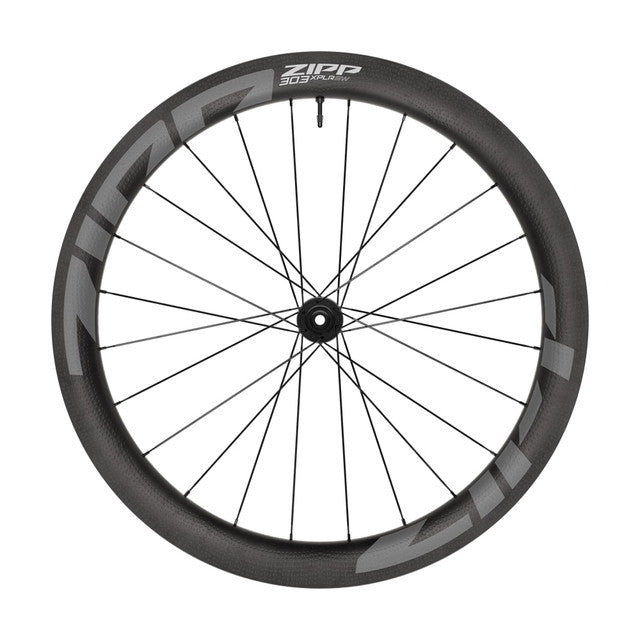

Pair of ZIPP 303 XPLR SW DISC Tubeless Wheels (Center Lock)

Réf. fabricant : ZPPBOM0032
Visit pair of ZIPP 303 XPLR SW DISC Tubeless wheels (Center Lock) are designed to meet the toughest gravel challenges. Unlike most gravel wheels... Read more
Regular price 1.499,90 €
Regular price Sale price 1.499,90 €
View full details

Description

Visit pair of ZIPP 303 XPLR SW DISC Tubeless wheels (Center Lock) are designed to meet the toughest gravel challenges. Unlike most gravel wheels derived from Road models, Zipp takes a specific approach, with an ultra-wide profile designed for efficiency on rough terrain.

Thanks to Total System Efficiency technology, these wheels attenuate the vibrations and resistance generated by uneven surfaces. Their internal width enables them to be ridden at pressures below 30 psi, improving comfort, traction and grip in corners, while maintaining excellent pedaling efficiency.

The hookless and tubeless rim profile offers a smooth transition to gravel clinchers, optimizing aerodynamics. Light but robust, the 303 XPLR SW is perfect for long rides where performance goes hand in hand with endurance.

Equipped with the German-designed ZR1 DB hub with 66 engagement points and reinforced joints, they ensure fast response and enhanced durability. Center Lock compatible, with lockrings included, they come with 12 mm ferrules.

► Manufacturer's manual

► Zipp Hookless Tire/Wheel Compatibility Chart

Ref: 15049484960124

Informations techniques

┘GENERAL
Weight Pair : 1452 g
Max. load 130 kg
Model code: WH-303-XPSW-A1:

┘JANTE
Material: UD carbon fiber
Clincher interface: Hookless
Profile: Symmetrical
Technologies: Texture impress valve graphic, Adhesive decals / UD Fiber finish (Stiffness, strength, lightness)
Wheel diameter: 622mm / 29" / 700c
Rim height: 54mm
Internal width: 32mm
External width: 40mm
Tire compatibility: Tubeless only
Maximum tire pressure: 50psi/3.45bar

┘MOYEUX
Model: ZR1 DB
Material: Aluminum
Front center distance: 12x100mm
Rear center distance: 12x142mm
Disc mounting: Center Lock
Freewheel body: Shimano HG / SRAM XDR
Freewheel with 66 engagement points, 6 pawls, compression springs
Bearings: Carbon steel, cartridge type

┘ NIPPLES AND NUTS
Model: Sapim CX-Ray
Front spokes
- Number of spokes: 24
Rear spokes
- Number: 24
Rack type: 2 Cross
Nuts : Sapim Secure-Loc (anti-rotation) - aluminum

┘STRONG POINTS & TECHNOLOGIES

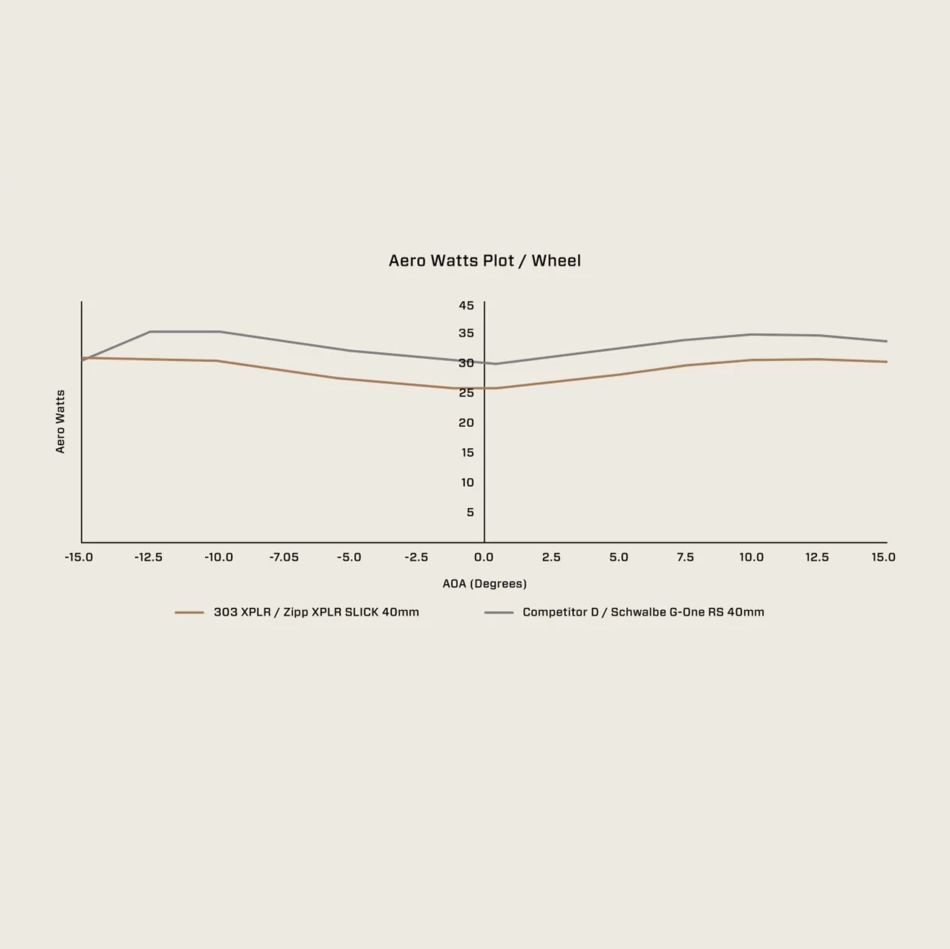

► TSE TECHNOLOGY: ZIPP's TSE (Total System Efficiency) technology optimizes wheel performance by reducing aerodynamic drag, weight and friction. It thus improves efficiency, speed and comfort on all terrains;

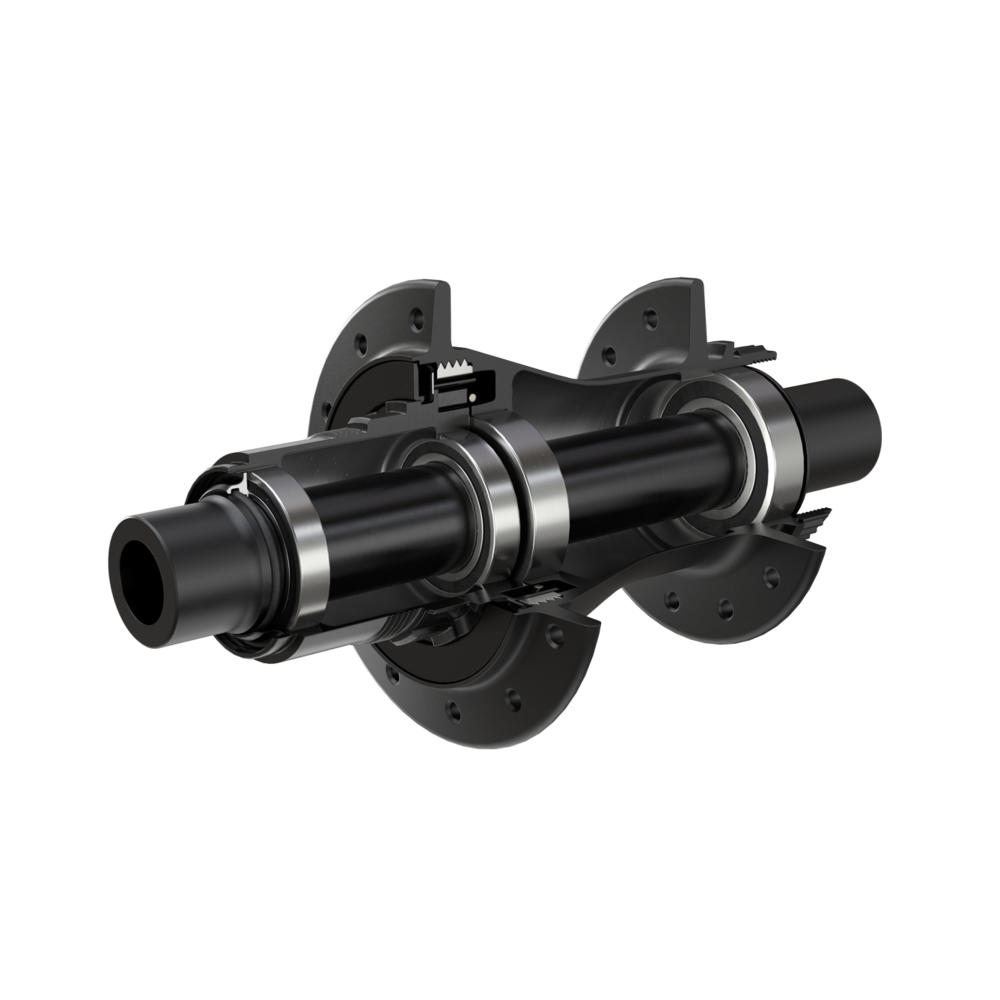

► ZIPP ZR1 HUB: Better sealing, longer life than previous hub, quick engagement for better responsiveness, very light, same bearing size as top-of-the-range Cognition hub.
Certified for electric-assist bikes

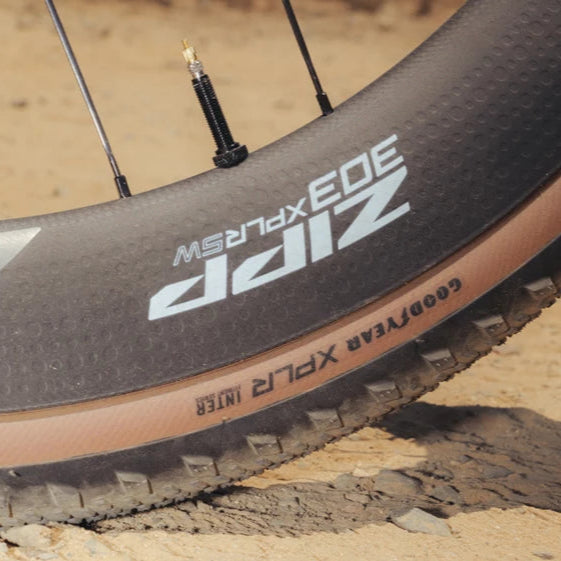

► HOOKLESS: Faster with 28 mm clinchers, fits Gravel tires up to 50 mm, maximum tire pressure 5 bar ;
► Lifetime warranty;

┘INCLUDED
2x Tubeless Valves
2x Center Lock nuts

┘CONVERSION REFERENCES
- Front wheel
► Adapters for QR: 11.2018.045.000
► Adapters for 12x100: 11.2018.046.000
► Adapters for 15x100: 11.2018.047.000
- Rear wheel
► Adapters for QR: 11.2018.045.010
► Adapters for 12x142: 11.2018.046.010
► XDR Freewheel body: 11.2018.062.000
► HG Freewheel Body: 11.2018.061.000
► Campagnolo freewheel body: 11.2018.061.001

Informations prix

Supplier suggested retail price in January 2025
