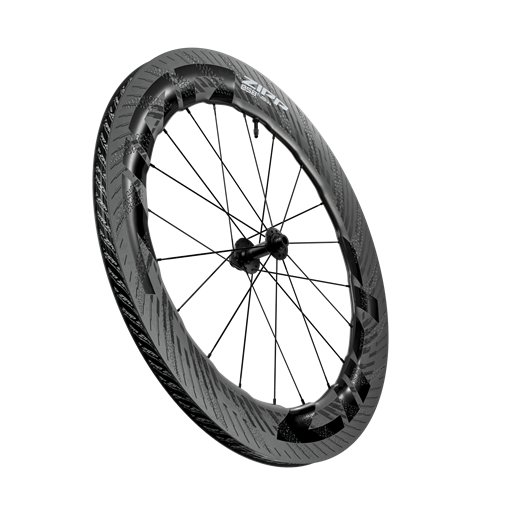

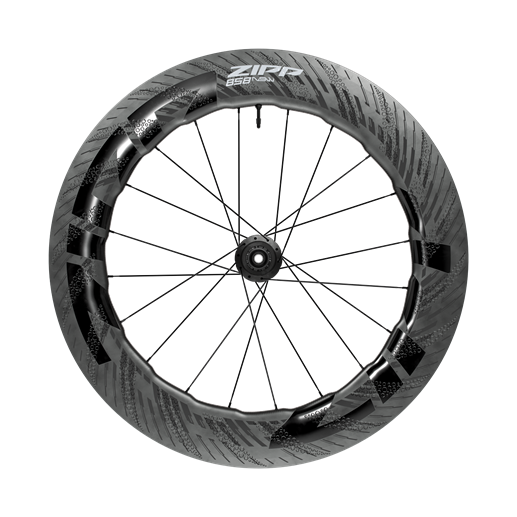

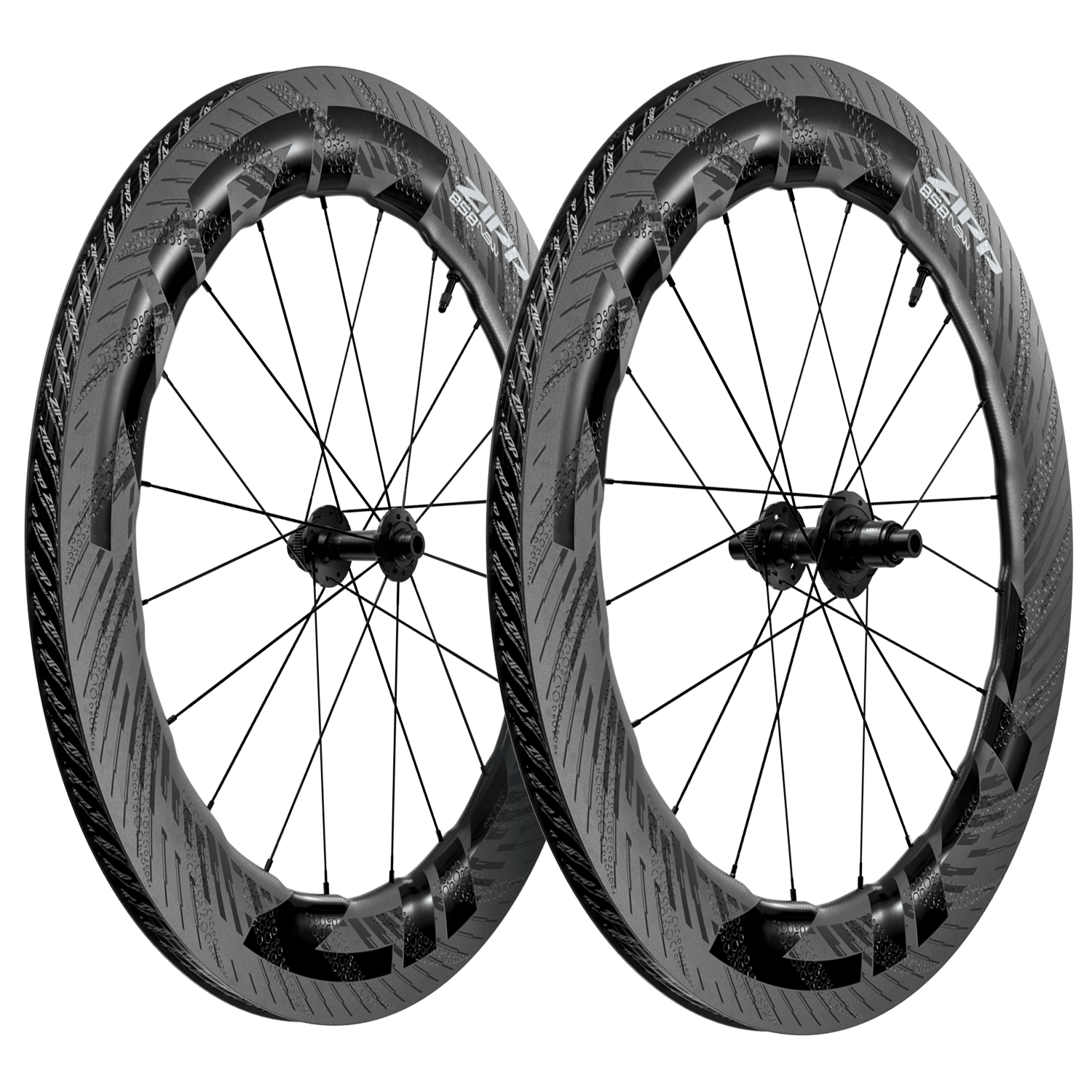

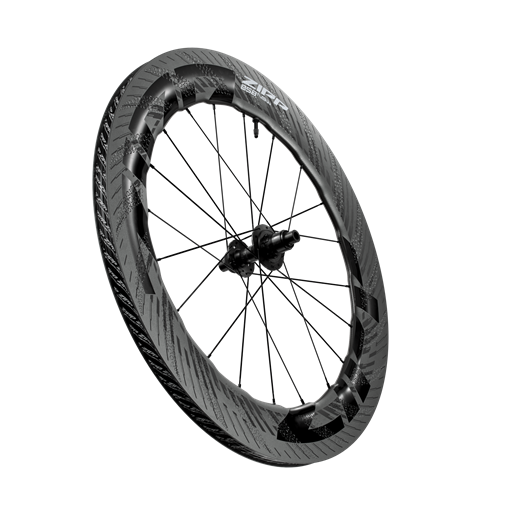

ZIPP 858 NSW DISC Tubeless Ready Wheelset (Center Lock)

The ZIPP 858 NSW DISC Tubeless Ready (Centerlock) wheelset embodies Zipp's ultimate aerodynamic weapon, designed for triathletes, time-trial specialists and cyclists seeking pure speed.... Read more
3.499,90 €
3.499,90 €
View full details

Description

The ZIPP 858 NSW DISC Tubeless Ready (Centerlock) wheelset embodies Zipp's ultimate aerodynamic weapon, designed for triathletes, time-trial specialists and cyclists seeking pure speed. Thanks to the exclusive Total System Efficiency (TSE) technology, this wheel combines a tubeless and hookless rim profile with a significant weight reduction, while retaining an impressive depth of 82 to 85 mm.

This patented Sawtooth undulating rim shape delivers exceptional aerodynamic efficiency and remarkable stability in crosswinds. With an internal width of 23 mm, the 858 NSW is optimised for tyres from 28 to 30 mm, allowing riding at low pressure to reduce rolling resistance and absorb vibrations, thus improving comfort and performance over long distances.

The ZR1 SL hub, equipped with ceramic bearings and 66 points of engagement, ensures smooth, responsive and durable power transfer. This new hub is also 30 g lighter than the previous version, contributing to the overall lightweight of the set (1500 g). The wheel is compatible with Centerlock disc brakes, guaranteeing reliable braking in all weather conditions.

Whether you ride tubeless or with inner tubes, the ZIPP 858 NSW adapts to your preferences while maximising speed. Delivered with 12 mm front and rear end caps, it features direct ImPress branding and a lifetime warranty, so you can ride fast and far in style and confidence.

Ref: 15049484927356

Informations techniques

┘GENERAL
Weight Pair: 1500 g
Max Load: 114 kg
Manufacturer Reference:
• Front - 00.1918.772.000
• Rear - Shimano HG - 00.1918.773.000
• Rear - SRAM XDR - 00.1918.773.001

┘RIM
Material: Carbon
Tyre Interface: Hookless
Profile: Symmetrical
Technologies: ABLC SawTooth Texture (aerodynamics, stability) / UD Fiber Finish (Stiffness, strength, lightness)
Wheel Diameter: 622mm / 29" / 700c
Rim Height: 85mm
Internal Width: 23mm
External Width: 27mm
Tyre Compatibility: Tubeless only | Min. tyre width 28 mm (max 32)
Maximum Tyre Pressure: 73psi/5.0bar
Integrated wheel pressure sensor Zipp AXS Wheel Sensor

┘HUBS
Model: ZR1 SLDisc
Material: Aluminium
Front | Rear spacing: 12x100mm | 12x142mm
Disc Mounting: Center Lock
Bearings: Ceramic
Freehub Body: Shimano HG or SRAM XDR - Aluminium
Freehub Mechanism: 6 Pawls, compression springs, 66 engagement points

┘SPOKES AND NIPPLES
Model: Sapim CX-Ray
Front spokes:
• Number: 20
• Right Side Length: 220mm
• Left Side Length: 232mm
Rear spokes:
• Number: 20
• Right Side Length: 230mm
• Left Side Length: 232mm
Spoke pattern: 2 Cross
Nipples: Sapim Secure-Loc (anti-rotation) - Aluminium

┘KEY FEATURES & TECHNOLOGIES
► TSE TECHNOLOGY: ZIPP's TSE (Total System Efficiency) technology optimises wheel performance by reducing aerodynamic drag, weight and friction. It thereby improves efficiency, speed and comfort on all terrains;
► ABLC SAWTOOTH: ZIPP's ABLC SawTooth technology optimises aerodynamics through a specific undulating pattern on the rim, reducing drag and improving stability against crosswinds for enhanced performance;
► HYPERFOIL: ZIPP's Hyperfoil technology is a series of strategically placed bumps on the rim of NSW wheels. It improves aerodynamic stability by reducing drag and minimising the impact of crosswinds;
► IMPRESS: ZIPP's ImPress technology allows graphics to be printed directly onto the rim, thereby reducing weight and optimising aerodynamics whilst maintaining the ABLC SawTooth honeycomb texture for improved performance;

┘INCLUDED
2x Tubeless Valves
2x Center Lock Nuts
Lifetime warranty
;
