ZIPP

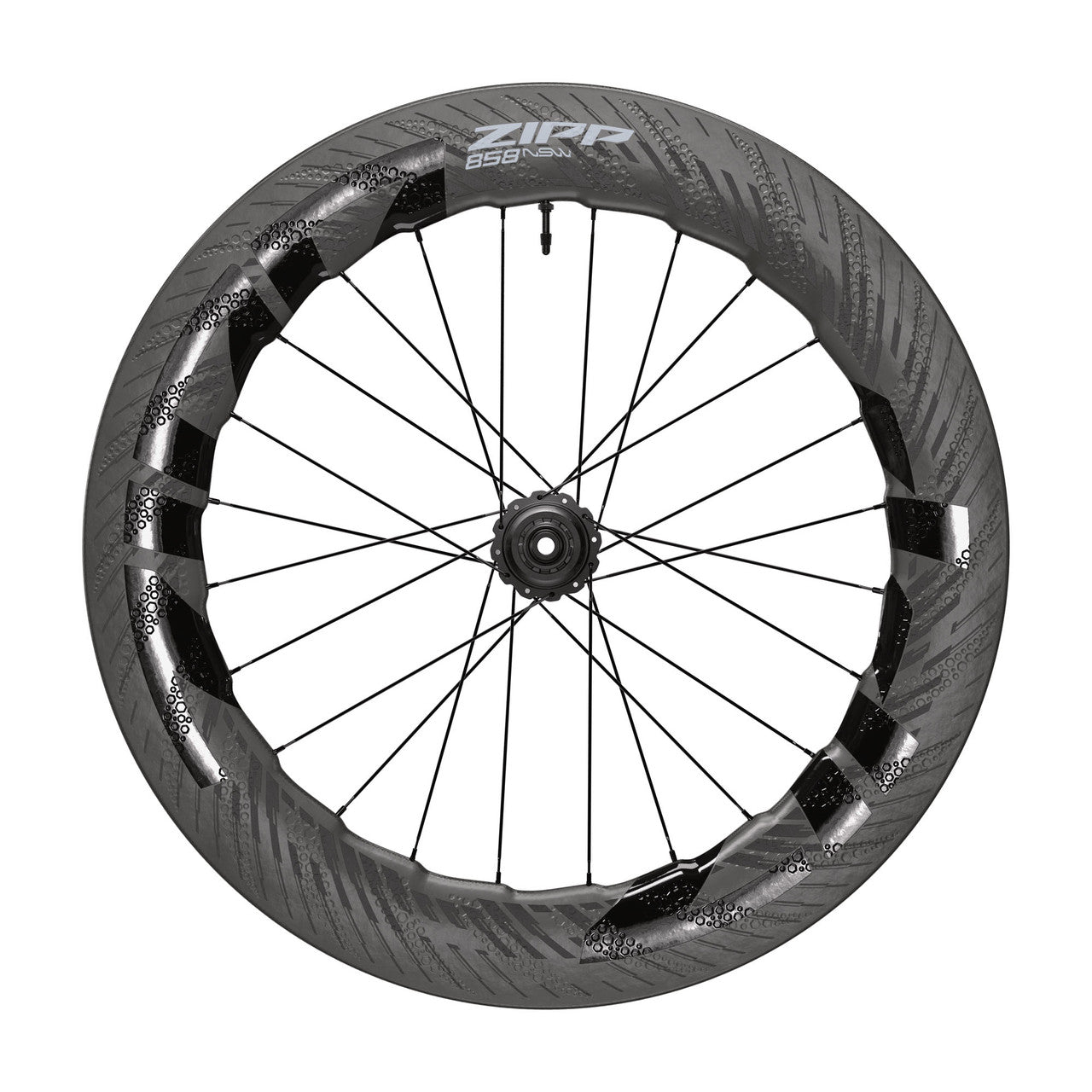

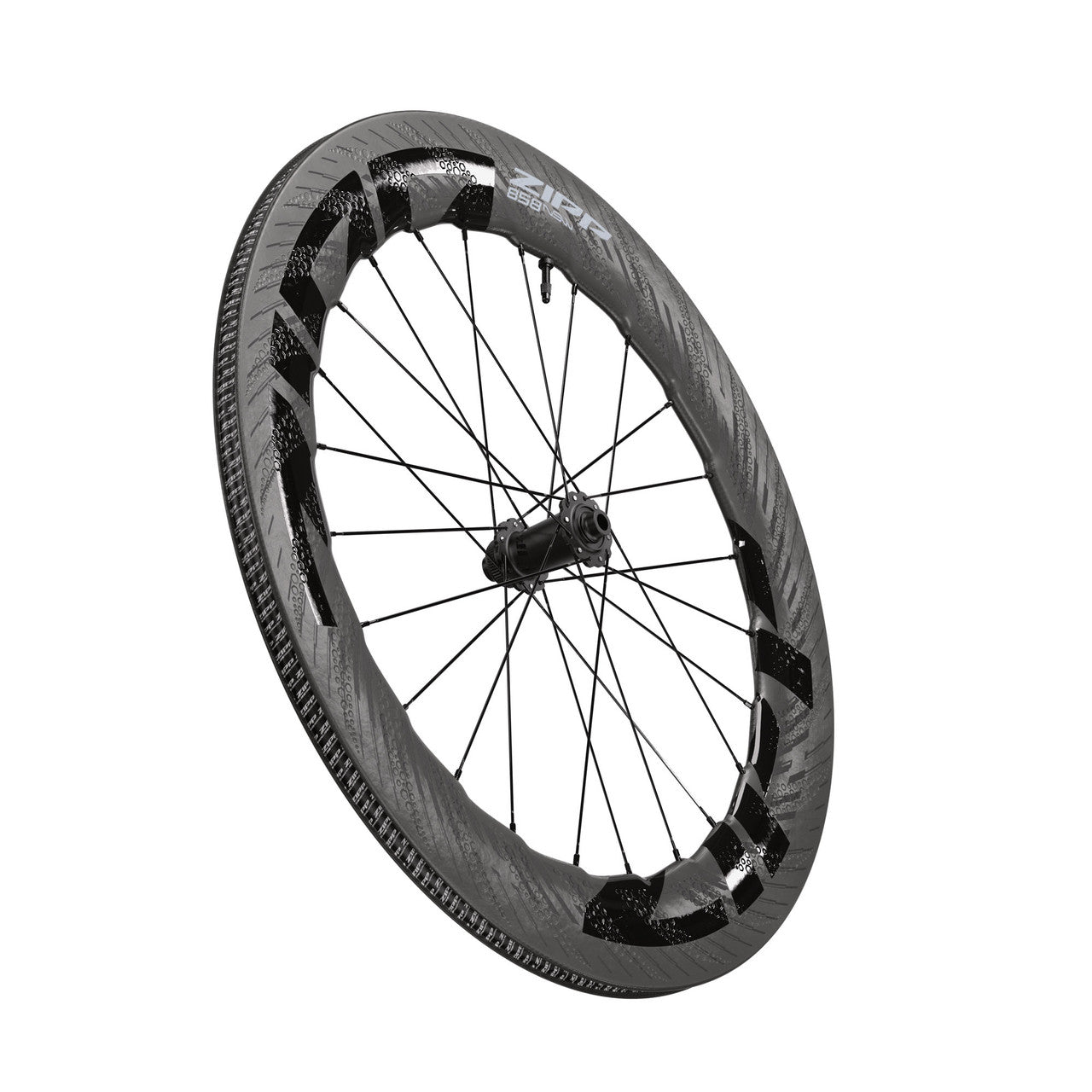

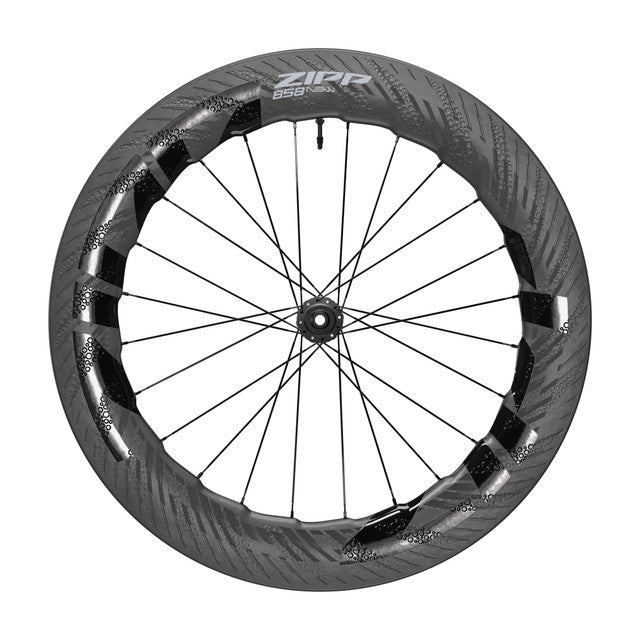

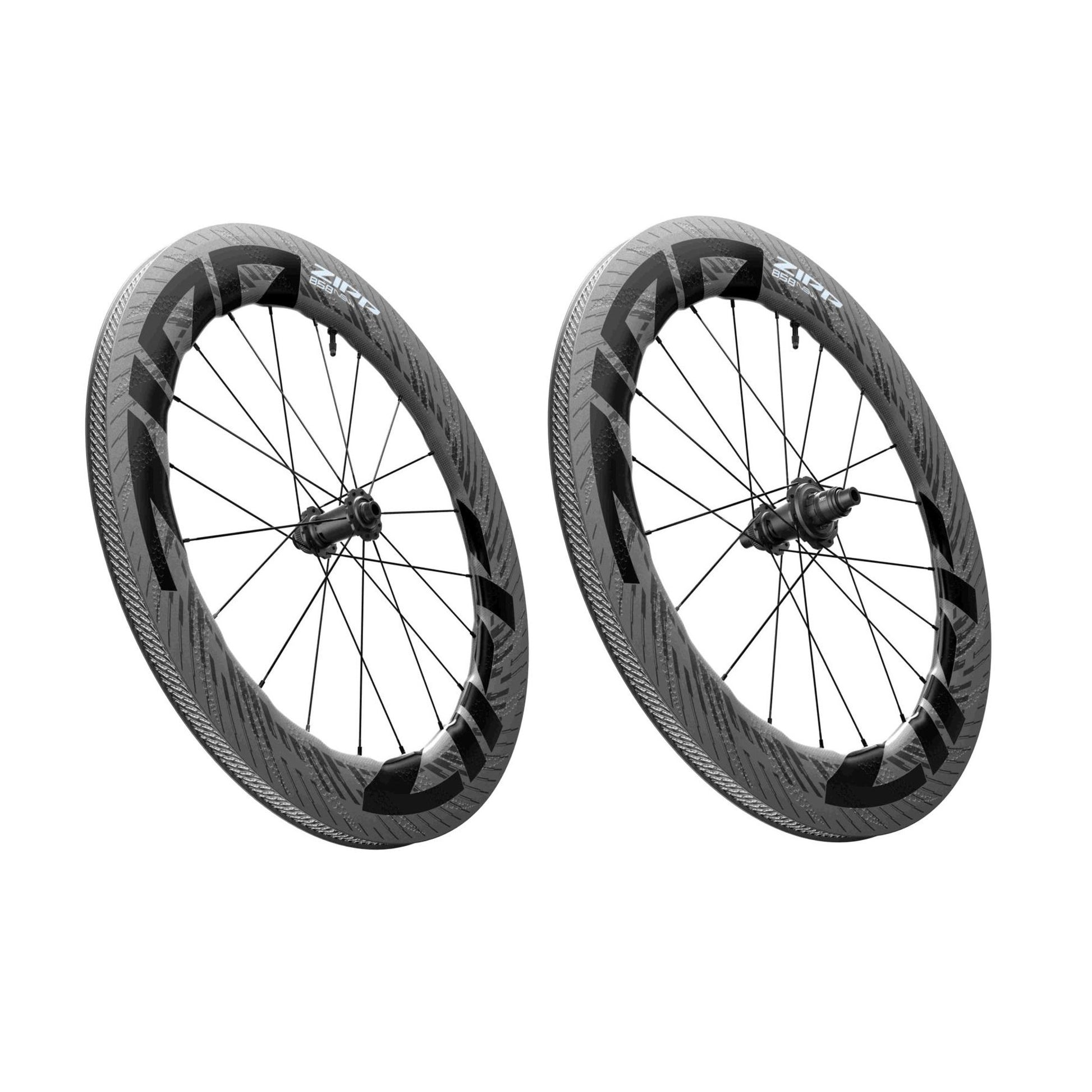

Pair of ZIPP 858 NSW DISC wheels Tubeless Ready (Center Lock)

Zipp's ultimate aerodynamic weapon, the ZIPP 858 NSW DISC Wheelset Tubeless Ready (Center Lock)wheels are faster than ever thanks to Total System Efficiency (TSE)... Read more

Recommanded price: 4.000,00 €

Regular price 3.199,90 €
Regular price Sale price 3.199,90 €
View full details

Description

Zipp's ultimate aerodynamic weapon, the ZIPP 858 NSW DISC Wheelset Tubeless Ready (Center Lock)wheels are faster than ever thanks to Total System Efficiency (TSE) technology.

With a tubeless, hookless rim profile, the weight is considerably reduced. The 82-85mm corrugated rim and Sawtooth profile improve aerodynamic efficiency and crosswind stability. The 23mm internal width allows the use of wide, low-pressure tires to reduce rolling resistance.

Optimized for tubeless tires, it can also accommodate Tubeless Ready tubeless tires. The Cognition V2 hub offers reduced friction and enhanced durability.

► Manufacturer's manual

► Zipp Hookless tire/rim compatibility chart

Ref: 9453597426013

Points forts

Zipp's most advanced and fastest deep rim wheel for the Road, triathlon and time trials

Optimized tire bed for easy installation

TSE technology for greater efficiency and reduced rolling resistance

Sawtooth rim with Hyperfoil knots and HexFin ABLC cavity pattern for optimum aerodynamic performance and crosswind stability with undulating rim depth

Cognition V2 hub rolls efficiently whether you're pedaling or not. Axial Clutch V2 technology reduces drag and lowers friction

Zipp graphics applied using Zipp ImPress direct printing technology

Informations techniques

GENERAL
Pair weight: 1530 g
Max. load 114 kg
Part Number :
- Avant - 00.1918.697.000
- Rear - Shimano HG - 00.1918.698.000
- Rear - SRAM XDR - 00.1918.698.001

RIM
Material : Carbon
Tire interface: Hookless
Profile: Symmetrical
Technologies: ABLC SawTooth texture (aerodynamics, stability) / UD Fiber finish (stiffness, strength, lightness)
Wheel diameter: 622mm / 29" / 700c
Rim height: 85mm
Internal width: 23mm
Tire compatibility: Tubeless only | Min. tire width 25mm
Maximum tire pressure: 73psi/5.0bar

MEDIUM
Model: Cognition V2
Material: Aluminium
Bearings : Steel, cartridge
Front and rear center distance: 12x100mm | 12x142mm
Disc mounting : Center Lock
Freewheel body: Shimano HG or SRAM XDR
Gear mechanism: Axial Clutch V2, 54 engagement points

SPOKES AND NIPPLES
Model: Sapim CX-Ray
Front spokes :
- Number: 24
- Right side length: 218mm
- Left side length: 232mm
Rear spokes :
- Number: 24
- Right side length: 230mm
- Left side length: 234mm
Rack type: 2 Cross
Nuts : Sapim Secure-Loc (anti-rotation) - Aluminium

INCLUDED
2x Tubeless Valves
2x Nuts Center Lock

Informations prix

Recommended retail price February 2024
